Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

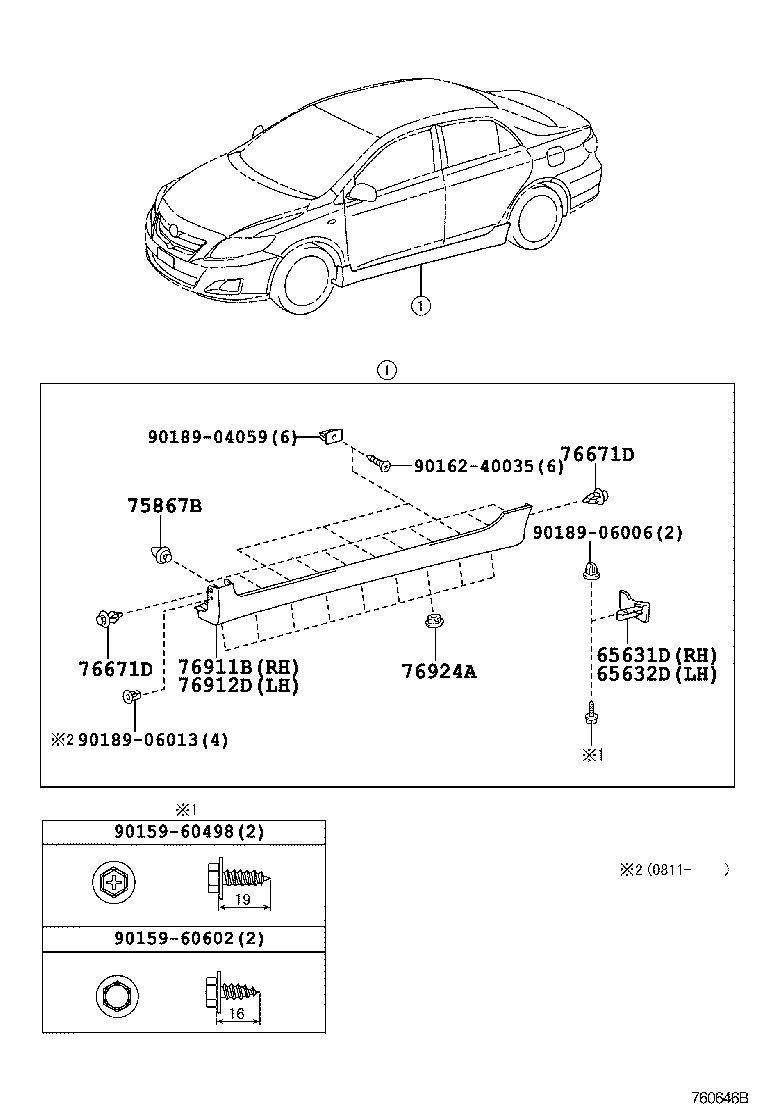

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 65631D — Plate, Rear Wheel House, Front RH | ||||
| 65631-12060 |
Plate, Rear Wheel House, Front RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 65631-12060 |
Plate, Rear Wheel House, Front RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 65632D — Plate, Rear Wheel House, Front LH | ||||
| 65632-12060 |
Plate, Rear Wheel House, Front LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 65632-12060 |
Plate, Rear Wheel House, Front LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 75867B — Clip, Rocker Panel Moulding | ||||
| 75867-12040 |
Clip, Rocker Panel Moulding
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 75867-12040 |
Clip, Rocker Panel Moulding
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 76671D — Clip, Side Mudguard | ||||
| 90467-06165 |
Clip, Side Mudguard
2007-12 → 2009-02
ended
|
ZRE142 JPP | — | |
| 90467-06165-C0 note |
Clip, Side Mudguard
2009-02 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90467-06165-C0 note |
Clip, Side Mudguard
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 76911B — Mudguard, Side, RH | ||||
| 76911-12904 |
Mudguard, Side, RH
2007-12 → 2008-11
ended
|
ZRE142 JPP | — | |
| 76911-12905 |
Mudguard, Side, RH
2008-11 → 2010-12
ended
|
ZRE142 JPP | — | |
| 76911-12905 |
Mudguard, Side, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 76912D — Mudguard, Side, LH | ||||
| 76912-12903 |
Mudguard, Side, LH
2007-12 → 2008-11
ended
|
ZRE142 JPP | — | |
| 76912-12904 |
Mudguard, Side, LH
2008-11 → 2010-12
ended
|
ZRE142 JPP | — | |
| 76912-12904 |
Mudguard, Side, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 76924A — Retainer, Side Mudguard, NO.2 | ||||
| 76924-12040 |
Retainer, Side Mudguard, NO.2
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 76924-12040 |
Retainer, Side Mudguard, NO.2
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
