Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

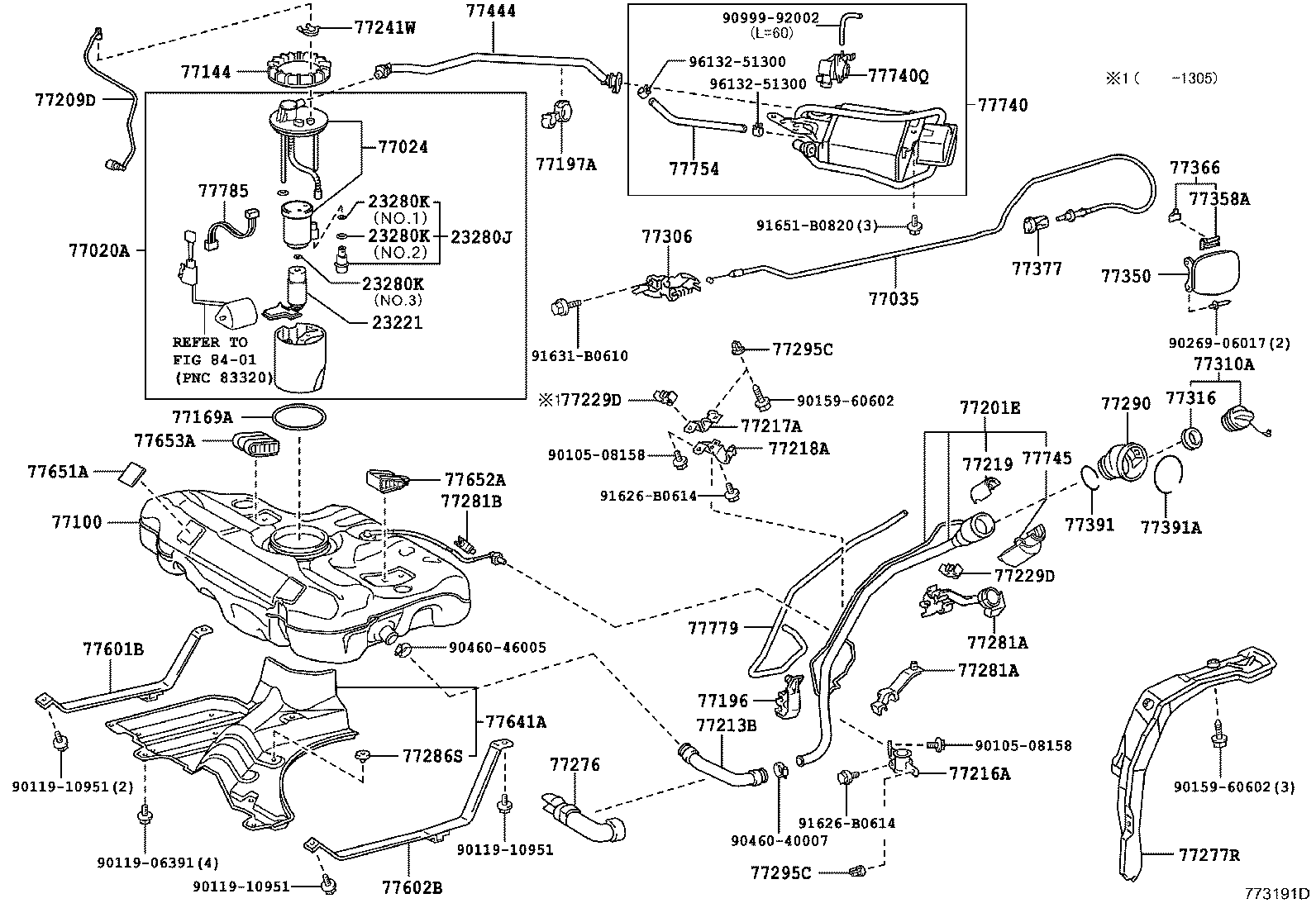

Exploded illustration 773191D 23280J — REGULATOR ASSY, FUEL PRESSURE (2 parts) 23221 — PUMP, FUEL (3 parts) 23280K — RING, O(FOR FUEL PRESSURE REGULATOR) (6 parts) 23280K — RING, O(FOR FUEL PRESSURE REGULATOR) (6 parts) 77035 — CABLE SUB-ASSY, FUEL LID LOCK CONTROL (2 parts) 77306 — LEVER SUB-ASSY, FUEL LID LOCK OPEN (2 parts) 77100 — TANK ASSY, FUEL (3 parts) 77144 — RETAINER, FUEL PUMP GAUGE (2 parts) 77169A — GASKET, FUEL SUCTION TUBE SET (2 parts) 77201E — PIPE SUB-ASSY, FUEL TANK FILLER (3 parts) 77209D — TUBE SUB-ASSY, FUEL TANK MAIN (2 parts) 77213B — HOSE, FUEL TANK TO FILLER PIPE (2 parts) 77216A — SUPPORT, FUEL TANK FILLER PIPE, NO.1 (2 parts) 77217A — SUPPORT, FUEL TANK FILLER PIPE, NO.2 (2 parts) 77218A — SUPPORT, FUEL TANK FILLER PIPE, NO.3 (2 parts) 77229D — SUPPORT, FUEL TANK FILLER PIPE, NO.4 (3 parts) 77241W — CLIP, TUBE JOINT (3 parts) 77276 — PROTECTOR, FUEL HOSE (2 parts) 77277R — PROTECTOR, FUEL TANK FILLER PIPE (3 parts) 77281B — CLAMP, FUEL HOSE(FOR REAR FUEL MAIN) (2 parts) 77281A — CLAMP, FUEL FILLER PIPE (2 parts) 77286S — CUSHION, FUEL TANK PROTECTOR (2 parts) 77290 — SHIELD ASSY, FUEL TANK FILLER PIPE (2 parts) 77295C — GROMMET, FUEL TUBE (2 parts) 77295C — GROMMET, FUEL TUBE (2 parts) 77350 — LID ASSY, FUEL FILLER OPENING (2 parts) 77366 — SPRING, FUEL FILLER OPENING LID HINGE (2 parts) 77358A — STOPPER, FUEL FILLER OPENING LID (2 parts) 77377 — RETAINER, FUEL FILLER OPENING LID LOCK (2 parts) 77391 — RING, FUEL INLET BOX (2 parts) 77391A — RING, FUEL INLET BOX (2 parts) 77444 — HOSE, FUEL TANK VENT (2 parts) 77601B — BAND SUB-ASSY, FUEL TANK, NO.1 RH (2 parts) 77602B — BAND SUB-ASSY, FUEL TANK, NO.1 LH (2 parts) 77641A — PROTECTOR, FUEL TANK, NO.1 (2 parts) 77651A — CUSHION, FUEL TANK, NO.1 (2 parts) 77652A — CUSHION, FUEL TANK, NO.2 (2 parts) 77653A — CUSHION, FUEL TANK, NO.3 (2 parts) 77197A — CLAMP, EVAPORATION VENT TUBE, NO.2 (2 parts) 9011910951 — not listed in this catalogue 9011910951 — not listed in this catalogue 9011910951 — not listed in this catalogue 91626B0614 — not listed in this catalogue 9011906391 — not listed in this catalogue 91626B0614 — not listed in this catalogue 9010508158 — not listed in this catalogue 9010508158 — not listed in this catalogue 9015960602 — not listed in this catalogue 9026906017 — not listed in this catalogue 9046040007 — not listed in this catalogue 9046046005 — not listed in this catalogue 23280K — RING, O(FOR FUEL PRESSURE REGULATOR) (6 parts) 77779 — TUBE, CHARCOAL CANISTER OUTLET (3 parts) 77024 — TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT (2 parts) 77020A — TUBE ASSY, FUEL SUCTION W/PUMP & GAGE (2 parts) 77785 — HARNESS, FUEL PUMP (2 parts) 91631B0610 — not listed in this catalogue 77229D — SUPPORT, FUEL TANK FILLER PIPE, NO.4 (3 parts) 77196 — CLAMP, EVAPORATION VENT TUBE, NO.1 (2 parts) 77219 — COVER, FUEL TANK FILLER PIPE (2 parts) 9015960602 — not listed in this catalogue 77281A — CLAMP, FUEL FILLER PIPE (2 parts) 77745 — FILTER, CHARCOAL CANISTER, NO.1 (1 parts) 77310A — CAP ASSY, FUEL TANK (2 parts) 77316 — GASKET, FUEL TANK CAP (1 parts) 77740 — CANISTER ASSY, CHARCOAL (3 parts) 91651B0820 — not listed in this catalogue 9613251300 — not listed in this catalogue 9613251300 — not listed in this catalogue 77740Q — LEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER (3 parts) 77754 — HOSE, CHARCOAL CANISTER OUTLET, NO.1 (2 parts) 9099992002 — not listed in this catalogue 8401 — not listed in this catalogue
773191D · 54 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
109 parts on this figure
Part number Description Fitment Price
23221 — Pump, Fuel
23220-0H130 Pump, Fuel
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
23220-0H130 Pump, Fuel
2010-12 → 2011-07 ended
2ZRFE ZRE142 JPP —
23220-0H131 Pump, Fuel
2011-07 → 2012-07 ended
2ZRFE ZRE142 JPP —
23280J — Regulator Assy, Fuel Pressure
23280-21010 Regulator Assy, Fuel Pressure
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
23280-21010 Regulator Assy, Fuel Pressure
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
23280K — Ring, O(FOR FUEL PRESSURE REGULATOR)
90301-04013 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90301-15024 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90301-A0013 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-12 → 2010-12 ended
2ZRFE ZRE142 JPP —
90301-04013 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
90301-15024 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
90301-A0013 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2010-12 → 2013-08 ended
2ZRFE ZRE142 JPP —
77020A — Tube Assy, Fuel Suction W/Pump & Gage
77020-02291 Tube Assy, Fuel Suction W/Pump & Gage
2007-12 → 2010-12 ended
ZRE142 JPP —
77020-02291 Tube Assy, Fuel Suction W/Pump & Gage
2010-12 → 2013-08 ended
ZRE142 JPP —
77024 — Tube Sub-assy, Fuel Main & Return, Front
77024-02180 Tube Sub-assy, Fuel Main & Return, Front
2007-12 → 2010-12 ended
ZRE142 JPP —
77024-02180 Tube Sub-assy, Fuel Main & Return, Front
2010-12 → 2013-08 ended
ZRE142 JPP —
77035 — Cable Sub-assy, Fuel Lid Lock Control
77035-12520 Cable Sub-assy, Fuel Lid Lock Control
2007-12 → 2010-12 ended
ZRE142 JPP —
77035-12520 Cable Sub-assy, Fuel Lid Lock Control
2010-12 → 2013-08 ended
ZRE142 JPP —
77100 — Tank Assy, Fuel
77001-12B00 Tank Assy, Fuel
2007-12 → 2010-10 ended
ZRE142 JPP —
77001-12B01 Tank Assy, Fuel
2010-10 → 2010-12 ended
ZRE142 JPP —
77001-12B01 Tank Assy, Fuel
2010-12 → 2013-08 ended
ZRE142 JPP —
77144 — Retainer, Fuel Pump Gauge
77144-47020 Retainer, Fuel Pump Gauge
2007-12 → 2010-12 ended
ZRE142 JPP —
77144-47020 Retainer, Fuel Pump Gauge
2010-12 → 2013-08 ended
ZRE142 JPP —
77169A — Gasket, Fuel Suction Tube Set
77169-47030 Gasket, Fuel Suction Tube Set
2007-12 → 2010-12 ended
ZRE142 JPP —
77169-47030 Gasket, Fuel Suction Tube Set
2010-12 → 2013-08 ended
ZRE142 JPP —
77196 — Clamp, Evaporation Vent Tube, NO.1
77196-12040 Clamp, Evaporation Vent Tube, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
77196-12040 Clamp, Evaporation Vent Tube, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
77197A — Clamp, Evaporation Vent Tube, NO.2
77197-12080 Clamp, Evaporation Vent Tube, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
77197-12080 Clamp, Evaporation Vent Tube, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
77201E — Pipe Sub-assy, Fuel Tank Filler
77201-12710 Pipe Sub-assy, Fuel Tank Filler
2007-12 → 2010-12 ended
ZRE142 JPP —
77201-12710 Pipe Sub-assy, Fuel Tank Filler
2010-12 → 2012-10 ended
ZRE142 JPP —
77201-12711 Pipe Sub-assy, Fuel Tank Filler
2012-10 → 2013-08 ended
ZRE142 JPP —
77209D — Tube Sub-assy, Fuel Tank Main
77209-12250 Tube Sub-assy, Fuel Tank Main
2007-12 → 2010-12 ended
ZRE142 JPP —
77209-12250 Tube Sub-assy, Fuel Tank Main
2010-12 → 2013-08 ended
ZRE142 JPP —
77213B — Hose, Fuel Tank TO Filler Pipe
77213-12260 Hose, Fuel Tank TO Filler Pipe
2007-12 → 2010-12 ended
ZRE142 JPP —
77213-12260 Hose, Fuel Tank TO Filler Pipe
2010-12 → 2013-08 ended
ZRE142 JPP —
77216A — Support, Fuel Tank Filler Pipe, NO.1
77216-12110 Support, Fuel Tank Filler Pipe, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
77216-12110 Support, Fuel Tank Filler Pipe, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
77217A — Support, Fuel Tank Filler Pipe, NO.2
77217-12080 Support, Fuel Tank Filler Pipe, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
77217-12080 Support, Fuel Tank Filler Pipe, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
77218A — Support, Fuel Tank Filler Pipe, NO.3
77218-12060 Support, Fuel Tank Filler Pipe, NO.3
2007-12 → 2010-12 ended
ZRE142 JPP —
77218-12060 Support, Fuel Tank Filler Pipe, NO.3
2010-12 → 2013-08 ended
ZRE142 JPP —
77219 — Cover, Fuel Tank Filler Pipe
77219-21010 Cover, Fuel Tank Filler Pipe
2010-12 → 2012-10 ended
ZRE142 JPP —
77219-48030 Cover, Fuel Tank Filler Pipe
2012-10 → 2013-08 ended
ZRE142 JPP —
77229D — Support, Fuel Tank Filler Pipe, NO.4
77229-21010 Support, Fuel Tank Filler Pipe, NO.4
2007-12 → 2010-12 ended
ZRE142 JPP —
77229-21010 Support, Fuel Tank Filler Pipe, NO.4
2010-12 → 2013-05 ended
ZRE142 JPP —
77229-21010 Support, Fuel Tank Filler Pipe, NO.4
2013-05 → 2013-08 ended
ZRE142 JPP —
77241W — Clip, Tube Joint
77241-33011 Clip, Tube Joint
2010-02 → 2010-12 ended
ZRE142 JPP —
77241-60320 Clip, Tube Joint
2007-12 → 2010-02 ended
ZRE142 JPP —
77241-33011 Clip, Tube Joint
2010-12 → 2013-08 ended
ZRE142 JPP —
77276 — Protector, Fuel Hose
77276-12070 Protector, Fuel Hose
2007-12 → 2010-12 ended
ZRE142 JPP —
77276-12070 Protector, Fuel Hose
2010-12 → 2013-08 ended
ZRE142 JPP —
77277R — Protector, Fuel Tank Filler Pipe
77277-12240 Protector, Fuel Tank Filler Pipe
2007-12 → 2010-12 ended
ZRE142 JPP —
77277-12240 Protector, Fuel Tank Filler Pipe
2010-12 → 2011-07 ended
ZRE142 JPP —
77277-12270 Protector, Fuel Tank Filler Pipe
2011-07 → 2013-08 ended
ZRE142 JPP —
77281A — Clamp, Fuel Filler Pipe
77281-12090 Clamp, Fuel Filler Pipe
2007-12 → 2010-12 ended
ZRE142 JPP —
77281-12090 Clamp, Fuel Filler Pipe
2010-12 → 2013-08 ended
ZRE142 JPP —
77281B — Clamp, Fuel Hose(FOR REAR FUEL MAIN)
77281-12130 Clamp, Fuel Hose(FOR REAR FUEL MAIN)
2007-12 → 2010-12 ended
ZRE142 JPP —
77281-12130 Clamp, Fuel Hose(FOR REAR FUEL MAIN)
2010-12 → 2013-08 ended
ZRE142 JPP —
77286S — Cushion, Fuel Tank Protector
77286-12110 Cushion, Fuel Tank Protector
2007-12 → 2010-12 ended
ZRE142 JPP —
77286-12110 Cushion, Fuel Tank Protector
2010-12 → 2013-08 ended
ZRE142 JPP —
77290 — Shield Assy, Fuel Tank Filler Pipe
77291-12210 Shield Assy, Fuel Tank Filler Pipe
2007-12 → 2010-12 ended
ZRE142 JPP —
77291-12210 Shield Assy, Fuel Tank Filler Pipe
2010-12 → 2013-08 ended
ZRE142 JPP —
77295C — Grommet, Fuel Tube
77295-12070 Grommet, Fuel Tube
2007-12 → 2010-12 ended
ZRE142 JPP —
77295-12070 Grommet, Fuel Tube
2010-12 → 2013-08 ended
ZRE142 JPP —
77306 — Lever Sub-assy, Fuel Lid Lock Open
64606-12050 Lever Sub-assy, Fuel Lid Lock Open
2007-12 → 2010-12 ended
ZRE142 JPP —
64606-12050 Lever Sub-assy, Fuel Lid Lock Open
2010-12 → 2013-08 ended
ZRE142 JPP —
77310A — Cap Assy, Fuel Tank
77300-52040 Cap Assy, Fuel Tank
2007-12 → 2010-12 ended
ZRE142 JPP —
77300-52040 Cap Assy, Fuel Tank
2010-12 → 2013-08 ended
ZRE142 JPP —
77316 — Gasket, Fuel Tank Cap
77316-52040 Gasket, Fuel Tank Cap
2010-12 → 2013-08 ended
ZRE142 JPP —
77350 — Lid Assy, Fuel Filler Opening
77350-12510 Lid Assy, Fuel Filler Opening
2007-12 → 2010-12 ended
ZRE142 JPP —
77350-12510 Lid Assy, Fuel Filler Opening
2010-12 → 2013-08 ended
ZRE142 JPP —
77358A — Stopper, Fuel Filler Opening Lid
77358-30060 Stopper, Fuel Filler Opening Lid
2007-12 → 2010-12 ended
ZRE142 JPP —
77358-30060 Stopper, Fuel Filler Opening Lid
2010-12 → 2013-08 ended
ZRE142 JPP —
77366 — Spring, Fuel Filler Opening Lid Hinge
77360-30080 Spring, Fuel Filler Opening Lid Hinge
2007-12 → 2010-12 ended
ZRE142 JPP —
77360-30080 Spring, Fuel Filler Opening Lid Hinge
2010-12 → 2013-08 ended
ZRE142 JPP —
77377 — Retainer, Fuel Filler Opening Lid Lock
77377-35010 Retainer, Fuel Filler Opening Lid Lock
2007-12 → 2010-12 ended
ZRE142 JPP —
77377-35010 Retainer, Fuel Filler Opening Lid Lock
2010-12 → 2013-08 ended
ZRE142 JPP —
77391 — Ring, Fuel Inlet Box
77391-12060 Ring, Fuel Inlet Box
2007-12 → 2010-12 ended
ZRE142 JPP —
77391-12060 Ring, Fuel Inlet Box
2010-12 → 2013-08 ended
ZRE142 JPP —
77391A — Ring, Fuel Inlet Box
77391-12020 Ring, Fuel Inlet Box
2007-12 → 2010-12 ended
ZRE142 JPP —
77391-12020 Ring, Fuel Inlet Box
2010-12 → 2013-08 ended
ZRE142 JPP —
77444 — Hose, Fuel Tank Vent
77404-12020 Hose, Fuel Tank Vent
2007-12 → 2010-12 ended
ZRE142 JPP —
77404-12020 Hose, Fuel Tank Vent
2010-12 → 2013-08 ended
ZRE142 JPP —
77601B — Band Sub-assy, Fuel Tank, NO.1 RH
77601-12370 Band Sub-assy, Fuel Tank, NO.1 RH
2007-12 → 2010-12 ended
ZRE142 JPP —
77601-12370 Band Sub-assy, Fuel Tank, NO.1 RH
2010-12 → 2013-08 ended
ZRE142 JPP —
77602B — Band Sub-assy, Fuel Tank, NO.1 LH
77602-12280 Band Sub-assy, Fuel Tank, NO.1 LH
2007-12 → 2010-12 ended
ZRE142 JPP —
77602-12280 Band Sub-assy, Fuel Tank, NO.1 LH
2010-12 → 2013-08 ended
ZRE142 JPP —
77641A — Protector, Fuel Tank, NO.1
77641-12230 Protector, Fuel Tank, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
77641-12230 Protector, Fuel Tank, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
77651A — Cushion, Fuel Tank, NO.1
77651-12080 Cushion, Fuel Tank, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
77651-12080 Cushion, Fuel Tank, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
77652A — Cushion, Fuel Tank, NO.2
77652-12140 Cushion, Fuel Tank, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
77652-12140 Cushion, Fuel Tank, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
77653A — Cushion, Fuel Tank, NO.3
77653-12110 Cushion, Fuel Tank, NO.3
2007-12 → 2010-12 ended
ZRE142 JPP —
77653-12110 Cushion, Fuel Tank, NO.3
2010-12 → 2013-08 ended
ZRE142 JPP —
77740 — Canister Assy, Charcoal
77740-02130 Canister Assy, Charcoal
2007-12 → 2010-12 ended
ZRE142 JPP —
77740-02130 Canister Assy, Charcoal
2010-12 → 2012-10 ended
ZRE142 JPP —
77740-02131 Canister Assy, Charcoal
2012-10 → 2013-08 ended
ZRE142 JPP —
77740Q — Leak Detection Pump Sub-assy, Charcoal Canister
90910-AF002 Leak Detection Pump Sub-assy, Charcoal Canister
2007-12 → 2010-12 ended
ZRE142 JPP —
90910-AF002 Leak Detection Pump Sub-assy, Charcoal Canister
2010-12 → 2012-12 ended
ZRE142 JPP —
90910-AF005 Leak Detection Pump Sub-assy, Charcoal Canister
2013-01 → 2013-08 ended
ZRE142 JPP —
77745 — Filter, Charcoal Canister, NO.1
77745-48020 Filter, Charcoal Canister, NO.1
2012-10 → 2013-08 ended
ZRE142 JPP —
77754 — Hose, Charcoal Canister Outlet, NO.1
77754-02040 Hose, Charcoal Canister Outlet, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
77754-02040 Hose, Charcoal Canister Outlet, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
77779 — Tube, Charcoal Canister Outlet
77779-12040 Tube, Charcoal Canister Outlet
2007-12 → 2010-12 ended
ZRE142 JPP —
77779-12040 Tube, Charcoal Canister Outlet
2010-12 → 2012-10 ended
ZRE142 JPP —
77779-12041 Tube, Charcoal Canister Outlet
2012-10 → 2013-08 ended
ZRE142 JPP —
77785 — Harness, Fuel Pump
77785-02030 Harness, Fuel Pump
2007-12 → 2010-12 ended
ZRE142 JPP —
77785-02030 Harness, Fuel Pump
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
