Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

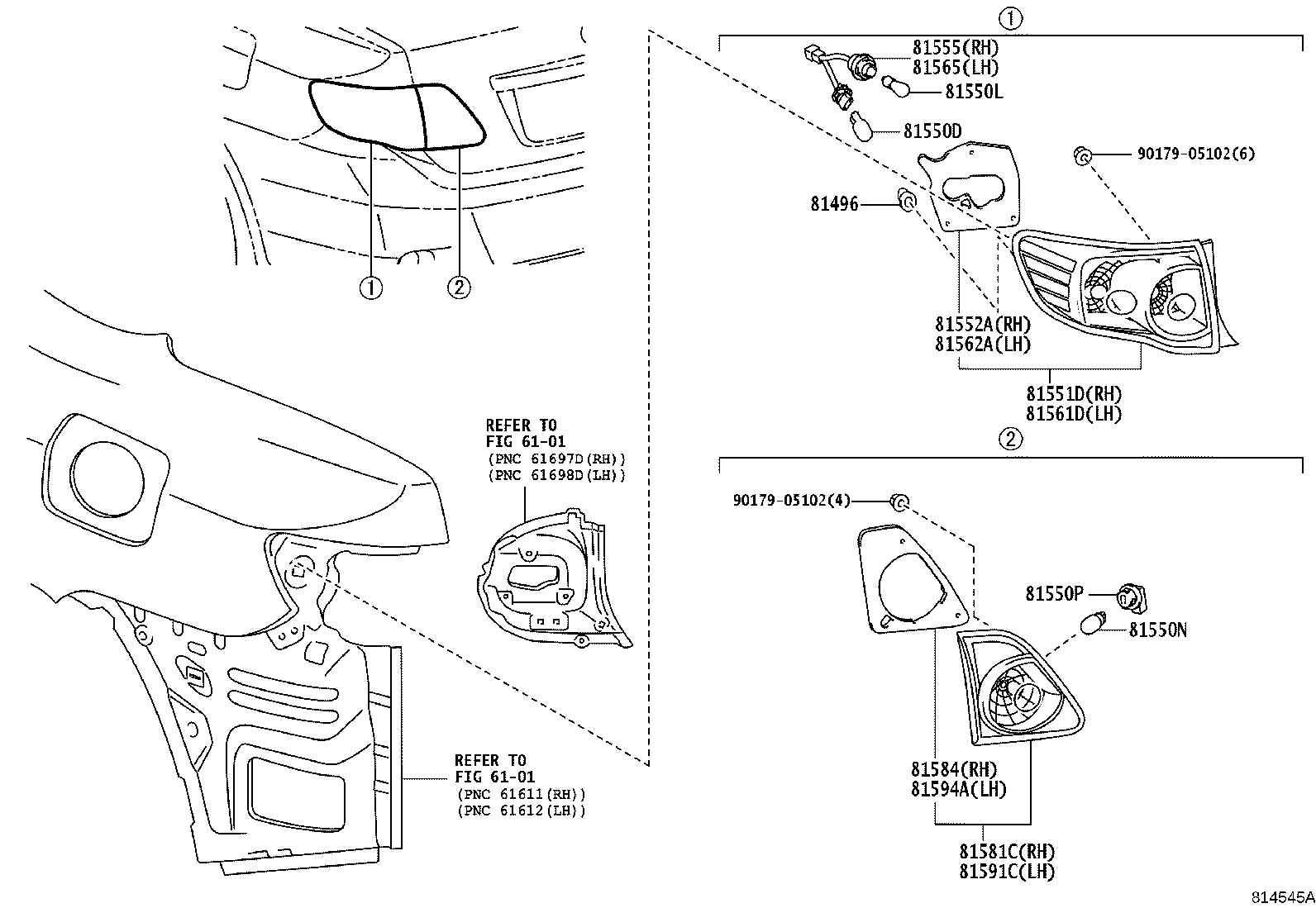

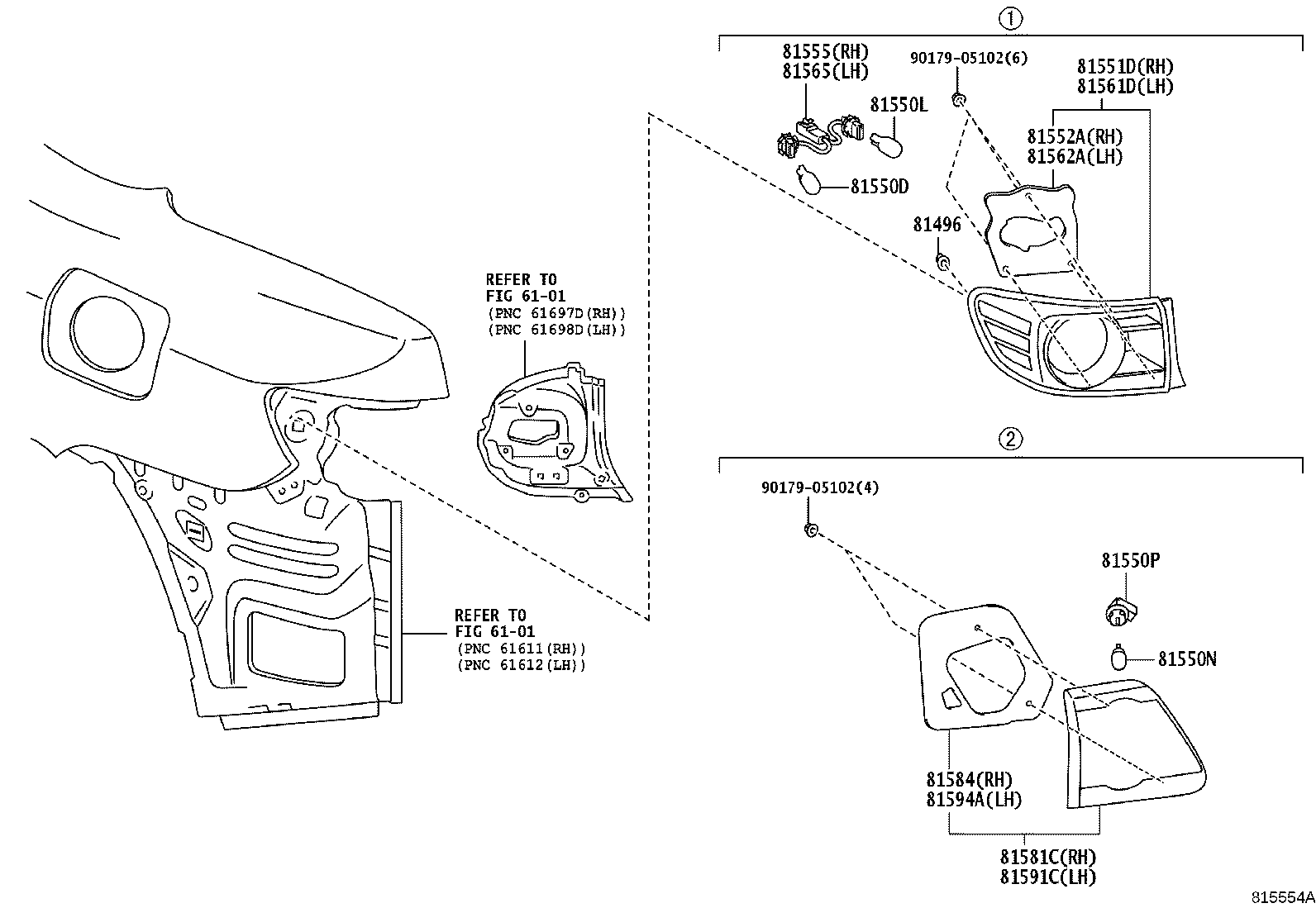

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81496 — Guide, Rear Combination Lamp | ||||
| 81496-52020 |
Guide, Rear Combination Lamp
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 81496-52020 |
Guide, Rear Combination Lamp
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 81550D — Bulb(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 note |
Bulb(FOR REAR COMBINATION LAMP)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90981-13044 note |
Bulb(FOR REAR COMBINATION LAMP)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 81550L — Bulb, Rear Turn Signal Lamp | ||||
| 99132-11210 |
Bulb, Rear Turn Signal Lamp
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90981-15021 |
Bulb, Rear Turn Signal Lamp
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 81550N — Bulb, Back UP Lamp | ||||
| 90981-11059 |
Bulb, Back UP Lamp
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90981-11059 |
Bulb, Back UP Lamp
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 81550P — Socket, Back UP Lamp | ||||
| 90075-99005 |
Socket, Back UP Lamp
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90075-99005 |
Socket, Back UP Lamp
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 81551D — Lens & Body, Rear Combination Lamp, RH | ||||
| 81551-12A50 |
Lens & Body, Rear Combination Lamp, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 81551-12C10 |
Lens & Body, Rear Combination Lamp, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 81552A — Gasket, Rear Combination Lamp, RH | ||||
| 81552-12A10 |
Gasket, Rear Combination Lamp, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 81554-12A30 |
Gasket, Rear Combination Lamp, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH | ||||
| 81555-12A10 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 81555-12A30 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 81561D — Lens & Body, Rear Combination Lamp, LH | ||||
| 81561-12A50 |
Lens & Body, Rear Combination Lamp, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 81561-12C10 |
Lens & Body, Rear Combination Lamp, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 81562A — Gasket, Rear Combination Lamp, LH | ||||
| 81552-12A10 |
Gasket, Rear Combination Lamp, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 81554-12A30 |
Gasket, Rear Combination Lamp, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH | ||||
| 81555-12A10 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 81555-12A30 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 81581C — Lens And Body, Rear Lamp, RH | ||||
| 81581-12110 |
Lens And Body, Rear Lamp, RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 81581-12170 |
Lens And Body, Rear Lamp, RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 81584 — Packing, Rear Lamp RH | ||||
| 81584-12110 |
Packing, Rear Lamp RH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 81584-12170 |
Packing, Rear Lamp RH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 81591C — Lens, Rear Lamp, LH | ||||
| 81591-12110 |
Lens, Rear Lamp, LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 81591-12140 |
Lens, Rear Lamp, LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 81594A — Gasket, Rear Lamp LH | ||||
| 81594-12110 |
Gasket, Rear Lamp LH
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 81594-12140 |
Gasket, Rear Lamp LH
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
