Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

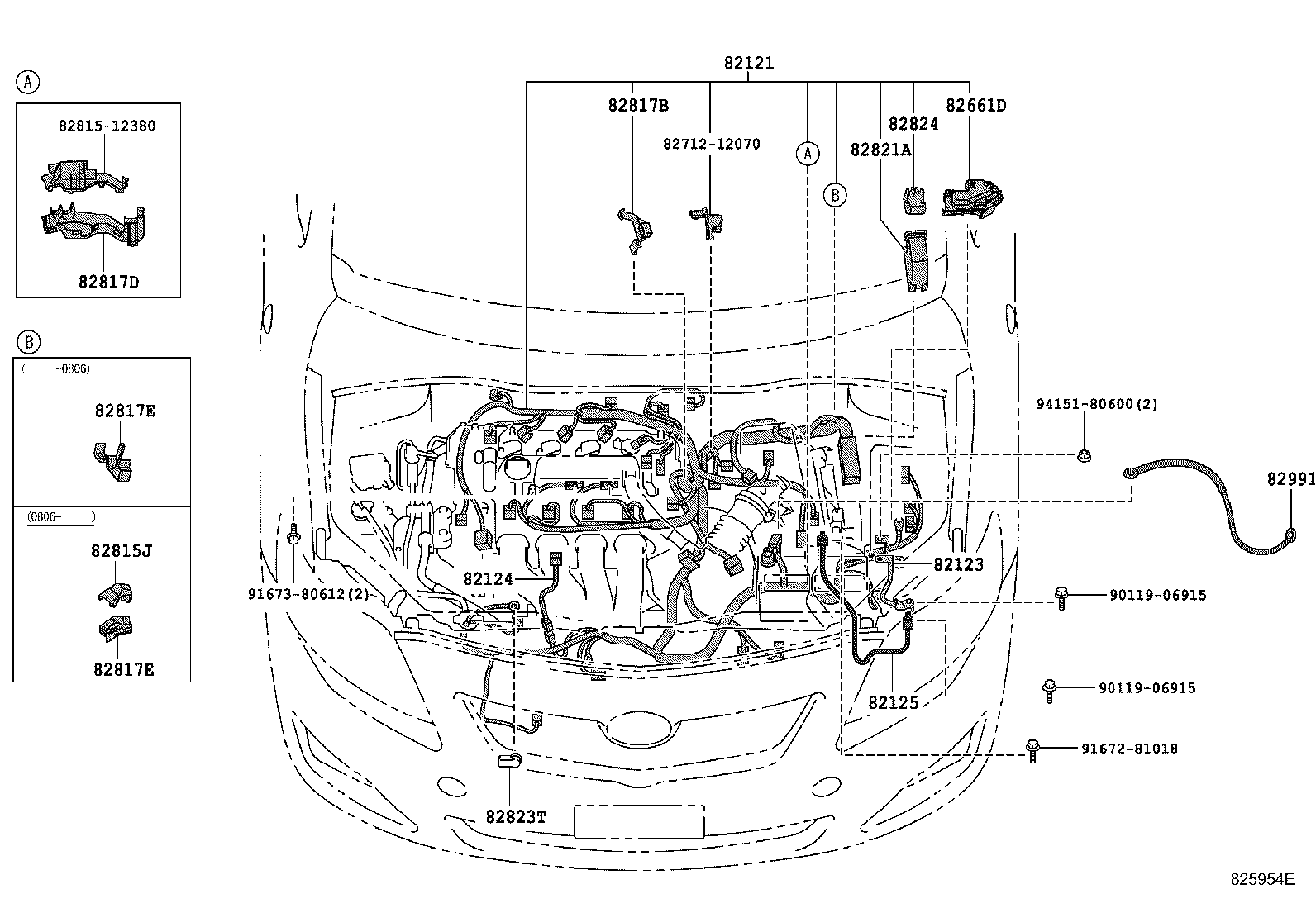

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-12J20 |
Wire, Engine
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82121-12L50 |
Wire, Engine
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-12470 |
Wire, Engine, NO.3
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82123-12470 |
Wire, Engine, NO.3
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82124 — Wire, Engine, NO.4 | ||||
| 82124-02090 |
Wire, Engine, NO.4
2007-12 → 2010-10
ended
|
ZRE142 JPP | — | |
| 82124-12160 |
Wire, Engine, NO.4
2010-10 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82124-12160 |
Wire, Engine, NO.4
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82125 — Wire, Transmission | ||||
| 82125-12510 |
Wire, Transmission
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82125-12510 |
Wire, Transmission
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82661D — Cover, Relay Block, Side NO.1 | ||||
| 82661-12280 |
Cover, Relay Block, Side NO.1
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82661-12280 |
Cover, Relay Block, Side NO.1
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82815J — Cover, Wiring Harness Protector, NO.7 | ||||
| 82815-12180 |
Cover, Wiring Harness Protector, NO.7
2008-06 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82815-12180 |
Cover, Wiring Harness Protector, NO.7
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-12G60 |
Protector, Wiring Harness, NO.3
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82817-12G60 |
Protector, Wiring Harness, NO.3
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82817D — Protector, Wiring Harness, NO.5 | ||||
| 82817-12G50 |
Protector, Wiring Harness, NO.5
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82817-12G50 |
Protector, Wiring Harness, NO.5
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82817E — Protector, Wiring Harness, NO.6 | ||||
| 82817-12B60 |
Protector, Wiring Harness, NO.6
2008-06 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82817-12J10 |
Protector, Wiring Harness, NO.6
2007-12 → 2008-06
ended
|
ZRE142 JPP | — | |
| 82817-12B60 |
Protector, Wiring Harness, NO.6
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82821A — Cover, Connector | ||||
| 82821-12560 |
Cover, Connector
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82821-12560 |
Cover, Connector
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-22050 |
Cap, Alternator Terminal
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82823-22050 |
Cap, Alternator Terminal
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82824 — Connector, Wiring Harness | ||||
| 82824-34100 |
Connector, Wiring Harness
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82824-34100 |
Connector, Wiring Harness
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82991 — Wire, Fusible Link Repair | ||||
| 82991-12110 |
Wire, Fusible Link Repair
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82991-12110 |
Wire, Fusible Link Repair
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
