Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

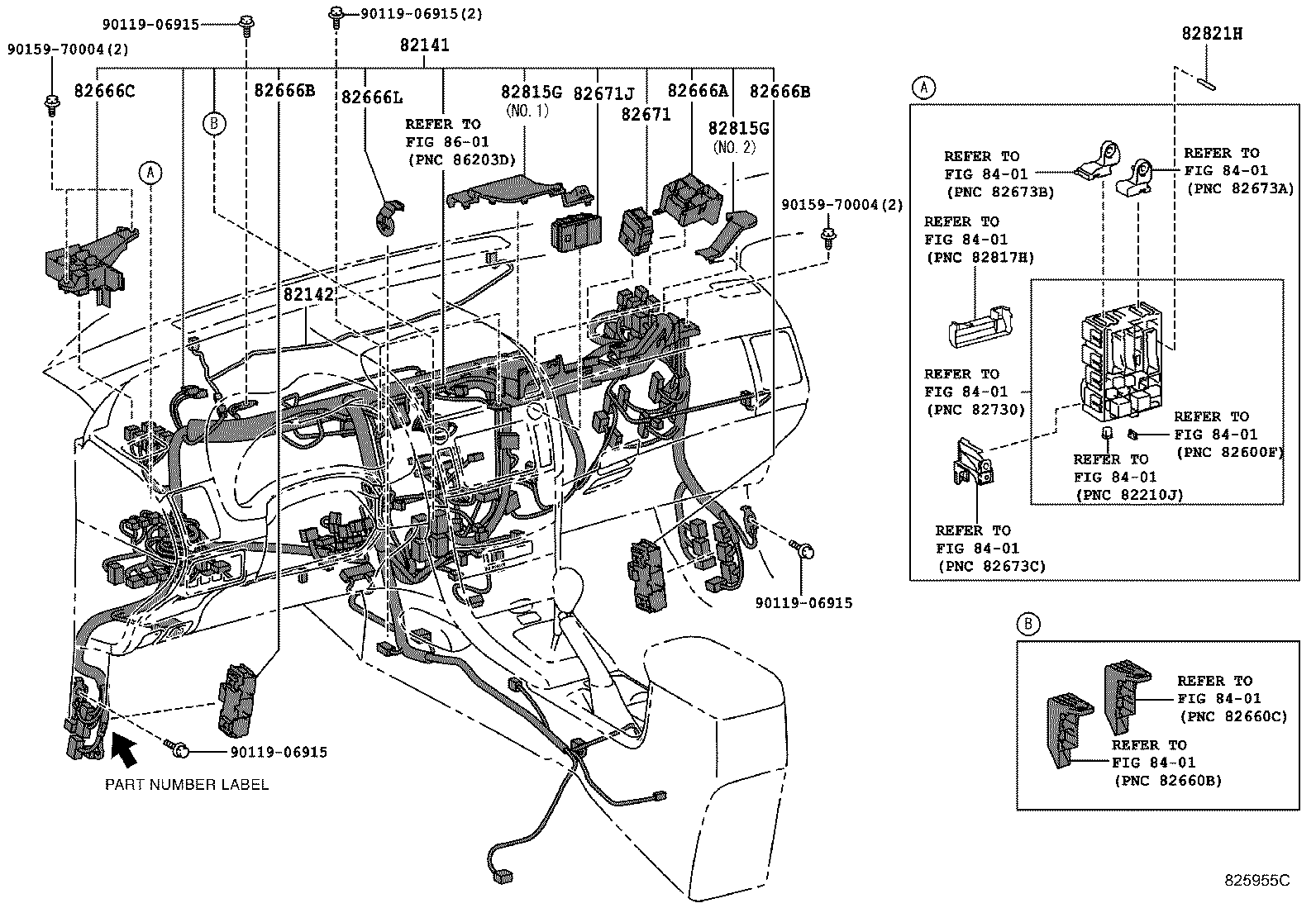

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82141-1HP00 |
Wire, Instrument Panel
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 82141-1HP10 note |
Wire, Instrument Panel
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
| 82141-1LB30 |
Wire, Instrument Panel
2009-01 → 2009-07
ended
|
ZRE142 JPP | — | |
| 82141-1LB31 |
Wire, Instrument Panel
2009-07 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82141-1LU10 note |
Wire, Instrument Panel
2009-01 → 2009-07
ended
|
ZRE142 JPP LE | — | |
| 82141-1LU11 note |
Wire, Instrument Panel
2009-07 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 82141-1KV20 |
Wire, Instrument Panel
2011-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 82141-1KV30 note |
Wire, Instrument Panel
2011-12 → 2012-07
ended
|
ZRE142 JPP STD | — | |
| 82141-1KV30 |
Wire, Instrument Panel
2011-12 → 2012-07
ended
|
ZRE142 JPP LE | — | |
| 82141-1KV31 note |
Wire, Instrument Panel
2012-07 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 82141-1ND70 |
Wire, Instrument Panel
2010-12 → 2011-12
ended
|
ZRE142 JPP | — | |
| 82141-1NE90 note |
Wire, Instrument Panel
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 82141-1NE90 note |
Wire, Instrument Panel
2011-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 82141-1NF00 note |
Wire, Instrument Panel
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 82141-1NU90 note |
Wire, Instrument Panel
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 82141-1TQ50 |
Wire, Instrument Panel
2012-07 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 82141-1HP00 note |
Wire, Instrument Panel
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 82141-1HP10 note |
Wire, Instrument Panel
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
| 82141-1KV20 note |
Wire, Instrument Panel
2011-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 82141-1KV30 note |
Wire, Instrument Panel
2011-12 → 2012-07
ended
|
ZRE142 JPP LE | — | |
| 82141-1KV30 note |
Wire, Instrument Panel
2011-12 → 2012-07
ended
|
ZRE142 JPP STD | — | |
| 82141-1KV31 note |
Wire, Instrument Panel
2012-07 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 82141-1LB30 note |
Wire, Instrument Panel
2009-01 → 2009-07
ended
|
ZRE142 JPP | — | |
| 82141-1LB31 note |
Wire, Instrument Panel
2009-07 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82141-1LU10 note |
Wire, Instrument Panel
2009-01 → 2009-07
ended
|
ZRE142 JPP LE | — | |
| 82141-1LU11 note |
Wire, Instrument Panel
2009-07 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 82141-1ND70 note |
Wire, Instrument Panel
2010-12 → 2011-12
ended
|
ZRE142 JPP | — | |
| 82141-1NE90 note |
Wire, Instrument Panel
2011-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 82141-1NE90 note |
Wire, Instrument Panel
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 82141-1NF00 note |
Wire, Instrument Panel
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 82141-1NU90 note |
Wire, Instrument Panel
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 82141-1TQ50 note |
Wire, Instrument Panel
2012-07 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 82142 — Wire, Instrument Panel, NO.2 | ||||
| 82142-12380 |
Wire, Instrument Panel, NO.2
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82142-12400 note |
Wire, Instrument Panel, NO.2
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 82666A — Holder, Connector NO.2 | ||||
| 82666-12350 |
Holder, Connector NO.2
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 82666-12350 note |
Holder, Connector NO.2
2009-01 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 82666-12350 |
Holder, Connector NO.2
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82666B — Holder, Connector NO.3 | ||||
| 82666-12360 |
Holder, Connector NO.3
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 82666-12360 note |
Holder, Connector NO.3
2009-01 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 82666-12360 |
Holder, Connector NO.3
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82666C — Holder, Connector NO.4 | ||||
| 82666-12440 |
Holder, Connector NO.4
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 82666-12440 note |
Holder, Connector NO.4
2009-01 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 82666-12440 |
Holder, Connector NO.4
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82666L — Holder, Connector NO.9 | ||||
| 82666-12450 |
Holder, Connector NO.9
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 82666-12450 note |
Holder, Connector NO.9
2009-01 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 82666-12450 |
Holder, Connector NO.9
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82671 — Block, Junction | ||||
| 82671-12260 |
Block, Junction
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 82671-12260 note |
Block, Junction
2009-01 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 82671-12340 |
Block, Junction
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82671J — Block, Junction, NO.2 | ||||
| 82671-12250 |
Block, Junction, NO.2
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 82671-12250 note |
Block, Junction, NO.2
2009-01 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 82815G — Cover, Wiring Harness Protector NO.5 | ||||
| 82815-12300 note |
Cover, Wiring Harness Protector NO.5
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 82815-12300 note |
Cover, Wiring Harness Protector NO.5
2009-01 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 82815-12340 note |
Cover, Wiring Harness Protector NO.5
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 82815-12340 note |
Cover, Wiring Harness Protector NO.5
2009-01 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 82815-12300 note |
Cover, Wiring Harness Protector NO.5
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82815-12340 note |
Cover, Wiring Harness Protector NO.5
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 82821H — Cover, Connector | ||||
| 82821-52020 |
Cover, Connector
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82821-52020 |
Cover, Connector
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
