Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

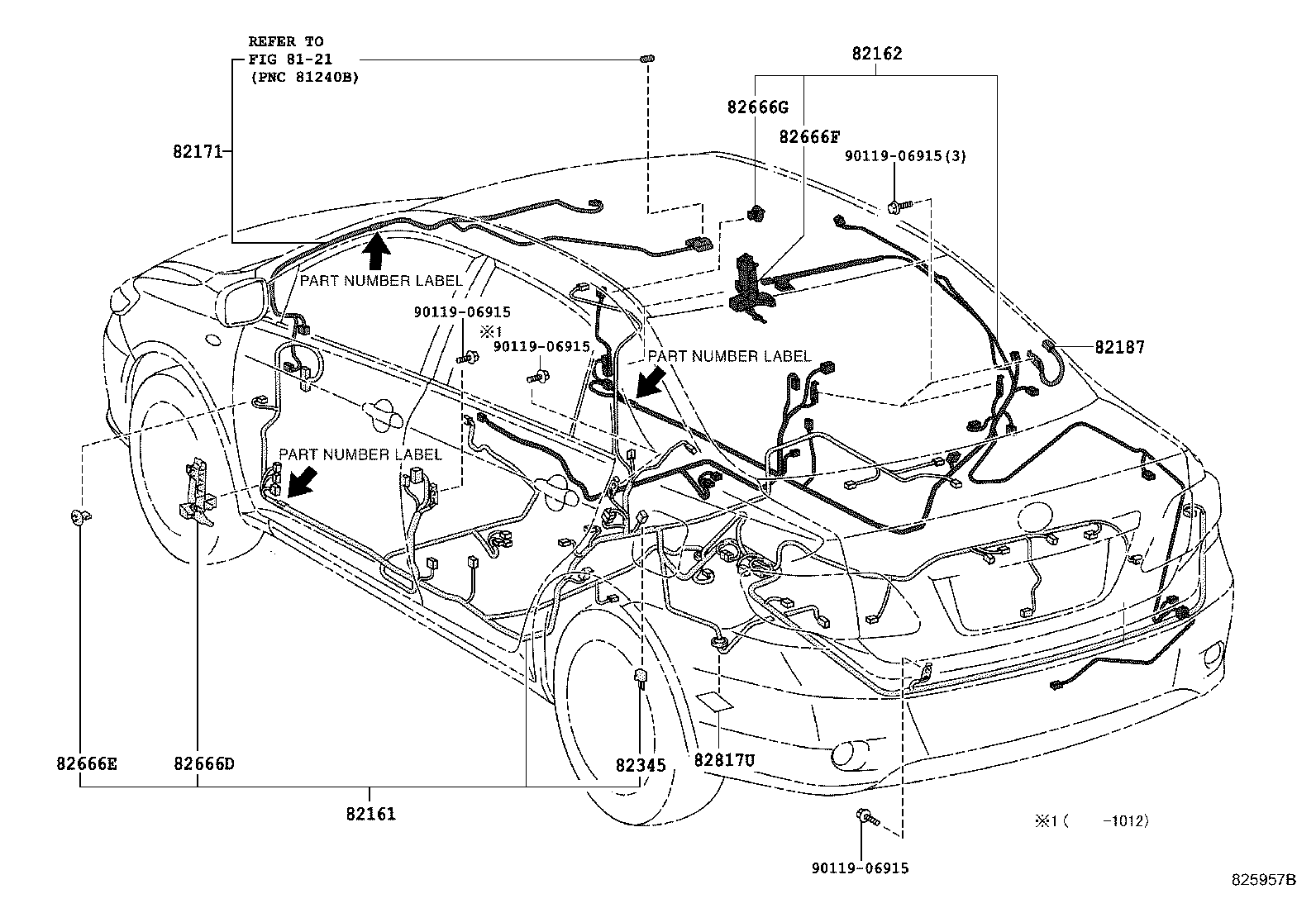

Exploded illustration 825957B 9011906915 — not listed in this catalogue 82817U — PROTECTOR, WIRING HARNESS, NO.16 (2 parts) 82161 — WIRE, FLOOR (8 parts) 82666E — HOLDER, CONNECTOR NO.6 (2 parts) 82666D — HOLDER, CONNECTOR NO.5 (2 parts) 82187 — WIRE, REAR WINDOW, NO.2 (2 parts) 9011906915 — not listed in this catalogue 82162 — WIRE, FLOOR, NO.2 (15 parts) 82666F — HOLDER, CONNECTOR NO.7 (2 parts) 82666G — HOLDER, CONNECTOR NO.8 (2 parts) 9011906915 — not listed in this catalogue 82171 — WIRE, ROOF, NO.1 (15 parts) 82345 — DIODE (2 parts) 9011906915 — not listed in this catalogue 8121 — not listed in this catalogue
825957B · 10 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
52 parts on this figure
Part number Description Fitment Price
82161 — Wire, Floor
82161-12K20 Wire, Floor
2007-12 → 2010-12 ended
ZRE142 JPP —
82161-12T80 Wire, Floor
2010-12 → 2012-03 ended
ZRE142 JPP —
82161-12T81 note Wire, Floor
2012-03 → 2013-08 ended
ZRE142 JPP LE —
82161-1AE10 Wire, Floor
2012-03 → 2013-08 ended
ZRE142 JPP —
82161-12K20 note Wire, Floor
2007-12 → 2010-12 ended
ZRE142 JPP —
82161-12T80 note Wire, Floor
2010-12 → 2012-03 ended
ZRE142 JPP —
82161-12T81 note Wire, Floor
2012-03 → 2013-08 ended
ZRE142 JPP LE —
82161-1AE10 note Wire, Floor
2012-03 → 2013-08 ended
ZRE142 JPP —
82162 — Wire, Floor, NO.2
82162-12D50 Wire, Floor, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
82162-12F50 note Wire, Floor, NO.2
2010-12 → 2011-12 ended
ZRE142 JPP LE —
82162-12N20 Wire, Floor, NO.2
2012-03 → 2013-08 ended
ZRE142 JPP —
82162-12Q30 note Wire, Floor, NO.2
2011-02 → 2011-12 ended
ZRE142 JPP LE —
82162-12Q30 Wire, Floor, NO.2
2010-12 → 2012-03 ended
ZRE142 JPP —
82162-12Q30 note Wire, Floor, NO.2
2010-12 → 2011-02 ended
ZRE142 JPP LE —
82162-12Q30 note Wire, Floor, NO.2
2012-03 → 2013-08 ended
ZRE142 JPP LE —
82162-12Q30 note Wire, Floor, NO.2
2011-02 → 2011-12 ended
ZRE142 JPP LE —
82162-12D50 note Wire, Floor, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
82162-12F50 note Wire, Floor, NO.2
2010-12 → 2011-12 ended
ZRE142 JPP LE —
82162-12N20 note Wire, Floor, NO.2
2012-03 → 2013-08 ended
ZRE142 JPP —
82162-12Q30 note Wire, Floor, NO.2
2010-12 → 2012-03 ended
ZRE142 JPP —
82162-12Q30 note Wire, Floor, NO.2
2012-03 → 2013-08 ended
ZRE142 JPP LE —
82162-12Q30 note Wire, Floor, NO.2
2011-02 → 2011-12 ended
ZRE142 JPP LE —
82162-12Q30 note Wire, Floor, NO.2
2010-12 → 2011-02 ended
ZRE142 JPP LE —
82171 — Wire, Roof, NO.1
82171-12K20 Wire, Roof, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
82171-12K20 Wire, Roof, NO.1
2010-12 → 2011-12 ended
ZRE142 JPP LE —
82171-12K20 Wire, Roof, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP STD —
82171-12K20 note Wire, Roof, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP LE —
82171-12N90 note Wire, Roof, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP STD —
82171-12N90 note Wire, Roof, NO.1
2010-12 → 2011-12 ended
ZRE142 JPP LE —
82171-12N90 note Wire, Roof, NO.1
2010-12 → 2011-12 ended
ZRE142 JPP LE —
82171-12N90 Wire, Roof, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP LE —
82171-12K20 note Wire, Roof, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
82171-12K20 note Wire, Roof, NO.1
2010-12 → 2011-12 ended
ZRE142 JPP LE —
82171-12K20 note Wire, Roof, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP STD —
82171-12K20 note Wire, Roof, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP LE —
82171-12N90 note Wire, Roof, NO.1
2010-12 → 2011-12 ended
ZRE142 JPP LE —
82171-12N90 note Wire, Roof, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP LE —
82171-12N90 note Wire, Roof, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP STD —
82187 — Wire, Rear Window, NO.2
82187-12210 Wire, Rear Window, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
82187-12210 Wire, Rear Window, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
82345 — Diode
82345-12050 Diode
2007-12 → 2010-12 ended
ZRE142 JPP —
82345-12050 Diode
2010-12 → 2013-08 ended
ZRE142 JPP —
82666D — Holder, Connector NO.5
82666-12480 Holder, Connector NO.5
2007-12 → 2010-12 ended
ZRE142 JPP —
82666-12480 Holder, Connector NO.5
2010-12 → 2013-08 ended
ZRE142 JPP —
82666E — Holder, Connector NO.6
82666-20280 Holder, Connector NO.6
2007-12 → 2010-12 ended
ZRE142 JPP —
82666-20280 Holder, Connector NO.6
2010-12 → 2013-08 ended
ZRE142 JPP —
82666F — Holder, Connector NO.7
82666-12470 Holder, Connector NO.7
2007-12 → 2010-12 ended
ZRE142 JPP —
82666-12470 Holder, Connector NO.7
2010-12 → 2013-08 ended
ZRE142 JPP —
82666G — Holder, Connector NO.8
82666-20280 Holder, Connector NO.8
2007-12 → 2010-12 ended
ZRE142 JPP —
82666-20280 Holder, Connector NO.8
2010-12 → 2013-08 ended
ZRE142 JPP —
82817U — Protector, Wiring Harness, NO.16
82817-1A640 Protector, Wiring Harness, NO.16
2007-12 → 2010-12 ended
ZRE142 JPP —
82817-52710 Protector, Wiring Harness, NO.16
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
