Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

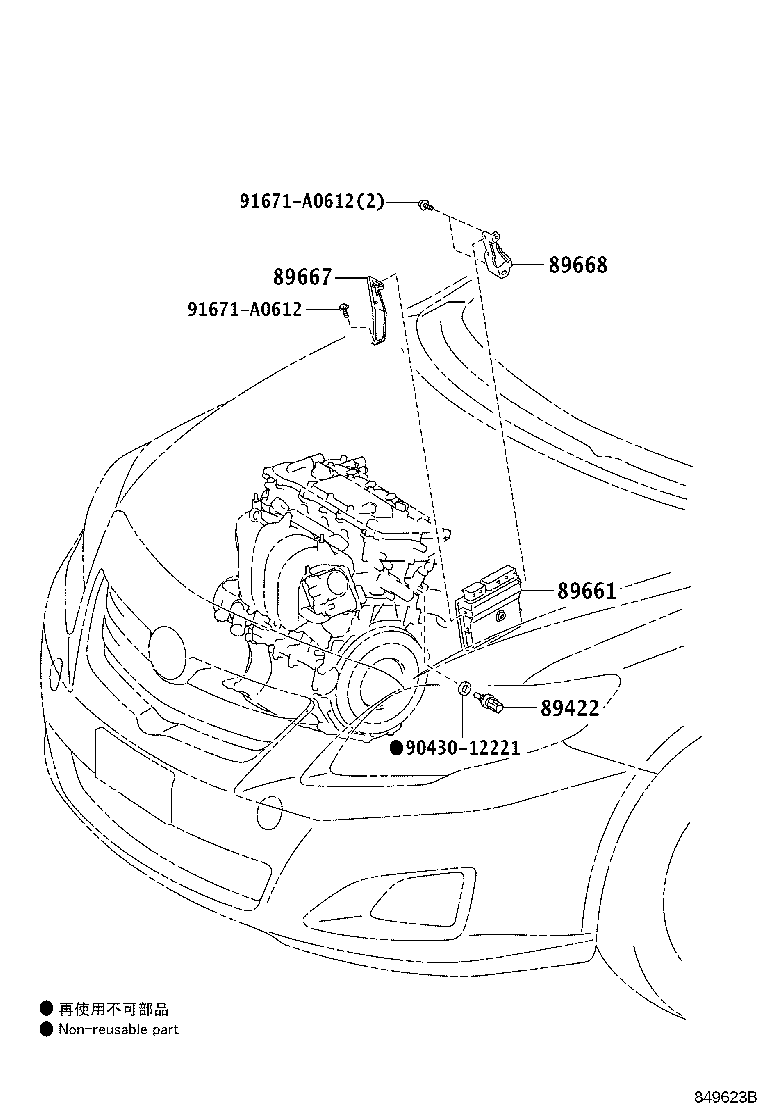

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89422 — Sensor, Water Temperature (FOR E.F.I.) | ||||
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 89661 — Computer, Engine Control | ||||
| 89661-02F50 |
Computer, Engine Control
2009-01 → 2009-04
ended
|
ZRE142 JPP | — | |
| 89661-02F51 |
Computer, Engine Control
2009-05 → 2009-11
ended
|
ZRE142 JPP | — | |
| 89661-02F52 |
Computer, Engine Control
2009-11 → 2010-12
ended
|
ZRE142 JPP | — | |
| 89661-02M90 |
Computer, Engine Control
2007-12 → 2008-04
ended
|
ZRE142 JPP | — | |
| 89661-02M91 |
Computer, Engine Control
2008-05 → 2008-09
ended
|
ZRE142 JPP | — | |
| 89661-02M92 |
Computer, Engine Control
2008-09 → 2009-01
ended
|
ZRE142 JPP | — | |
| 89661-02Q60 |
Computer, Engine Control
2010-12 → 2011-08
ended
|
ZRE142 JPP | — | |
| 89661-02Q61 |
Computer, Engine Control
2011-08 → 2011-12
ended
|
ZRE142 JPP | — | |
| 89661-0Z590 note |
Computer, Engine Control
2010-12 → 2011-10
ended
|
ZRE142 JPP LE | — | |
| 89661-0Z591 note |
Computer, Engine Control
2011-11 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 89661-0ZA40 |
Computer, Engine Control
2011-12 → 2012-06
ended
|
ZRE142 JPP | — | |
| 89661-0ZA41 |
Computer, Engine Control
2012-07 → 2013-08
ended
|
ZRE142 JPP | — | |
| 89661-0ZA90 note |
Computer, Engine Control
2011-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 89667 — Bracket, Engine Control Computer | ||||
| 89667-02220 |
Bracket, Engine Control Computer
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 89667-02220 |
Bracket, Engine Control Computer
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 89668 — Bracket, Engine Control Computer, NO.2 | ||||
| 89668-02190 |
Bracket, Engine Control Computer, NO.2
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 89668-02190 |
Bracket, Engine Control Computer, NO.2
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
