Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

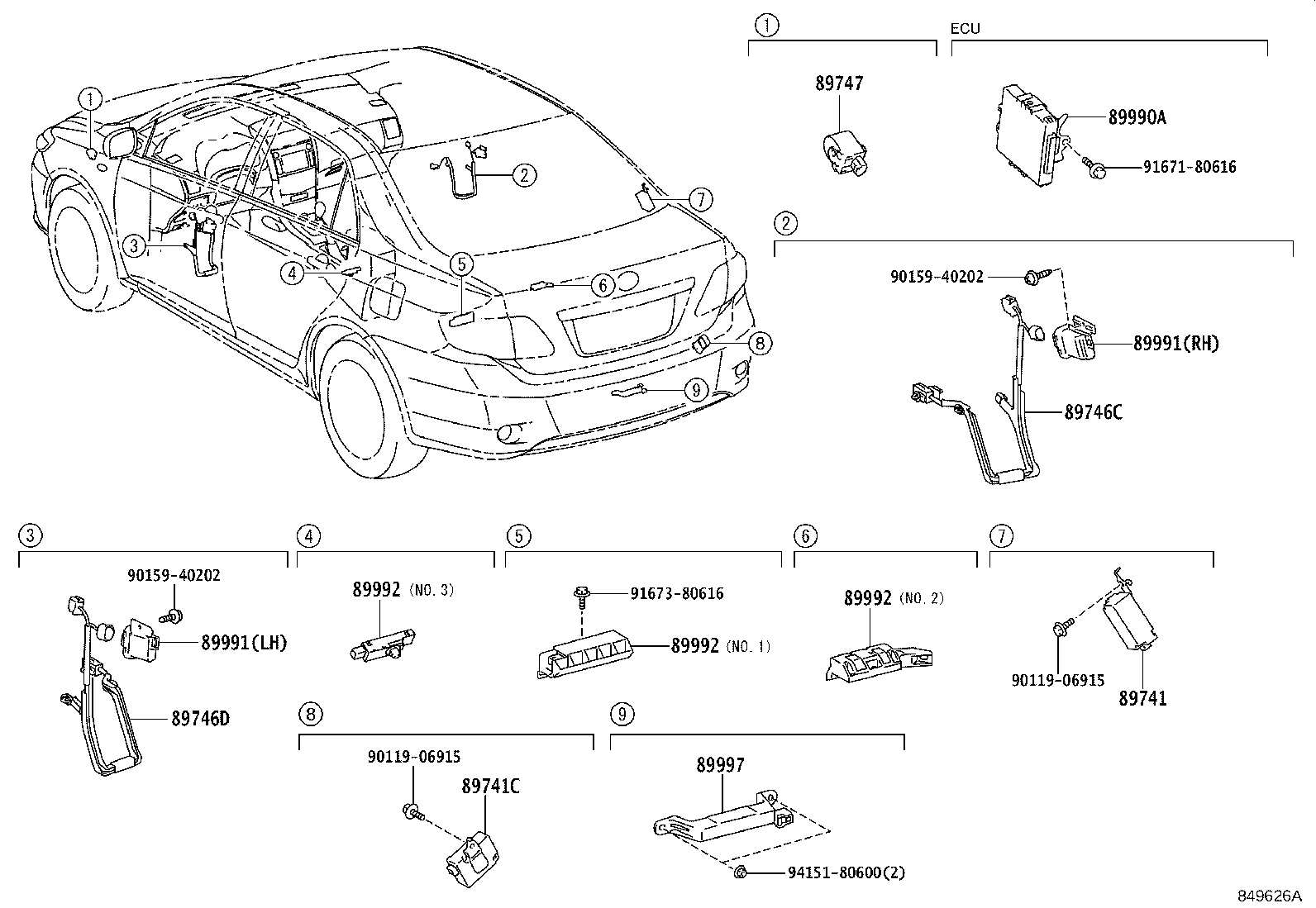

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89741 — Receiver, Door Control | ||||
| 89740-12090 note |
Receiver, Door Control
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
| 89741-02150 |
Receiver, Door Control
2010-06 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 89741-02150 note |
Receiver, Door Control
2010-06 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 89741-02150 note |
Receiver, Door Control
2010-06 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 89741-12370 |
Receiver, Door Control
2007-12 → 2010-06
ended
|
ZRE142 JPP LE | — | |
| 89741-12370 note |
Receiver, Door Control
2007-12 → 2010-06
ended
|
ZRE142 JPP STD | — | |
| 89741-12370 note |
Receiver, Door Control
2007-12 → 2010-06
ended
|
ZRE142 JPP LE | — | |
| 89741-02150 |
Receiver, Door Control
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 89741-02150 note |
Receiver, Door Control
2011-07 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 89741-12540 note |
Receiver, Door Control
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 89741C — Receiver, Door Control, NO.3 | ||||
| 89740-12100 note |
Receiver, Door Control, NO.3
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
| 89746C — Harness, Electrical Key Wire, NO.1 | ||||
| 89746-12080 note |
Harness, Electrical Key Wire, NO.1
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
| 89746D — Harness, Electrical Key Wire, NO.2 | ||||
| 89746-12090 note |
Harness, Electrical Key Wire, NO.2
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
| 89747 — Buzzer, Wireless Door Lock | ||||
| 89747-52010 note |
Buzzer, Wireless Door Lock
2007-12 → 2010-06
ended
|
ZRE142 JPP STD | — | |
| 89747-52010 note |
Buzzer, Wireless Door Lock
2010-06 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 89747-52010 note |
Buzzer, Wireless Door Lock
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 89747-52010 |
Buzzer, Wireless Door Lock
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 89747-52010 |
Buzzer, Wireless Door Lock
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 89747-52010 note |
Buzzer, Wireless Door Lock
2011-07 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 89990A — Computer Assy, Smart Key | ||||
| 89990-12020 note |
Computer Assy, Smart Key
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
| 89991 — Oscillator, Door Electrical Key | ||||
| 89991-30040 note |
Oscillator, Door Electrical Key
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
| 89991-30050 note |
Oscillator, Door Electrical Key
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
| 89992 — Oscillator, Indoor Electrical Key | ||||
| 89992-12070 note |
Oscillator, Indoor Electrical Key
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
| 89992-12080 note |
Oscillator, Indoor Electrical Key
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
| 89992-30090 note |
Oscillator, Indoor Electrical Key
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
| 89997 — Antenna, Electrical Key | ||||
| 89997-41010 note |
Antenna, Electrical Key
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
