Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

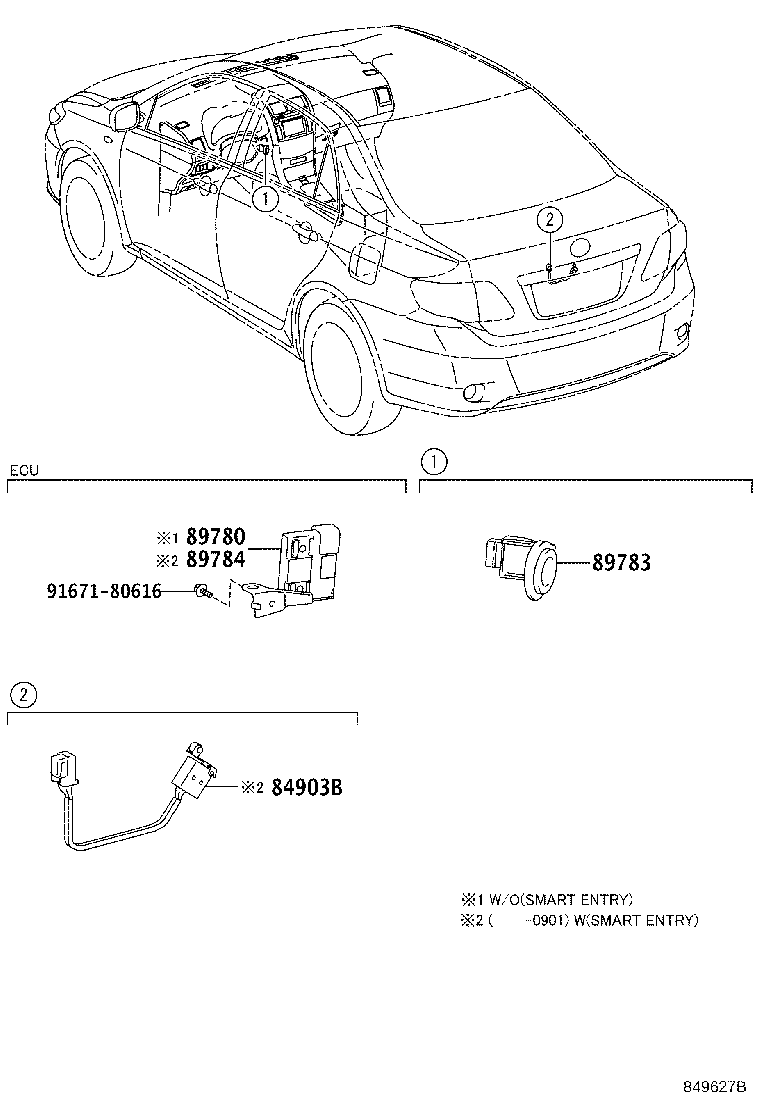

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84903B — Switch Sub-assy, Door Unlock | ||||
| 84903-12170 note |
Switch Sub-assy, Door Unlock
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
| 89780 — Computer Assy, Transponder Key | ||||
| 89780-12230 |
Computer Assy, Transponder Key
2007-12 → 2010-03
ended
|
ZRE142 JPP | — | |
| 89780-12280 |
Computer Assy, Transponder Key
2010-03 → 2010-12
ended
|
ZRE142 JPP | — | |
| 89780-12280 |
Computer Assy, Transponder Key
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 89783 — Amplifier, Transponder Key | ||||
| 89783-12070 |
Amplifier, Transponder Key
2007-12 → 2010-05
ended
|
ZRE142 JPP | — | |
| 89783-12100 |
Amplifier, Transponder Key
2010-05 → 2010-12
ended
|
ZRE142 JPP | — | |
| 89783-12100 |
Amplifier, Transponder Key
2010-12 → 2011-04
ended
|
ZRE142 JPP | — | |
| 89783-12101 |
Amplifier, Transponder Key
2011-05 → 2011-11
ended
|
ZRE142 JPP | — | |
| 89783-12112 |
Amplifier, Transponder Key
2011-11 → 2012-11
ended
|
ZRE142 JPP | — | |
| 89783-12113 |
Amplifier, Transponder Key
2012-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 89784 — Computer, Immobilizer Code | ||||
| 89784-12030 note |
Computer, Immobilizer Code
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
