Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

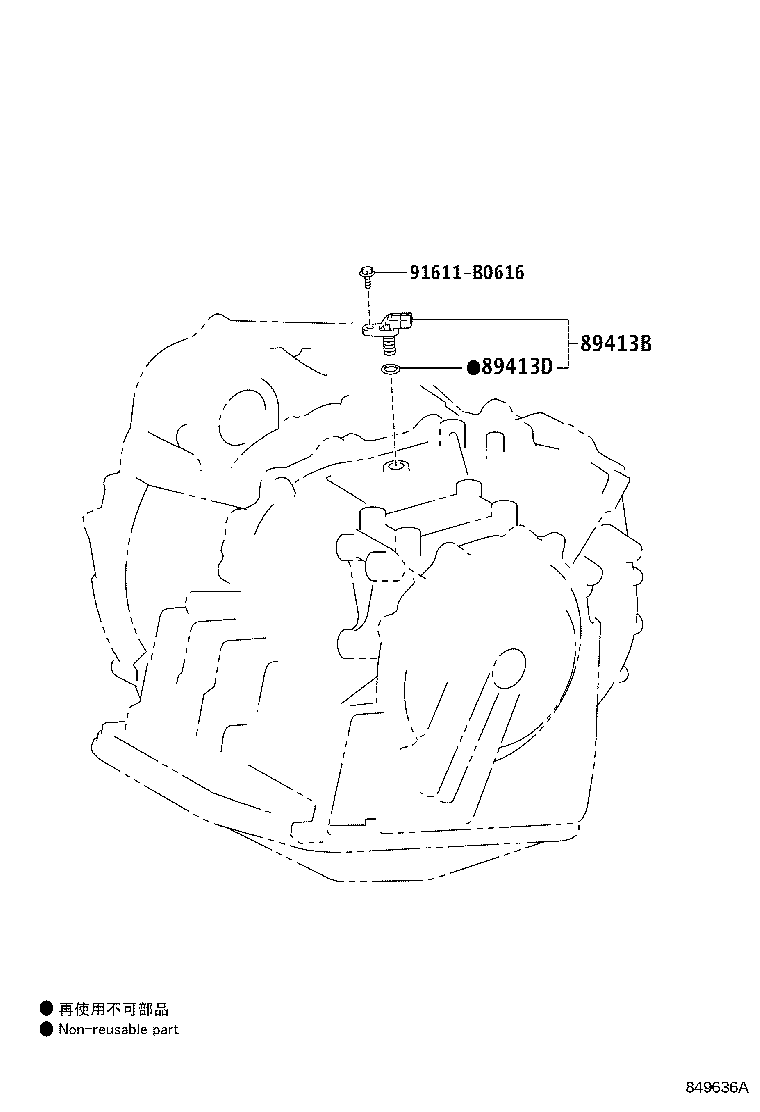

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89413B — Sensor, Transmission Revolution | ||||
| 89413-32010 |
Sensor, Transmission Revolution
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 89413-32010 |
Sensor, Transmission Revolution
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 89413D — Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
