Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

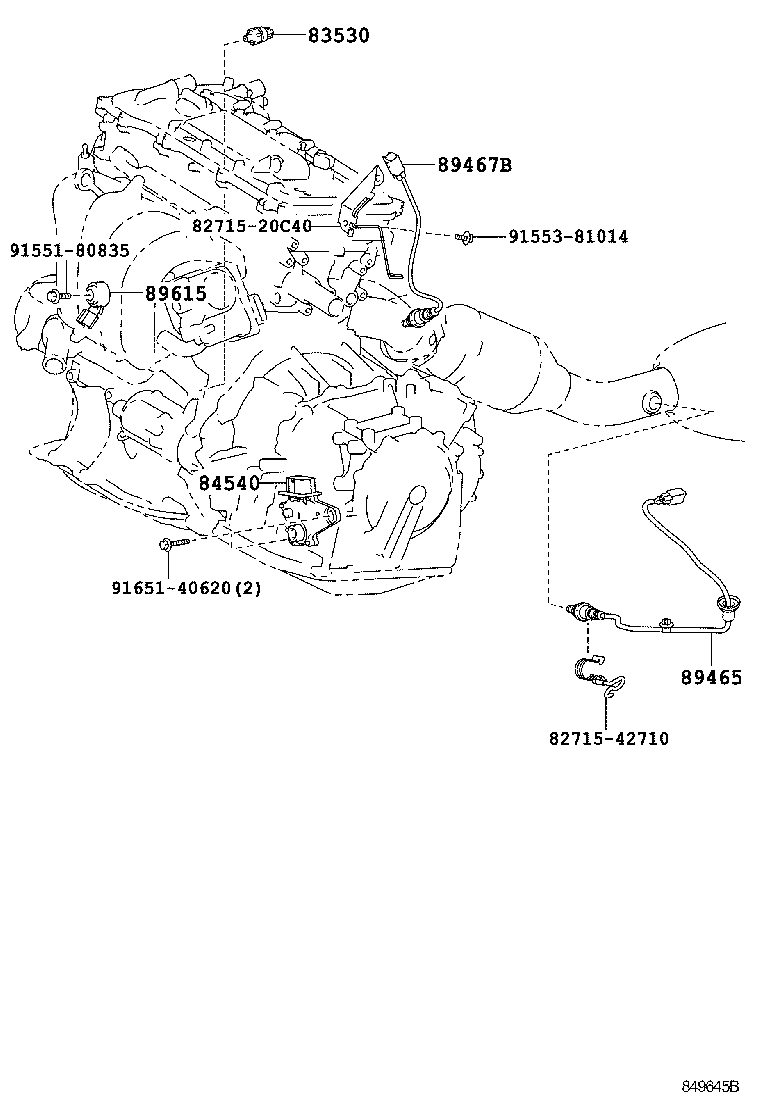

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-28020 |
Switch Assy, Oil Pressure (FOR ENGINE)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 83530-12050 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2012-11 → 2013-08
ended
|
ZRE142 JPP | — | |
| 83530-28020 |
Switch Assy, Oil Pressure (FOR ENGINE)
2010-12 → 2012-11
ended
|
ZRE142 JPP | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2012-11 → 2013-08
ended
|
ZRE142 JPP | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-46010 |
Switch Assy, Neutral Start
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 84540-46010 |
Switch Assy, Neutral Start
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-12840 |
Sensor, Oxygen
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 89465-12840 |
Sensor, Oxygen
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-12030 |
Sensor, Air Fuel Ratio
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 89467-02070 note |
Sensor, Air Fuel Ratio
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 89467-52060 note |
Sensor, Air Fuel Ratio
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-20090 |
Sensor, Knock Control
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 89615-20090 |
Sensor, Knock Control
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
