Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

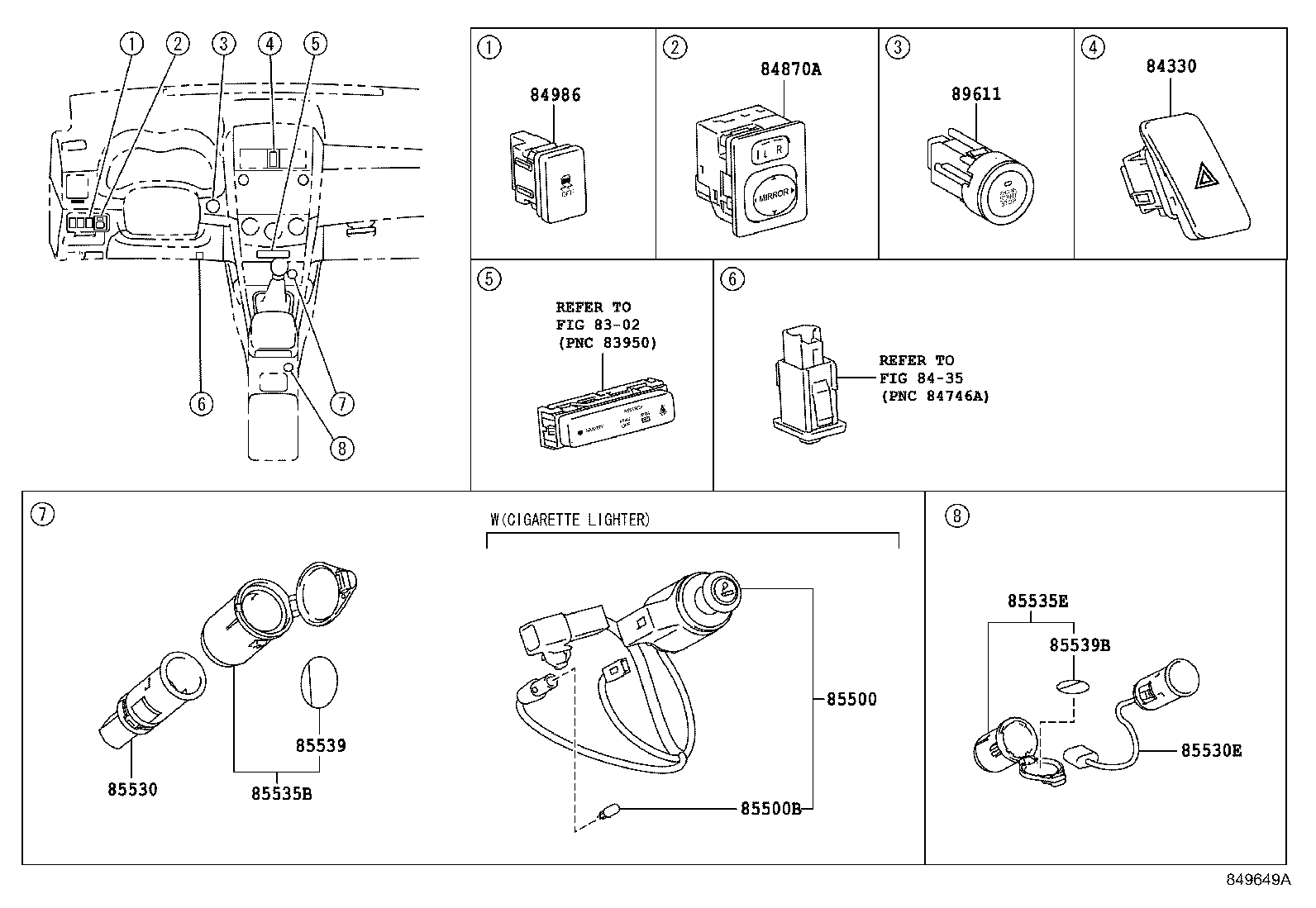

Exploded illustration 849649A 89611 — SWITCH, PUSH START (2 parts) 85500 — LIGHTER ASSY, CIGARETTE (2 parts) 85535E — COVER, POWER OUTLET SOCKET, NO.2 (2 parts) 85500B — BULB, CIGARETTE LIGHTER (2 parts) 84330 — SWITCH ASSY, HAZARD WARNING SIGNAL (2 parts) 84870A — SWITCH ASSY, OUTER MIRROR (4 parts) 84986 — SWITCH, VEHICLE STABILITY CONTROL (3 parts) 85530 — SOCKET ASSY, POWER OUTLET, NO.1 (2 parts) 85530E — SOCKET ASSY, POWER OUTLET, NO.3 (1 parts) 85539B — LABEL, POWER OUTLET NOTICE, CENTER (1 parts) 85535B — COVER, POWER OUTLET SOCKET, NO.1 (3 parts) 85539 — LABEL, POWER OUTLET NOTICE (2 parts) 8302 — not listed in this catalogue 8435 — not listed in this catalogue
849649A · 12 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
84330 — Switch Assy, Hazard Warning Signal
84332-12520 Switch Assy, Hazard Warning Signal
2007-12 → 2010-12 ended
ZRE142 JPP —
84332-12520 Switch Assy, Hazard Warning Signal
2010-12 → 2013-08 ended
ZRE142 JPP —
84870A — Switch Assy, Outer Mirror
84870-34010 Switch Assy, Outer Mirror
2007-12 → 2010-12 ended
ZRE142 JPP —
84870-28020 note Switch Assy, Outer Mirror
2010-12 → 2011-02 ended
ZRE142 JPP LE —
84870-28020 note Switch Assy, Outer Mirror
2011-02 → 2013-08 ended
ZRE142 JPP LE —
84870-34010 Switch Assy, Outer Mirror
2010-12 → 2013-08 ended
ZRE142 JPP —
84986 — Switch, Vehicle Stability Control
84986-12010 note Switch, Vehicle Stability Control
2007-12 → 2009-01 ended
ZRE142 JPP —
84986-12010 Switch, Vehicle Stability Control
2009-01 → 2010-12 ended
ZRE142 JPP —
84986-12010 Switch, Vehicle Stability Control
2010-12 → 2013-08 ended
ZRE142 JPP —
85500 — Lighter Assy, Cigarette
85500-12260 note Lighter Assy, Cigarette
2007-12 → 2010-12 ended
ZRE142 JPP —
85500-12260 note Lighter Assy, Cigarette
2010-12 → 2013-08 ended
ZRE142 JPP —
85500B — Bulb, Cigarette Lighter
90010-01163 note Bulb, Cigarette Lighter
2007-12 → 2010-12 ended
ZRE142 JPP —
90010-01163 note Bulb, Cigarette Lighter
2010-12 → 2013-08 ended
ZRE142 JPP —
85530 — Socket Assy, Power Outlet, NO.1
85530-42010 Socket Assy, Power Outlet, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
85530-42010 Socket Assy, Power Outlet, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
85530E — Socket Assy, Power Outlet, NO.3
85530-12010 Socket Assy, Power Outlet, NO.3
2007-12 → 2010-12 ended
ZRE142 JPP —
85535B — Cover, Power Outlet Socket, NO.1
85535-48070-C0 note Cover, Power Outlet Socket, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
85535-44050-C0 note Cover, Power Outlet Socket, NO.1
2012-04 → 2013-08 ended
ZRE142 JPP —
85535-48070-C0 note Cover, Power Outlet Socket, NO.1
2010-12 → 2012-04 ended
ZRE142 JPP —
85535E — Cover, Power Outlet Socket, NO.2
85535-60100-B2 note Cover, Power Outlet Socket, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
85535-60100-E0 note Cover, Power Outlet Socket, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
85539 — Label, Power Outlet Notice
85539-60020 Label, Power Outlet Notice
2007-12 → 2010-12 ended
ZRE142 JPP —
85539-60020 Label, Power Outlet Notice
2010-12 → 2012-04 ended
ZRE142 JPP —
85539B — Label, Power Outlet Notice, Center
85539-60020 Label, Power Outlet Notice, Center
2007-12 → 2010-12 ended
ZRE142 JPP —
89611 — Switch, Push Start
89611-52020 note Switch, Push Start
2007-12 → 2008-01 ended
ZRE142 JPP LE —
89611-52021 note Switch, Push Start
2008-02 → 2009-01 ended
ZRE142 JPP LE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
