Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

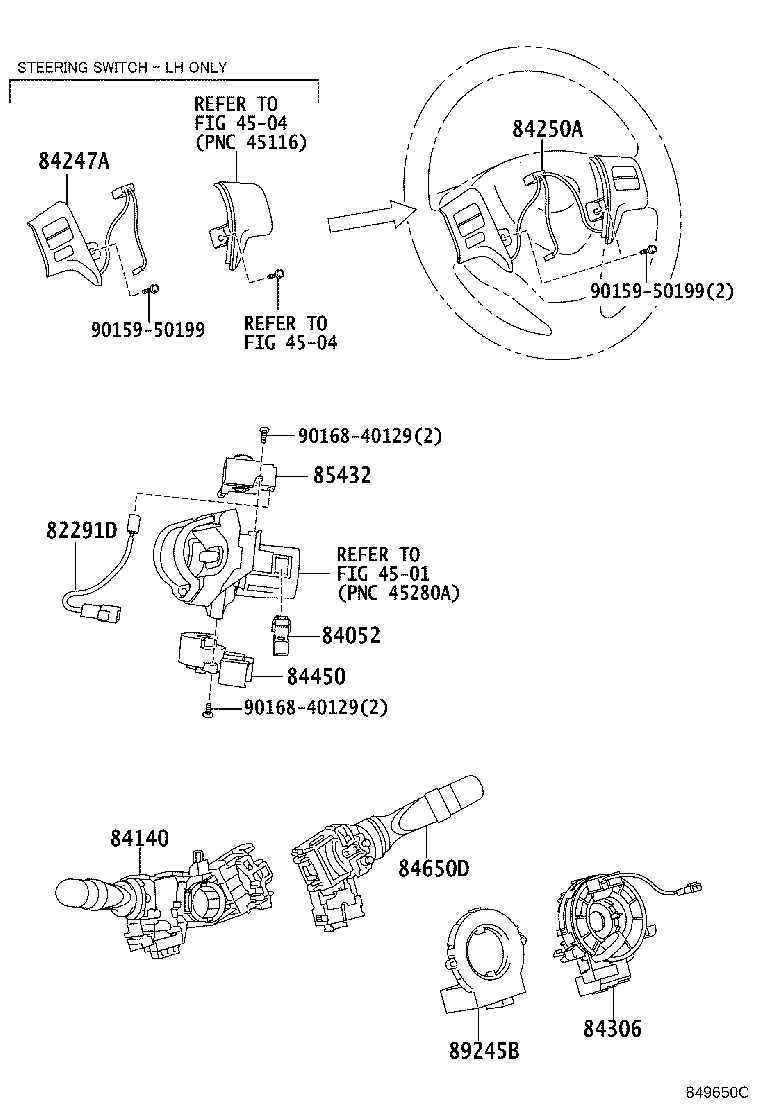

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82291D — Wire, TO Solenoid | ||||
| 82291-42010 note |
Wire, TO Solenoid
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 82291-42010 |
Wire, TO Solenoid
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 82291-42010 |
Wire, TO Solenoid
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 84052 — Switch Assy, Un-lock Warning | ||||
| 84052-71010 |
Switch Assy, Un-lock Warning
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 84052-71010 note |
Switch Assy, Un-lock Warning
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 84052-71010 |
Switch Assy, Un-lock Warning
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-12720 |
Switch Assy, Headlamp Dimmer
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 84140-12730 note |
Switch Assy, Headlamp Dimmer
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 84140-12720 |
Switch Assy, Headlamp Dimmer
2010-12 → 2011-11
ended
|
ZRE142 JPP | — | |
| 84140-12720 note |
Switch Assy, Headlamp Dimmer
2011-11 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 84140-12730 note |
Switch Assy, Headlamp Dimmer
2010-12 → 2011-11
ended
|
ZRE142 JPP LE | — | |
| 84140-12730 note |
Switch Assy, Headlamp Dimmer
2011-11 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 84140-12890 |
Switch Assy, Headlamp Dimmer
2011-11 → 2013-08
ended
|
ZRE142 JPP | — | |
| 84140-12A00 note |
Switch Assy, Headlamp Dimmer
2011-11 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 84247A — Switch, Steering Pad, LH | ||||
| 84247-12040 note |
Switch, Steering Pad, LH
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 84247-12040 |
Switch, Steering Pad, LH
2011-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 84247-12040 note |
Switch, Steering Pad, LH
2011-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-12010 note |
Switch Assy, Steering Pad
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 84250-12010 note |
Switch Assy, Steering Pad
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 84306 — Cable Sub-assy, Spiral | ||||
| 84306-22010 |
Cable Sub-assy, Spiral
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 84306-22010 |
Cable Sub-assy, Spiral
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 84306-22010 |
Cable Sub-assy, Spiral
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 84306-48030 note |
Cable Sub-assy, Spiral
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 84306-48030 note |
Cable Sub-assy, Spiral
2011-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 84306-48030 note |
Cable Sub-assy, Spiral
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 84306-48030 |
Cable Sub-assy, Spiral
2011-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-12200 |
Switch Assy, Ignition OR Starter
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 84450-12200 note |
Switch Assy, Ignition OR Starter
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 84450-12200 |
Switch Assy, Ignition OR Starter
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 84650D — Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) | ||||
| 84652-12A20 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 84652-12A30 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 84652-12A20 note |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2011-11 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 84652-12A20 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2010-12 → 2011-11
ended
|
ZRE142 JPP LE | — | |
| 84652-12A30 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2010-12 → 2011-11
ended
|
ZRE142 JPP STD | — | |
| 84652-12B20 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2011-11 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 84652-12B30 |
Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
2011-11 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 85432 — Solenoid, Key Interlock | ||||
| 85432-71010 |
Solenoid, Key Interlock
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 85432-71010 note |
Solenoid, Key Interlock
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 85432-71010 |
Solenoid, Key Interlock
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 89245B — Sensor, Steering | ||||
| 89245-12020 note |
Sensor, Steering
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 89245-12020 |
Sensor, Steering
2009-01 → 2010-12
ended
|
ZRE142 JPP | — | |
| 89245-12020 |
Sensor, Steering
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
