Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

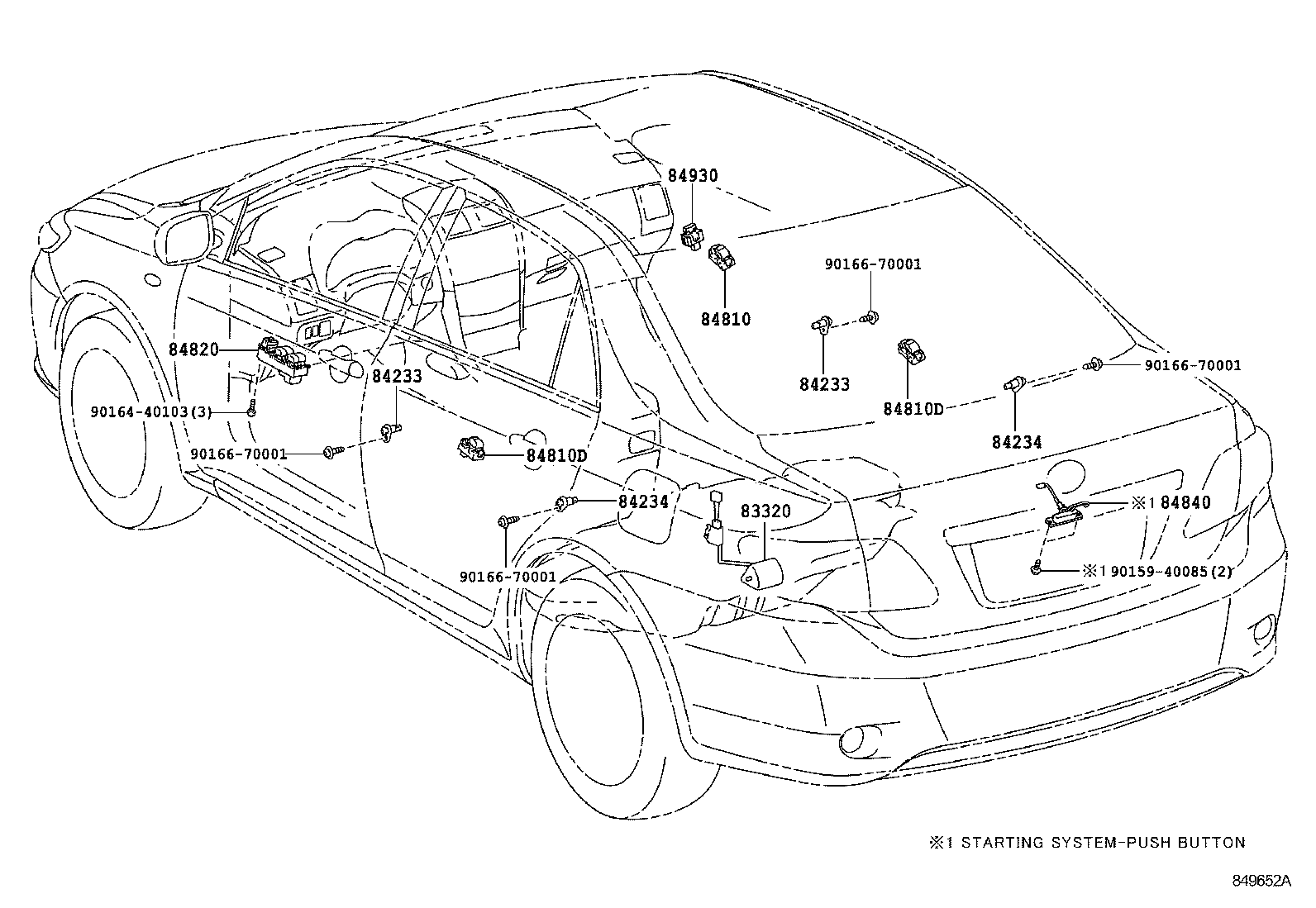

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-02010 |
Gage Assy, Fuel Sender
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 83320-02010 |
Gage Assy, Fuel Sender
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 84231-60070 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-52030 |
Switch Assy, Power Window Regulator
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 84810-52030 note |
Switch Assy, Power Window Regulator
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 84810-52030 note |
Switch Assy, Power Window Regulator
2009-01 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 84810-52030 |
Switch Assy, Power Window Regulator
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 84810-52030 note |
Switch Assy, Power Window Regulator
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-52030 note |
Switch Assy, Power Window Regulator, Rear
2009-01 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 84810-52030 note |
Switch Assy, Power Window Regulator, Rear
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 84810-52030 |
Switch Assy, Power Window Regulator, Rear
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 84810-52030 |
Switch Assy, Power Window Regulator, Rear
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 84810-52030 note |
Switch Assy, Power Window Regulator, Rear
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84820-12540 |
Master Switch Assy, Power Window Regulator
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 84820-12540 note |
Master Switch Assy, Power Window Regulator
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 84820-12540 note |
Master Switch Assy, Power Window Regulator
2009-01 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 84820-12540 |
Master Switch Assy, Power Window Regulator
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 84820-12540 note |
Master Switch Assy, Power Window Regulator
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 84840 — Switch Assy, Luggage Compartment Door Opening | ||||
| 84840-12050 note |
Switch Assy, Luggage Compartment Door Opening
2007-12 → 2009-01
ended
|
ZRE142 JPP LE | — | |
| 84930 — Switch Assy, Door Control | ||||
| 84930-12250 |
Switch Assy, Door Control
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 84930-12250 note |
Switch Assy, Door Control
2007-12 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 84930-12250 note |
Switch Assy, Door Control
2009-01 → 2010-12
ended
|
ZRE142 JPP STD | — | |
| 84930-12250 |
Switch Assy, Door Control
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 84930-12250 note |
Switch Assy, Door Control
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
