Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

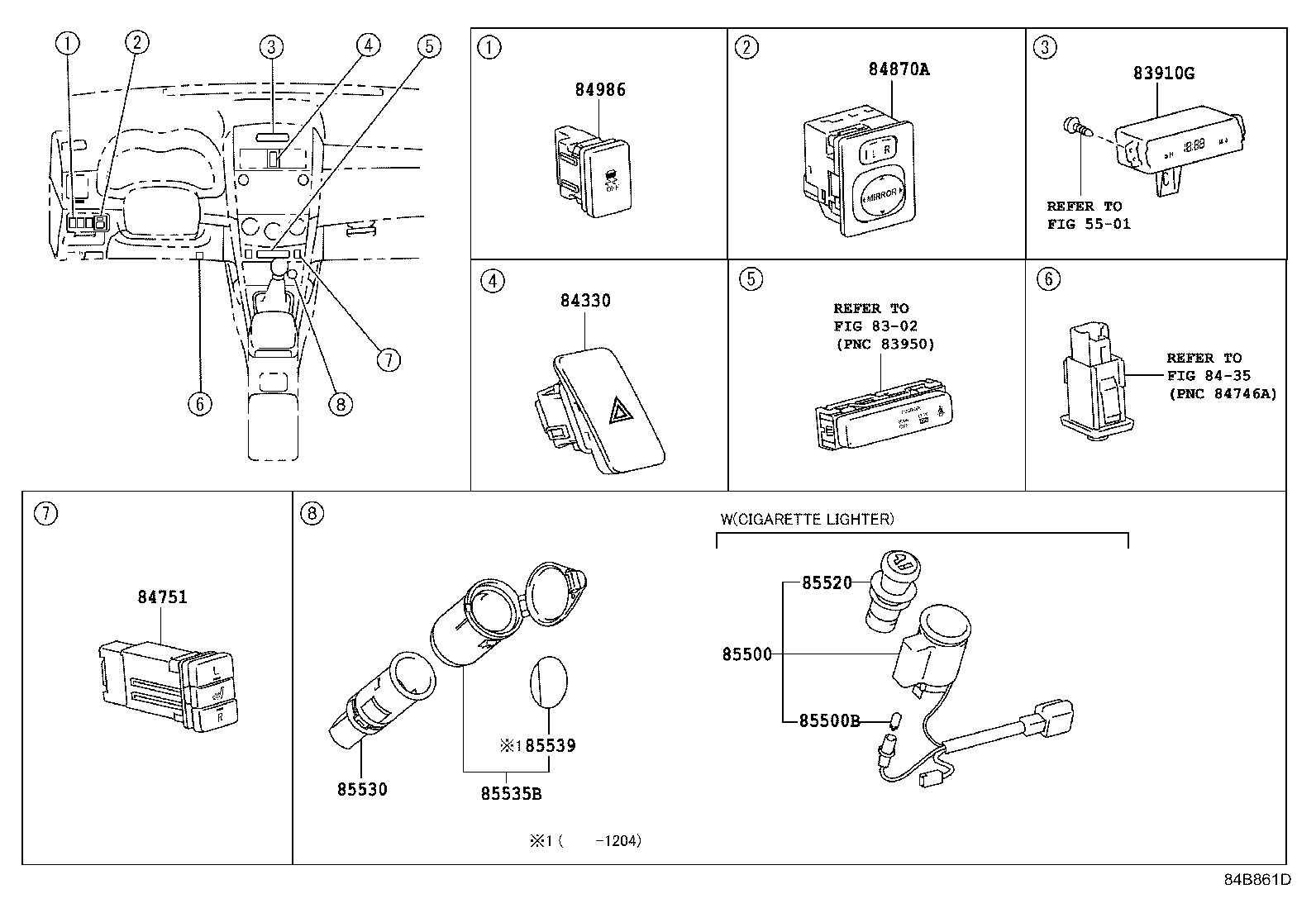

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83910G — Clock Assy | ||||
| 83910-12610 note |
Clock Assy
2011-11 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 83910-12610 |
Clock Assy
2011-11 → 2013-08
ended
|
ZRE142 JPP | — | |
| 84330 — Switch Assy, Hazard Warning Signal | ||||
| 84332-12520 |
Switch Assy, Hazard Warning Signal
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 84332-12520 |
Switch Assy, Hazard Warning Signal
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 84751 — Switch, Seat Heater | ||||
| 84751-42040 note |
Switch, Seat Heater
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 84870A — Switch Assy, Outer Mirror | ||||
| 84870-34010 |
Switch Assy, Outer Mirror
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 84870-28020 note |
Switch Assy, Outer Mirror
2010-12 → 2011-02
ended
|
ZRE142 JPP LE | — | |
| 84870-28020 note |
Switch Assy, Outer Mirror
2011-02 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 84870-34010 |
Switch Assy, Outer Mirror
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 84986 — Switch, Vehicle Stability Control | ||||
| 84986-12010 note |
Switch, Vehicle Stability Control
2007-12 → 2009-01
ended
|
ZRE142 JPP | — | |
| 84986-12010 |
Switch, Vehicle Stability Control
2009-01 → 2010-12
ended
|
ZRE142 JPP | — | |
| 84986-12010 |
Switch, Vehicle Stability Control
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 85500 — Lighter Assy, Cigarette | ||||
| 85500-12260 note |
Lighter Assy, Cigarette
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 85500-12260 note |
Lighter Assy, Cigarette
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 85500B — Bulb, Cigarette Lighter | ||||
| 90010-01163 note |
Bulb, Cigarette Lighter
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 90010-01163 note |
Bulb, Cigarette Lighter
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 85520 — Knob And Element Assy, Cigarette Lighter | ||||
| 85520-28010 note |
Knob And Element Assy, Cigarette Lighter
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 85520-28010 note |
Knob And Element Assy, Cigarette Lighter
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 85530 — Socket Assy, Power Outlet, NO.1 | ||||
| 85530-42010 |
Socket Assy, Power Outlet, NO.1
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 85530-42010 |
Socket Assy, Power Outlet, NO.1
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 85535B — Cover, Power Outlet Socket, NO.1 | ||||
| 85535-48070-C0 note |
Cover, Power Outlet Socket, NO.1
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 85535-44050-C0 note |
Cover, Power Outlet Socket, NO.1
2012-04 → 2013-08
ended
|
ZRE142 JPP | — | |
| 85535-48070-C0 note |
Cover, Power Outlet Socket, NO.1
2010-12 → 2012-04
ended
|
ZRE142 JPP | — | |
| 85539 — Label, Power Outlet Notice | ||||
| 85539-60020 |
Label, Power Outlet Notice
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 85539-60020 |
Label, Power Outlet Notice
2010-12 → 2012-04
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
