Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

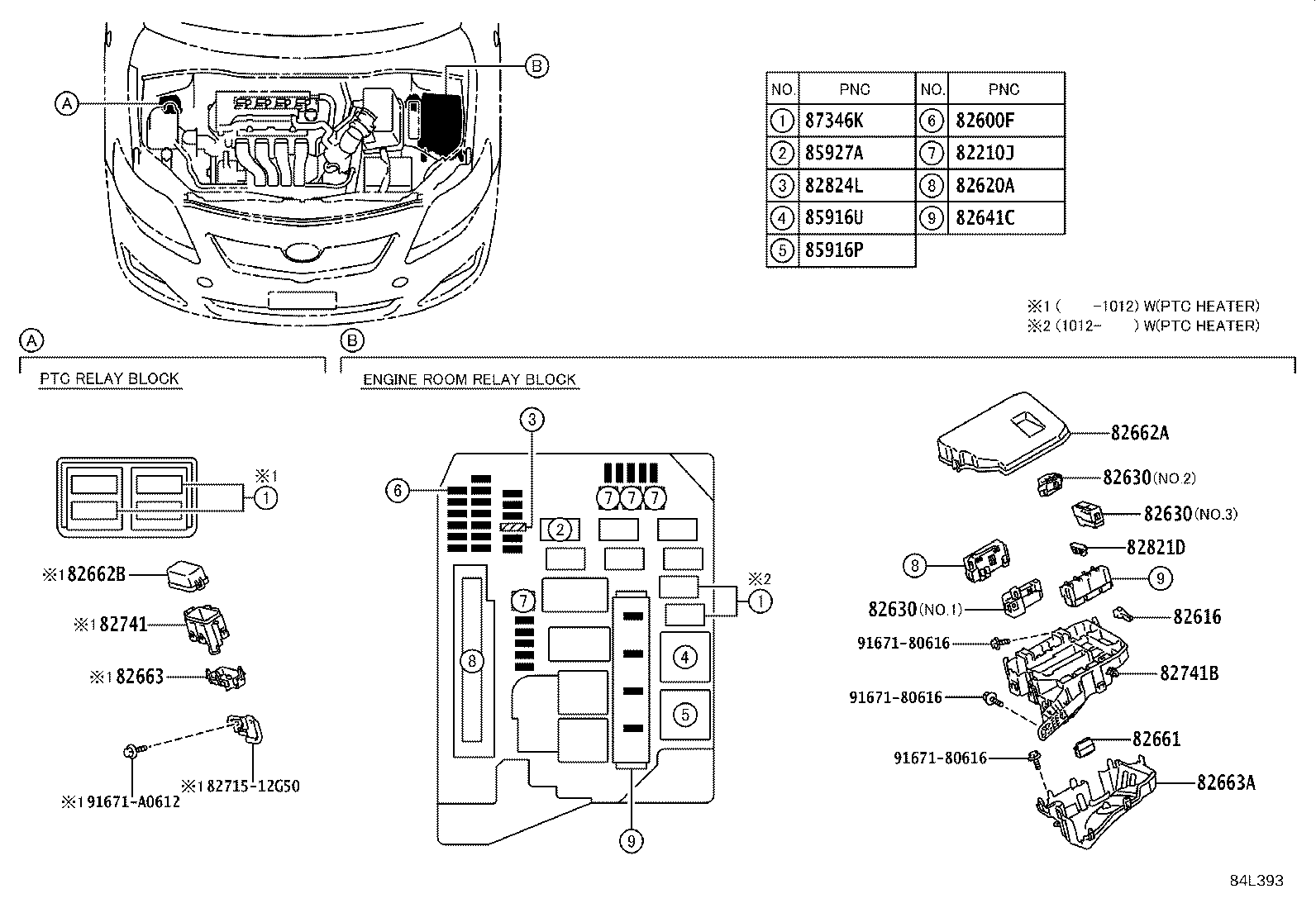

Exploded illustration 84L393 82663A — COVER, RELAY BLOCK, LOWER, NO.2 (2 parts) 82661 — COVER, RELAY BLOCK, NO.1 (2 parts) 82741B — BLOCK, ENGINE ROOM RELAY (2 parts) 85916P — RELAY, HEADLAMP (2 parts) 85916U — RELAY, HEADLAMP, NO.2 (3 parts) 85927A — RELAY, COOLING FAN, NO.2 (2 parts) 87346K — RELAY, PTC HEATER (5 parts) 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 82630 — HOLDER ASSY, FUSE (6 parts) 82630 — HOLDER ASSY, FUSE (6 parts) 82630 — HOLDER ASSY, FUSE (6 parts) 82662A — COVER, RELAY BLOCK, UPPER, NO.1 (2 parts) 82600F — FUSE, FUSE BLOCK (12 parts) 82210J — FUSIBLE LINK (6 parts) 82620A — BLOCK ASSY, FUSIBLE LINK (2 parts) 82641C — RELAY, INTEGRATION NO.2 (2 parts) 82824L — PIN, SHORT (2 parts) 82616 — PULLER, FUSE (2 parts) 8271512G50 — not listed in this catalogue 91671A0612 — not listed in this catalogue 82662B — COVER, RELAY BLOCK, UPPER, NO.2 (2 parts) 82663 — COVER, RELAY BLOCK, LOWER (2 parts) 82741 — BLOCK, ENGINE ROOM RELAY (2 parts) 82821D — COVER, CONNECTOR (2 parts)
84L393 · 21 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
82210J — Fusible Link
90982-08294 note Fusible Link
2007-12 → 2010-12 ended
ZRE142 JPP —
90982-08295 note Fusible Link
2007-12 → 2010-12 ended
ZRE142 JPP —
90982-08296 note Fusible Link
2007-12 → 2010-12 ended
ZRE142 JPP —
90982-08294 note Fusible Link
2010-12 → 2013-08 ended
ZRE142 JPP —
90982-08295 note Fusible Link
2010-12 → 2013-08 ended
ZRE142 JPP —
90982-08296 note Fusible Link
2010-12 → 2013-08 ended
ZRE142 JPP —
82600F — Fuse, Fuse Block
90982-09020 note Fuse, Fuse Block
2007-12 → 2010-12 ended
ZRE142 JPP —
90982-09021 note Fuse, Fuse Block
2007-12 → 2010-12 ended
ZRE142 JPP —
90982-09022 note Fuse, Fuse Block
2007-12 → 2010-12 ended
ZRE142 JPP —
90982-09023 note Fuse, Fuse Block
2007-12 → 2010-12 ended
ZRE142 JPP —
90982-09024 note Fuse, Fuse Block
2007-12 → 2010-12 ended
ZRE142 JPP —
90982-09025 note Fuse, Fuse Block
2007-12 → 2010-12 ended
ZRE142 JPP —
90982-09020 note Fuse, Fuse Block
2010-12 → 2013-08 ended
ZRE142 JPP —
90982-09021 note Fuse, Fuse Block
2010-12 → 2013-08 ended
ZRE142 JPP —
90982-09022 note Fuse, Fuse Block
2010-12 → 2013-08 ended
ZRE142 JPP —
90982-09023 note Fuse, Fuse Block
2010-12 → 2013-08 ended
ZRE142 JPP —
90982-09024 note Fuse, Fuse Block
2010-12 → 2013-08 ended
ZRE142 JPP —
90982-09025 note Fuse, Fuse Block
2010-12 → 2013-08 ended
ZRE142 JPP —
82616 — Puller, Fuse
82616-58010 Puller, Fuse
2007-12 → 2010-12 ended
ZRE142 JPP —
82616-58010 Puller, Fuse
2010-12 → 2013-08 ended
ZRE142 JPP —
82620A — Block Assy, Fusible Link
82620-12280 Block Assy, Fusible Link
2007-12 → 2010-12 ended
ZRE142 JPP —
82620-12280 Block Assy, Fusible Link
2010-12 → 2013-08 ended
ZRE142 JPP —
82630 — Holder Assy, Fuse
82631-12070 note Holder Assy, Fuse
2007-12 → 2010-12 ended
ZRE142 JPP —
82631-12080 note Holder Assy, Fuse
2007-12 → 2010-12 ended
ZRE142 JPP —
82631-12090 note Holder Assy, Fuse
2007-12 → 2010-12 ended
ZRE142 JPP —
82631-12070 note Holder Assy, Fuse
2010-12 → 2013-08 ended
ZRE142 JPP —
82631-12080 note Holder Assy, Fuse
2010-12 → 2013-08 ended
ZRE142 JPP —
82631-12090 note Holder Assy, Fuse
2010-12 → 2013-08 ended
ZRE142 JPP —
82641C — Relay, Integration NO.2
82641-47020 Relay, Integration NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
82641-47020 Relay, Integration NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
82661 — Cover, Relay Block, NO.1
82661-12310 Cover, Relay Block, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
82661-12310 Cover, Relay Block, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
82662A — Cover, Relay Block, Upper, NO.1
82662-12370 Cover, Relay Block, Upper, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
82662-12370 Cover, Relay Block, Upper, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
82662B — Cover, Relay Block, Upper, NO.2
82662-12280 note Cover, Relay Block, Upper, NO.2
2007-12 → 2009-01 ended
ZRE142 JPP —
82662-12280 note Cover, Relay Block, Upper, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
82663 — Cover, Relay Block, Lower
82663-12070 note Cover, Relay Block, Lower
2007-12 → 2009-01 ended
ZRE142 JPP —
82663-12070 note Cover, Relay Block, Lower
2007-12 → 2010-12 ended
ZRE142 JPP —
82663A — Cover, Relay Block, Lower, NO.2
82663-12100 Cover, Relay Block, Lower, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
82663-12100 Cover, Relay Block, Lower, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
82741 — Block, Engine Room Relay
82741-12080 note Block, Engine Room Relay
2007-12 → 2009-01 ended
ZRE142 JPP —
82741-12080 note Block, Engine Room Relay
2007-12 → 2010-12 ended
ZRE142 JPP —
82741B — Block, Engine Room Relay
82741-12110 Block, Engine Room Relay
2007-12 → 2010-12 ended
ZRE142 JPP —
82741-12110 Block, Engine Room Relay
2010-12 → 2013-08 ended
ZRE142 JPP —
82821D — Cover, Connector
82821-47090 Cover, Connector
2007-12 → 2010-12 ended
ZRE142 JPP —
82821-47090 Cover, Connector
2010-12 → 2013-08 ended
ZRE142 JPP —
82824L — Pin, Short
82824-20140 Pin, Short
2007-12 → 2010-12 ended
ZRE142 JPP —
82824-20140 Pin, Short
2010-12 → 2013-08 ended
ZRE142 JPP —
85916P — Relay, Headlamp
90987-02025 Relay, Headlamp
2007-12 → 2010-12 ended
ZRE142 JPP —
90987-02025 Relay, Headlamp
2010-12 → 2013-08 ended
ZRE142 JPP —
85916U — Relay, Headlamp, NO.2
90987-02025 Relay, Headlamp, NO.2
2009-01 → 2010-12 ended
ZRE142 JPP —
90987-04010 Relay, Headlamp, NO.2
2007-12 → 2009-01 ended
ZRE142 JPP —
90987-02025 Relay, Headlamp, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
85927A — Relay, Cooling Fan, NO.2
90987-02027 Relay, Cooling Fan, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
90987-02027 Relay, Cooling Fan, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
87346K — Relay, Ptc Heater
90987-02027 note Relay, Ptc Heater
2007-12 → 2010-12 ended
ZRE142 JPP —
90987-02027 note Relay, Ptc Heater
2007-12 → 2010-12 ended
ZRE142 JPP LE —
90987-02027 note Relay, Ptc Heater
2010-12 → 2011-02 ended
ZRE142 JPP LE —
90987-02027 note Relay, Ptc Heater
2010-12 → 2011-02 ended
ZRE142 JPP —
90987-02027 Relay, Ptc Heater
2011-02 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
