Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

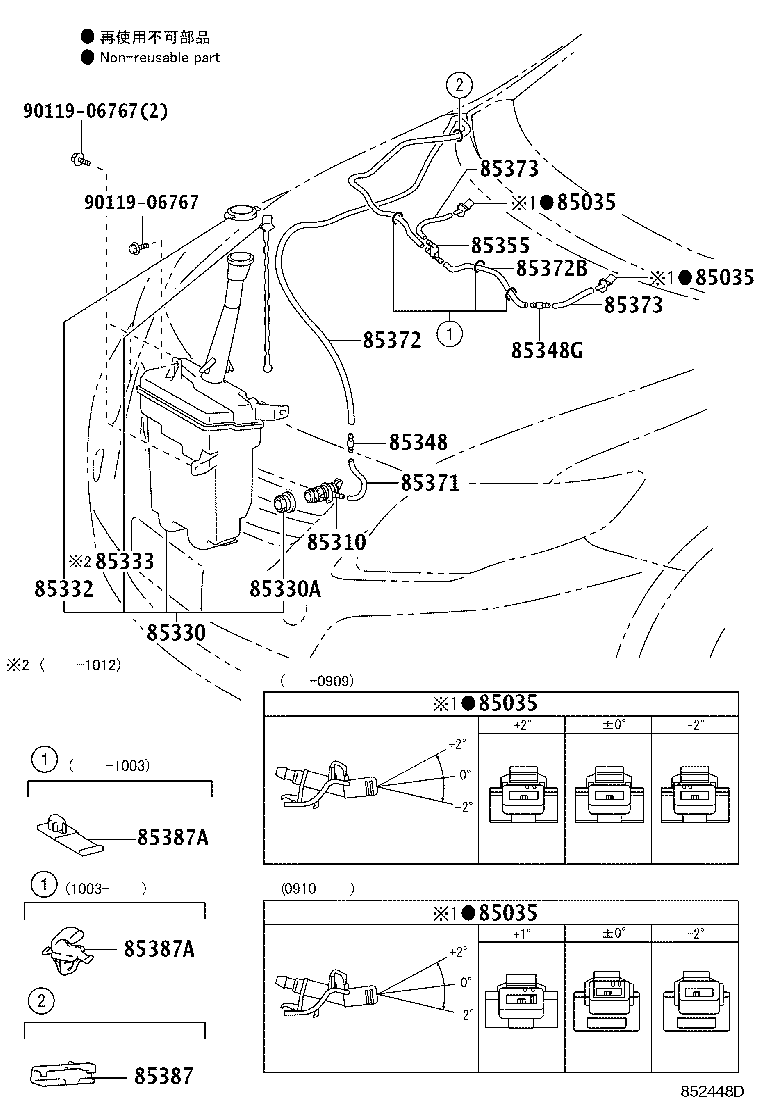

Exploded illustration 852448D 85310 — MOTOR AND PUMP ASSY, WINDSHIELD WASHER (2 parts) 85348 — JOINT, WINDSHIELD WASHER HOSE, NO.1 (2 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (2 parts) 85387 — CLAMP NO.1 (FOR WINDSEIELD WASHER) (2 parts) 85348G — JOINT, WINDSHIELD WASHER HOSE, NO.2 (2 parts) 85373 — HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) (2 parts) 85330 — JAR ASSY, WINDSHIELD WASHER (2 parts) 85330A — BUSH, WINDSHIELD WASHER JAR (2 parts) 85332 — CAP, WINDSHIELD WASHER JAR (2 parts) 85333 — FILTER, WINDSHIELD WASHER JAR (1 parts) 9011906767 — not listed in this catalogue 9011906767 — not listed in this catalogue 85371 — HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) (2 parts) 85372 — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 (2 parts) 85372B — HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 (2 parts) 85355 — VALVE, WINDSHIELD WASHER HOSE (2 parts) 85387A — CLAMP, WASHER, NO.2 (3 parts) 85387A — CLAMP, WASHER, NO.2 (3 parts) 85035 — NOZZLE SUB-ASSY, WASHER (9 parts) 85035 — NOZZLE SUB-ASSY, WASHER (9 parts) 85035 — NOZZLE SUB-ASSY, WASHER (9 parts) 85035 — NOZZLE SUB-ASSY, WASHER (9 parts)
852448D · 20 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
85035 — Nozzle Sub-assy, Washer
85381-12300 note Nozzle Sub-assy, Washer
2007-12 → 2009-09 ended
ZRE142 JPP —
85381-12310 note Nozzle Sub-assy, Washer
2007-12 → 2009-09 ended
ZRE142 JPP —
85381-12320 note Nozzle Sub-assy, Washer
2007-12 → 2009-09 ended
ZRE142 JPP —
85381-12350 note Nozzle Sub-assy, Washer
2009-10 → 2010-12 ended
ZRE142 JPP —
85381-30110 note Nozzle Sub-assy, Washer
2009-10 → 2010-12 ended
ZRE142 JPP —
85381-30150 note Nozzle Sub-assy, Washer
2009-10 → 2010-12 ended
ZRE142 JPP —
85381-12350 note Nozzle Sub-assy, Washer
2010-12 → 2013-08 ended
ZRE142 JPP —
85381-30110 note Nozzle Sub-assy, Washer
2010-12 → 2013-08 ended
ZRE142 JPP —
85381-30150 note Nozzle Sub-assy, Washer
2010-12 → 2013-08 ended
ZRE142 JPP —
85310 — Motor And Pump Assy, Windshield Washer
85330-60190 Motor And Pump Assy, Windshield Washer
2007-12 → 2010-12 ended
ZRE142 JPP —
85330-60190 Motor And Pump Assy, Windshield Washer
2010-12 → 2013-08 ended
ZRE142 JPP —
85330 — Jar Assy, Windshield Washer
85315-12600 Jar Assy, Windshield Washer
2007-12 → 2010-12 ended
ZRE142 JPP —
85315-12640 Jar Assy, Windshield Washer
2010-12 → 2013-08 ended
ZRE142 JPP —
85330A — Bush, Windshield Washer Jar
85336-60300 Bush, Windshield Washer Jar
2007-12 → 2010-12 ended
ZRE142 JPP —
85336-60300 Bush, Windshield Washer Jar
2010-12 → 2013-08 ended
ZRE142 JPP —
85332 — Cap, Windshield Washer Jar
85386-60050 Cap, Windshield Washer Jar
2007-12 → 2010-12 ended
ZRE142 JPP —
85386-60050 Cap, Windshield Washer Jar
2010-12 → 2013-08 ended
ZRE142 JPP —
85333 — Filter, Windshield Washer Jar
85312-48010 Filter, Windshield Washer Jar
2007-12 → 2010-12 ended
ZRE142 JPP —
85348 — Joint, Windshield Washer Hose, NO.1
85375-10260 Joint, Windshield Washer Hose, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
85375-10260 Joint, Windshield Washer Hose, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
85348G — Joint, Windshield Washer Hose, NO.2
85349-89122 Joint, Windshield Washer Hose, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
85349-89122 Joint, Windshield Washer Hose, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
85355 — Valve, Windshield Washer Hose
85321-28020 Valve, Windshield Washer Hose
2007-12 → 2010-12 ended
ZRE142 JPP —
85321-28020 Valve, Windshield Washer Hose
2010-12 → 2013-08 ended
ZRE142 JPP —
85371 — Hose, Windshield Washer (FROM MOTOR TO JOINT)
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2007-12 → 2010-12 ended
ZRE142 JPP —
90099-33080 note Hose, Windshield Washer (FROM MOTOR TO JOINT)
2010-12 → 2013-08 ended
ZRE142 JPP —
85372 — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
90099-33803 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
90099-33803 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
85372B — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
85373 — Hose, Windshield Washer (FROM JOINT TO NOZZLE)
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
2007-12 → 2010-12 ended
ZRE142 JPP —
90099-33080 note Hose, Windshield Washer (FROM JOINT TO NOZZLE)
2010-12 → 2013-08 ended
ZRE142 JPP —
85387 — Clamp NO.1 (FOR WINDSEIELD WASHER)
85387-12840 Clamp NO.1 (FOR WINDSEIELD WASHER)
2007-12 → 2010-12 ended
ZRE142 JPP —
85387-12840 Clamp NO.1 (FOR WINDSEIELD WASHER)
2010-12 → 2013-08 ended
ZRE142 JPP —
85387A — Clamp, Washer, NO.2
82711-3A540 Clamp, Washer, NO.2
2007-12 → 2010-03 ended
ZRE142 JPP —
85371-12040 Clamp, Washer, NO.2
2010-03 → 2010-12 ended
ZRE142 JPP —
85371-12040 Clamp, Washer, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
