Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

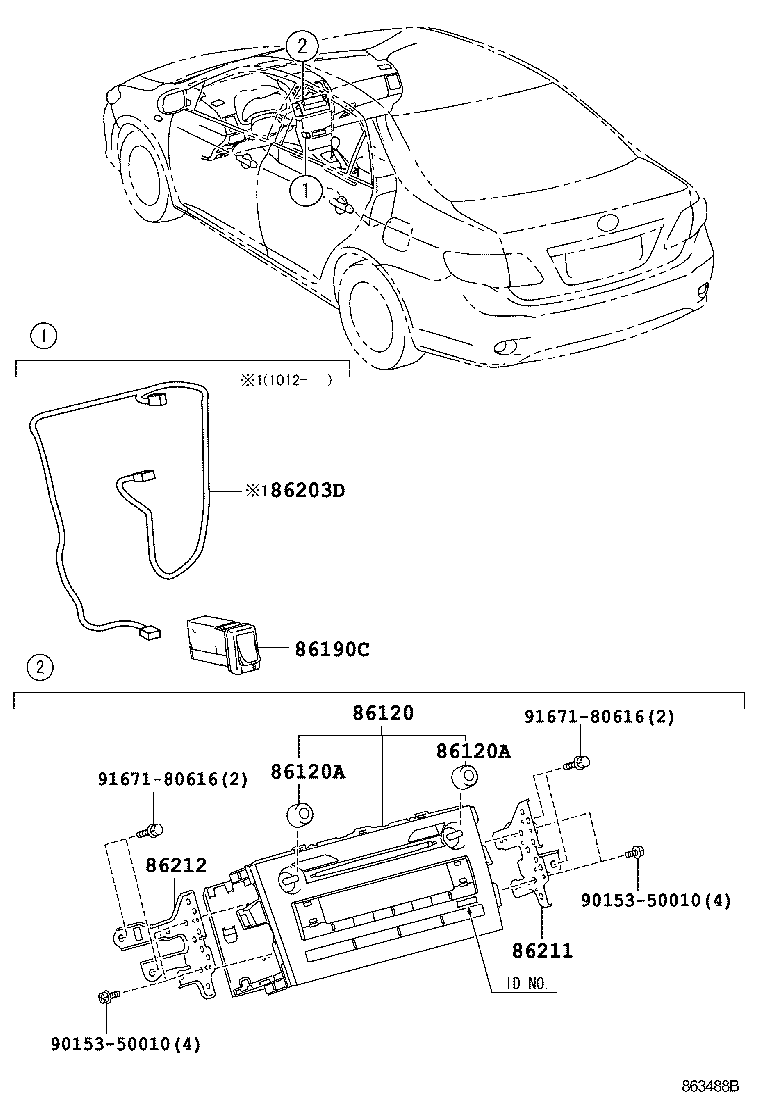

Exploded illustration 863488B 86190C — ADAPTER ASSY, STEREO JACK, NO.1 (8 parts) 86120 — RECEIVER ASSY, RADIO (13 parts) 86212 — BRACKET, RADIO, NO.2 (3 parts) 86211 — BRACKET, RADIO, NO.1 (3 parts) 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue 9015350010 — not listed in this catalogue 9015350010 — not listed in this catalogue 86120A — KNOB, RADIO RECEIVER SWITCH (10 parts) 86120A — KNOB, RADIO RECEIVER SWITCH (10 parts) 86203D — WIRE, STEREO COMPONENT, NO.1 (4 parts)
863488B · 7 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
41 parts on this figure
Part number Description Fitment Price
86120 — Receiver Assy, Radio
86120-12B30 note Receiver Assy, Radio
2007-12 → 2009-01 ended
ZRE142 JPP —
86120-12B40 note Receiver Assy, Radio
2007-12 → 2009-01 ended
ZRE142 JPP —
86120-12D10 note Receiver Assy, Radio
2009-01 → 2010-12 ended
ZRE142 JPP —
86120-12D20 note Receiver Assy, Radio
2009-01 → 2010-12 ended
ZRE142 JPP —
86120-12E30 note Receiver Assy, Radio
2010-12 → 2013-08 ended
ZRE142 JPP STD —
86120-12E50 note Receiver Assy, Radio
2010-12 → 2011-12 ended
ZRE142 JPP LE —
86120-12E50 note Receiver Assy, Radio
2011-12 → 2013-08 ended
ZRE142 JPP LE —
86120-12E90 note Receiver Assy, Radio
2010-12 → 2011-12 ended
ZRE142 JPP LE —
86120-12E90 note Receiver Assy, Radio
2010-12 → 2011-12 ended
ZRE142 JPP LE —
86120-12F20 note Receiver Assy, Radio
2010-12 → 2011-12 ended
ZRE142 JPP LE —
86120-12F90 note Receiver Assy, Radio
2011-12 → 2012-07 ended
ZRE142 JPP LE —
86120-12F90 note Receiver Assy, Radio
2011-12 → 2012-07 ended
ZRE142 JPP LE —
86120-12F90 note Receiver Assy, Radio
2011-12 → 2013-08 ended
ZRE142 JPP STD —
86120A — Knob, Radio Receiver Switch
90010-24132 Knob, Radio Receiver Switch
2007-12 → 2009-01 ended
ZRE142 JPP —
90010-24141 Knob, Radio Receiver Switch
2009-01 → 2010-12 ended
ZRE142 JPP —
90010-24123 note Knob, Radio Receiver Switch
2010-12 → 2011-12 ended
ZRE142 JPP LE —
90010-24123 note Knob, Radio Receiver Switch
2011-12 → 2013-08 ended
ZRE142 JPP LE —
90010-24141 Knob, Radio Receiver Switch
2010-12 → 2013-08 ended
ZRE142 JPP STD —
90010-24145 note Knob, Radio Receiver Switch
2010-12 → 2011-12 ended
ZRE142 JPP LE —
90010-24145 Knob, Radio Receiver Switch
2010-12 → 2011-12 ended
ZRE142 JPP LE —
90010-24149 note Knob, Radio Receiver Switch
2011-12 → 2012-07 ended
ZRE142 JPP LE —
90010-24149 note Knob, Radio Receiver Switch
2011-12 → 2013-08 ended
ZRE142 JPP STD —
90010-24149 Knob, Radio Receiver Switch
2011-12 → 2012-07 ended
ZRE142 JPP LE —
86190C — Adapter Assy, Stereo Jack, NO.1
86190-12020 Adapter Assy, Stereo Jack, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
86190-52040 Adapter Assy, Stereo Jack, NO.1
2010-12 → 2011-12 ended
ZRE142 JPP LE —
86190-52040 Adapter Assy, Stereo Jack, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP STD —
86190-52040 note Adapter Assy, Stereo Jack, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP LE —
86190-52040 note Adapter Assy, Stereo Jack, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP LE —
86190-53040 Adapter Assy, Stereo Jack, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP LE —
86190-53040 note Adapter Assy, Stereo Jack, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP STD —
86190-53040 note Adapter Assy, Stereo Jack, NO.1
2010-12 → 2011-12 ended
ZRE142 JPP LE —
86203D — Wire, Stereo Component, NO.1
86203-12420 note Wire, Stereo Component, NO.1
2010-12 → 2011-01 ended
ZRE142 JPP LE —
86203-12421 note Wire, Stereo Component, NO.1
2011-01 → 2011-12 ended
ZRE142 JPP LE —
86203-12421 Wire, Stereo Component, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP LE —
86203-12421 note Wire, Stereo Component, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP STD —
86211 — Bracket, Radio, NO.1
86211-12400 Bracket, Radio, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
86211-12400 Bracket, Radio, NO.1
2010-12 → 2011-12 ended
ZRE142 JPP —
86211-12450 Bracket, Radio, NO.1
2011-12 → 2013-08 ended
ZRE142 JPP —
86212 — Bracket, Radio, NO.2
86212-12380 Bracket, Radio, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
86212-12380 Bracket, Radio, NO.2
2010-12 → 2011-12 ended
ZRE142 JPP —
86212-12440 Bracket, Radio, NO.2
2011-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
