Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

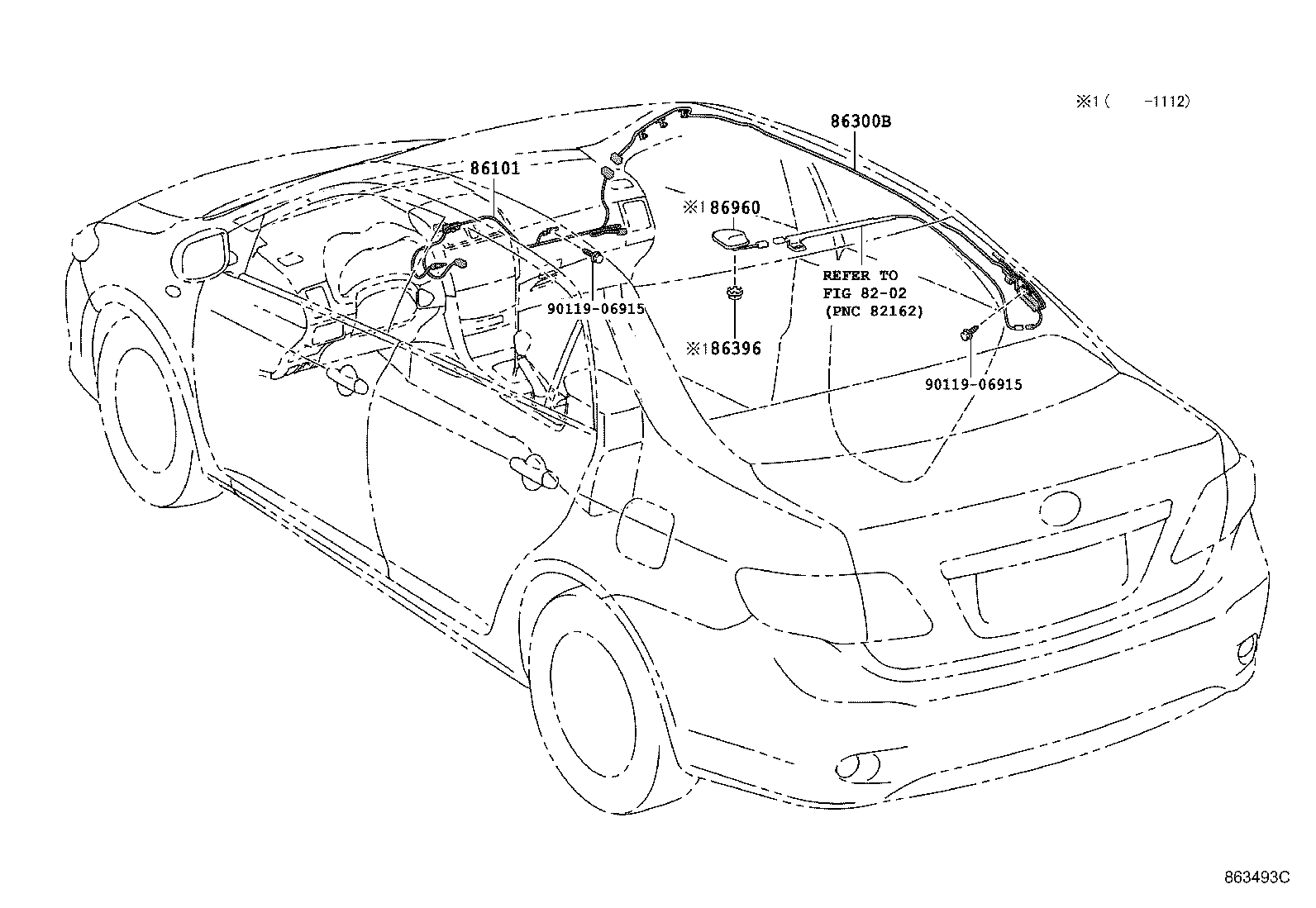

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86101 — Cord Sub-assy, Antenna | ||||
| 86101-12540 |
Cord Sub-assy, Antenna
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 86101-12540 |
Cord Sub-assy, Antenna
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 86101-12540 |
Cord Sub-assy, Antenna
2010-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 86101-12540 note |
Cord Sub-assy, Antenna
2011-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 86101-12540 note |
Cord Sub-assy, Antenna
2011-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 86101-12790 note |
Cord Sub-assy, Antenna
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 86101-12A10 |
Cord Sub-assy, Antenna
2011-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 86101-12A10 note |
Cord Sub-assy, Antenna
2011-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 86300B — Antenna Assy, Amplifier, NO.1 | ||||
| 86300-12A00 |
Antenna Assy, Amplifier, NO.1
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 86300-12A00 note |
Antenna Assy, Amplifier, NO.1
2011-02 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 86300-12A00 |
Antenna Assy, Amplifier, NO.1
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
| 86300-12A00 note |
Antenna Assy, Amplifier, NO.1
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 86300-12A00 note |
Antenna Assy, Amplifier, NO.1
2010-12 → 2011-02
ended
|
ZRE142 JPP LE | — | |
| 86300-12A80 note |
Antenna Assy, Amplifier, NO.1
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 86396 — Nut, Antenna | ||||
| 86396-30050 |
Nut, Antenna
2007-12 → 2010-05
ended
|
ZRE142 JPP | — | |
| 86396-47010 |
Nut, Antenna
2010-05 → 2010-12
ended
|
ZRE142 JPP | — | |
| 86396-47010 note |
Nut, Antenna
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 86960 — Antenna Assy, Satellite Radio | ||||
| 86960-12010-A0 note |
Antenna Assy, Satellite Radio
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 86960-12010-B0 note |
Antenna Assy, Satellite Radio
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 86960-12010-B1 note |
Antenna Assy, Satellite Radio
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 86960-12010-C0 note |
Antenna Assy, Satellite Radio
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 86960-12010-D0 note |
Antenna Assy, Satellite Radio
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 86960-12010-H0 note |
Antenna Assy, Satellite Radio
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 86960-12010-J0 note |
Antenna Assy, Satellite Radio
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 86960-12020 note |
Antenna Assy, Satellite Radio
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
