Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

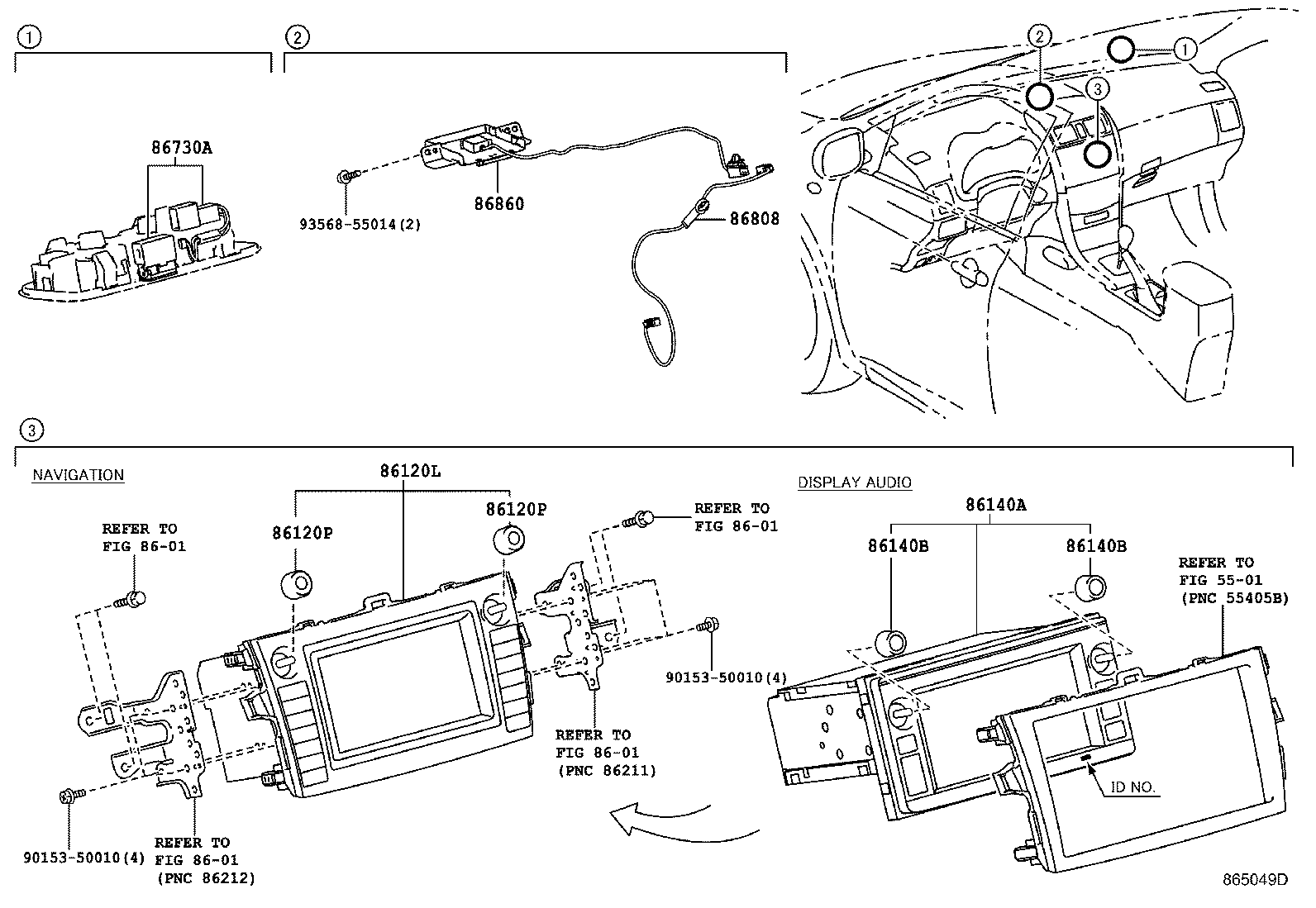

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86120L — Receiver Assy, Navigation | ||||
| 86120-12E80 note |
Receiver Assy, Navigation
2010-12 → 2011-04
ended
|
ZRE142 JPP LE | — | |
| 86120-12E81 note |
Receiver Assy, Navigation
2011-05 → 2012-02
ended
|
ZRE142 JPP LE | — | |
| 86120-12E82 note |
Receiver Assy, Navigation
2012-02 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 86120P — Knob, Navigation Receiver Switch | ||||
| 90010-24129 note |
Knob, Navigation Receiver Switch
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 86140A — Receiver Assy, Radio & Display | ||||
| 86140-12060 note |
Receiver Assy, Radio & Display
2012-07 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 86140B — Knob, Radio & Display Receiver Switch | ||||
| 90010-24170 |
Knob, Radio & Display Receiver Switch
2012-07 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 90010-24170 note |
Knob, Radio & Display Receiver Switch
2012-07 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 86730A — Microphone Assy, Telephone | ||||
| 86730-52010 note |
Microphone Assy, Telephone
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 86730-52010 note |
Microphone Assy, Telephone
2010-12 → 2011-12
ended
|
ZRE142 JPP LE | — | |
| 86730-52010 |
Microphone Assy, Telephone
2011-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 86730-52010 note |
Microphone Assy, Telephone
2011-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 86730-52010 note |
Microphone Assy, Telephone
2011-12 → 2013-08
ended
|
ZRE142 JPP STD | — | |
| 86808 — Cord Sub-assy, Navigation Antenna, NO.1 | ||||
| 86808-12060 note |
Cord Sub-assy, Navigation Antenna, NO.1
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 86860 — Antenna Assy, Navigation | ||||
| 86860-12070 note |
Antenna Assy, Navigation
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
