Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

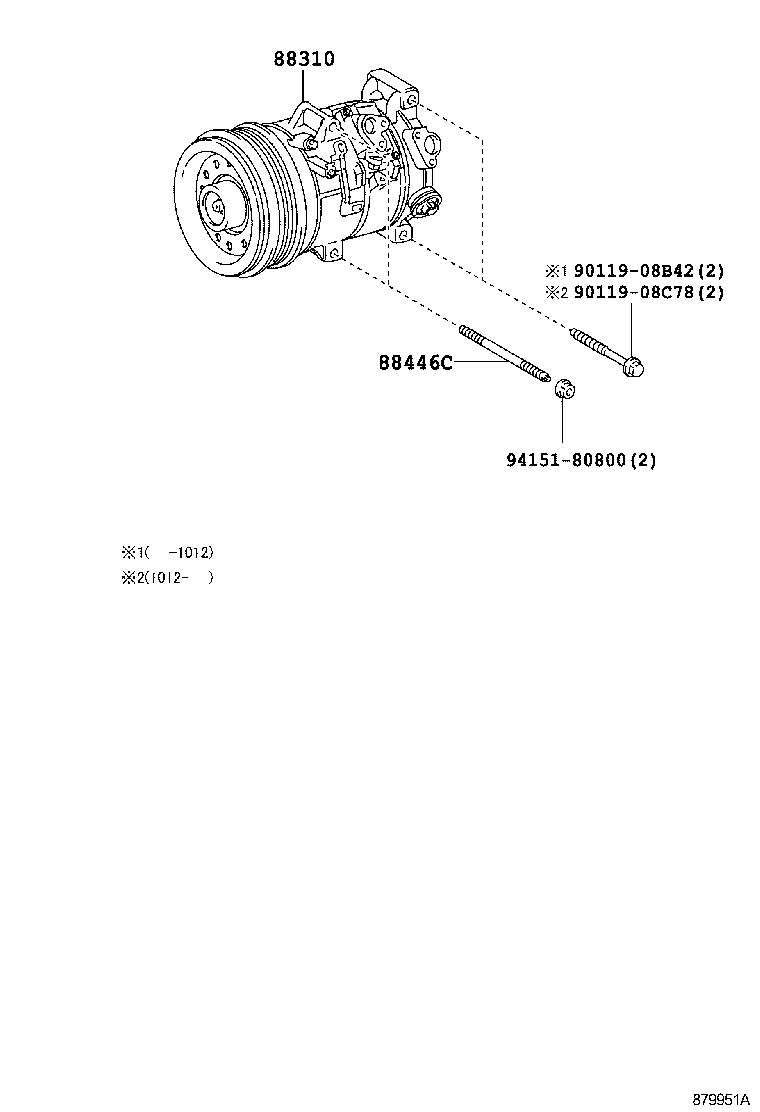

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88310 — Compressor Assy, W/Pulley | ||||
| 88310-1A740 |
Compressor Assy, W/Pulley
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 88310-68031 |
Compressor Assy, W/Pulley
2010-12 → 2012-12
ended
|
ZRE142 JPP | — | |
| 88310-68032 |
Compressor Assy, W/Pulley
2013-01 → 2013-08
ended
|
ZRE142 JPP | — | |
| 88446C — Bolt, Magnet Clutch Setting | ||||
| 88446-12060 |
Bolt, Magnet Clutch Setting
2007-12 → 2008-08
ended
|
ZRE142 JPP | — | |
| 88446-12061 |
Bolt, Magnet Clutch Setting
2008-09 → 2010-12
ended
|
ZRE142 JPP | — | |
| 88446-42030 |
Bolt, Magnet Clutch Setting
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
