Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

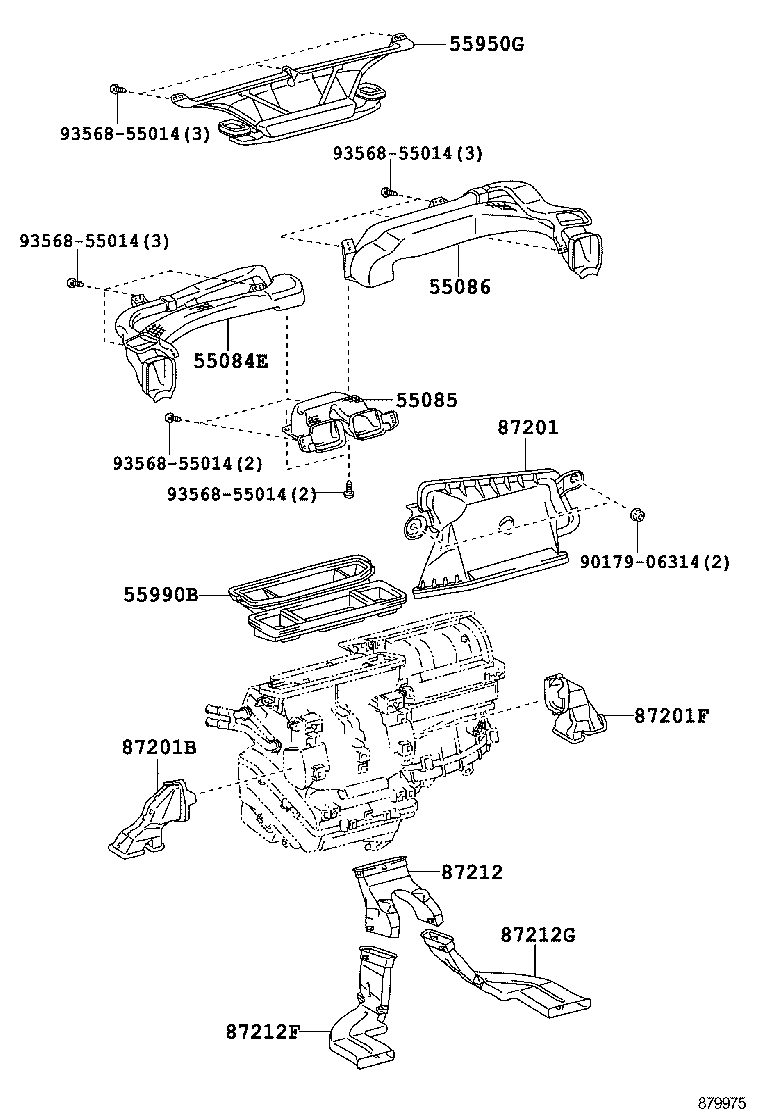

Exploded illustration 879975 55990B — NOZZLE ASSY, DEFROSTER, LOWER (2 parts) 87201 — DUCT SUB-ASSY, AIR, NO.1 (2 parts) 87212 — DUCT, AIR, REAR NO.1 (4 parts) 87212G — DUCT, AIR, REAR NO.3 (4 parts) 87212F — DUCT, AIR, REAR NO.2 (4 parts) 9356855014 — not listed in this catalogue 9356855014 — not listed in this catalogue 9356855014 — not listed in this catalogue 9017906314 — not listed in this catalogue 9356855014 — not listed in this catalogue 9356855014 — not listed in this catalogue 55950G — NOZZLE ASSY, DEFROSTER (3 parts) 87201F — DUCT SUB-ASSY, AIR, NO.3 (3 parts) 87201B — DUCT SUB-ASSY, AIR, NO.2 (2 parts) 55086 — DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 (3 parts) 55084E — DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 (3 parts) 55085 — DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 (2 parts)
879975 · 11 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
55084E — Duct Sub-assy, Heater TO Register, NO.1
55084-12150 Duct Sub-assy, Heater TO Register, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
55084-12130 note Duct Sub-assy, Heater TO Register, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55084-12150 Duct Sub-assy, Heater TO Register, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
55085 — Duct Sub-assy, Heater TO Register, NO.2
55085-12130 Duct Sub-assy, Heater TO Register, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
55085-12130 Duct Sub-assy, Heater TO Register, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
55086 — Duct Sub-assy, Heater TO Register, NO.3
55086-12210 Duct Sub-assy, Heater TO Register, NO.3
2007-12 → 2010-12 ended
ZRE142 JPP —
55086-12190 note Duct Sub-assy, Heater TO Register, NO.3
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55086-12210 Duct Sub-assy, Heater TO Register, NO.3
2010-12 → 2013-08 ended
ZRE142 JPP —
55950G — Nozzle Assy, Defroster
55950-12290 Nozzle Assy, Defroster
2007-12 → 2010-12 ended
ZRE142 JPP —
55950-12280 note Nozzle Assy, Defroster
2010-12 → 2013-08 ended
ZRE142 JPP LE —
55950-12290 Nozzle Assy, Defroster
2010-12 → 2013-08 ended
ZRE142 JPP —
55990B — Nozzle Assy, Defroster, Lower
55990-12080 Nozzle Assy, Defroster, Lower
2007-12 → 2010-12 ended
ZRE142 JPP —
55990-12080 Nozzle Assy, Defroster, Lower
2010-12 → 2013-08 ended
ZRE142 JPP —
87201 — Duct Sub-assy, Air, NO.1
87220-12040 Duct Sub-assy, Air, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
87220-12040 Duct Sub-assy, Air, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
87201B — Duct Sub-assy, Air, NO.2
87211-12350 Duct Sub-assy, Air, NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
87211-12350 Duct Sub-assy, Air, NO.2
2010-12 → 2013-08 ended
ZRE142 JPP —
87201F — Duct Sub-assy, Air, NO.3
87211-12340 Duct Sub-assy, Air, NO.3
2007-12 → 2010-12 ended
ZRE142 JPP —
87211-12340 Duct Sub-assy, Air, NO.3
2010-12 → 2011-09 ended
ZRE142 JPP —
87211-12440 Duct Sub-assy, Air, NO.3
2011-10 → 2013-08 ended
ZRE142 JPP —
87212 — Duct, Air, Rear NO.1
87215-12050 note Duct, Air, Rear NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
87215-12050 note Duct, Air, Rear NO.1
2010-12 → 2011-02 ended
ZRE142 JPP —
87215-12050 Duct, Air, Rear NO.1
2011-02 → 2013-08 ended
ZRE142 JPP —
87215-12050 note Duct, Air, Rear NO.1
2011-02 → 2013-08 ended
ZRE142 JPP —
87212F — Duct, Air, Rear NO.2
87213-12100 note Duct, Air, Rear NO.2
2007-12 → 2010-12 ended
ZRE142 JPP —
87213-12100 note Duct, Air, Rear NO.2
2010-12 → 2011-02 ended
ZRE142 JPP —
87213-12100 Duct, Air, Rear NO.2
2011-02 → 2013-08 ended
ZRE142 JPP —
87213-12100 note Duct, Air, Rear NO.2
2011-02 → 2013-08 ended
ZRE142 JPP —
87212G — Duct, Air, Rear NO.3
87212-12140 note Duct, Air, Rear NO.3
2007-12 → 2010-12 ended
ZRE142 JPP —
87212-12140 note Duct, Air, Rear NO.3
2010-12 → 2011-02 ended
ZRE142 JPP —
87212-12140 Duct, Air, Rear NO.3
2011-02 → 2013-08 ended
ZRE142 JPP —
87212-12140 note Duct, Air, Rear NO.3
2011-02 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
