Toyota Corolla Jpp
2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States
Supported model
Data version 2014-02

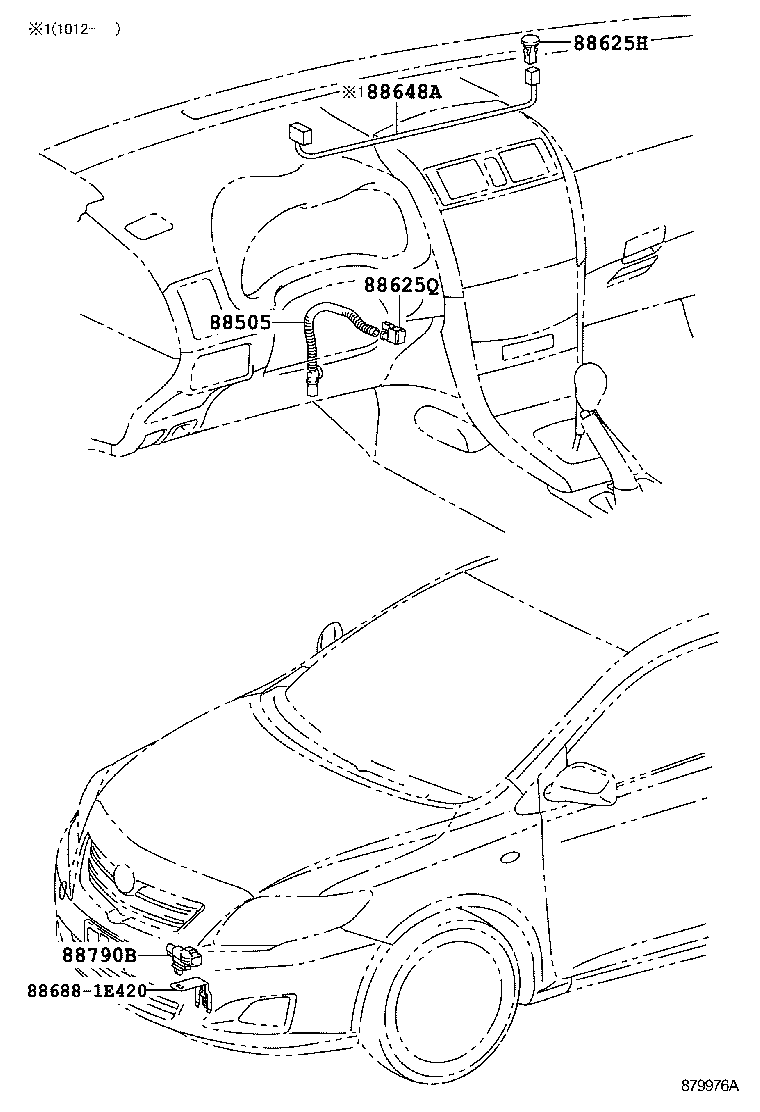

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88505 — Duct Sub-assy,Air Conditioner | ||||
| 88505-12020 note |
Duct Sub-assy,Air Conditioner
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 88505-12020 note |
Duct Sub-assy,Air Conditioner
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 88625H — Thermistor, Cooler (SOLAR SENSOR) | ||||
| 88625-47031 note |
Thermistor, Cooler (SOLAR SENSOR)
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 88625-47031 note |
Thermistor, Cooler (SOLAR SENSOR)
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 88625Q — Thermistor, Cooler (ROOM TEMP. SENSOR) | ||||
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2007-12 → 2010-12
ended
|
ZRE142 JPP LE | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 88648A — Wiring, Cooler | ||||
| 88648-12730 note |
Wiring, Cooler
2010-12 → 2013-08
ended
|
ZRE142 JPP LE | — | |
| 88790B — Thermistor Assy | ||||
| 88790-22131 |
Thermistor Assy
2007-12 → 2010-12
ended
|
ZRE142 JPP | — | |
| 88790-22131 |
Thermistor Assy
2010-12 → 2013-08
ended
|
ZRE142 JPP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
