Toyota Corolla Jpp

2007-12 → 2013-08 · chassis ZRE142 · catalogue 151460 · United States

Supported model Data version 2014-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

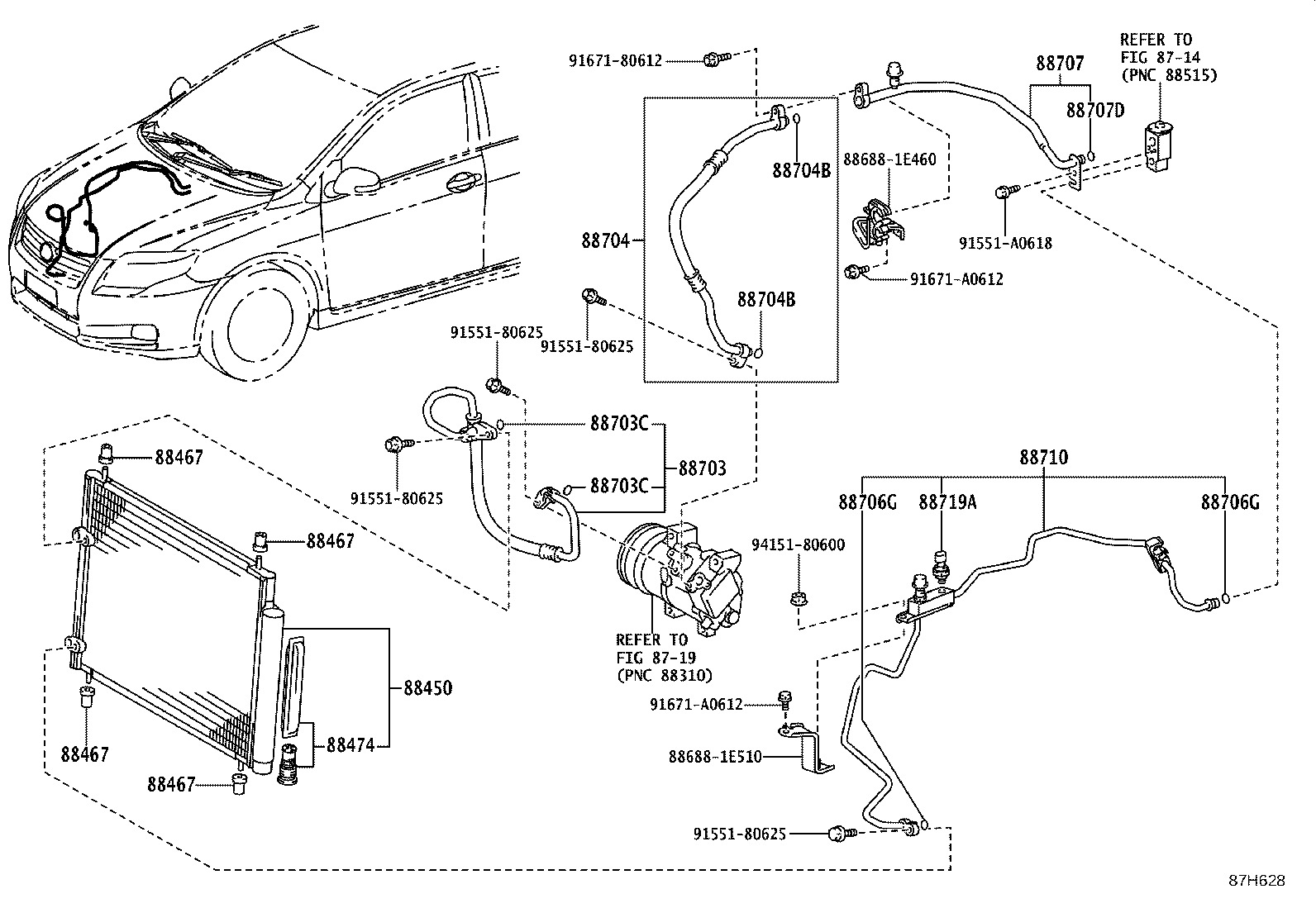

Exploded illustration 87H628 88707 — PIPE SUB-ASSY, SUCTION (2 parts) 88704 — HOSE SUB-ASSY, SUCTION (2 parts) 88703 — HOSE SUB-ASSY, DISCHARGE (2 parts) 88467 — CUSHION, COOLER CONDENSER, NO.1 (2 parts) 88467 — CUSHION, COOLER CONDENSER, NO.1 (2 parts) 88467 — CUSHION, COOLER CONDENSER, NO.1 (2 parts) 88467 — CUSHION, COOLER CONDENSER, NO.1 (2 parts) 88474 — DRYER, COOLER (2 parts) 88450 — CONDENSER ASSY, W/RECEIVER (2 parts) 88710 — TUBE ASSY, AIR CONDITIONER (2 parts) 88706G — RING, O(FOR LIQUID TUBE) (2 parts) 88719A — SENSOR, AIR CONDITIONER PRESSURE (2 parts) 88707D — RING, O(FOR SUCTION TUBE) (2 parts) 88706G — RING, O(FOR LIQUID TUBE) (2 parts) 9415180600 — not listed in this catalogue 91671A0612 — not listed in this catalogue 91671A0612 — not listed in this catalogue 9167180612 — not listed in this catalogue 91551A0618 — not listed in this catalogue 886881E460 — not listed in this catalogue 886881E510 — not listed in this catalogue 9155180625 — not listed in this catalogue 9155180625 — not listed in this catalogue 9155180625 — not listed in this catalogue 9155180625 — not listed in this catalogue 8719 — not listed in this catalogue 8714 — not listed in this catalogue 88704B — RING, O(FOR SUCTION HOSE) (2 parts) 88704B — RING, O(FOR SUCTION HOSE) (2 parts) 88703C — RING, O(FOR DISCHARGE HOSE) (2 parts) 88703C — RING, O(FOR DISCHARGE HOSE) (2 parts)
87H628 · 18 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
88450 — Condenser Assy, W/Receiver
88450-12280 Condenser Assy, W/Receiver
2007-12 → 2010-12 ended
ZRE142 JPP —
88450-12280 Condenser Assy, W/Receiver
2010-12 → 2013-08 ended
ZRE142 JPP —
88467 — Cushion, Cooler Condenser, NO.1
16716-28010 Cushion, Cooler Condenser, NO.1
2007-12 → 2010-12 ended
ZRE142 JPP —
16716-28010 Cushion, Cooler Condenser, NO.1
2010-12 → 2013-08 ended
ZRE142 JPP —
88474 — Dryer, Cooler
88474-12030 Dryer, Cooler
2007-12 → 2010-12 ended
ZRE142 JPP —
88474-12030 Dryer, Cooler
2010-12 → 2013-08 ended
ZRE142 JPP —
88703 — Hose Sub-assy, Discharge
88703-1A070 Hose Sub-assy, Discharge
2007-12 → 2010-12 ended
ZRE142 JPP —
88703-1A141 Hose Sub-assy, Discharge
2010-12 → 2013-08 ended
ZRE142 JPP —
88703C — Ring, O(FOR DISCHARGE HOSE)
90099-14120 note Ring, O(FOR DISCHARGE HOSE)
2007-12 → 2010-12 ended
ZRE142 JPP —
90099-14120 note Ring, O(FOR DISCHARGE HOSE)
2010-12 → 2013-08 ended
ZRE142 JPP —
88704 — Hose Sub-assy, Suction
88704-1A300 Hose Sub-assy, Suction
2007-12 → 2010-12 ended
ZRE142 JPP —
88704-1A300 Hose Sub-assy, Suction
2010-12 → 2013-08 ended
ZRE142 JPP —
88704B — Ring, O(FOR SUCTION HOSE)
90099-14121 note Ring, O(FOR SUCTION HOSE)
2007-12 → 2010-12 ended
ZRE142 JPP —
90099-14121 note Ring, O(FOR SUCTION HOSE)
2010-12 → 2013-08 ended
ZRE142 JPP —
88706G — Ring, O(FOR LIQUID TUBE)
90099-14119 note Ring, O(FOR LIQUID TUBE)
2007-12 → 2010-12 ended
ZRE142 JPP —
90099-14119 note Ring, O(FOR LIQUID TUBE)
2010-12 → 2013-08 ended
ZRE142 JPP —
88707 — Pipe Sub-assy, Suction
88707-12290 Pipe Sub-assy, Suction
2007-12 → 2010-12 ended
ZRE142 JPP —
88707-12290 Pipe Sub-assy, Suction
2010-12 → 2013-08 ended
ZRE142 JPP —
88707D — Ring, O(FOR SUCTION TUBE)
90099-14121 note Ring, O(FOR SUCTION TUBE)
2007-12 → 2010-12 ended
ZRE142 JPP —
90099-14121 note Ring, O(FOR SUCTION TUBE)
2010-12 → 2013-08 ended
ZRE142 JPP —
88710 — Tube Assy, Air Conditioner
88710-12860 Tube Assy, Air Conditioner
2007-12 → 2010-12 ended
ZRE142 JPP —
88710-12860 Tube Assy, Air Conditioner
2010-12 → 2013-08 ended
ZRE142 JPP —
88719A — Sensor, Air Conditioner Pressure
88719-33020 Sensor, Air Conditioner Pressure
2007-12 → 2010-12 ended
ZRE142 JPP —
88719-33020 Sensor, Air Conditioner Pressure
2010-12 → 2013-08 ended
ZRE142 JPP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
