Toyota Corolla (MEXICO)

2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 4 illustrations

Illustrations

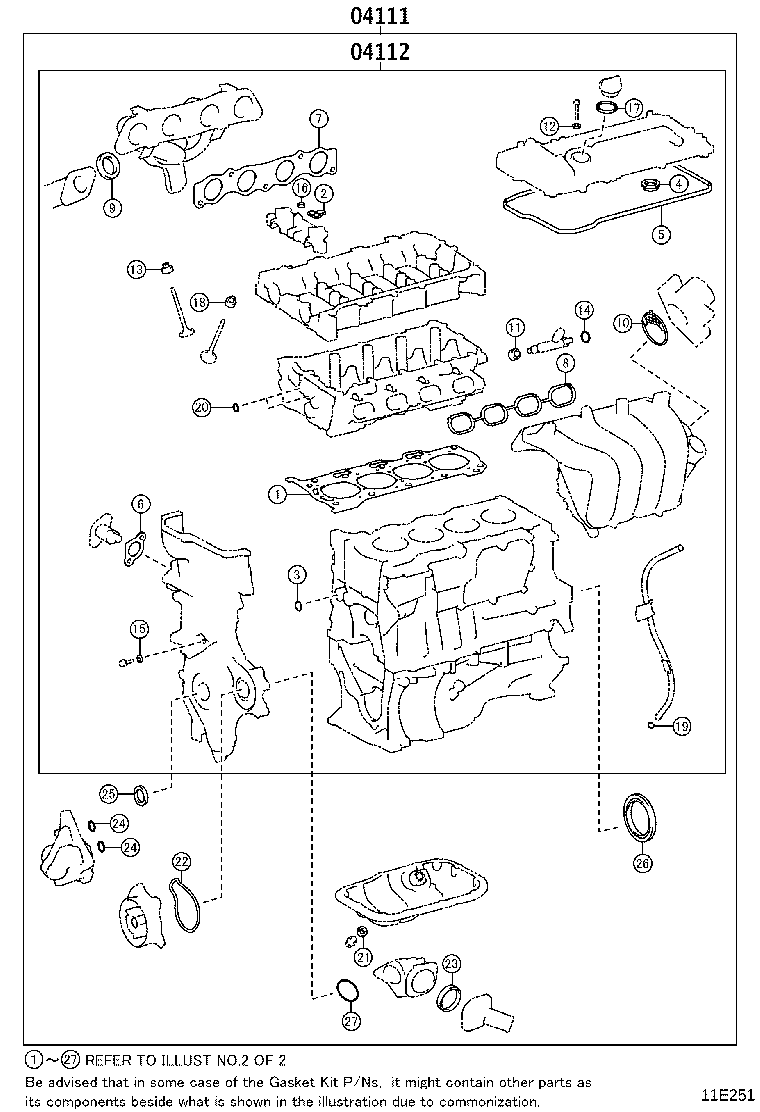

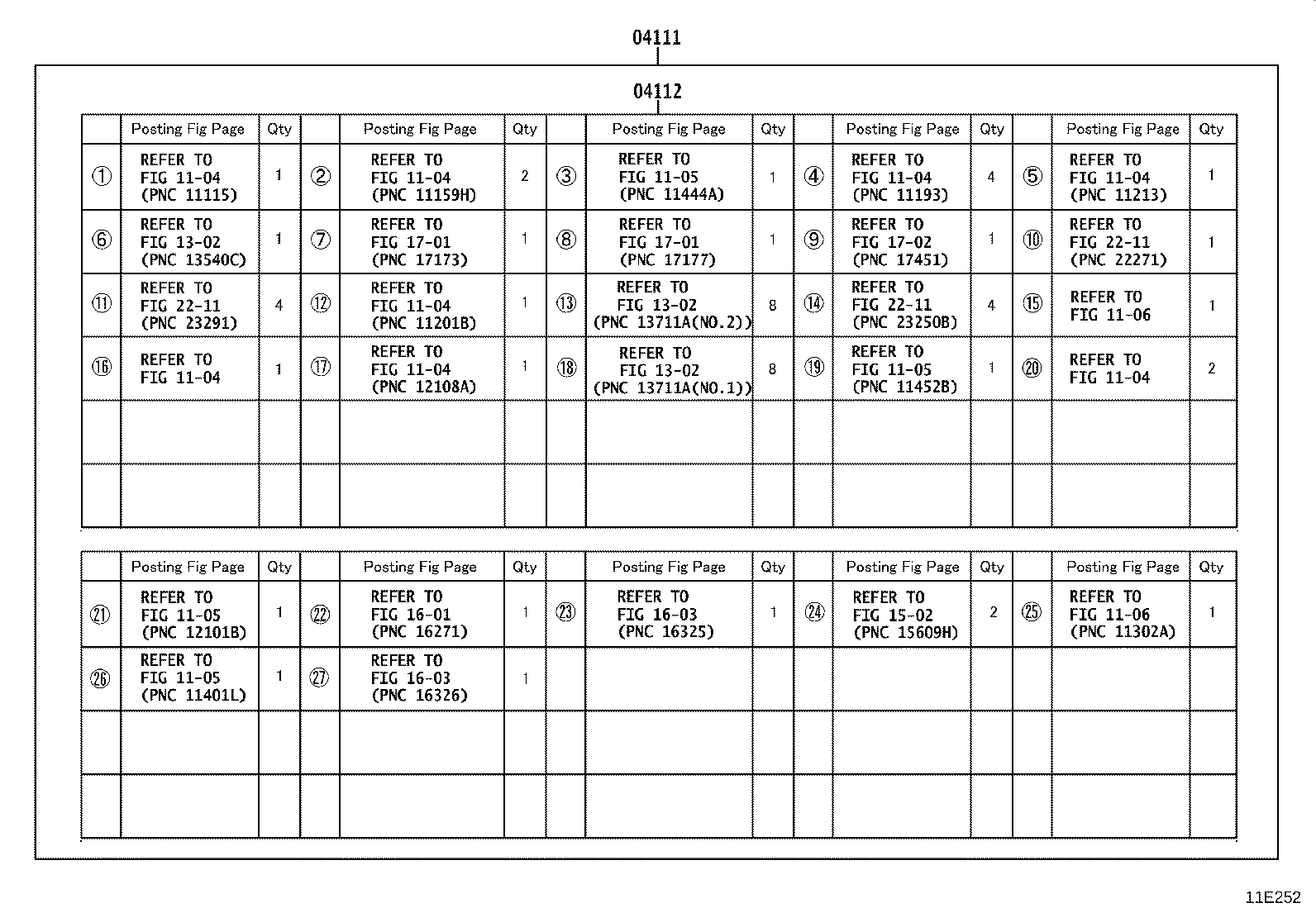

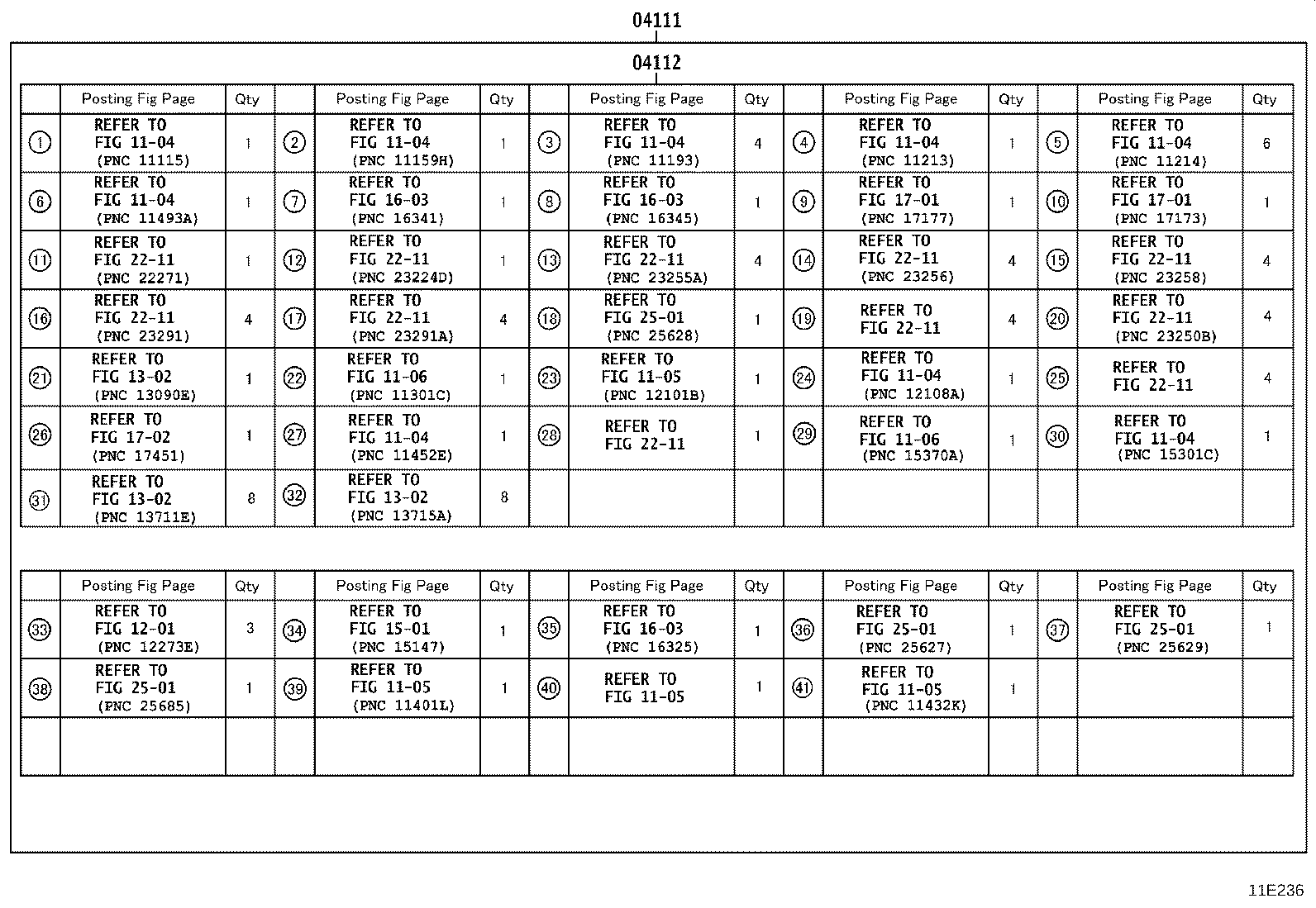

Figure 11E235 11E235 2019-03 → — Figure 11E236 11E236 2019-03 → — Figure 11E251 11E251 2019-02 → — Figure 11E252 11E252 2019-02 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
