Toyota Corolla (MEXICO)
2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States
Supported model
Data version 2024-09

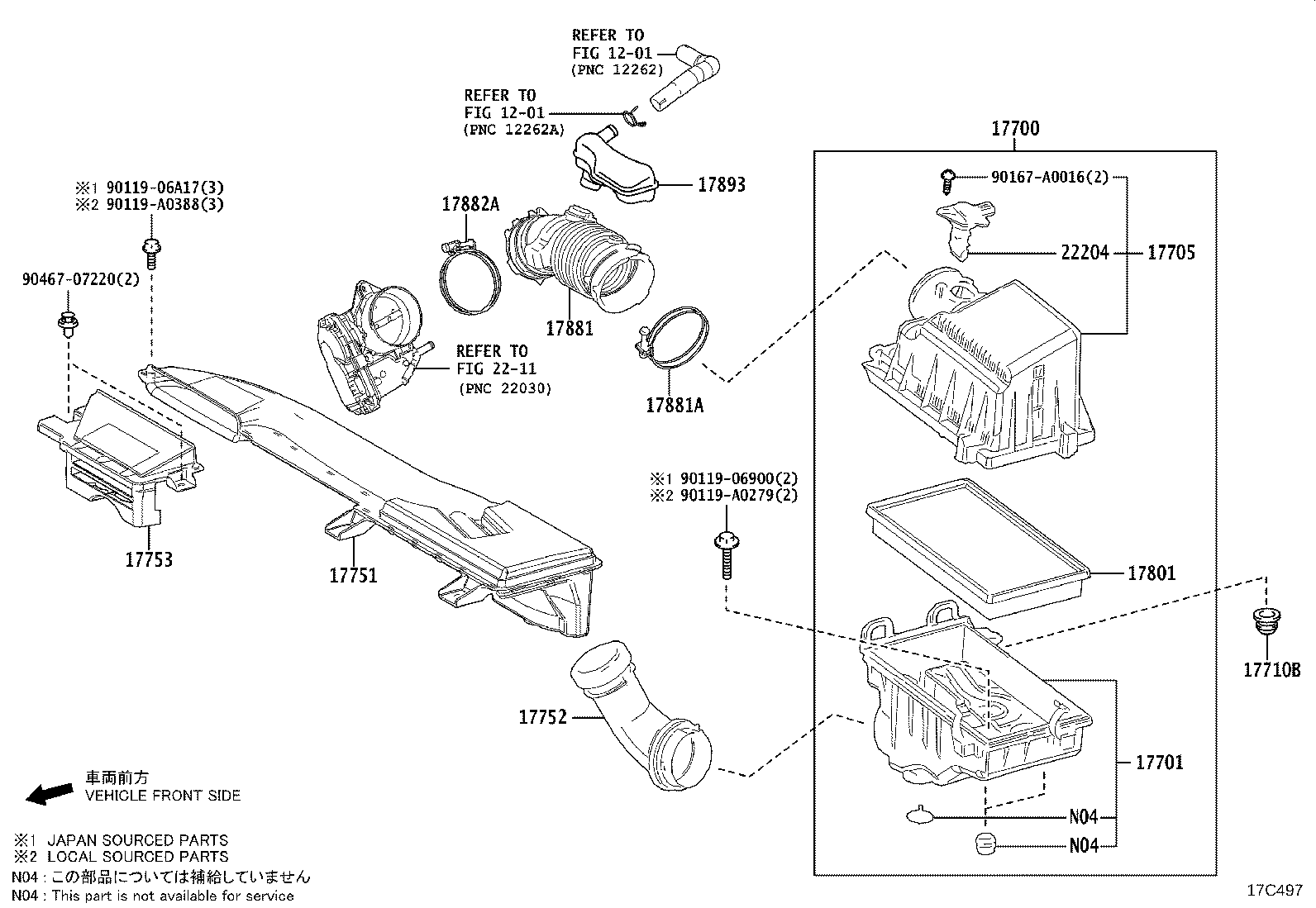

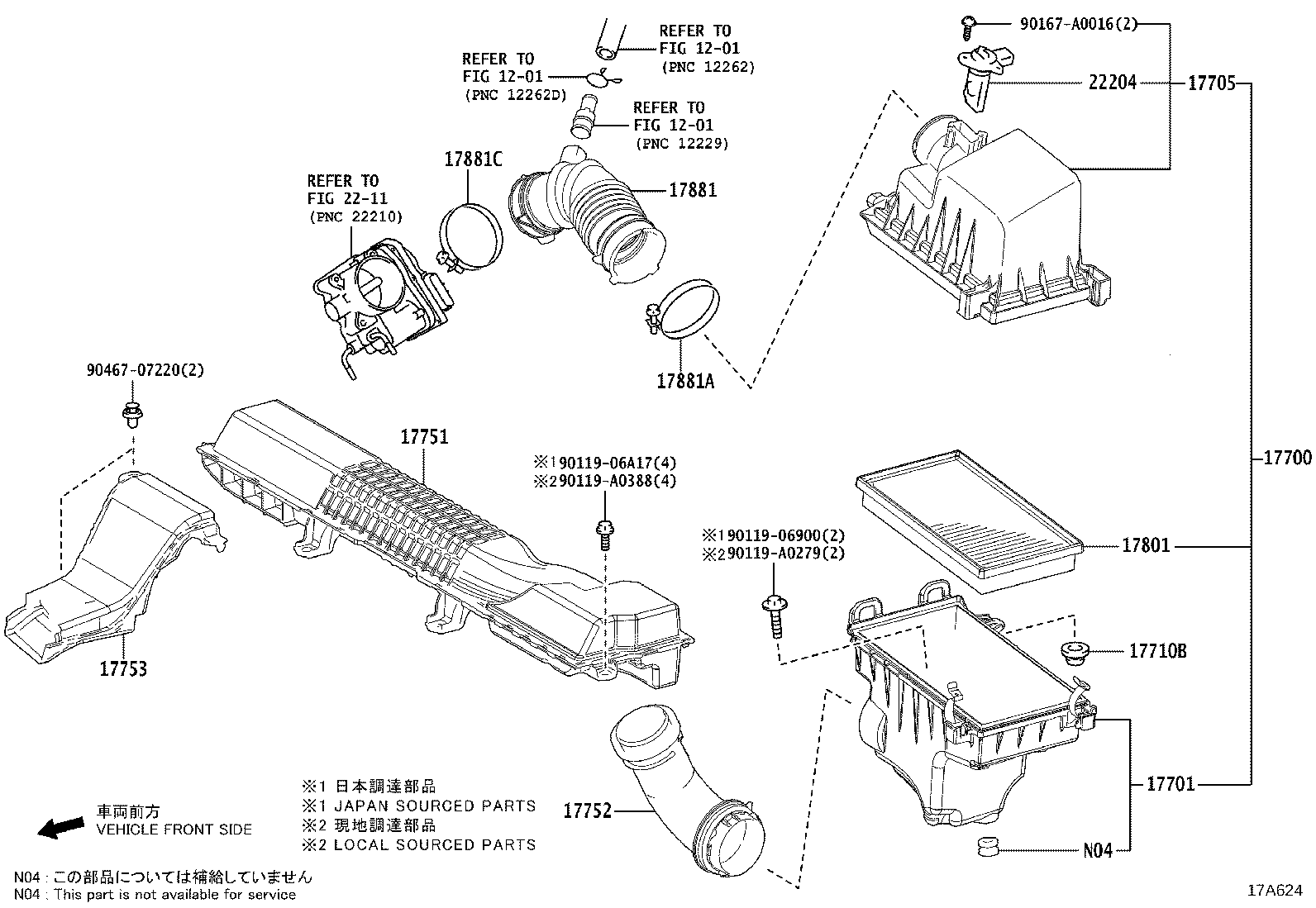

Air Cleaner
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17700 | Cleaner Assy, Air |
| 17701 | Case Sub-assy, Air Cleaner |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17710B | Grommet |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17752 | Inlet, Air Cleaner, NO.2 |
| 17753 | Inlet, Air Cleaner, NO.3 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17881C | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17893 | Resonator, Intake Air |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
