Toyota Corolla (MEXICO)
2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States
Supported model
Data version 2024-09
Starter
8 part groups · 2 illustrations

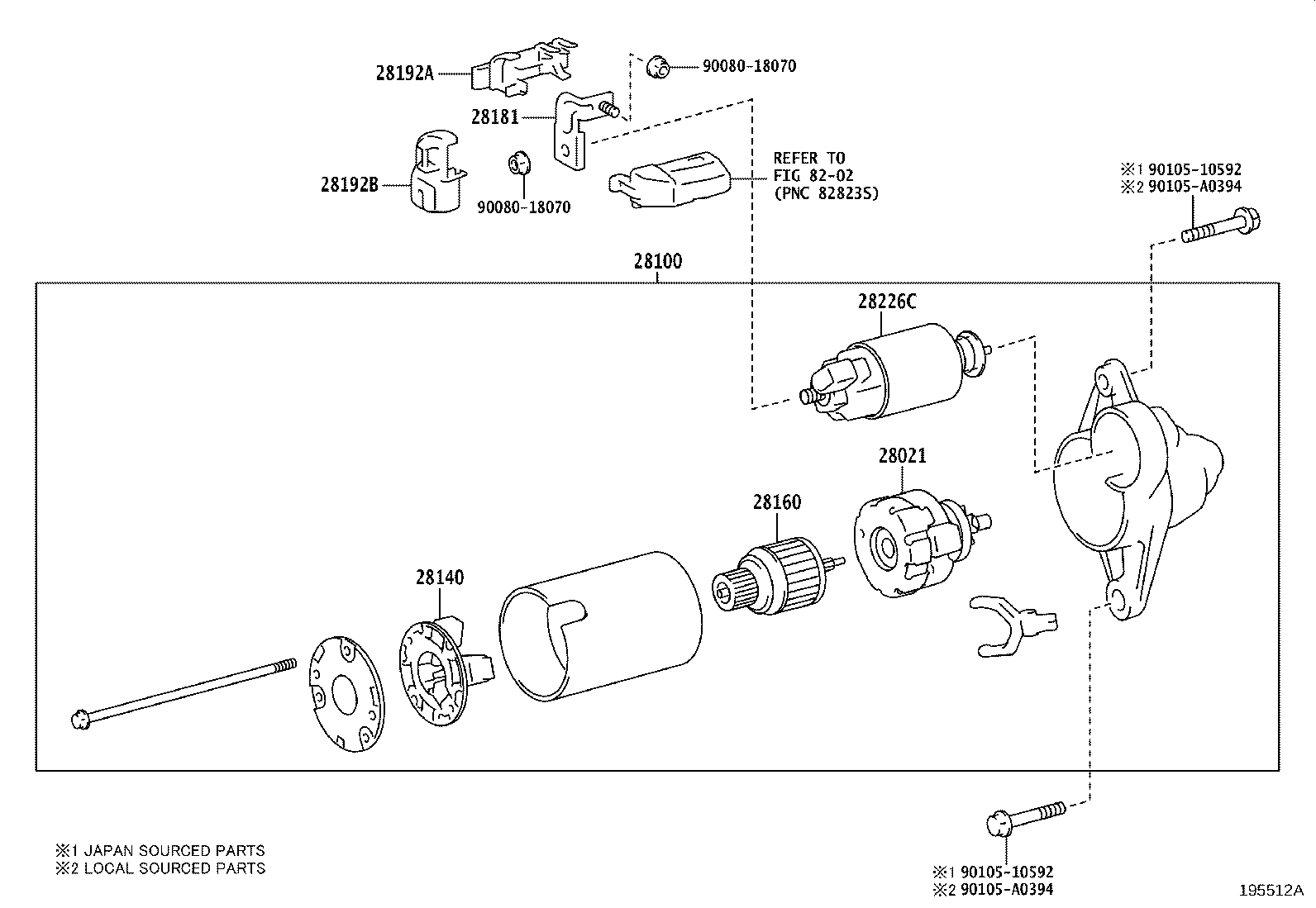

Part groups
| PNC | Description |
|---|---|
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28140 | Holder Assy, Starter Brush |
| 28160 | Armature Assy, Starter |
| 28181 | Terminal, Starter |
| 28192A | Cover, Starter, NO.1 |
| 28192B | Cover, Starter, NO.2 |
| 28226C | Starter Kit, Repair Service, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
