Toyota Corolla (MEXICO)
2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States
Supported model
Data version 2024-09

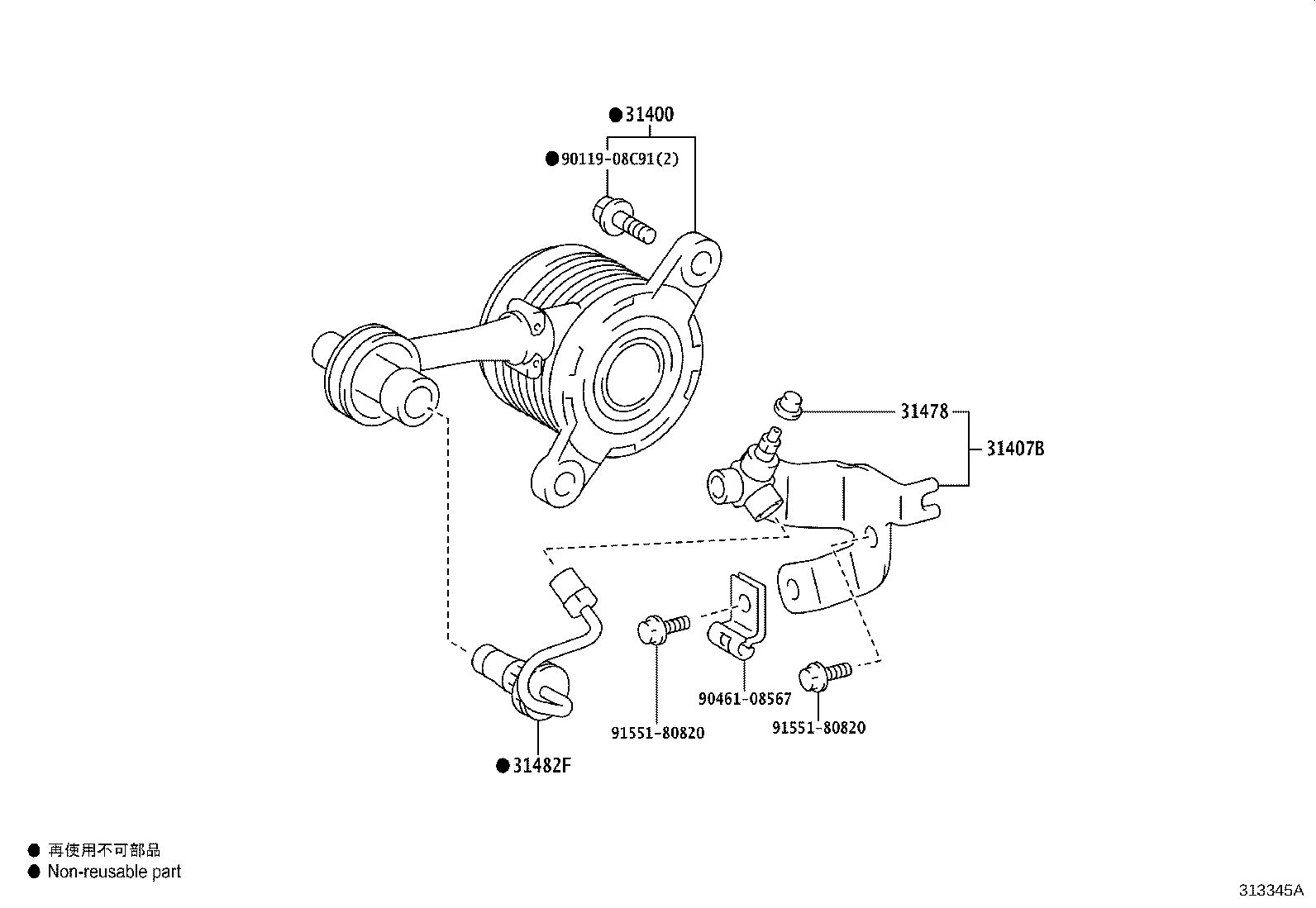

Clutch Release Cylinder
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31126B | Boot, Clutch Tube |
| 31400 | Cylinder Assy, Clutch Release W/Bearing |
| 31407B | Bleeder Sub-assy, Clutch Release |
| 31478 | Cap, Bleeder Plug(FOR RELEASE CYLINDER) |
| 31482F | Tube, Clutch Release Cylinder W/Bearing TO Bleeder |
| 31483 | Tube, Bleeder Clutch Release |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
