Toyota Corolla (MEXICO)
2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States
Supported model
Data version 2024-09

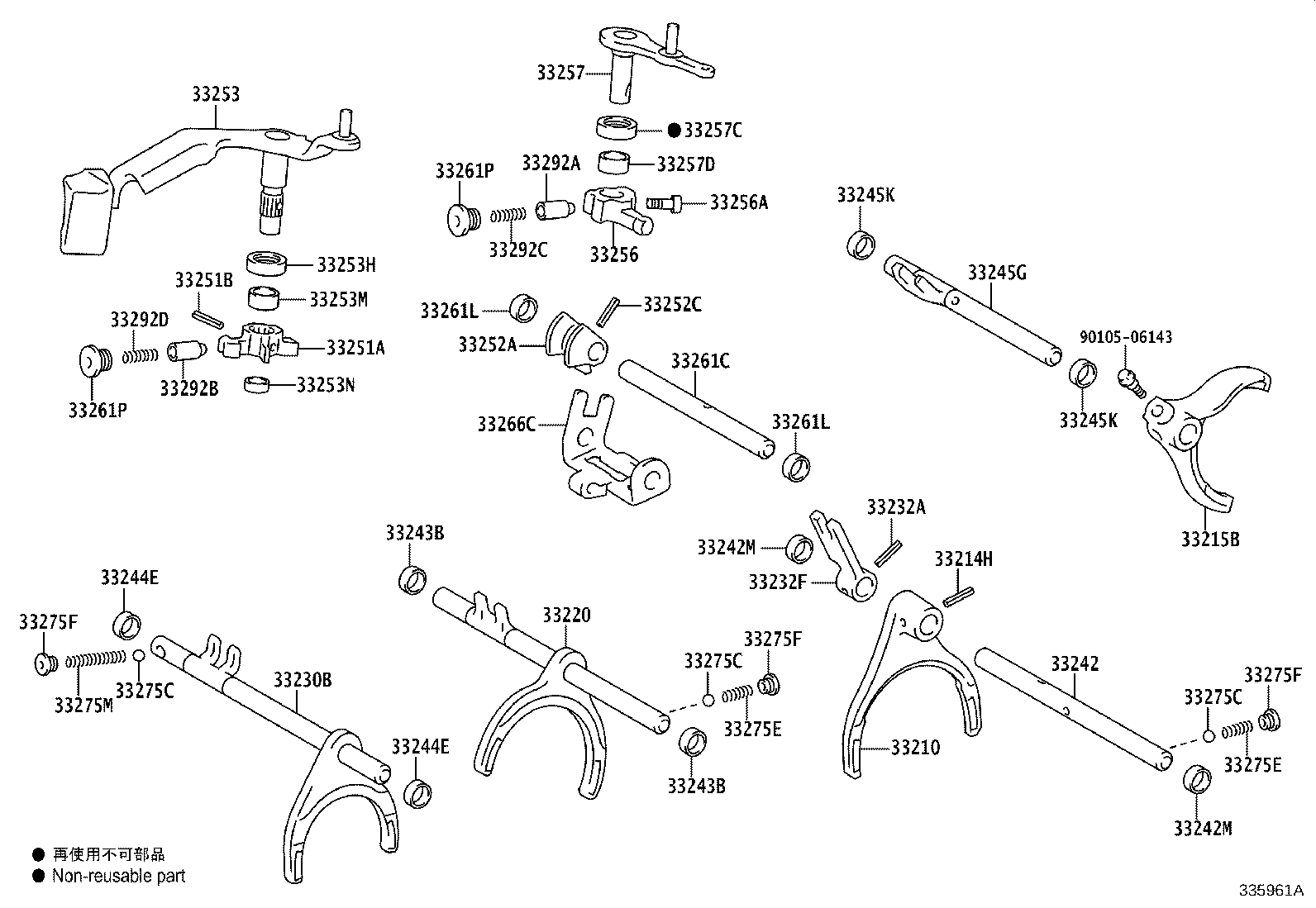

Gear Shift Fork & Lever Shaft (MTM)
56 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33210 | Fork Assy, Gear Shift, NO.1 |
| 33214H | Pin, Slotted(FOR SHIFT FORK) |
| 33215B | Fork, Gear Shift, NO.4 |
| 33220 | Fork Assy, Gear Shift, NO.2 |
| 33230A | Shaft Assy, Gear Shift Fork, NO.1 |
| 33230B | Fork Assy, Gear Shift, NO.3 |
| 33232A | Pin, Slotted Spring (FOR SHIFT HEAD SET) |
| 33232F | Head, Gear Shift, NO.1 |
| 33237 | Head, Release |
| 33237C | Spring, Torsion(FOR RELEASE HEAD) |
| 33237D | Pin, Straight(FOR RELEASE HEAD) |
| 33240 | Bracket Assy, Reverse Shift Arm |
| 33240A | Shaft Assy, Gear Shift Fork, NO.2 |
| 33242 | Shaft, Gear Shift Fork, NO.1 |
| 33242M | Bush, Bimetal Formed(FOR GEAR SHIFT FORK SHAFT NO.1) |
| 33243B | Bush, Bimetal Formed(FOR GEAR SHIFT FORK SHAFT NO.2) |
| 33244E | Bush, Bimetal Formed(FOR GEAR SHIFT FORK SHAFT NO.3) |
| 33245G | Shaft, Gear Shift Fork, NO.4 |
| 33245K | Bush, Bimetal Formed(FOR GEAR SHIFT FORK SHAFT NO.4) |
| 33250B | Shaft Assy, Gear Shift Fork, NO.3 |
| 33251A | Lever, Shift, Inner NO.1 |
| 33251B | Pin, Slotted Spring (FOR SHIFT INNER LEVER) |
| 33252A | Lever, Shift, Inner NO.2 |
| 33252C | Pin, Slotted Spring(FOR SHIFT LEVER INN NO.2) |
| 33253 | Lever, Shift Outer, NO.1 |
| 33253F | Ring, E(FOR SHIFT OUTER LEVER) |
| 33253G | Spacer(FOR SHIFT OUTER LEVER) |
| 33253H | Seal, Oil(FOR SHIFT OUTER LEVER) |
| 33253J | Bush(FOR SHIFT OUTER LEVER) |
| 33253M | Bush, Bimetal Formed(FOR SHIFT OUTER LEVER, UPPER) |
| 33253N | Bush, Bimetal Formed(FOR SHIFT OUTER LEVER, LOWER) |
| 33256 | Lever, Select Inner |
| 33256A | Bolt, Set (FOR SELECT INNER LEVER) |
| 33257 | Lever, Select Outer |
| 33257C | Seal, Oil(FOR OUTER SELECT LEVER) |
| 33257D | Bush, Bimetal Formed(FOR OUTER SELECT LEVER) |
| 33260 | Shaft Assy, Reverse Shift Fork(MTM) |
| 33261C | Shaft, Shift & Select Lever |
| 33261L | Bush, Bimetal Formed (FOR SHIFT & SELECT LEVER SHAFT) |
| 33261N | Spring, Compression(FOR SHIFT & SELECT LEVER SHAFT) |
| 33261P | Plug, Straight Screw W/Head(FOR SHIFT & SELECT LEVER SHAFT) |
| 33266C | Plate, Shift Interlock |
| 33275C | Ball (FOR SHIFT DETENT) |
| 33275E | Spring, Compression (FOR SHIFT DETENT BALL) |
| 33275F | Plug (FOR SHIFT DETENT BALL) |
| 33275M | Spring, Compression, NO.2 (FOR SHIFT DETENT BALL) |
| 33280 | Pin Assy, Reverse Restrict |
| 33288 | Block, Select Stopper |
| 33288C | Pin, Slotted Spring(FOR SELECT STOPPER BLOCK) |
| 33290 | Ball Assy, Lock, NO.1 |
| 33292A | Pin, Lock Ball |
| 33292B | Pin, Lock Ball NO.2 |
| 33292C | Spring, NO.1(FOR LOCK BALL PIN RETURN) |
| 33292D | Spring, NO.2(FOR LOCK BALL PIN RETURN) |
| 33926 | Lever, Shift Inner, Front |
| 33926C | Pin, Slotted Spring(FOR SHIFT INNER LEVER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
