Toyota Corolla (MEXICO)
2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States
Supported model
Data version 2024-09
Parking Brake & Cable
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 46135 | Stopper, Parking Brake Cable End |
| 46201E | Lever Sub-assy, Parking Brake |

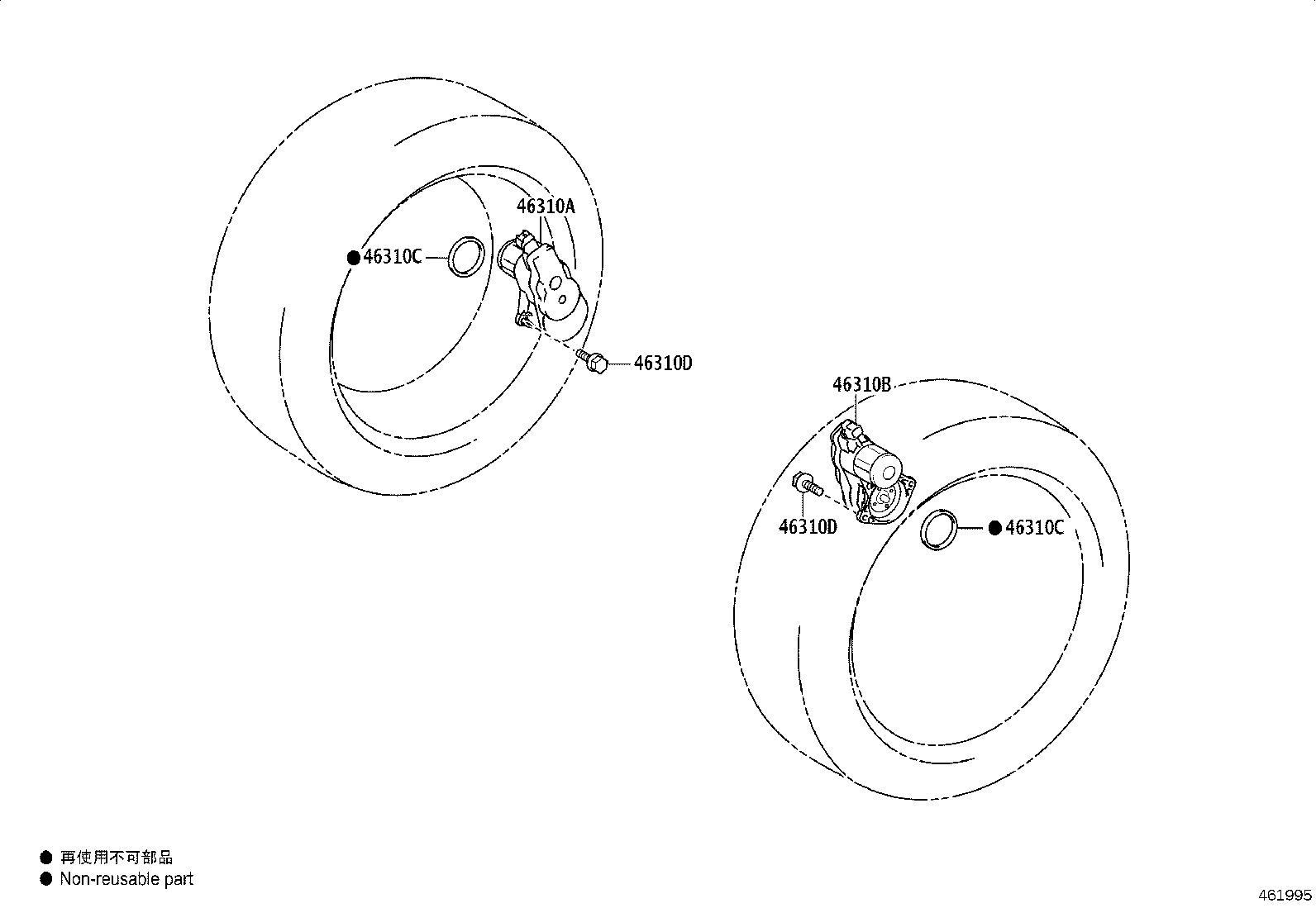

| 46310A | Actuator Assy, Parking Brake, RH |
| 46310B | Actuator Assy, Parking Brake, LH |
| 46310C | Seal(FOR PARKING BRAKE ACTUATOR) |
| 46310D | Bolt(FOR PARKING BRAKE ACTUATOR) |
| 46341 | Equalizer, Parking Brake |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 47658B | Protector, Parking Brake Lever |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
