Toyota Corolla (MEXICO)

2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

17 part groups · 5 illustrations

Illustrations

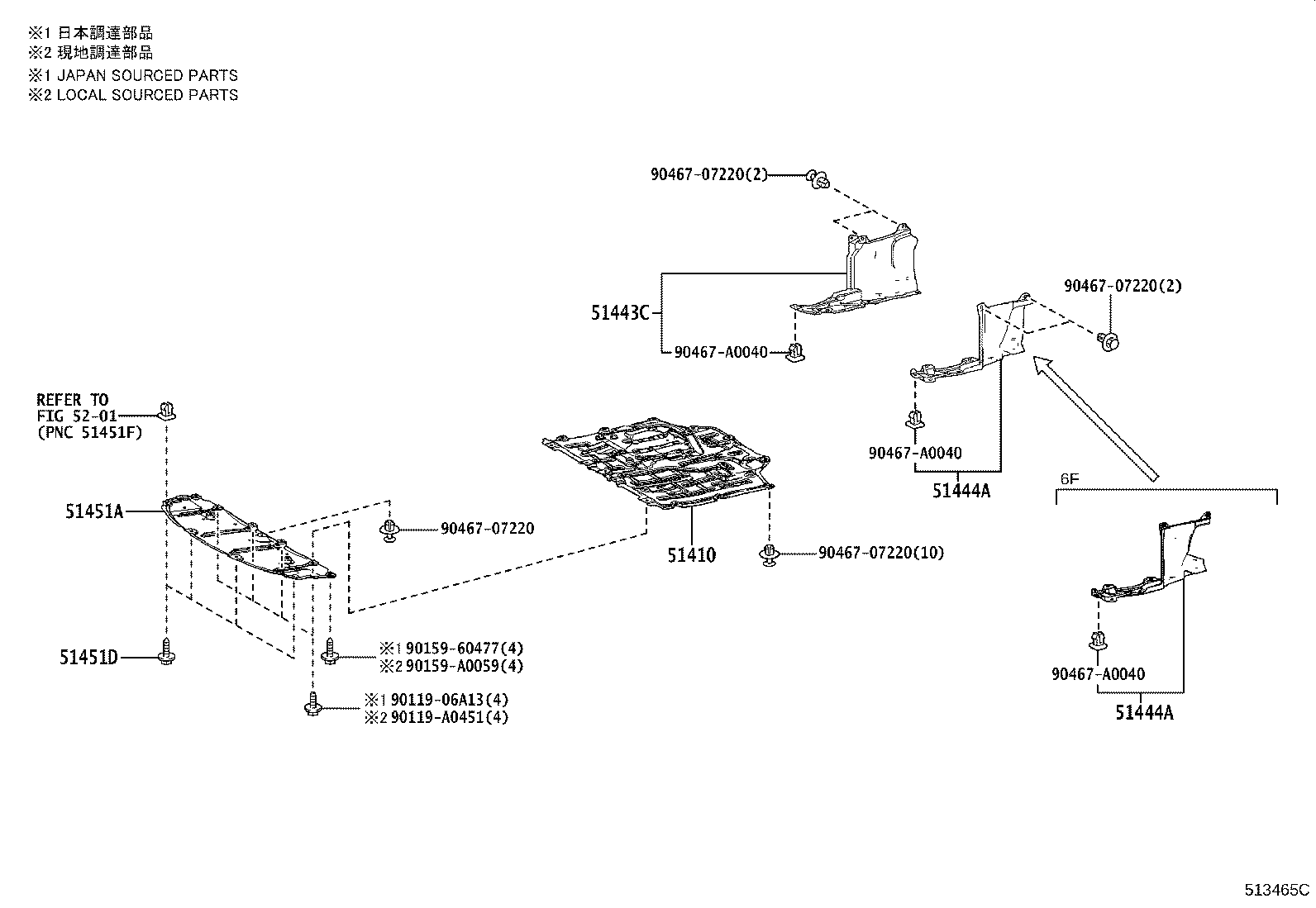

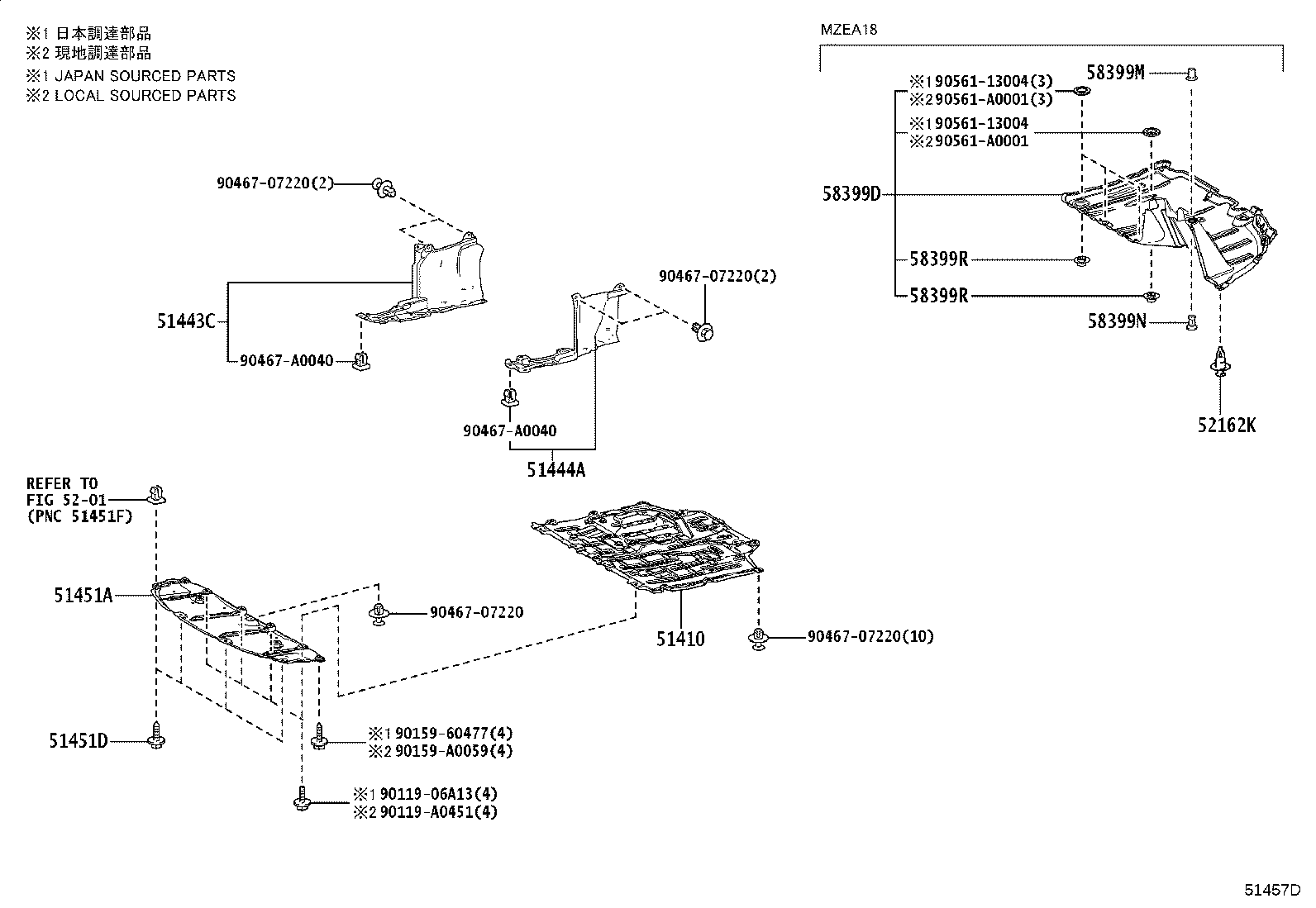

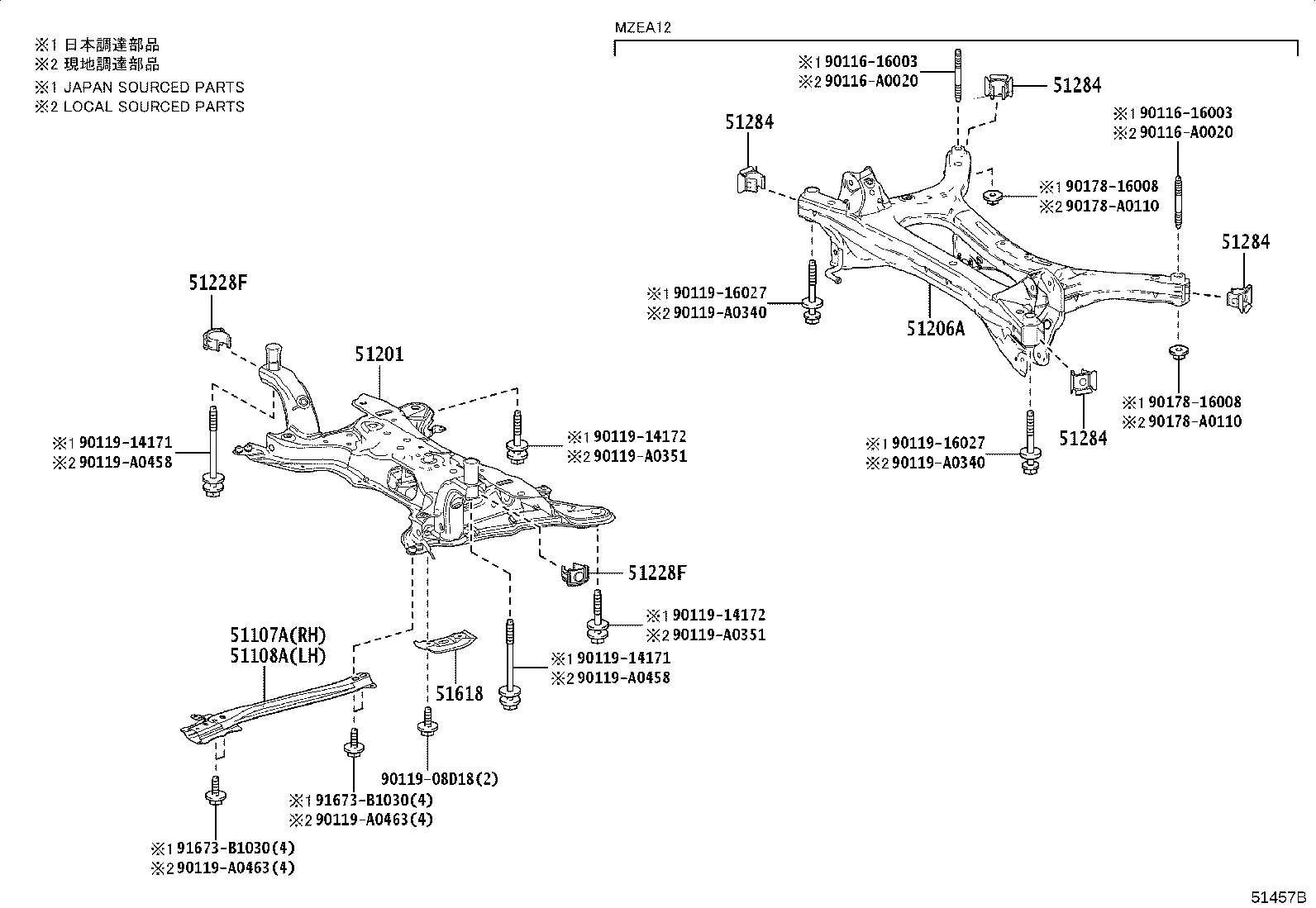

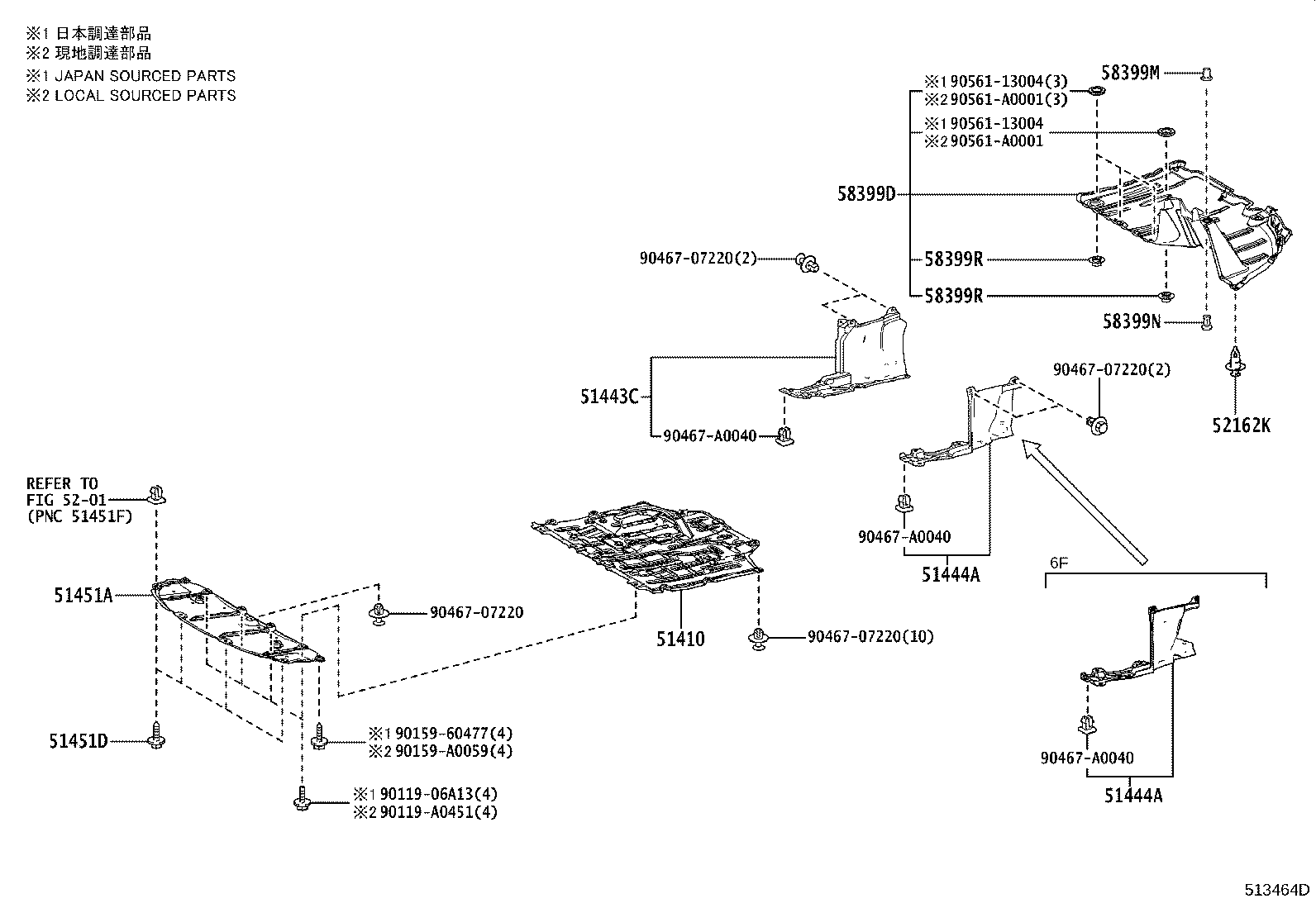

Figure 513462 513462 2019-03 → 2022-11 Figure 51457B 51457B 2022-11 → — Figure 513465C 513465C 2019-03 → 2022-11 Figure 513464D 513464D 2019-03 → 2022-11 Figure 51457D 51457D 2022-11 → —

Part groups

PNCDescription
51107A Reinforcement Sub-assy, Side Rail, Rear RH
51108A Reinforcement Sub-assy, Side Rail, Rear LH
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51228F Plate, Front Suspension Member Dumper
51284 Cover, Rear Suspension Member Hole
51410 Cover Assy, Engine Under, NO.1
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51451A Cover, Engine Under, Center
51451D Screw, NO.1
51618 Guard, Front Differential Support, LH
52162K Piece, Rear Bumper
58399D Cover, Floor Under, NO.2
58399M Clip, Floor Under Cover, NO.1
58399N Clip, Floor Under Cover, NO.2
58399R Clip, Floor Under Cover, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
