Toyota Corolla (MEXICO)
2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States
Supported model
Data version 2024-09

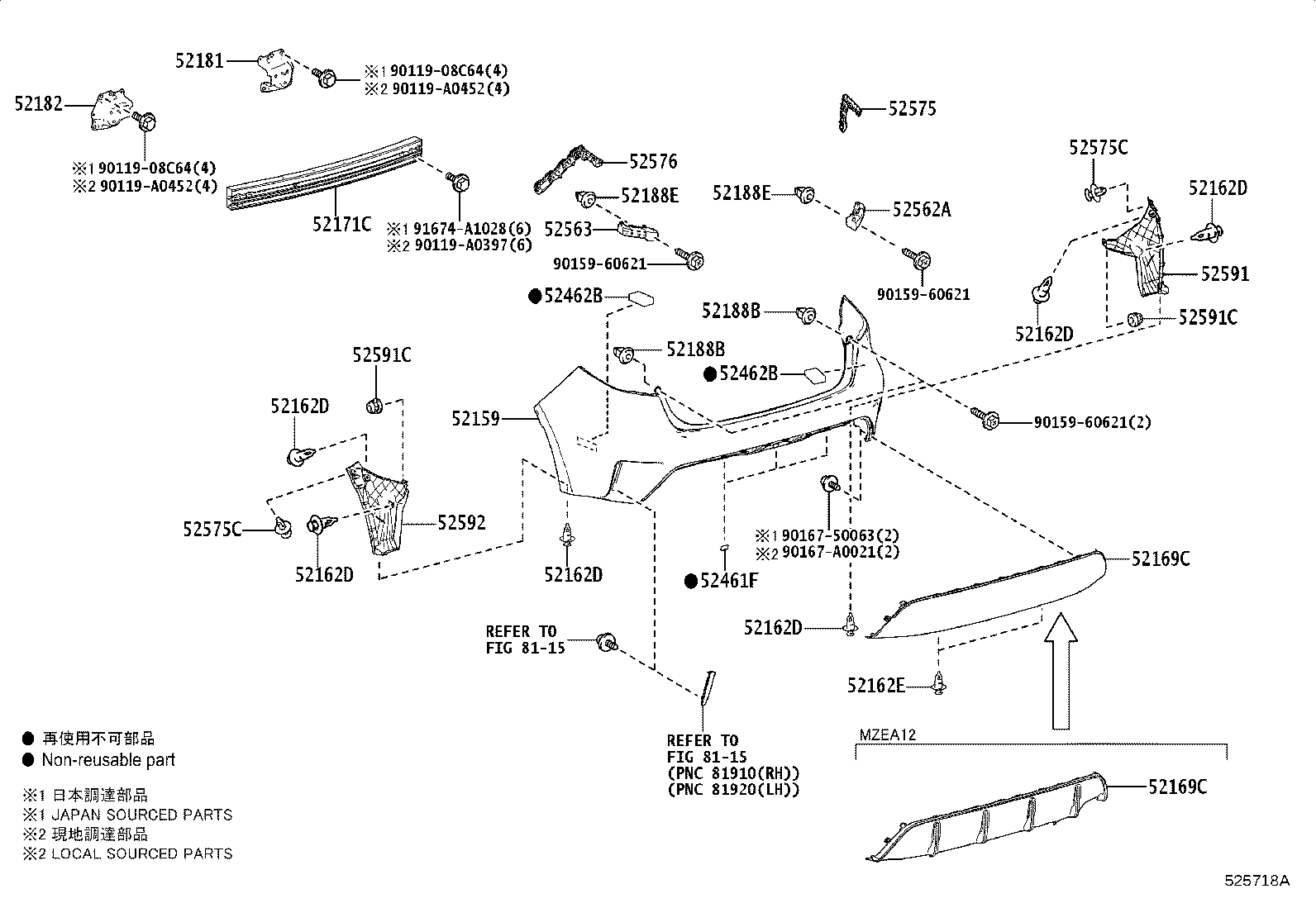

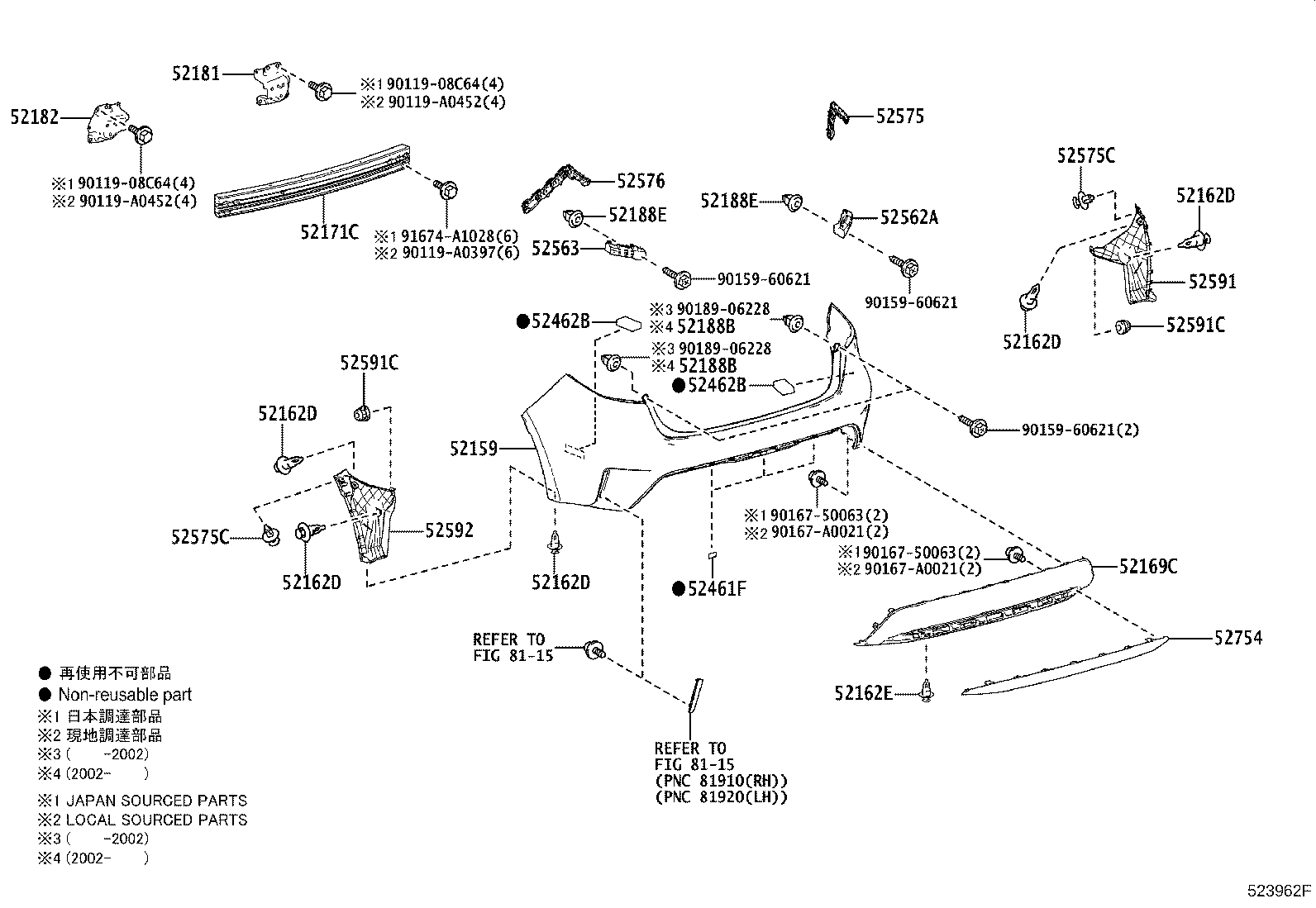

Rear Bumper & Bumper Stay
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52159 | Cover, Rear Bumper |
| 52162D | Piece, Rear Bumper |
| 52162E | Piece, Rear Bumper |
| 52169C | Cover, Rear Bumper, Lower |
| 52171C | Reinforcement, Rear Bumper |
| 52181 | Arm, Rear Bumper, RH |
| 52182 | Arm, Rear Bumper, LH |
| 52188B | Spacer, Rear Bumper Mounting |
| 52188E | Spacer, Rear Bumper Mounting |
| 52453 | Guard, Rear Bumper, Center |
| 52461F | Pad, Rear Bumper |
| 52462B | Pad, Rear Bumper |
| 52562A | Retainer, Rear Bumper Filler, NO.2 |
| 52563 | Retainer, Rear Bumper Filler, NO.3 |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52575C | Clip, Rear Bumper Side Retainer |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52591C | Clip, Rear Bumper Side Seal |
| 52592 | Seal, Rear Bumper Side, LH |
| 52754 | Moulding, Rear Bumper, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
