Toyota Corolla (MEXICO)

2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

19 part groups · 2 illustrations

Illustrations

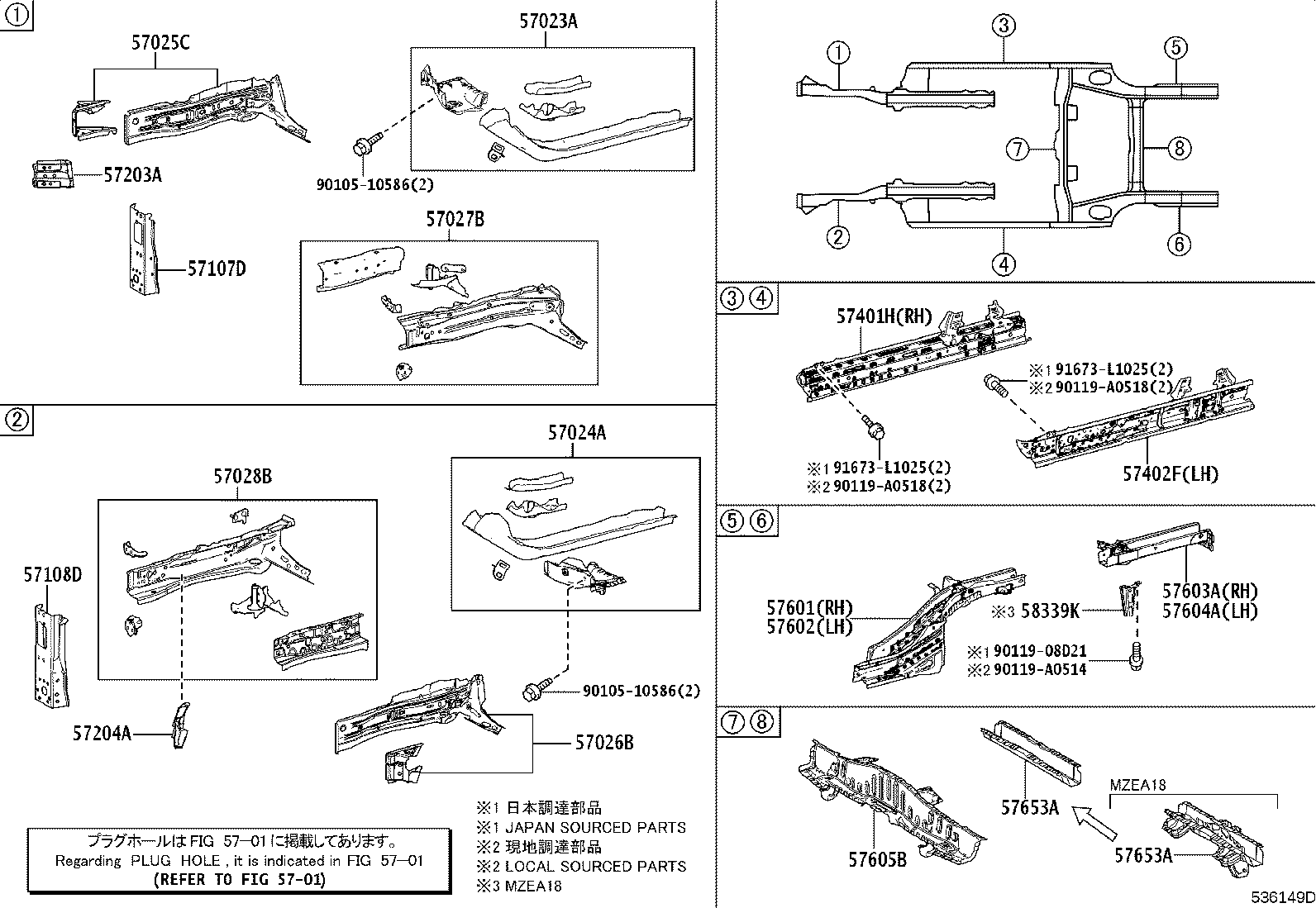

Figure 535945B 535945B 2019-03 → 2019-06 Figure 536149D 536149D 2019-06 → —

Part groups

PNCDescription
57023A Member Sub-assy, Rear Side, RH
57024A Member Sub-assy, Rear Side, LH
57025C Member Sub-assy, Front Side, Outer RH
57026B Member Sub-assy, Front Side, Outer LH
57027B Member Sub-assy, Front Side, Inner RH
57028B Member Sub-assy, Front Side, Inner LH
57107D Reinforce Sub-assy, Front Bumper Mounting, RH
57108D Reinforce Sub-assy, Front Bumper Mounting, LH
57203A Extension Sub-assy, Front Side Member, NO.2 RH
57204A Extension Sub-assy, Front Side Member, NO.2 LH
57401H Member Sub-assy, Floor Side, Inner RH
57402F Member Sub-assy, Floor Side, Inner LH
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57603A Member Sub-assy, Rear Floor Side, Rear RH
57604A Member Sub-assy, Rear Floor Side, Rear LH
57605B Member Sub-assy, Rear Floor Cross, NO.1
57653A Member, Rear Floor Cross, NO.2
58339K Bracket Jack UP
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
