Toyota Corolla (MEXICO)
2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States
Supported model
Data version 2024-09

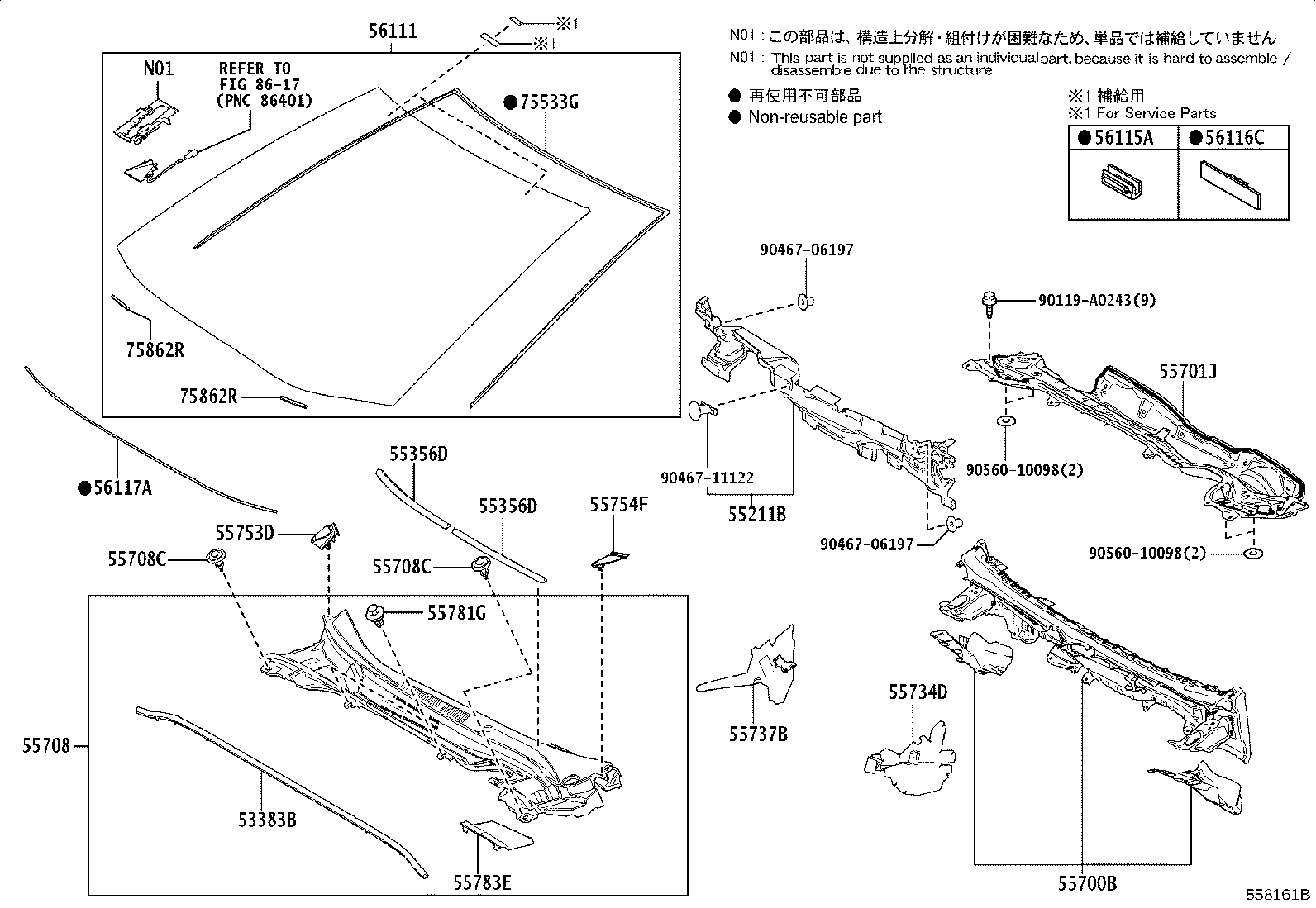

Cowl Panel & Windshield Glass
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383B | Seal, Hood TO Cowl Top |
| 55211B | Silencer, Front Panel |
| 55356D | Cushion, Instrument Panel, NO.2 |
| 55700B | Cowl Assy |
| 55701J | Panel Sub-assy, Cowl Top, Outer |
| 55708 | Louver Sub-assy, Cowl Top Ventilator |
| 55708C | Clip, Cowl Top Ventilator Louver |
| 55734D | Plate, Water Guard |
| 55737B | Seal, Heater Air Duct Splash Shield, NO.1 |
| 55738B | Protector, Front Panel Cover, NO.1 |
| 55738G | Clip, Front Panel Cover Protector |
| 55753D | Shield, Cowl Water Extract, RH |
| 55754F | Shield, Cowl Water Extract, LH |
| 55781G | Clip, Cowl Top Ventilator Louver |
| 55783E | Louver, Cowl Top Ventilator, Center |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56116C | Stopper, Windshield Glass, NO.2 |
| 56117A | Dam, Window Glass Adhesive |
| 56153C | Moulding, Front Window, Inner Center |
| 75533G | Moulding, Windshield, Outside |
| 75862R | Protector, Rocker Panel Moulding, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
