Toyota Corolla (MEXICO)
2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States
Supported model
Data version 2024-09

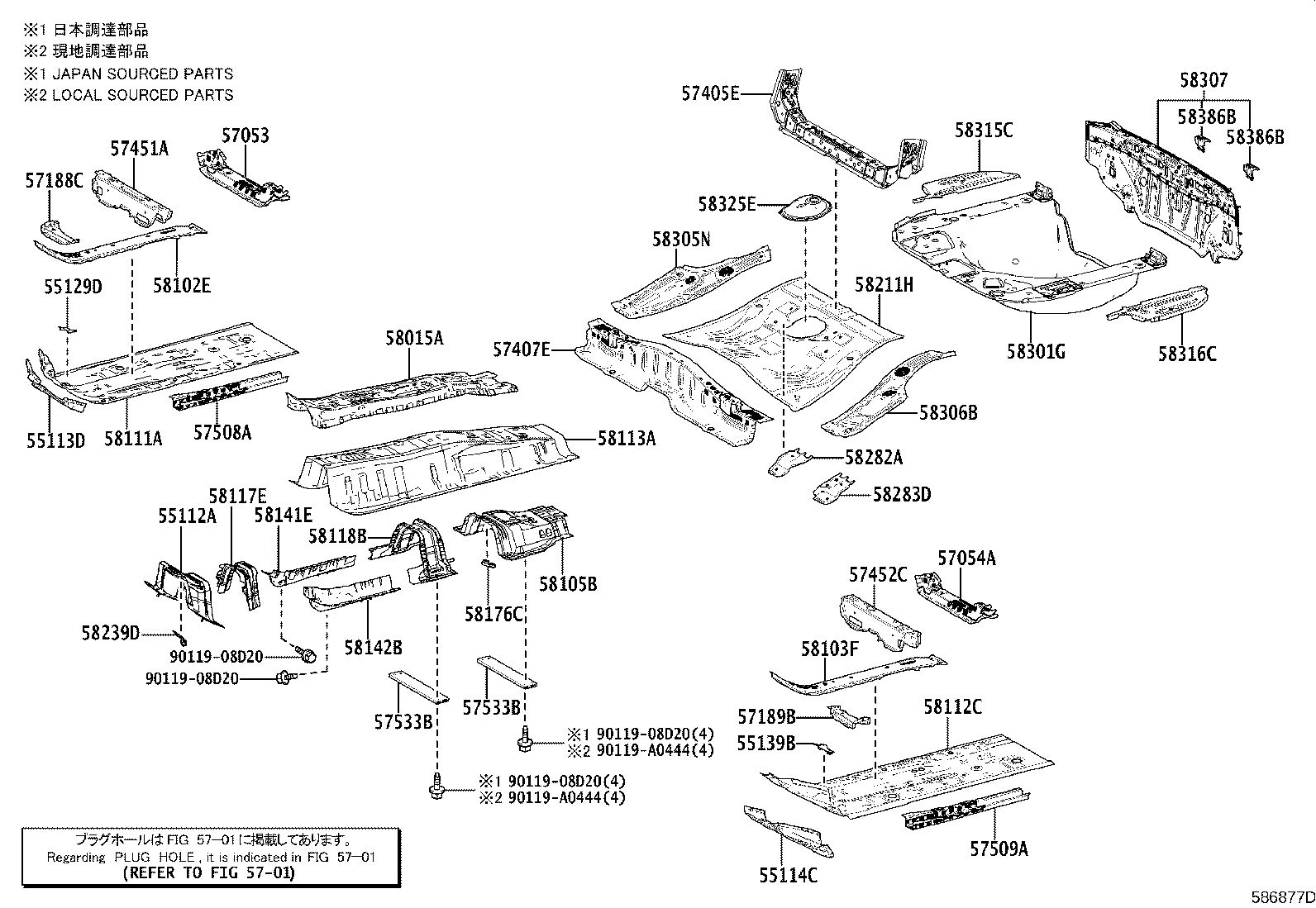

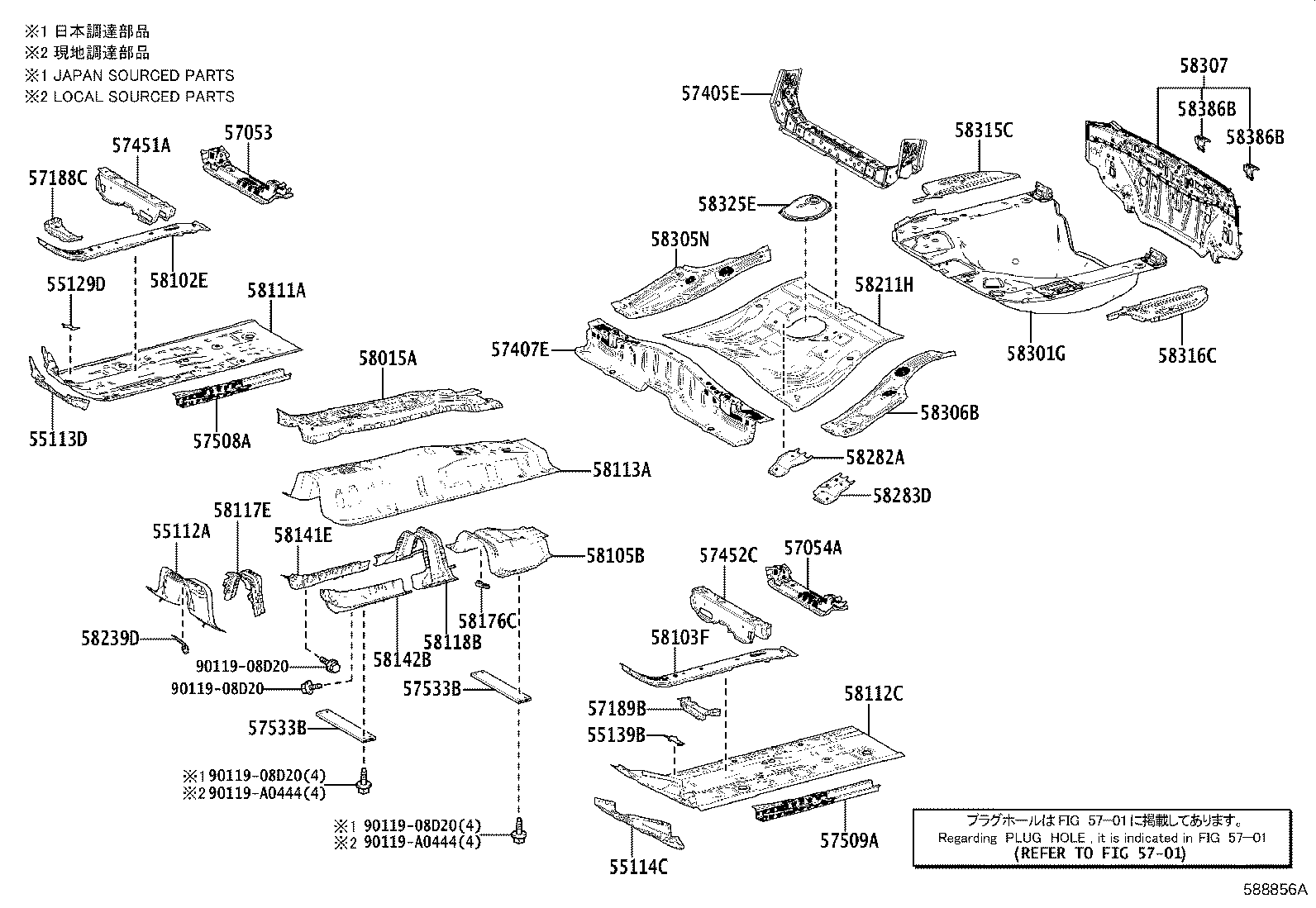

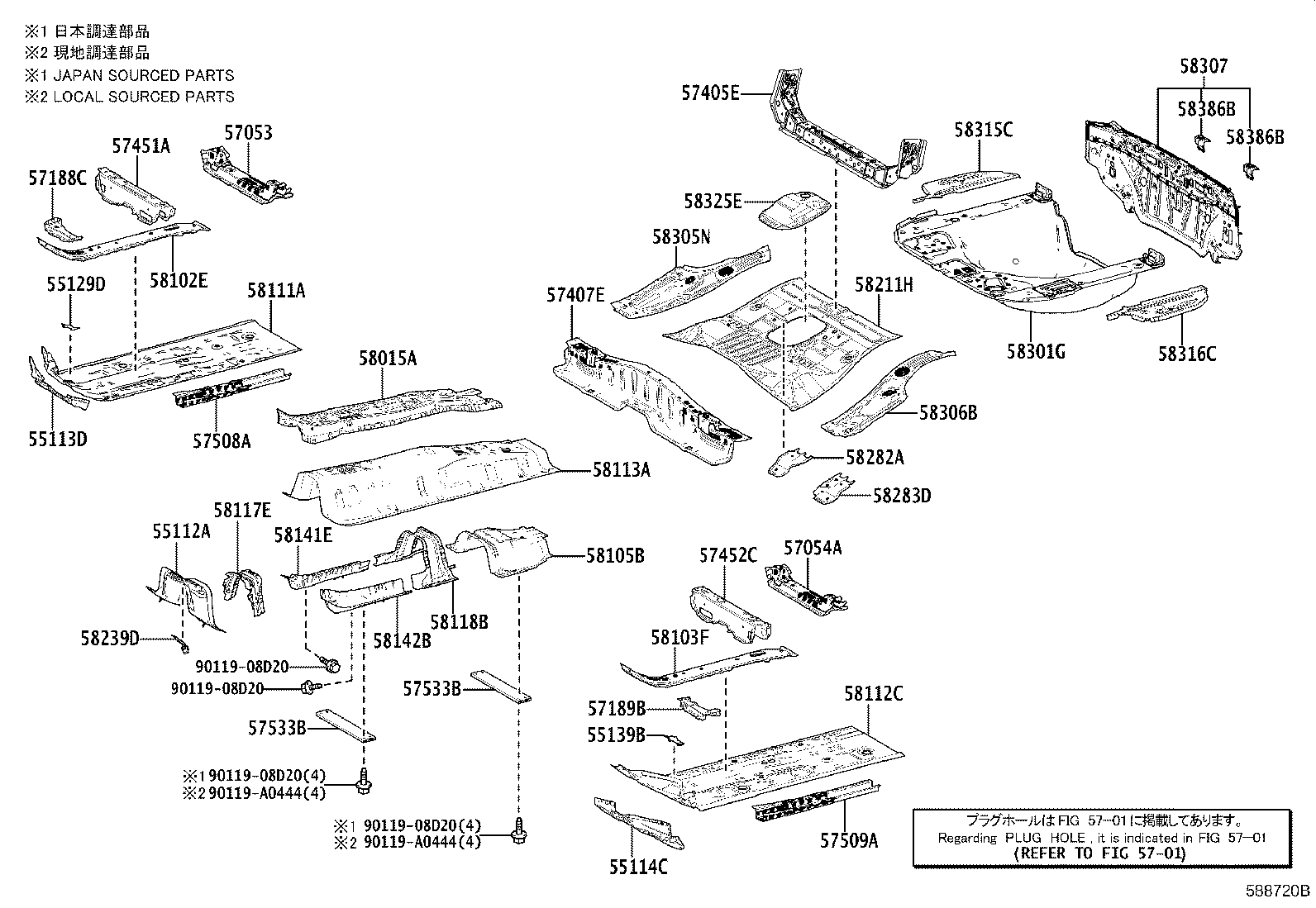

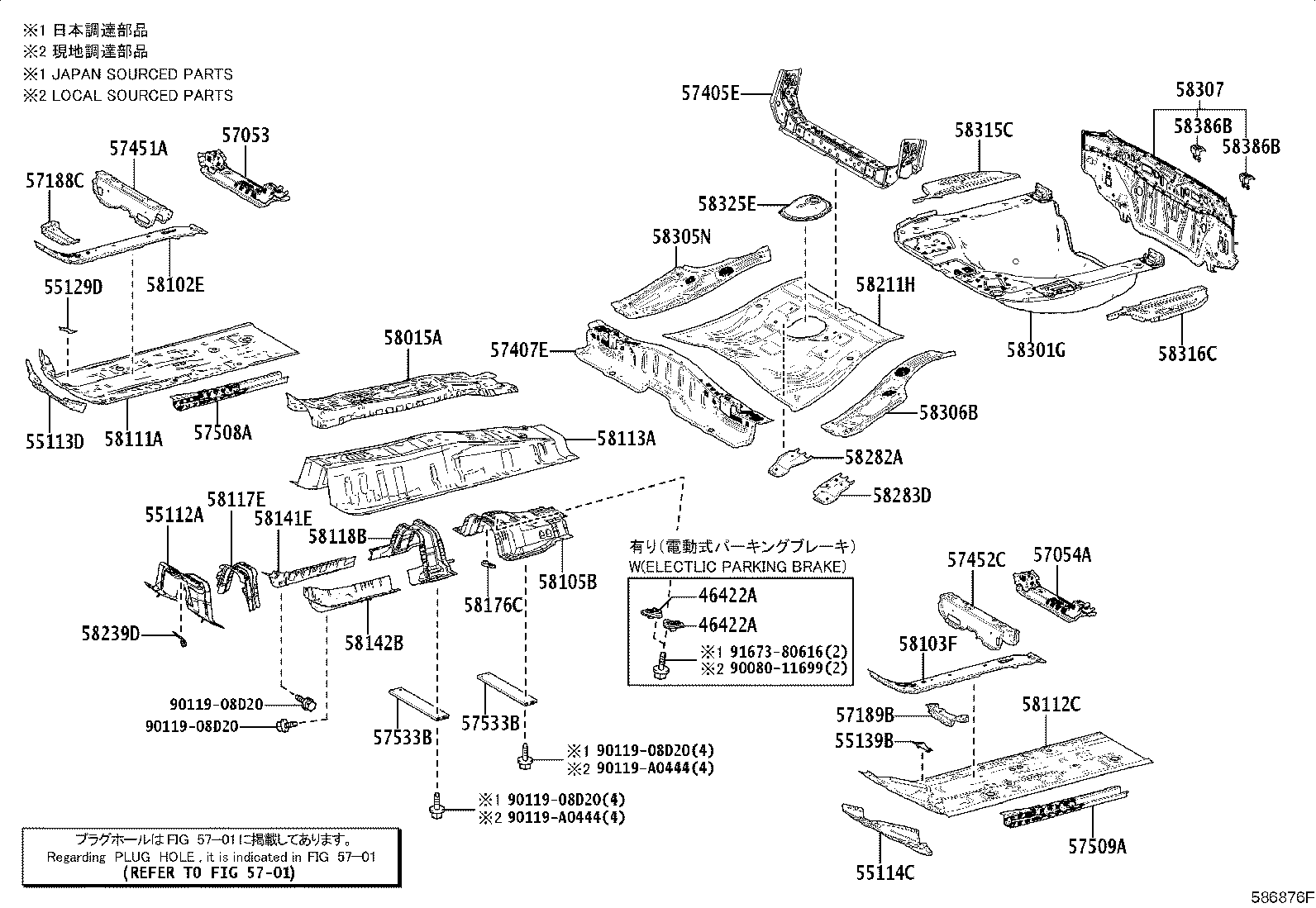

Floor Pan & Lower Back Panel
41 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 46422A | Cap, Parking Brake Cable, Casing |
| 55112A | Panel, Dash, NO.2 |
| 55113D | Panel, Dash, Lower RH |
| 55114C | Panel, Dash, Lower LH |
| 55129D | Cover, Dash Panel Hole, RH |
| 55139B | Cover, Dash Panel Hole, LH |
| 57053 | Reinforcement Sub-assy, Front Floor Crossmember, RH |
| 57054A | Reinforcement Sub-assy, Front Floor Crossmember, LH |
| 57188C | Reinforcement, Front Side Member Extension, RH |
| 57189B | Reinforcement, Front Side Member Extension, LH |
| 57405E | Member Sub-assy, Center Floor Cross, NO.2 |
| 57407E | Member Sub-assy, Center Floor Cross |
| 57451A | Member, Front Floor Cross, RH |
| 57452C | Member, Front Floor Cross, LH |
| 57508A | Reinforcement Sub-assy, Front Floor, RH |
| 57509A | Reinforcement Sub-assy, Front Floor, LH |
| 57533B | Brace, Front Floor, Center |
| 58015A | Reinforce Sub-assy, Belt Anchor, NO.3 RH |
| 58102E | Reinforcement Sub-assy, Front Floor, RH |
| 58103F | Reinforcement Sub-assy, Front Floor, LH |
| 58105B | Panel Sub-assy, Front Floor Rear Upper Sub |
| 58111A | Pan, Front Floor, RH |
| 58112C | Pan, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |
| 58117E | Panel, Front Floor Sub Cover |
| 58118B | Reinforcement, Front Floor Panel, NO.2 |
| 58141E | Reinforcement, Front Side Member TO Floor Pan, RH |
| 58142B | Reinforcemnet, Front Side Member TO Floor Pan, LH |
| 58176C | Reinforcement, Parking Brake Base, NO.2 |
| 58211H | Pan, Center Floor |
| 58239D | Bracket, Cable Clamp |
| 58282A | Base, Belt Anchor TO Floor Pan, NO.3 RH |
| 58283D | Base, Belt Anchor TO Floor Pan, NO.3 LH |
| 58301G | Pan Sub-assy, Rear Floor |
| 58305N | Extension Sub-assy, Rear Floor TO Quarter, RH |
| 58306B | Extension Sub-assy, Rear Floor TO Quarter, LH |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58315C | Extension, Rear Floor Side Panel, RH |
| 58316C | Extension, Rear Floor Side Panel, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58386B | Bracket, Rear Bumper Cover, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
