Toyota Corolla (MEXICO)

2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States

Supported model Data version 2024-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

9 part groups · 4 illustrations

Illustrations

Figure 644531B

644531B 2019-03 → —

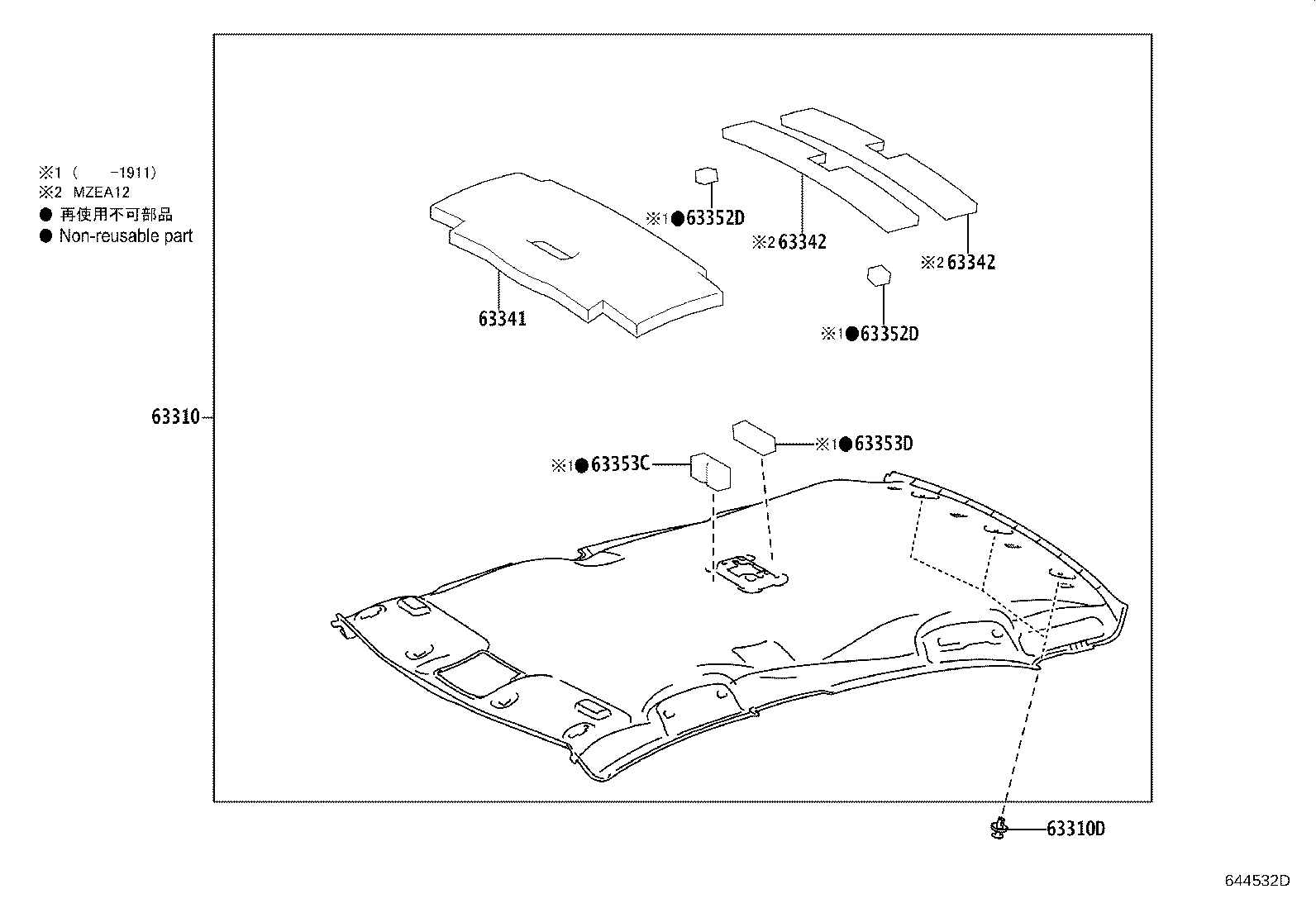

Figure 644532D

644532D 2019-03 → 2020-07

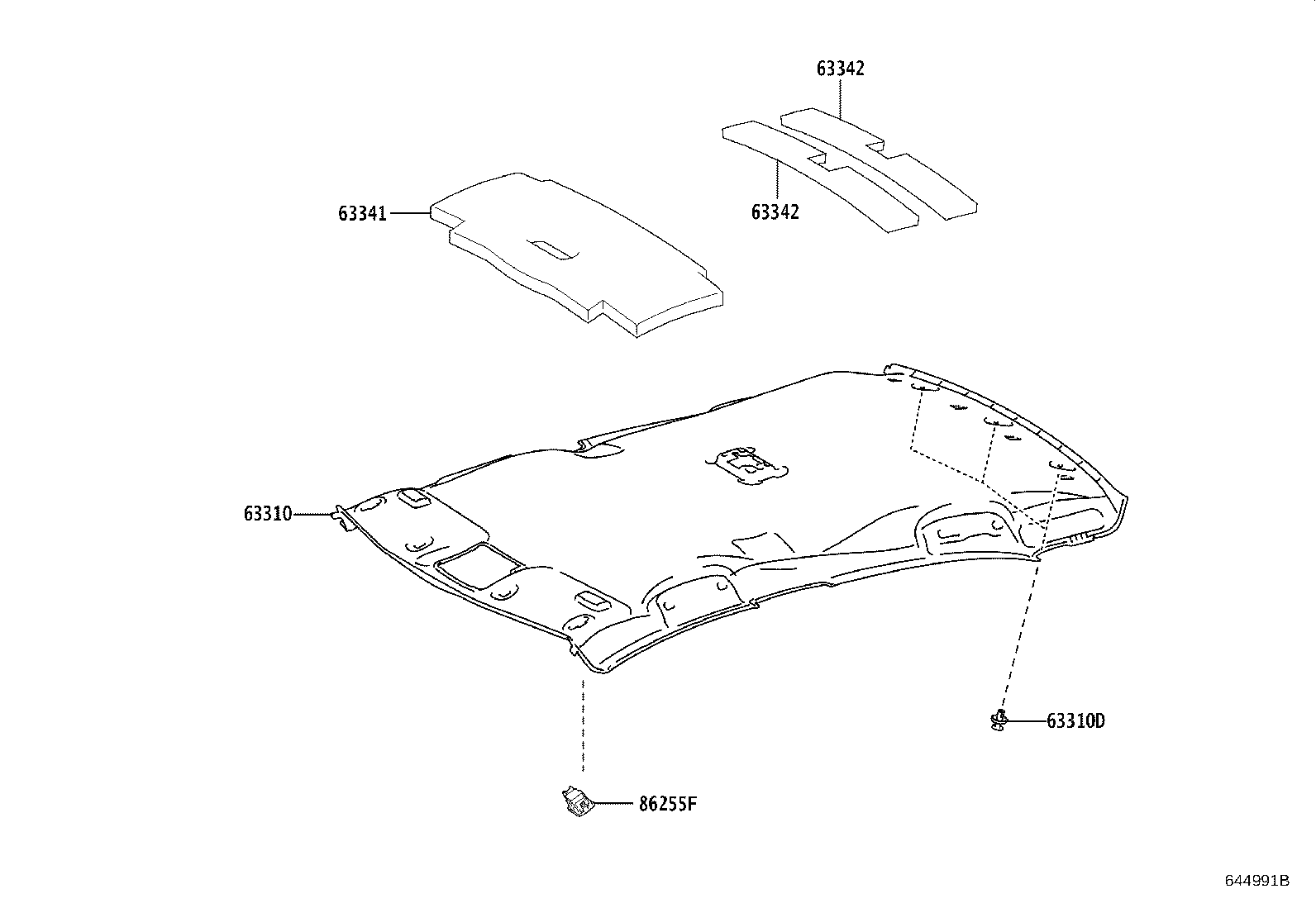

Figure 644991B

644991B 2020-07 → —

Figure 644993A

644993A 2020-07 → —

Part groups

PNC	Description
63306	Trim Sub-assy, Sunshade
63310	Headlining Assy, Roof
63310D	Clip, Roof Headlining
63341	Pad, Roof Silencer, NO.1
63342	Pad, Roof Silencer, NO.2
63352D	Pad, Roof Headlining, NO.2
63353C	Pad, Roof Headlining, Center
63353D	Pad, Roof Headlining, Center
86255F	Case, Microphone

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
