Toyota Corolla (MEXICO)

2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

14 part groups · 7 illustrations

Illustrations

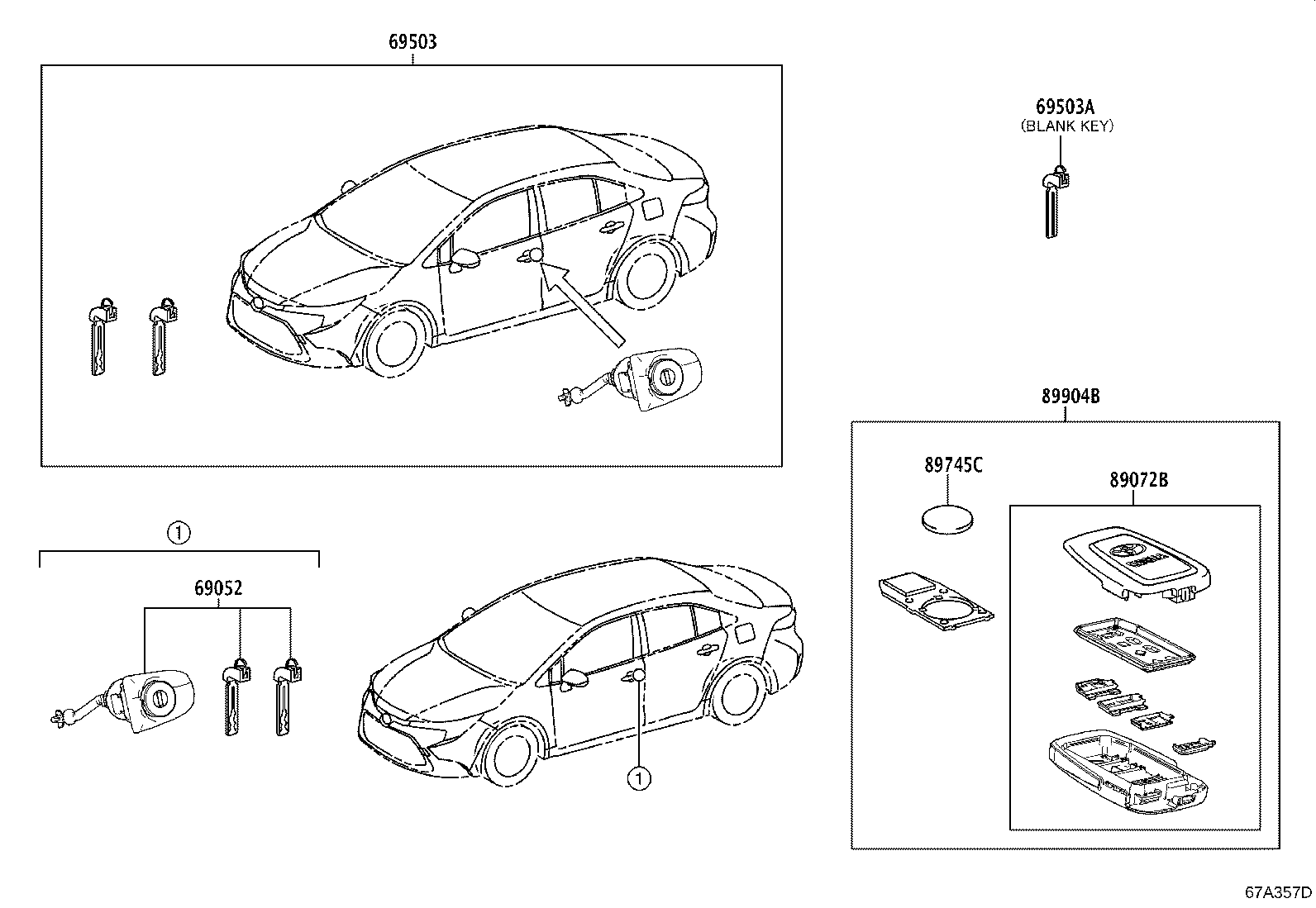

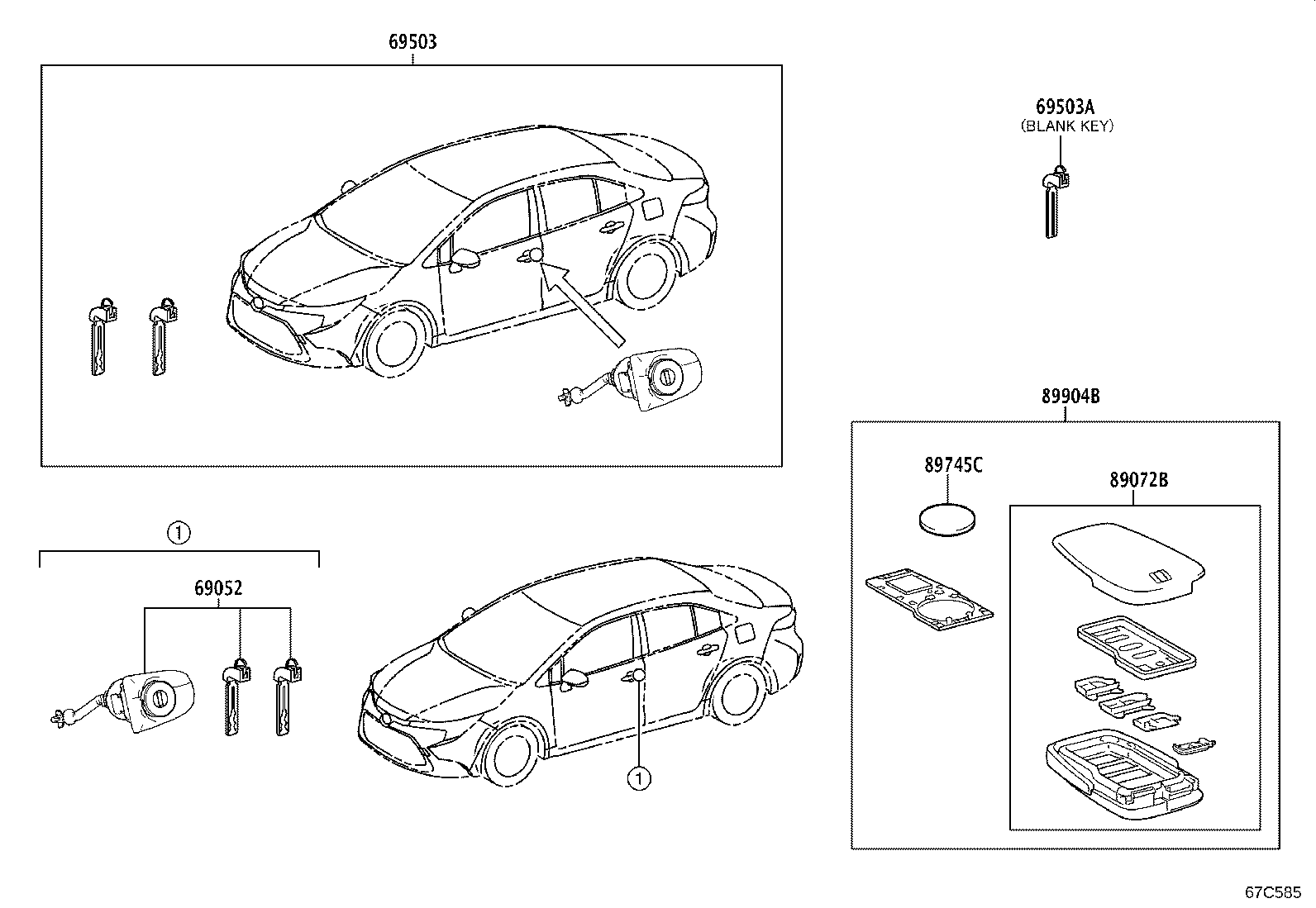

Figure 67A359A 67A359A 2019-03 → 2020-07 Figure 67A359A 67A359A 2020-07 → 2022-11 Figure 67A359A 67A359A 2020-07 → — Figure 67A357D 67A357D 2019-03 → 2020-07 Figure 67A357D 67A357D 2020-07 → 2022-11 Figure 67A357D 67A357D 2020-07 → — Figure 67C585 67C585 2022-11 → —

Part groups

PNCDescription
69052 Cylinder & Key Set, Door Lock, LH
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
89070E Transmitter Assy, Door Control
89070F Transmitter Assy, Door Control (CUT KEY)
89071C Transmitter Sub-assy, Door Control
89072B Housing Set, Door Control Transmitter (FOR SMART KEY)
89745A Battery, Transmitter
89745C Battery, Transmitter
89751A Cover, Transmitter Housing
8975B Cover, Transmitter Battery Housing
89785C Transmitter, Transponder Key Master
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
