Toyota Corolla (MEXICO)

2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

9 part groups · 3 illustrations

Illustrations

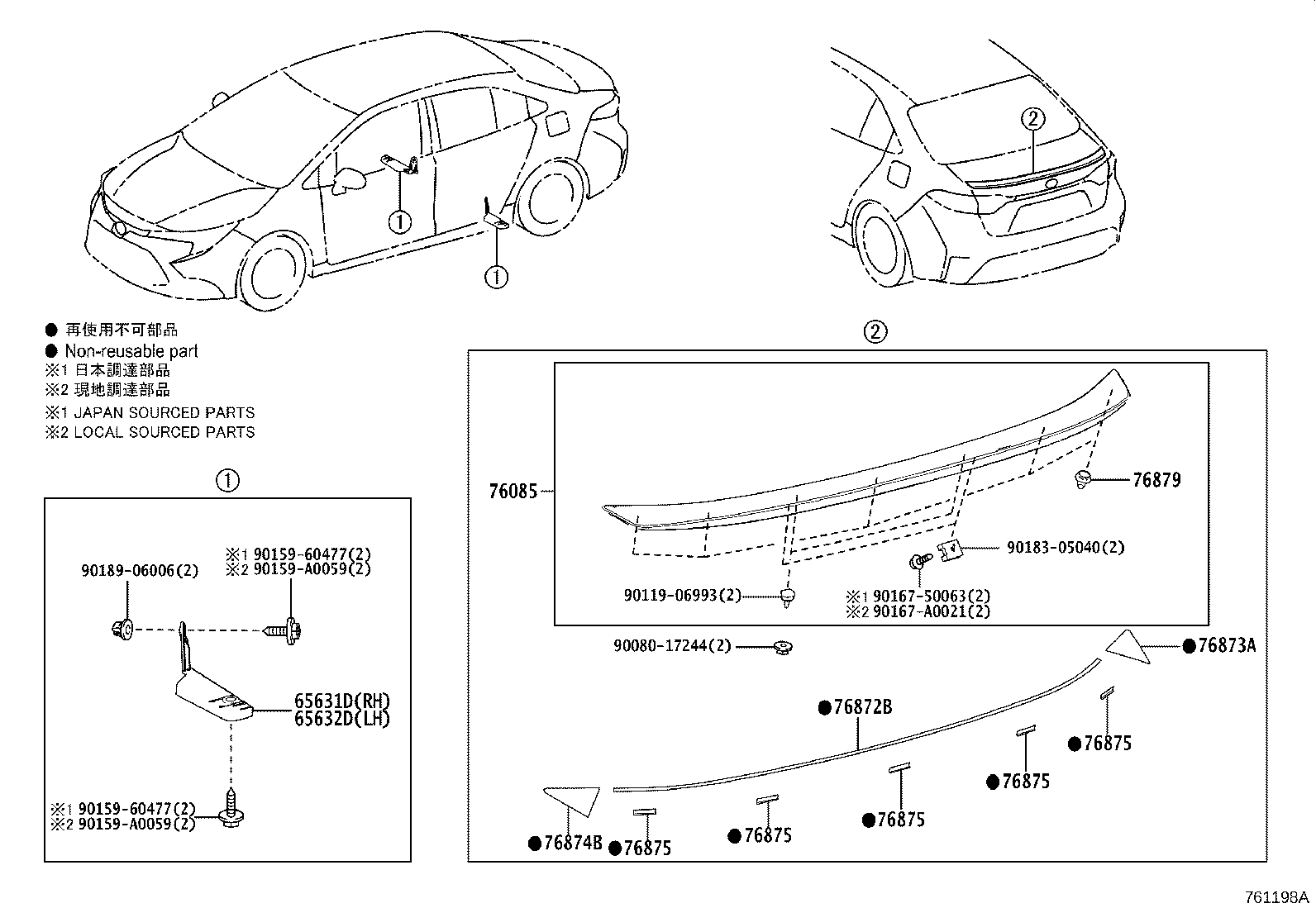

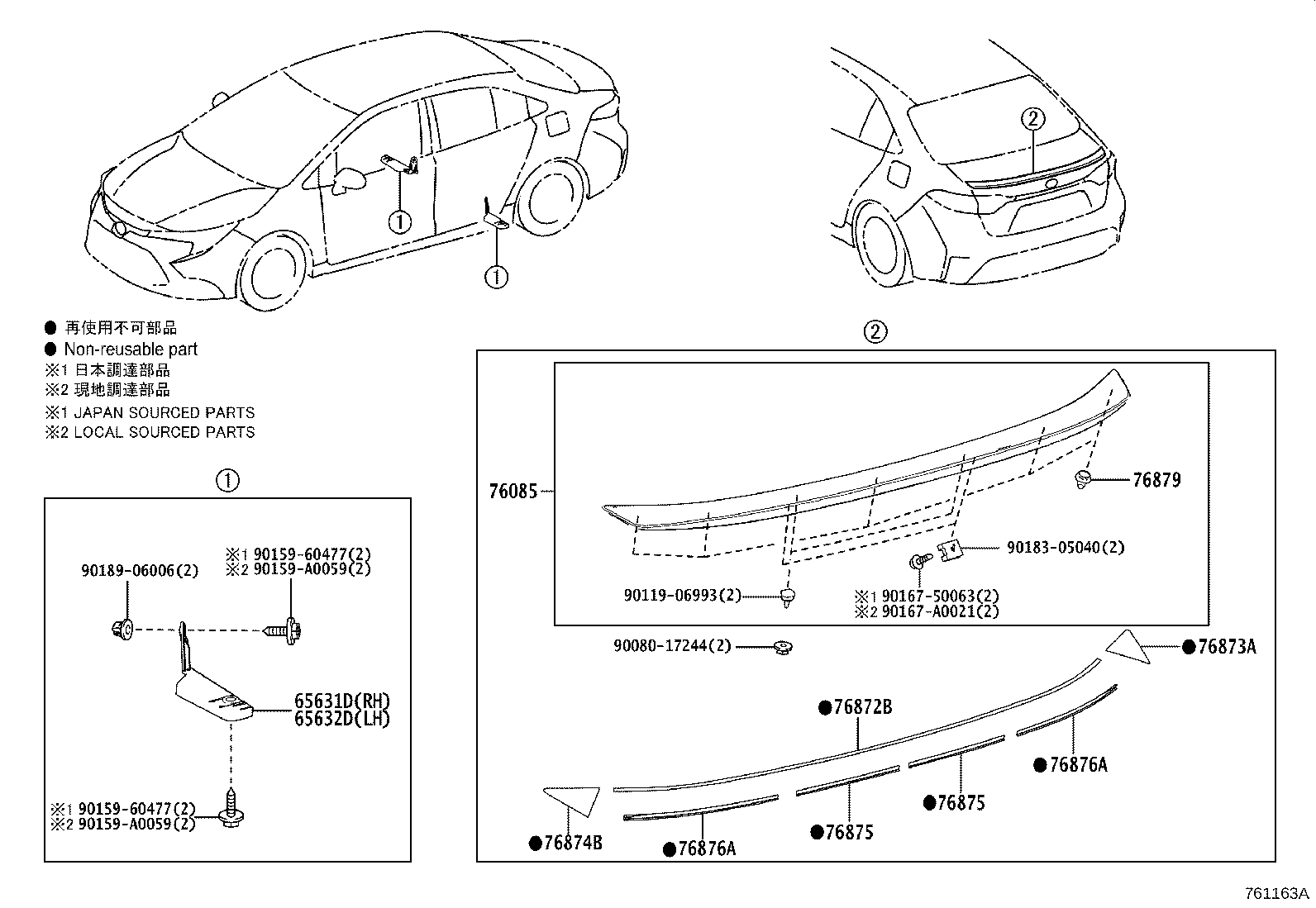

Figure 761150B 761150B 2019-03 → 2019-06 Figure 761163A 761163A 2019-07 → 2020-02 Figure 761198A 761198A 2020-02 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
76085 Spoiler Sub-assy, Rear
76872B Protector, Rear Spoiler, Center
76873A Protector, Rear Spoiler, RH
76874B Protector, Rear Spoiler, LH
76875 Protector, Rear Spoiler, NO.4
76876A Protector, Rear Spoiler, NO.10
76879 Clip, Rear Spoiler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
