Toyota Corolla (MEXICO)

2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

69 part groups · 17 illustrations

Illustrations

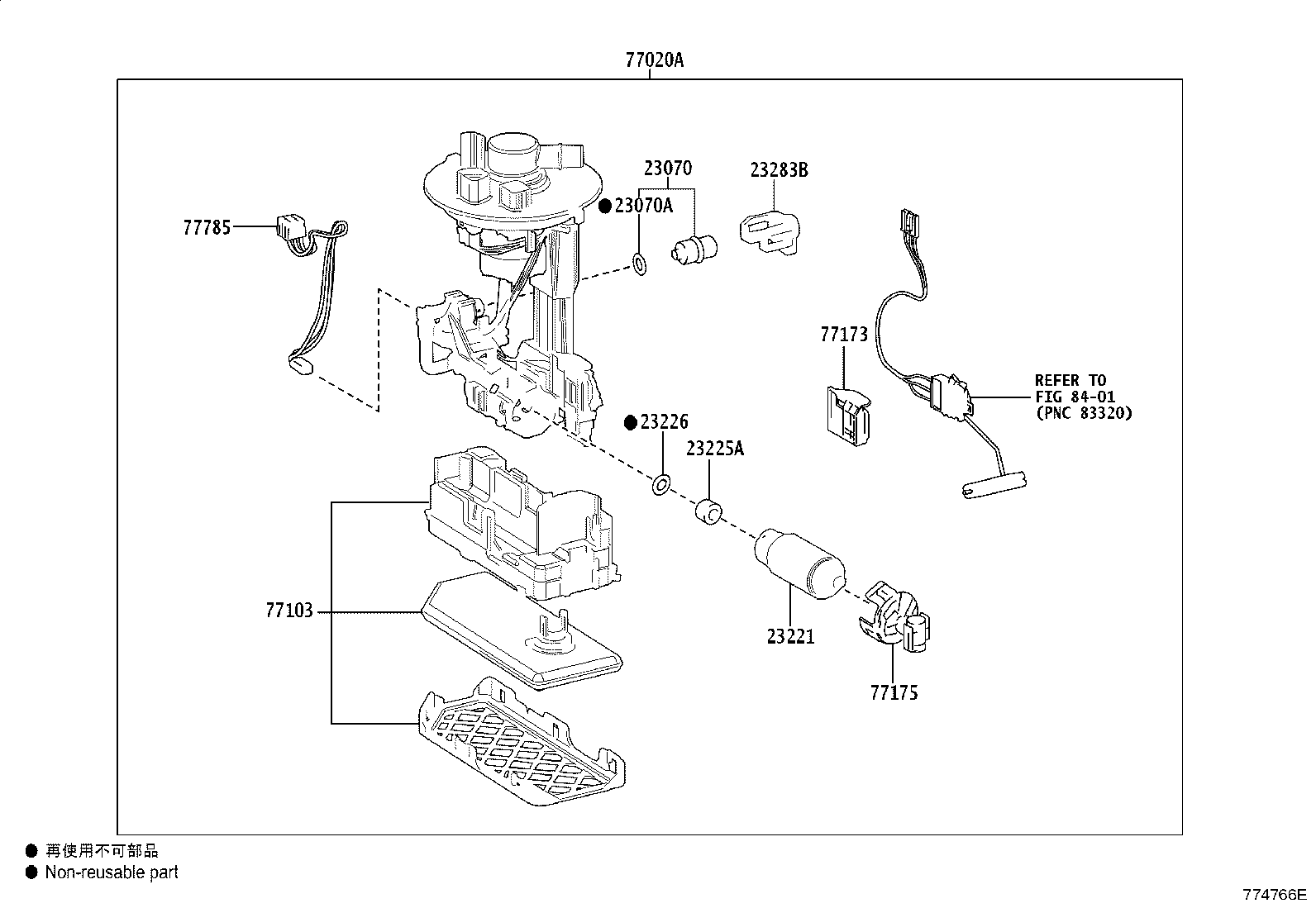

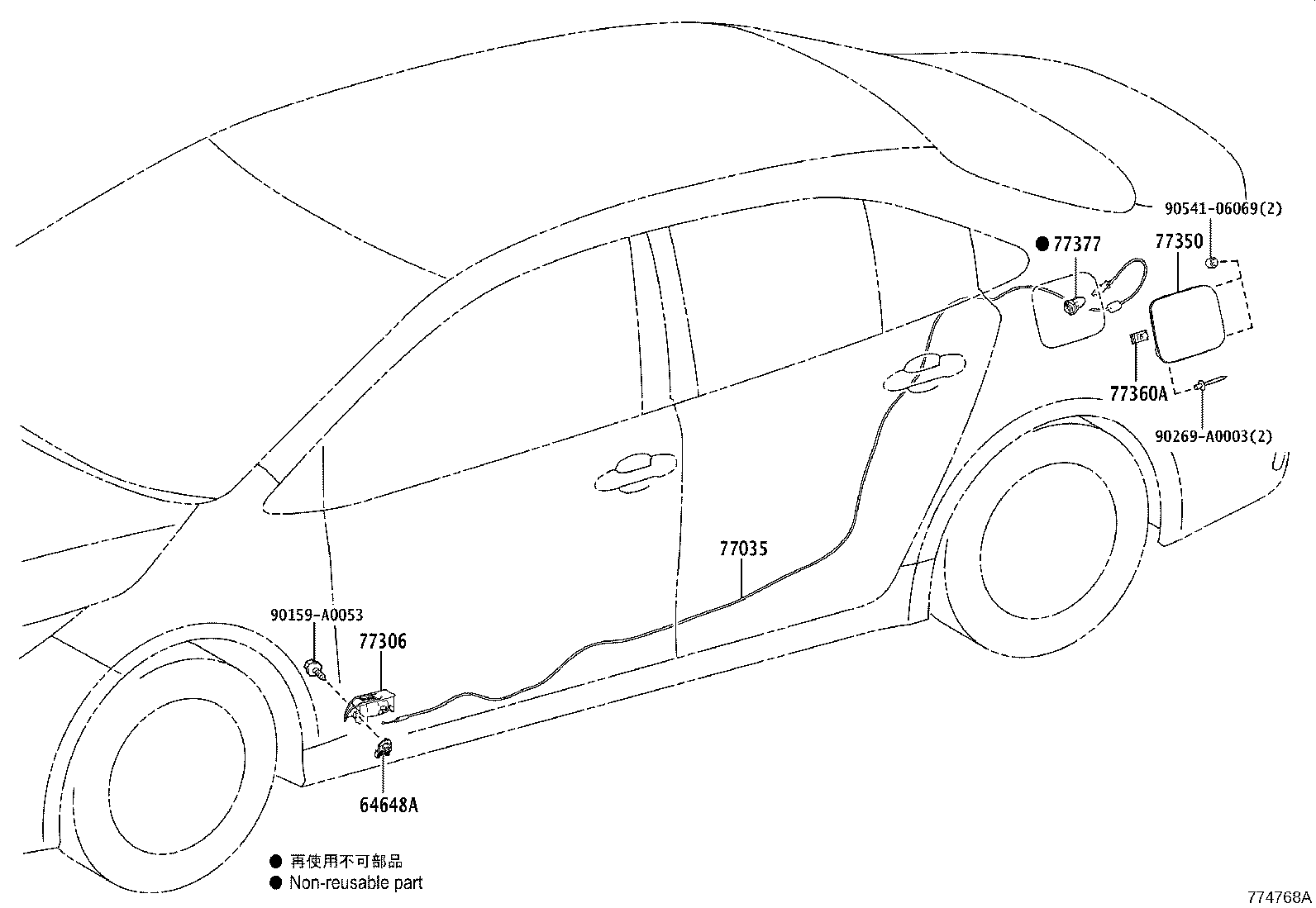

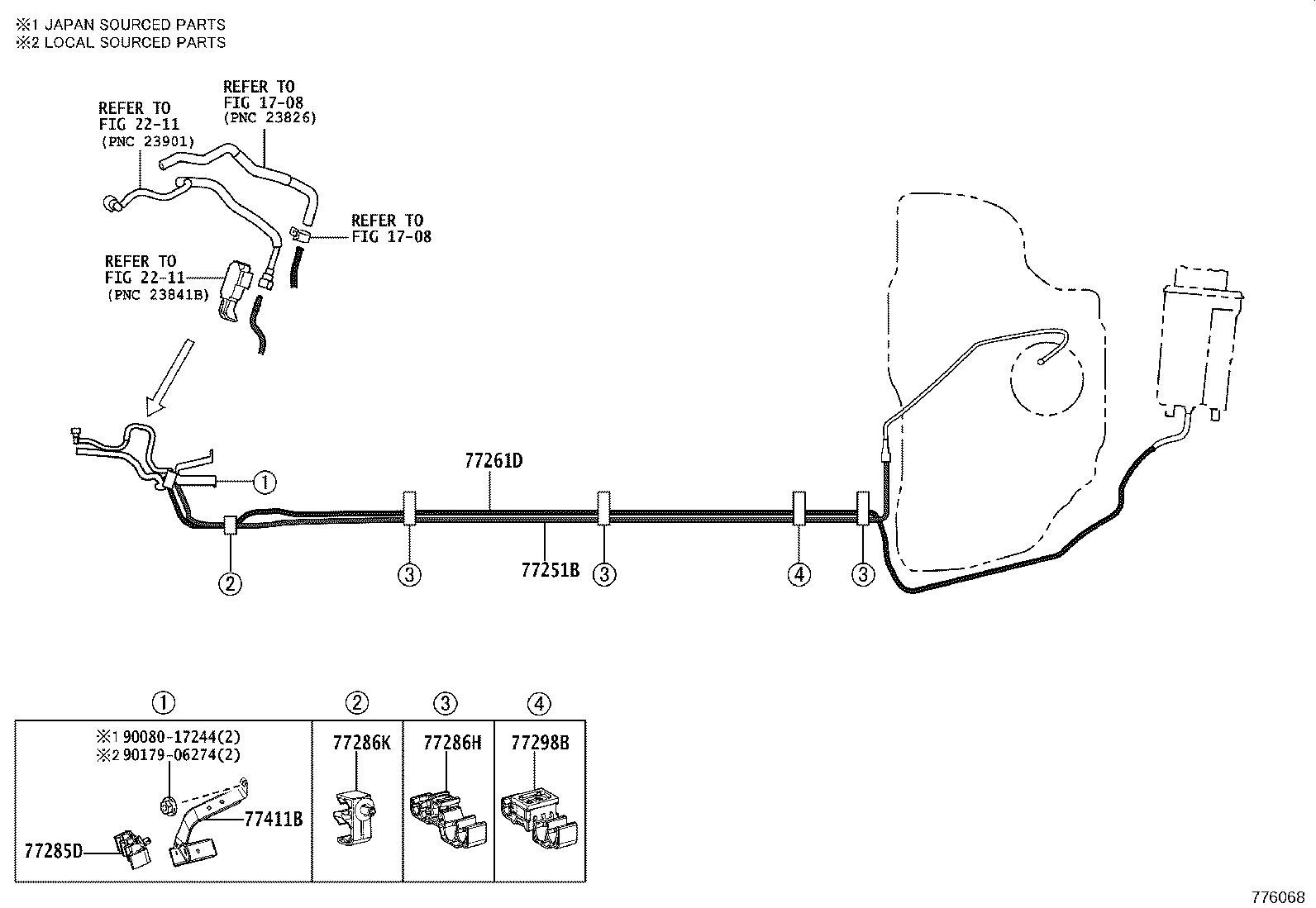

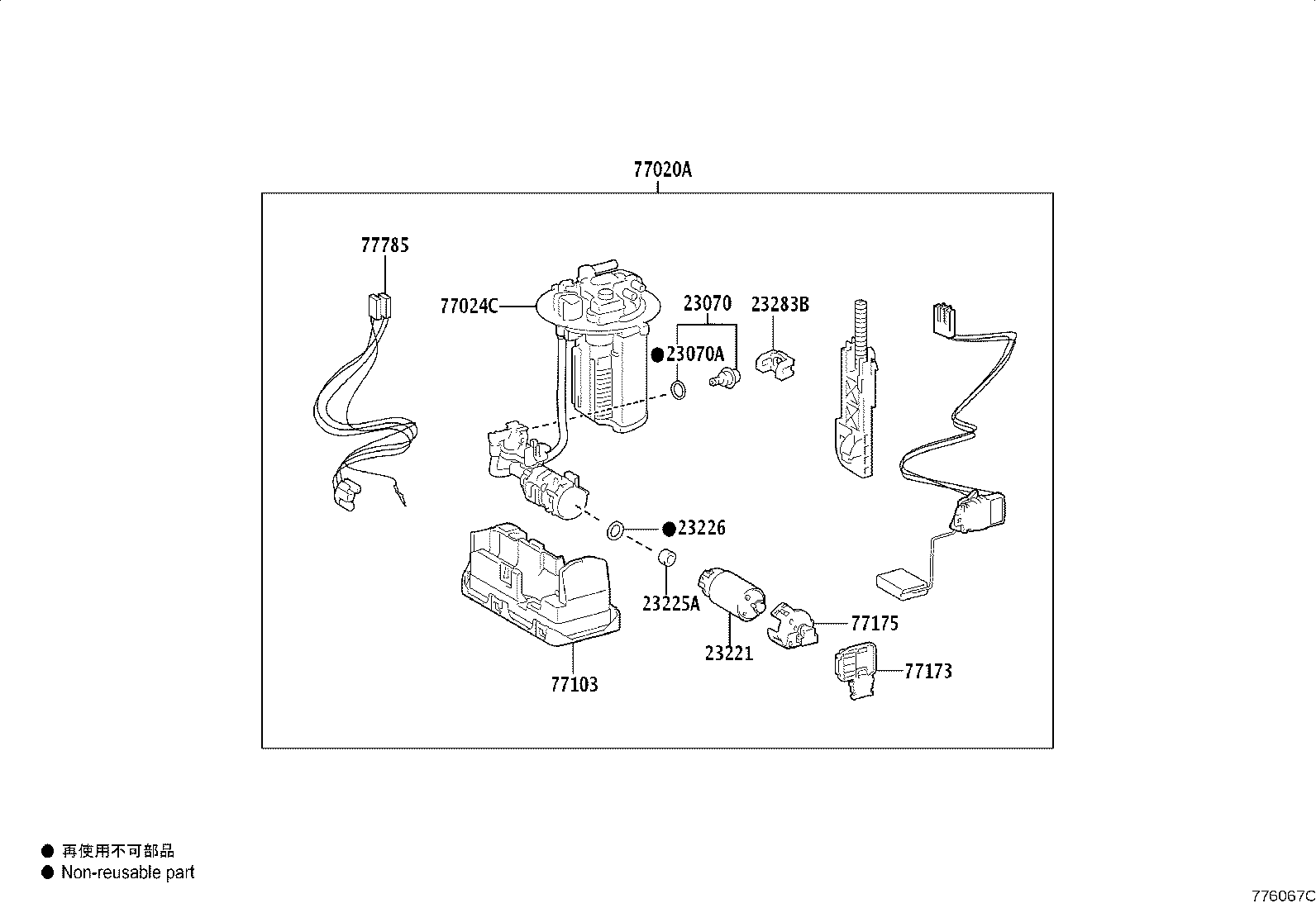

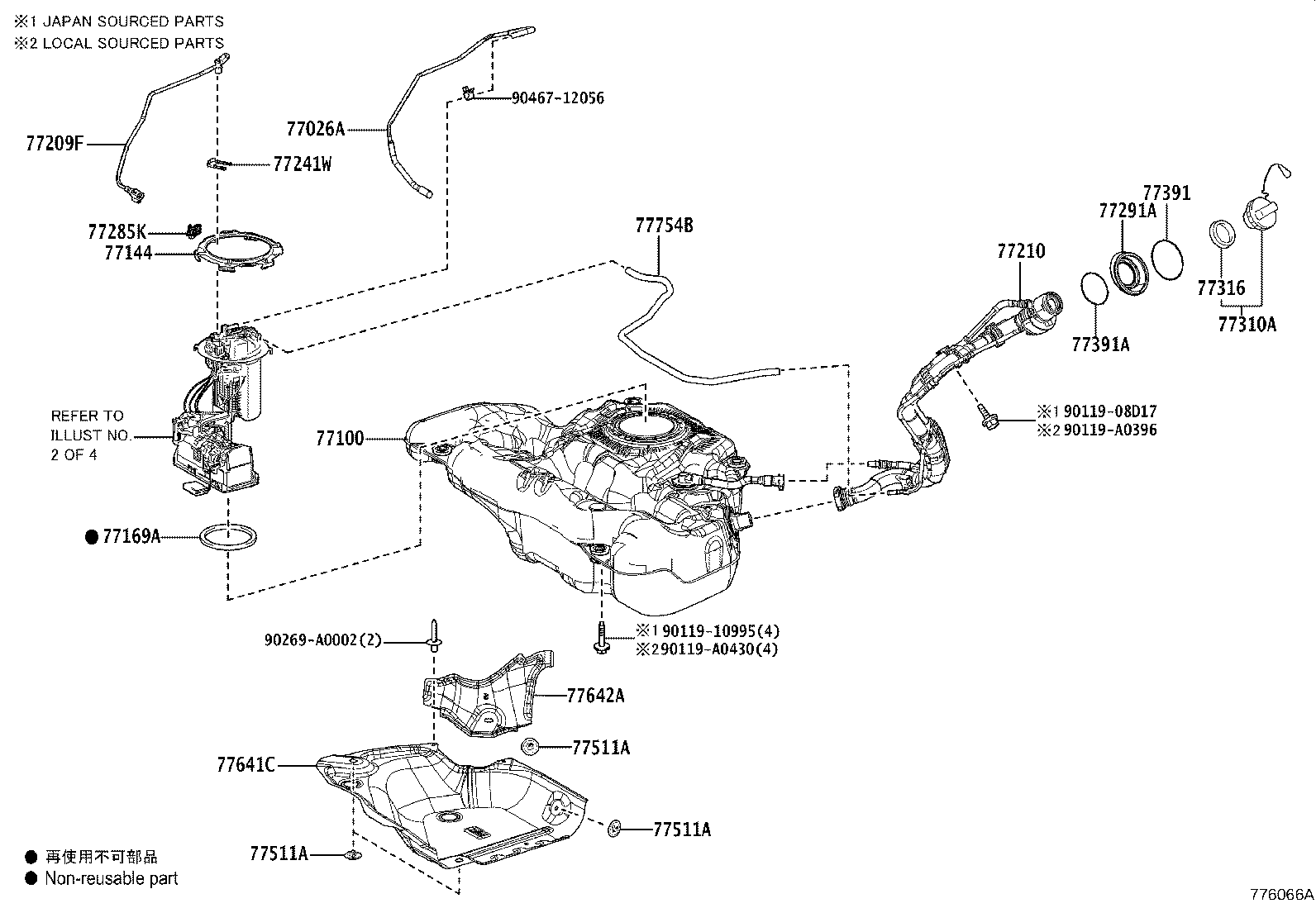

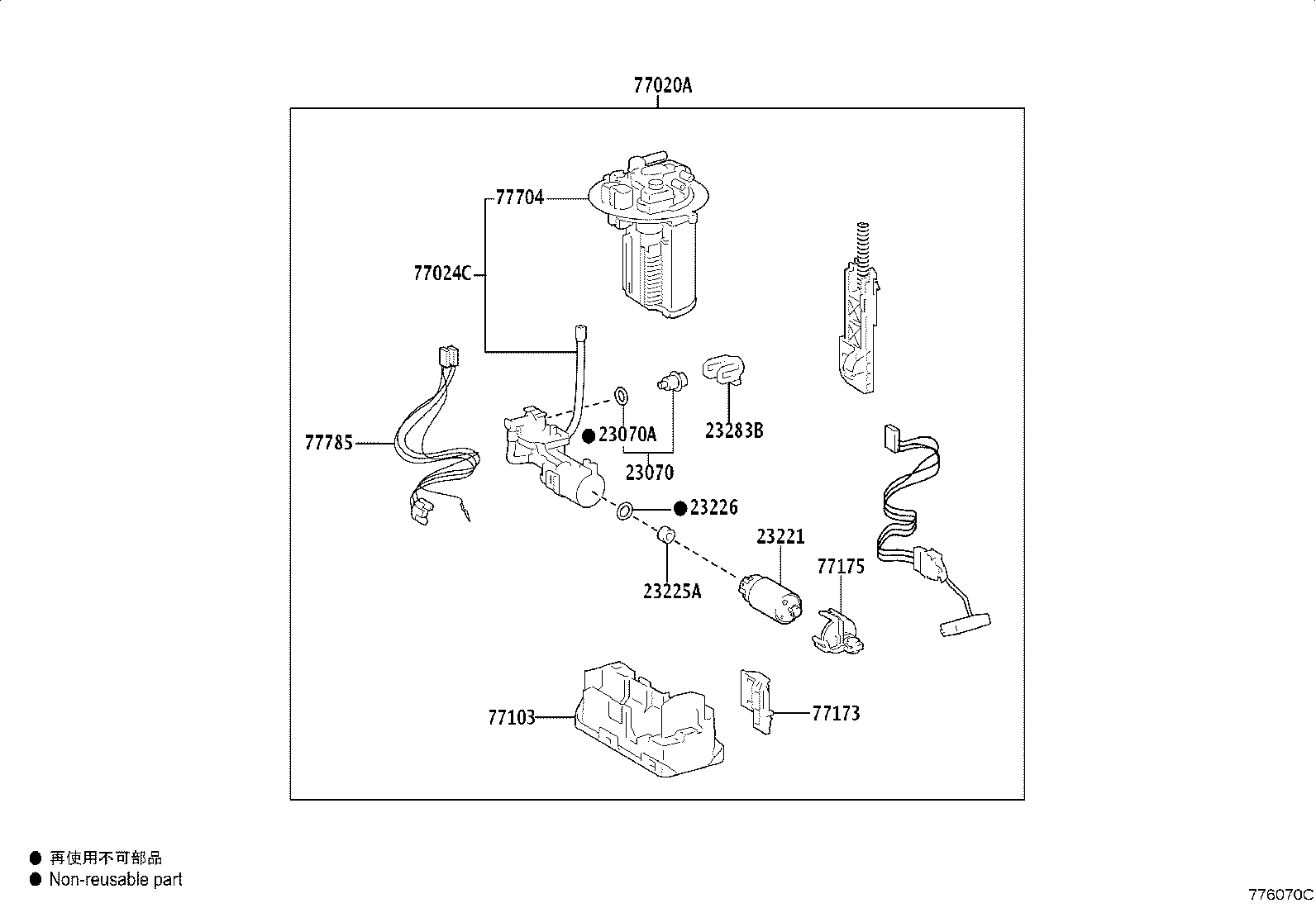

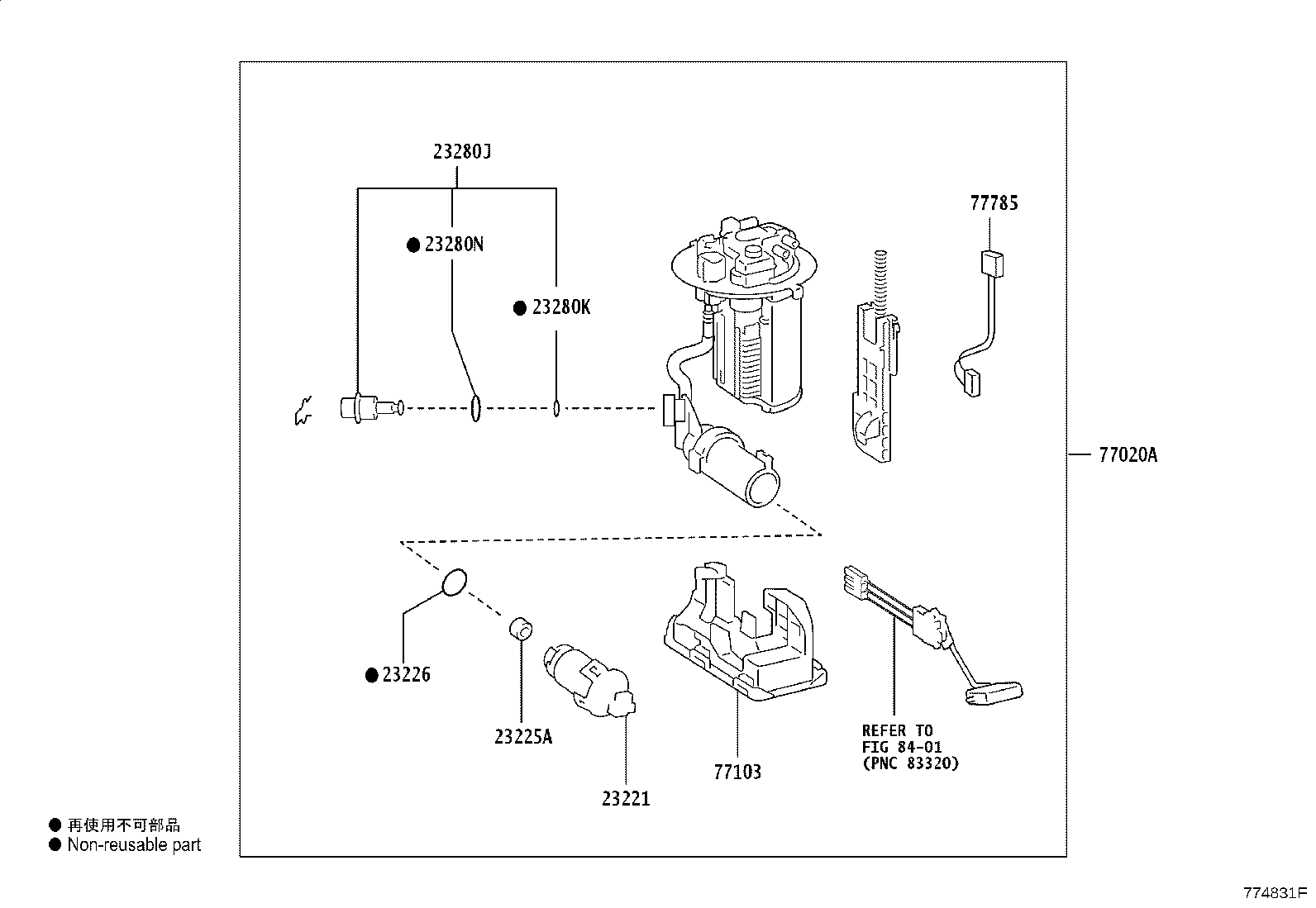

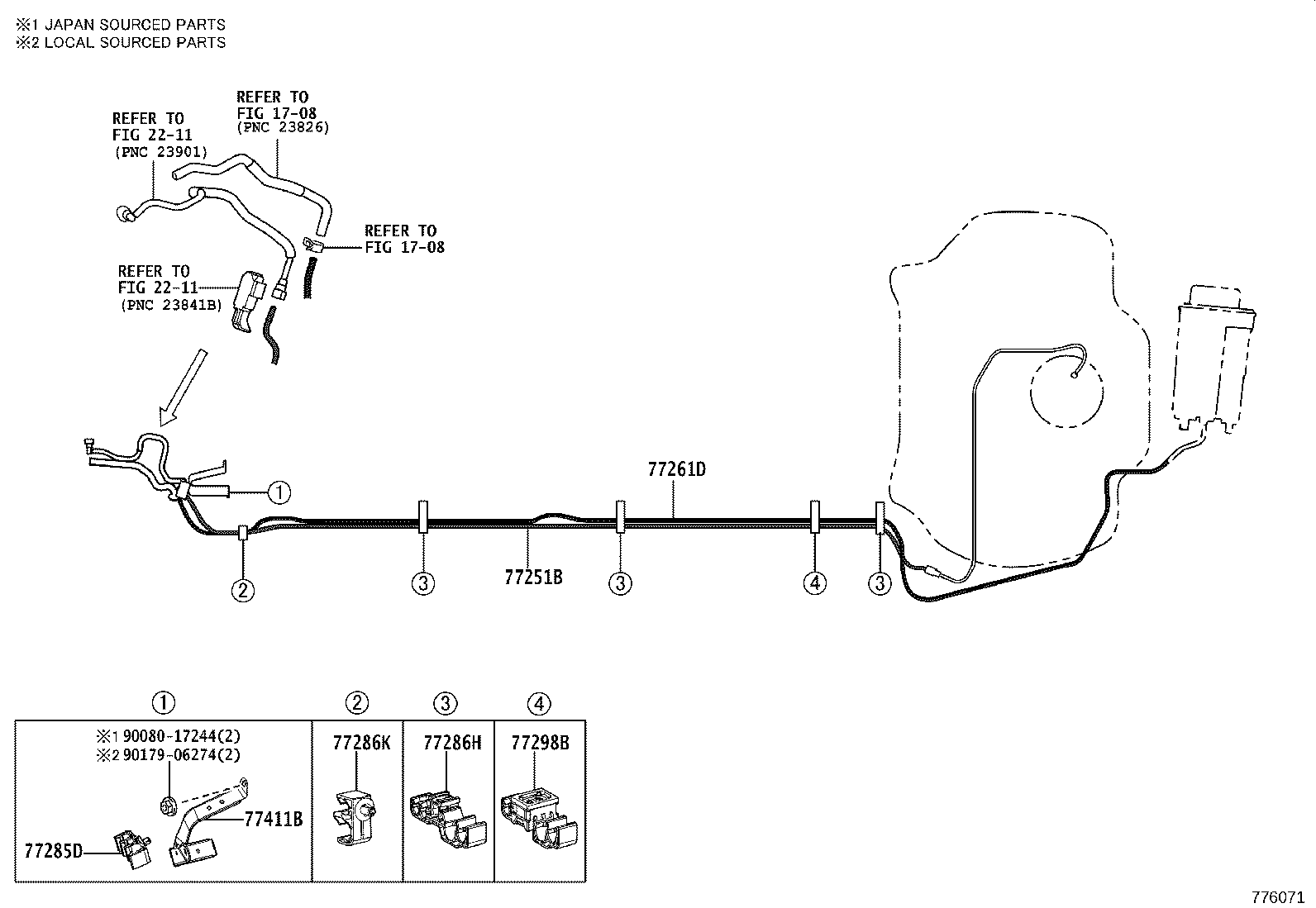

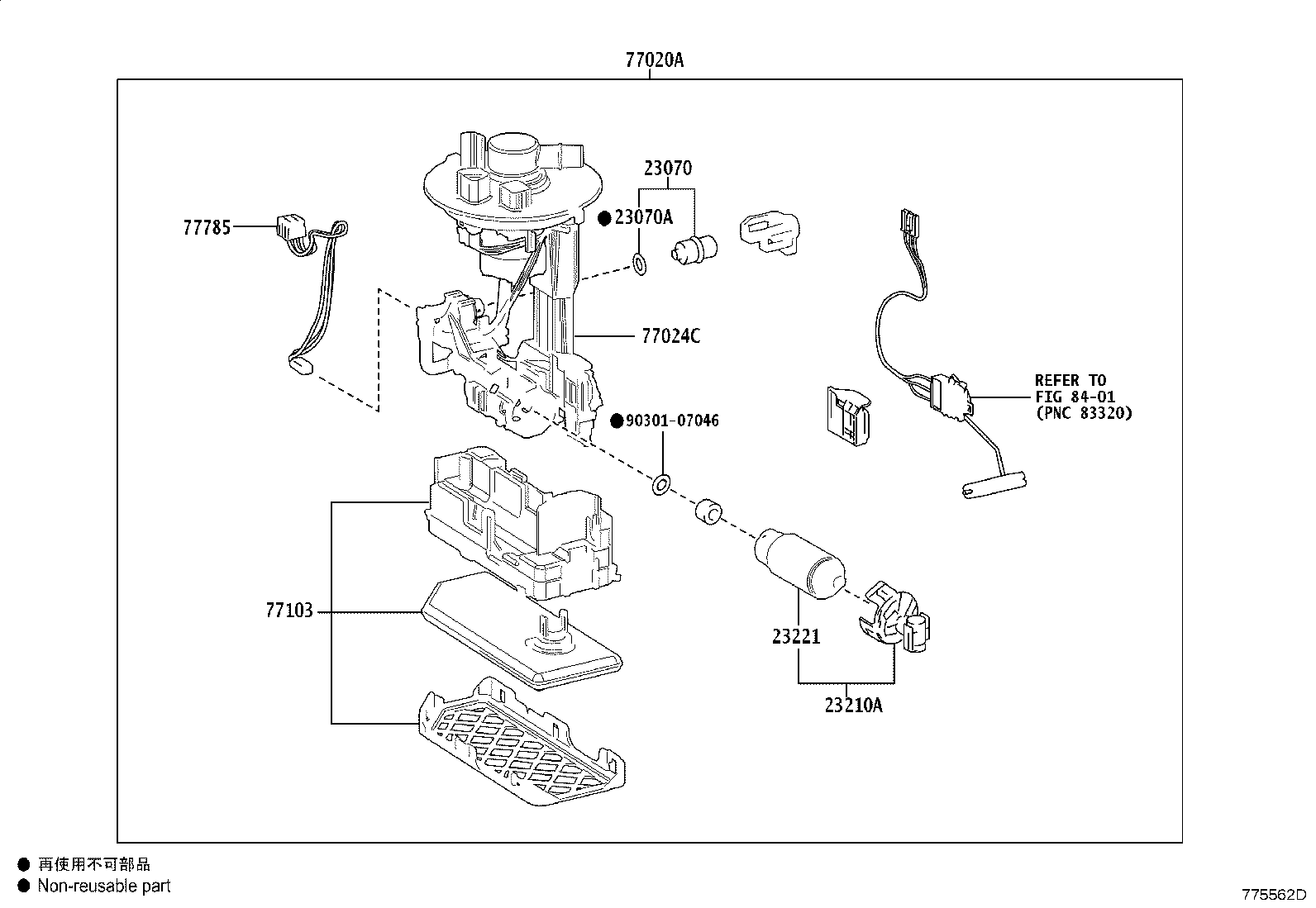

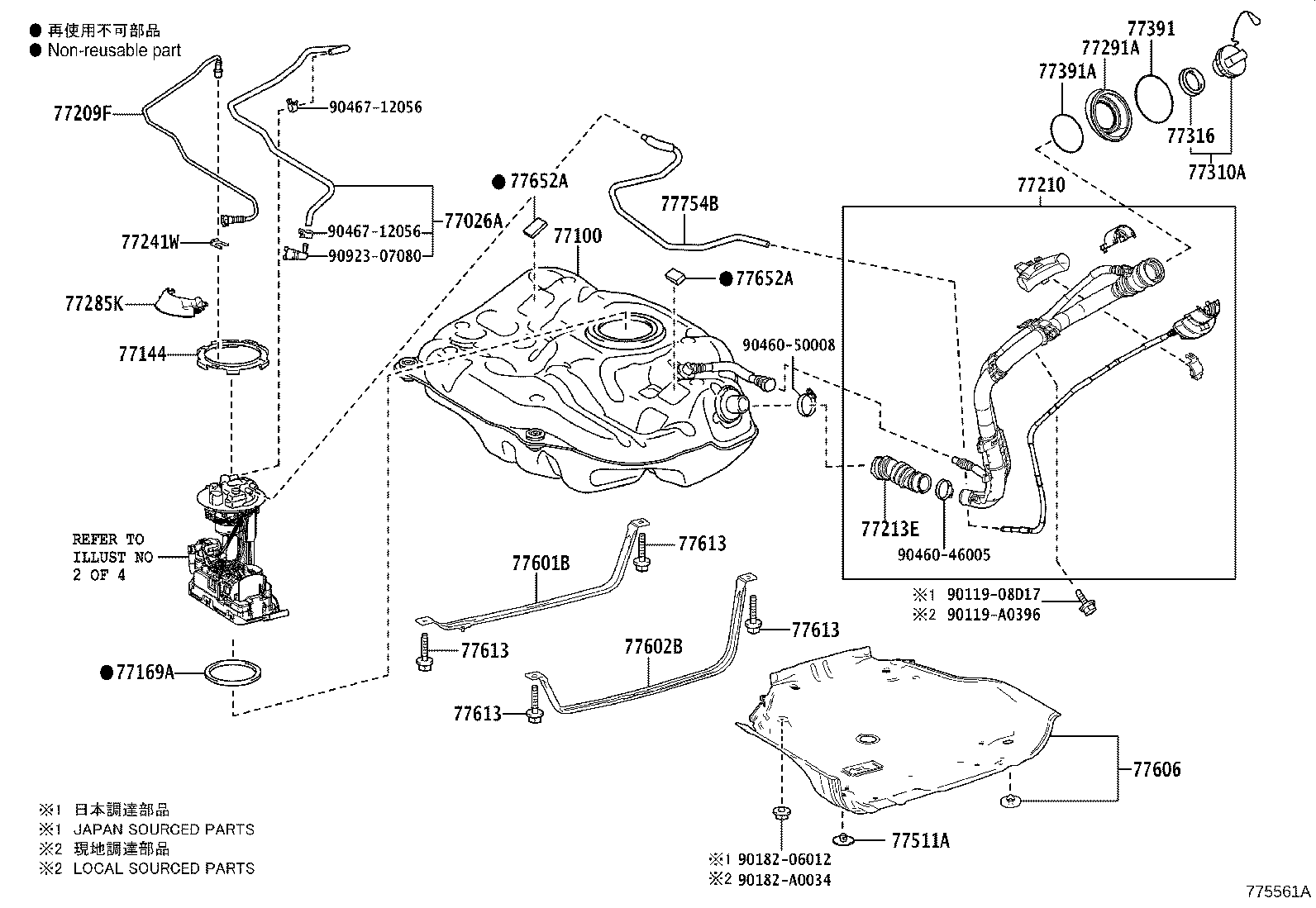

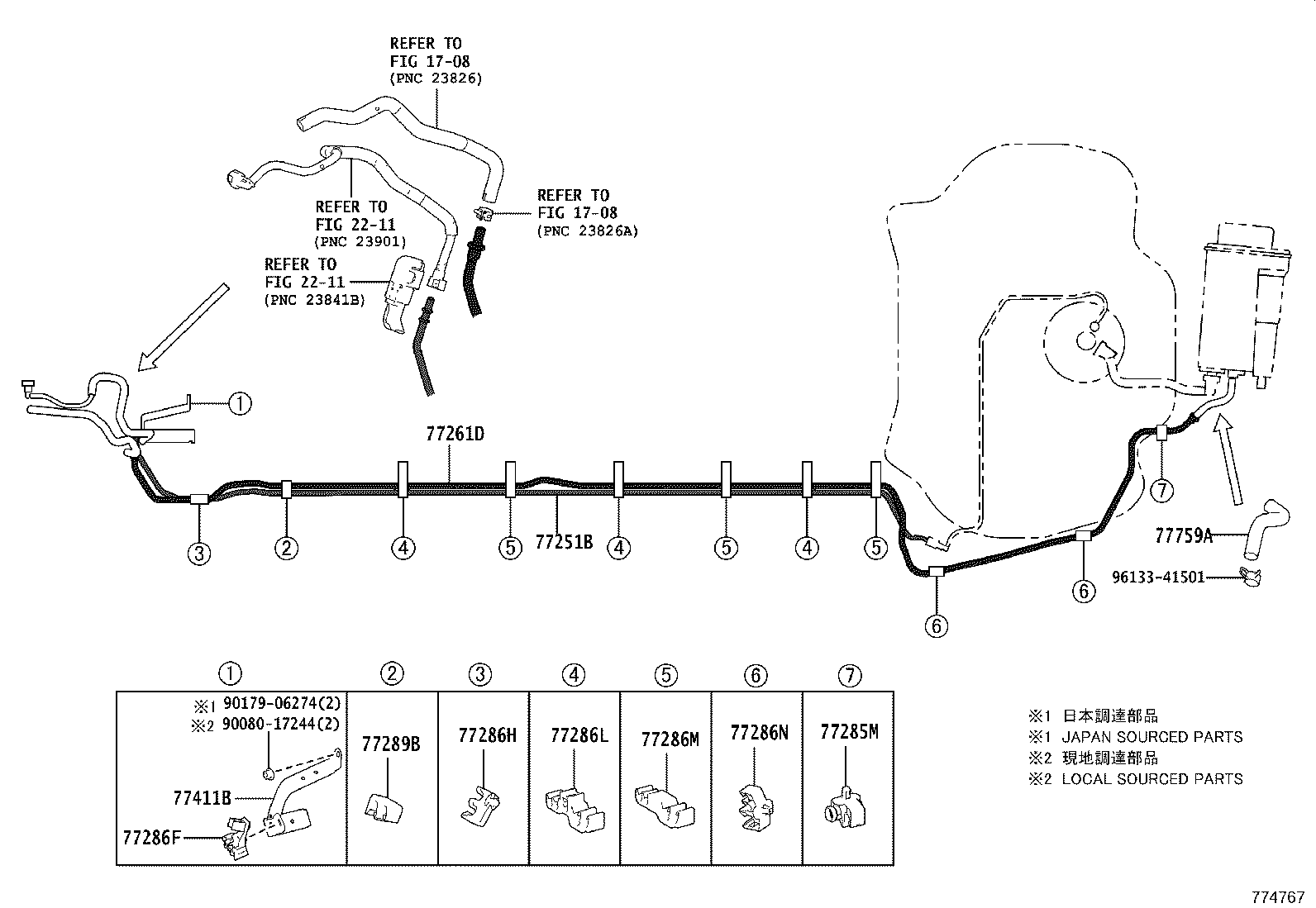

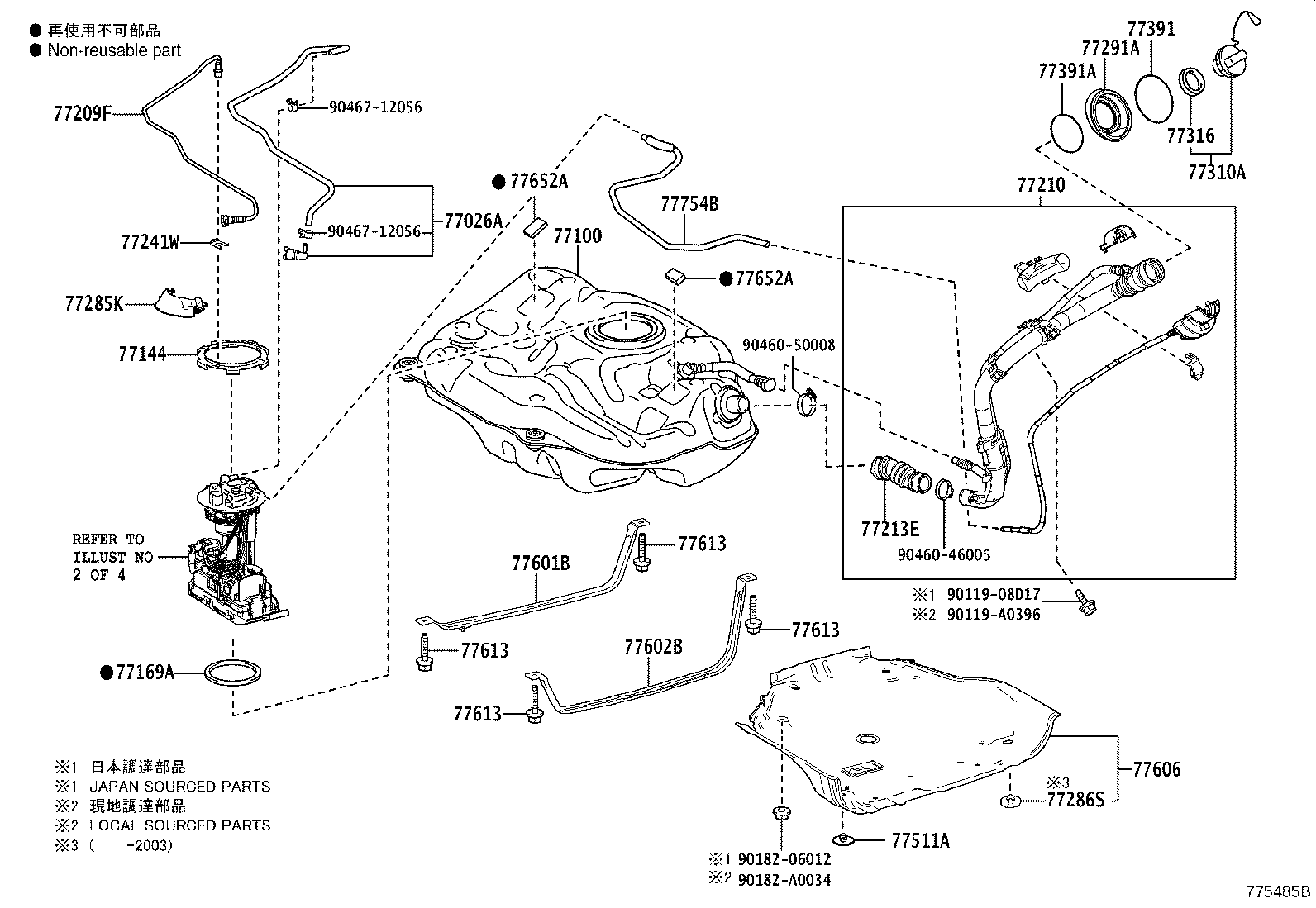

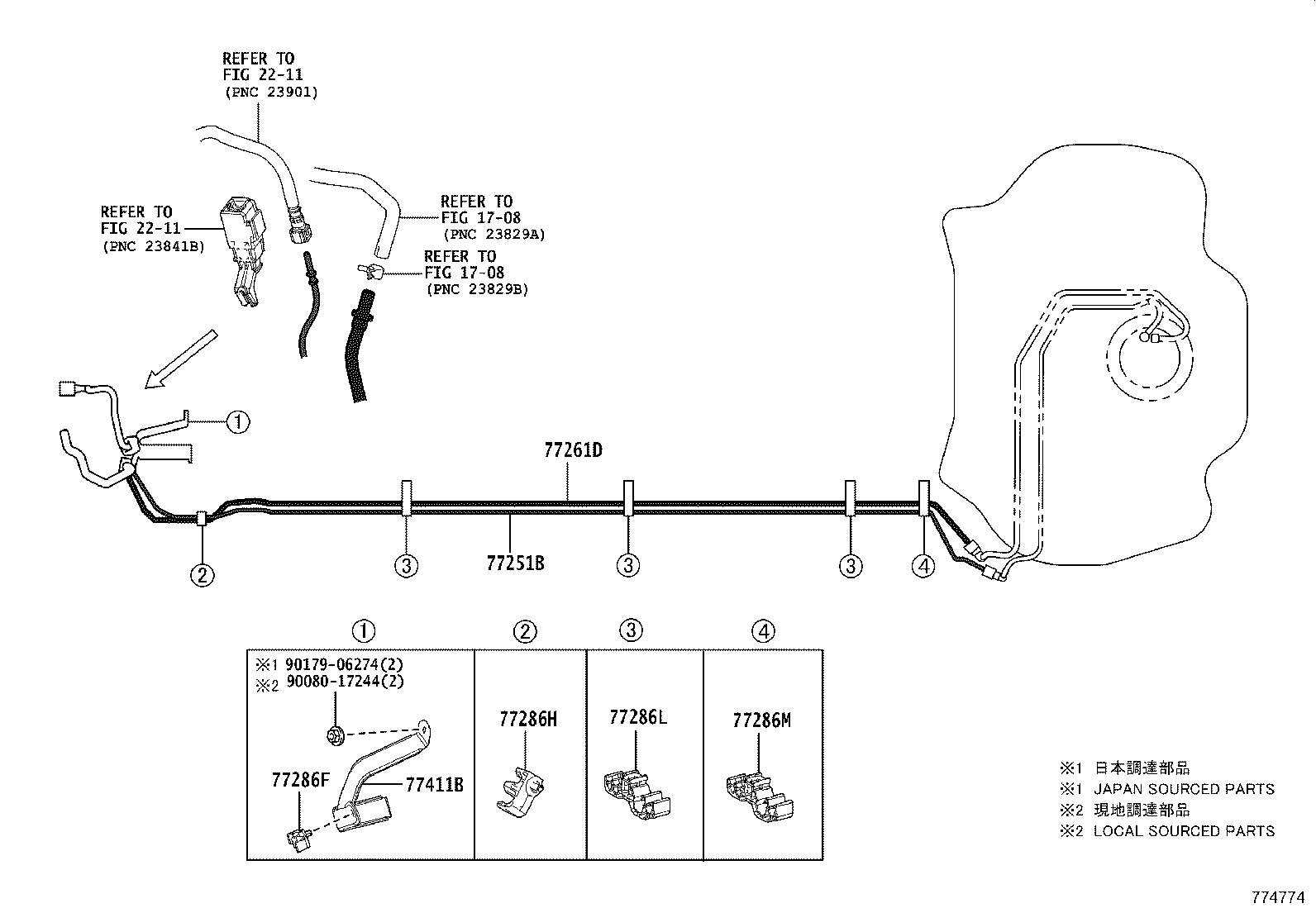

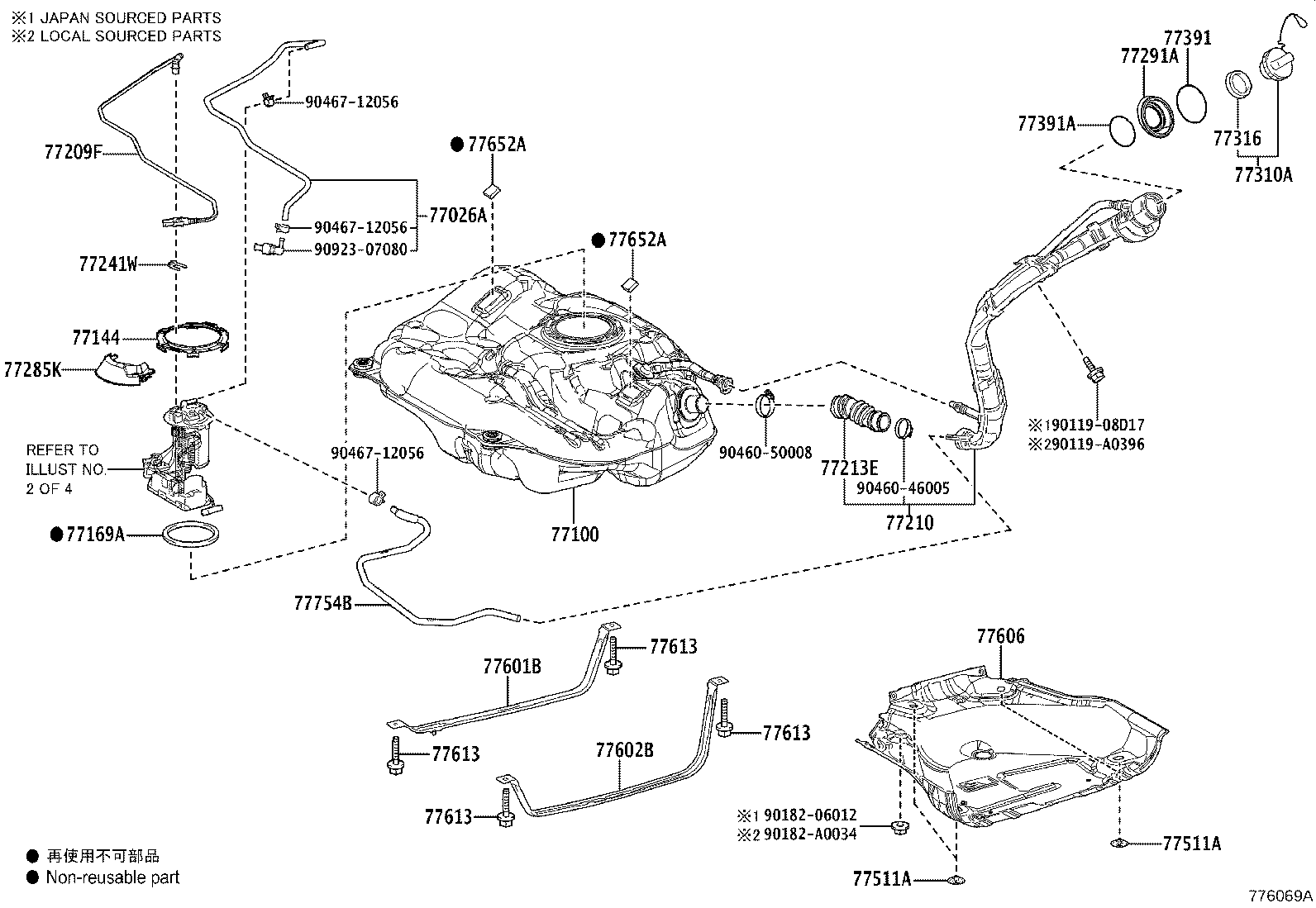

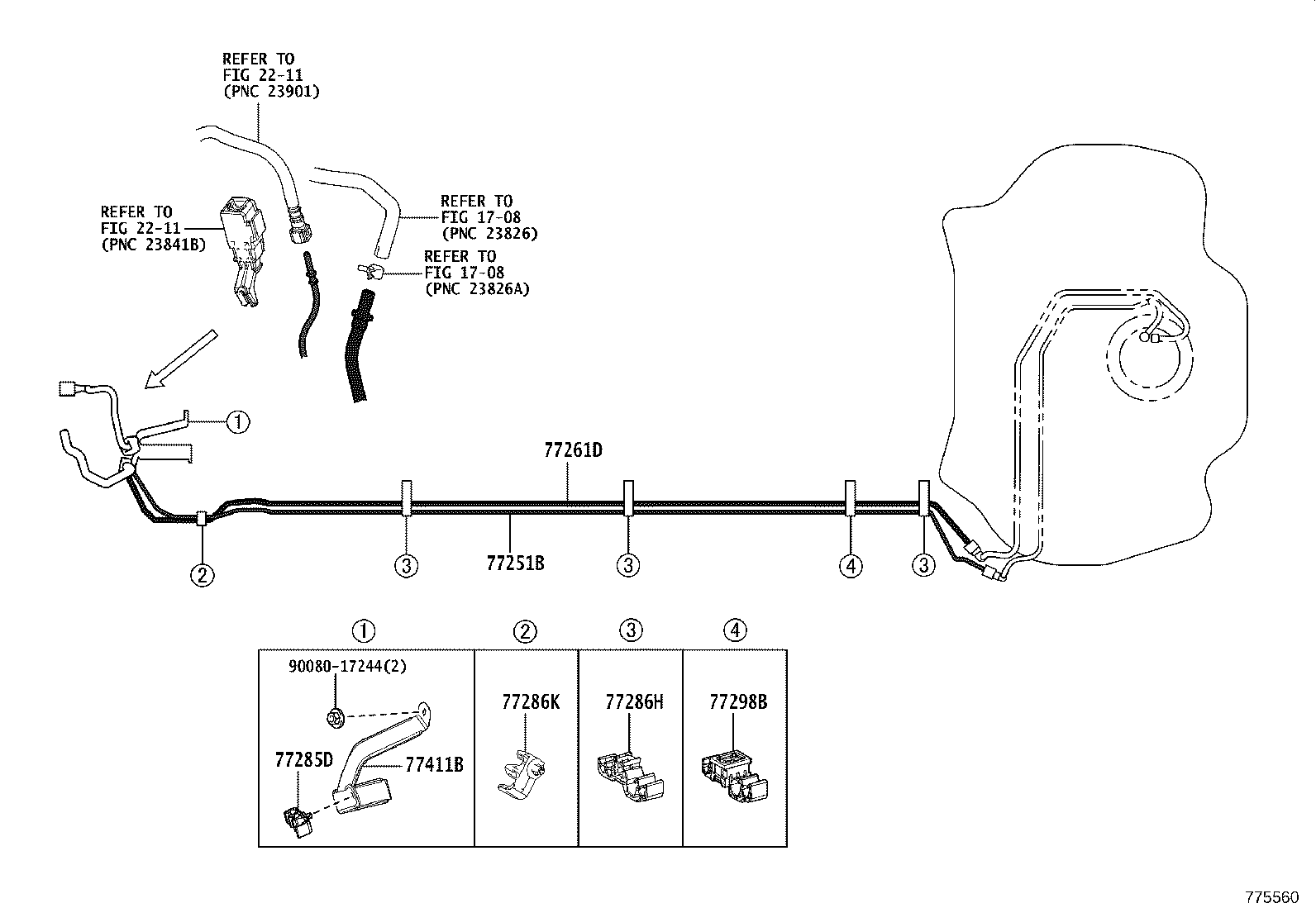

Figure 774765C 774765C 2019-03 → — Figure 775485B 775485B 2019-03 → — Figure 775561A 775561A 2021-07 → — Figure 776066A 776066A 2022-11 → — Figure 776069A 776069A 2022-11 → — Figure 774766I 774766I 2019-03 → 2021-07 Figure 774766I 774766I 2019-03 → — Figure 774831F 774831F 2019-03 → — Figure 775562D 775562D 2021-07 → — Figure 776067C 776067C 2022-11 → — Figure 776070C 776070C 2022-11 → — Figure 774767 774767 2019-03 → — Figure 774774 774774 2019-03 → — Figure 775560 775560 2021-07 → — Figure 776068 776068 2022-11 → — Figure 776071 776071 2022-11 → — Figure 774768A 774768A 2019-03 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23070A Ring, O, NO.1(FOR FUEL MAIN VALVE)
23210A Pump Assy, Fuel W/Motor & Bracket
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23226 Ring, O(FOR FUEL PUMP)
23280J Regulator Assy, Fuel Pressure
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
23280N Ring, O(FOR FUEL PRESSURE REGULATOR), NO.2
23283B Holder, Fuel Pressure Regulator
64648A Grommet, Luggage Door Lock Opener
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024C Plate Sub-assy, Fuel Suction W/Fuel Filter
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77103 Sub-tank Sub-assy, Fuel
77144 Retainer, Fuel Pump Gauge
77169A Gasket, Fuel Suction Tube Set
77173 Bracket, Fuel Gage
77175 Support, Fuel Suction, NO.2
77197A Clamp, Evaporation Vent Tube, NO.2
77209F Tube Sub-assy, Fuel Tank Main
77210 Pipe Assy, Fuel Tank Filler
77213E Hose, Fuel Tank TO Filler Pipe
77241W Clip, Tube Joint
77251B Tube, Fuel Main
77261D Tube, Fuel Tank TO Canister
77285D Clamp, Fuel Tube, NO.1
77285G Clamp, Fuel Tube, NO.1
77285K Clamp, Fuel Tube, NO.1
77285M Clamp, Fuel Tube, NO.1
77286F Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286K Clamp, Fuel Tube, NO.2
77286L Clamp, Fuel Tube, NO.5
77286M Clamp, Fuel Tube, NO.6
77286N Clamp, Fuel Tube, NO.7
77286S Cushion, Fuel Tank Protector
77289B Clamp, Fuel Tube, NO.3
77291A Shield, Fuel Tank Filler Pipe
77298B Clamp, Fuel Tube, NO.4
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77360A Spring Assy, Fuel Filler Opening Lid
77377 Retainer, Fuel Filler Opening Lid Lock
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77404 Hose Sub-assy, Fuel Tank Vent
77404A Hose Sub-assy, Fuel Tank Vent
77411B Support, Fuel Tube Grommet, NO.1
77511A Bracket, Fuel Tank
77601B Band Sub-assy, Fuel Tank, NO.1 RH
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77606 Protector Sub-assy, Fuel Tank, NO.1
77613 Bolt, Fuel Tank Band Set
77641C Protector Assy, Fuel Tank
77642A Protector, Fuel Tank, NO.2
77652A Cushion, Fuel Tank, NO.2
77704 Canister Sub-assy, Charcoal
77730B Canister Assy, Charcoal W/Outlet Hose
77740 Canister Assy, Charcoal
77740R Pump Sub-assy, Leak Detection
77754B Hose, Charcoal Canister Outlet
77759A Hose, Charcoal Canister
77775 Guide, Charcoal Canister Outlet
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
