Toyota Corolla (MEXICO)

2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

108 part groups · 27 illustrations

Illustrations

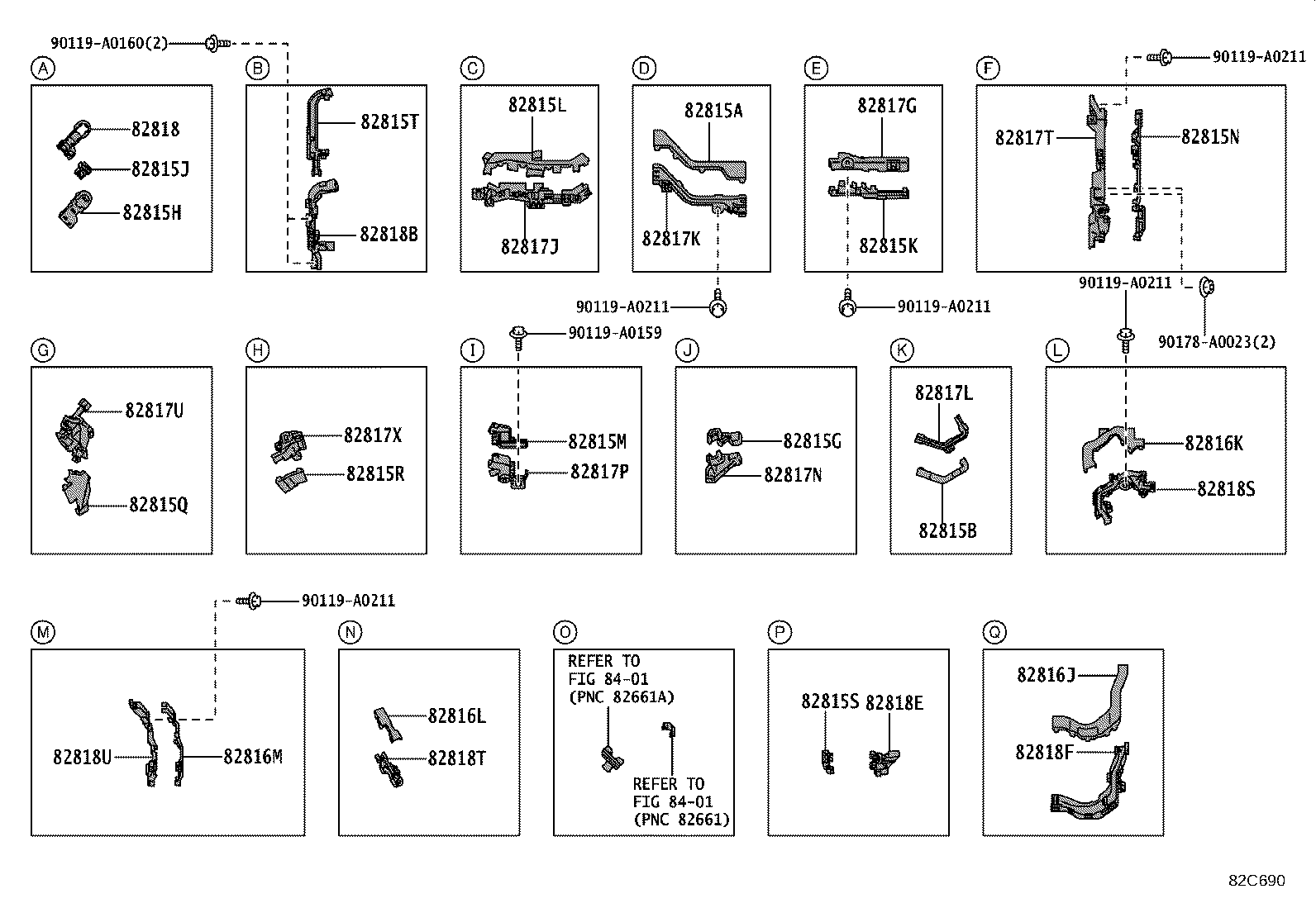

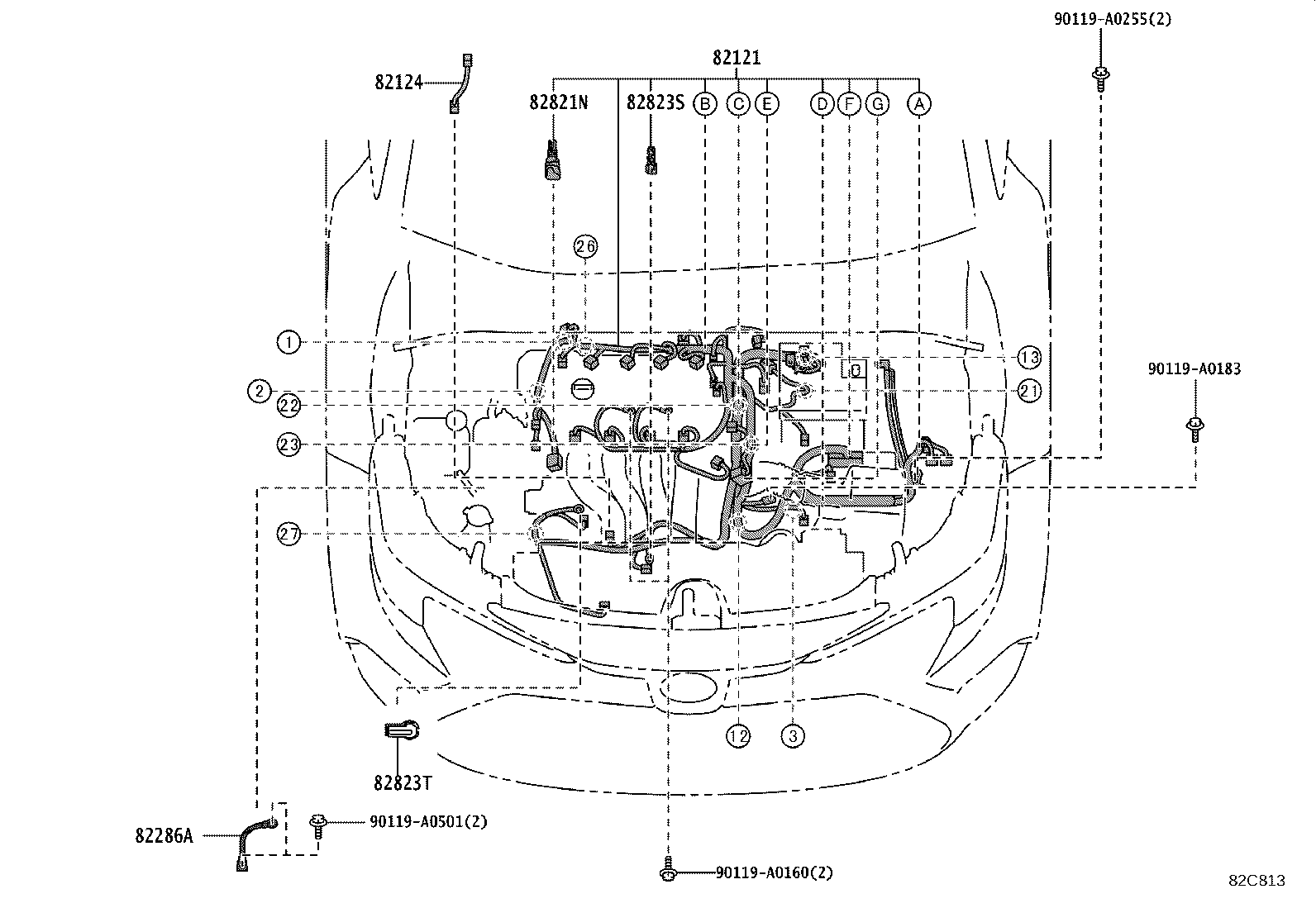

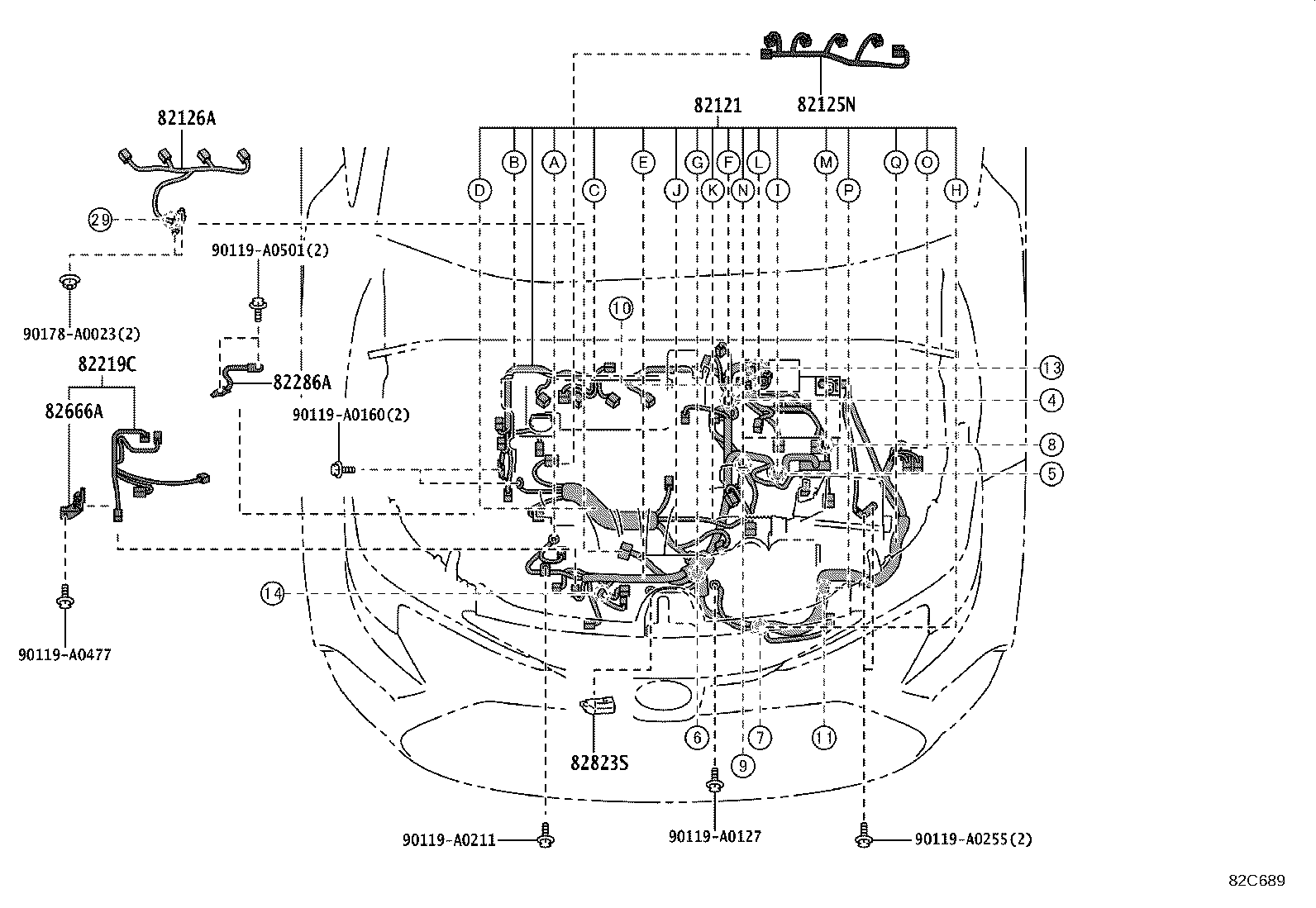

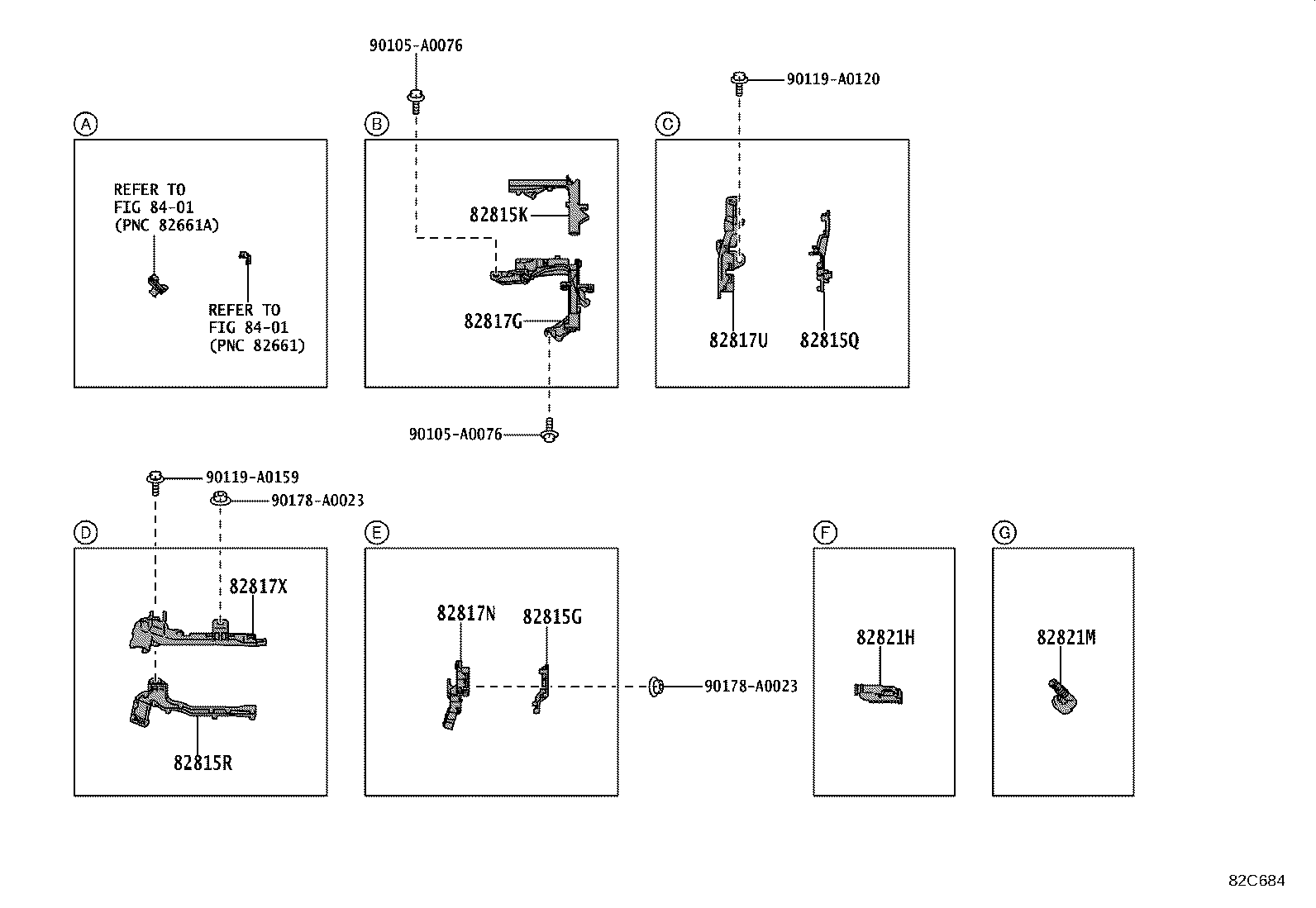

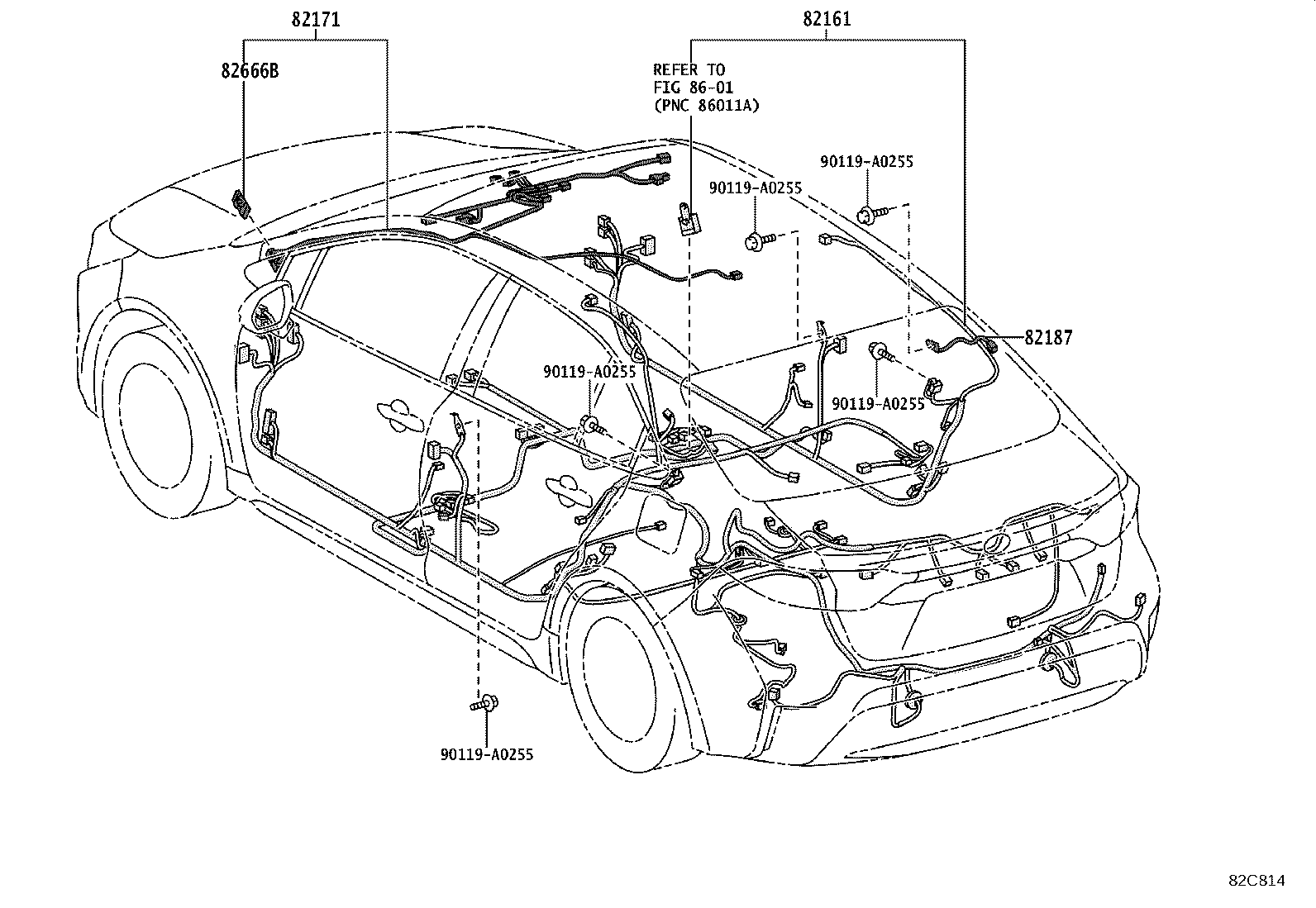

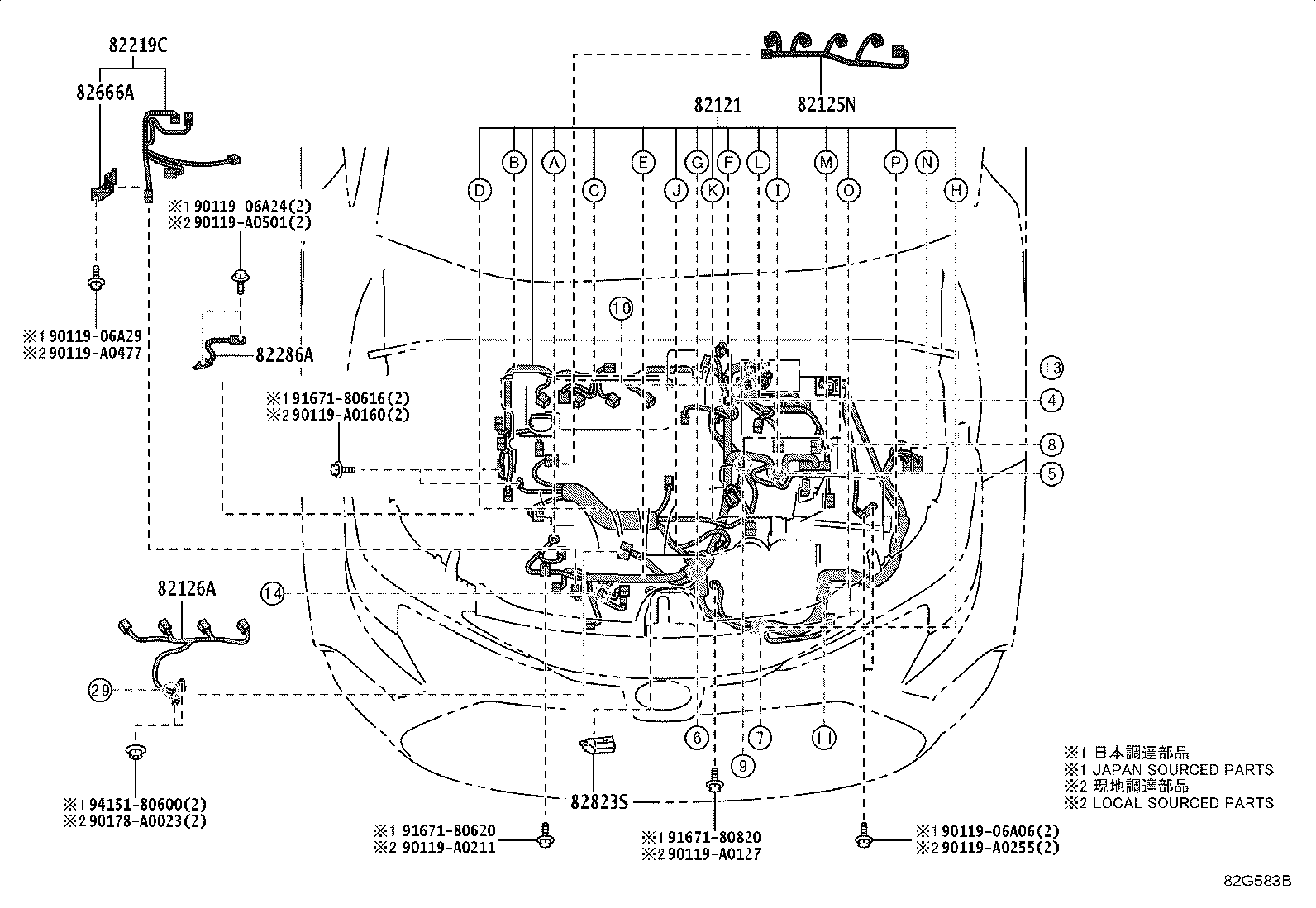

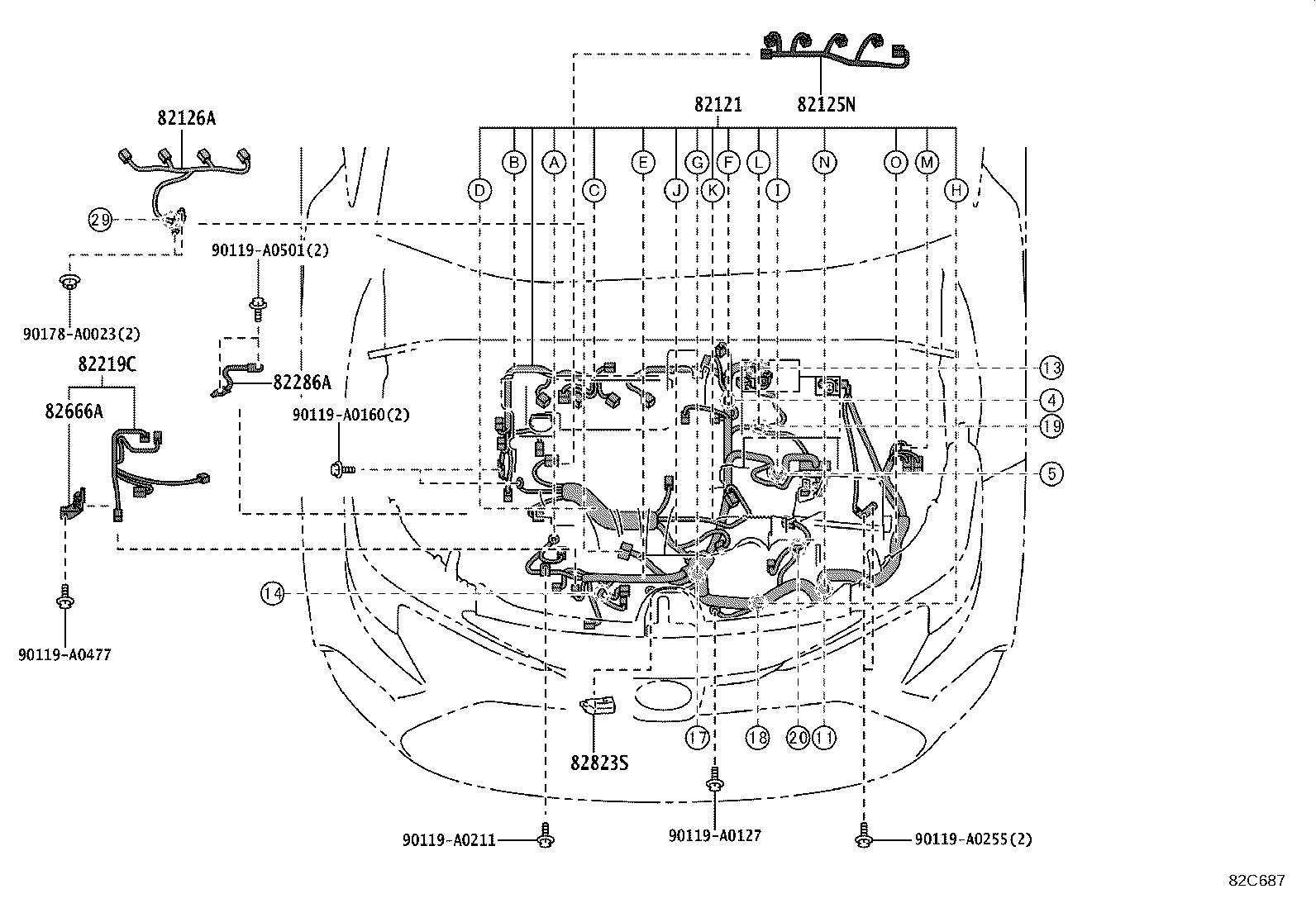

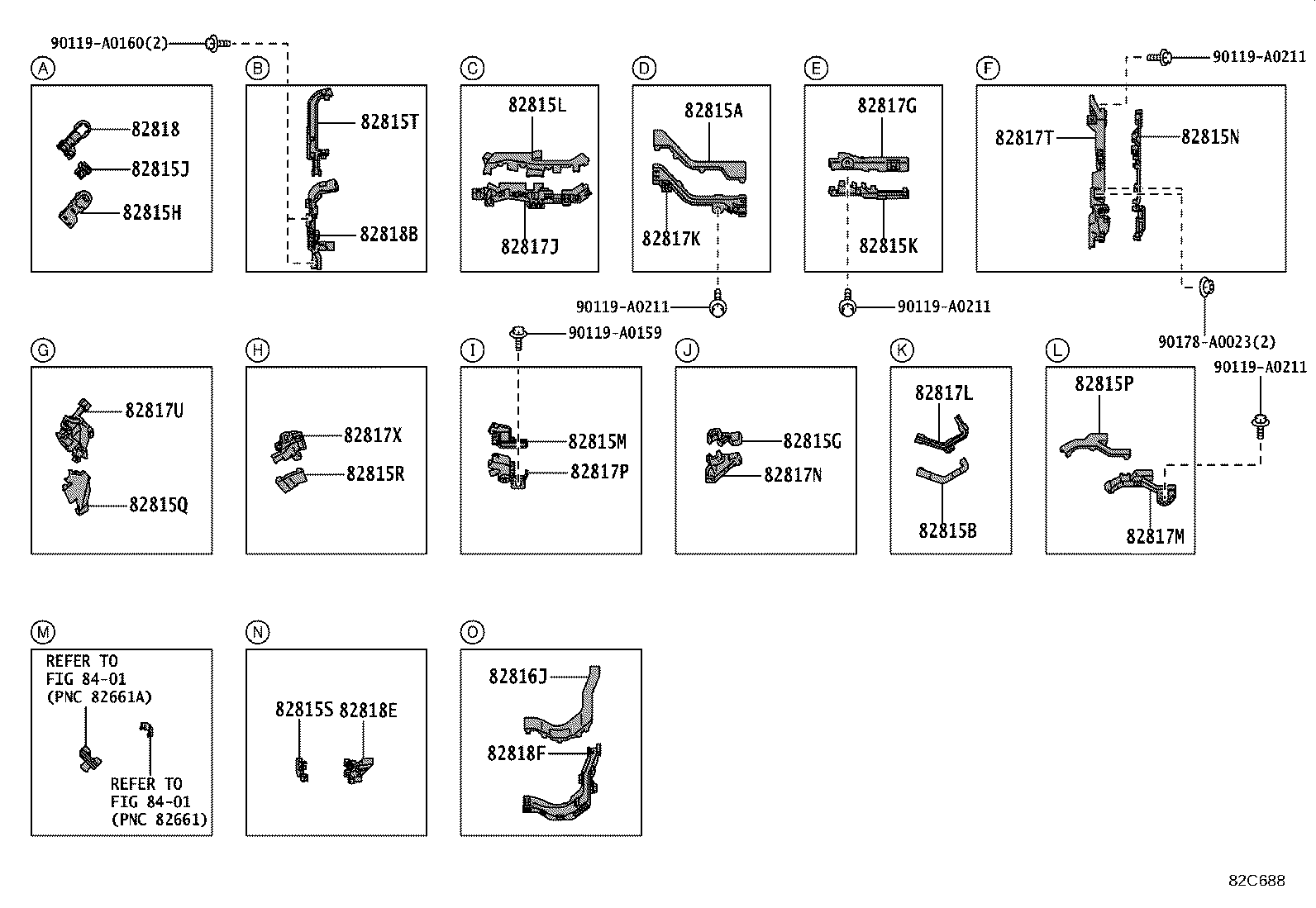

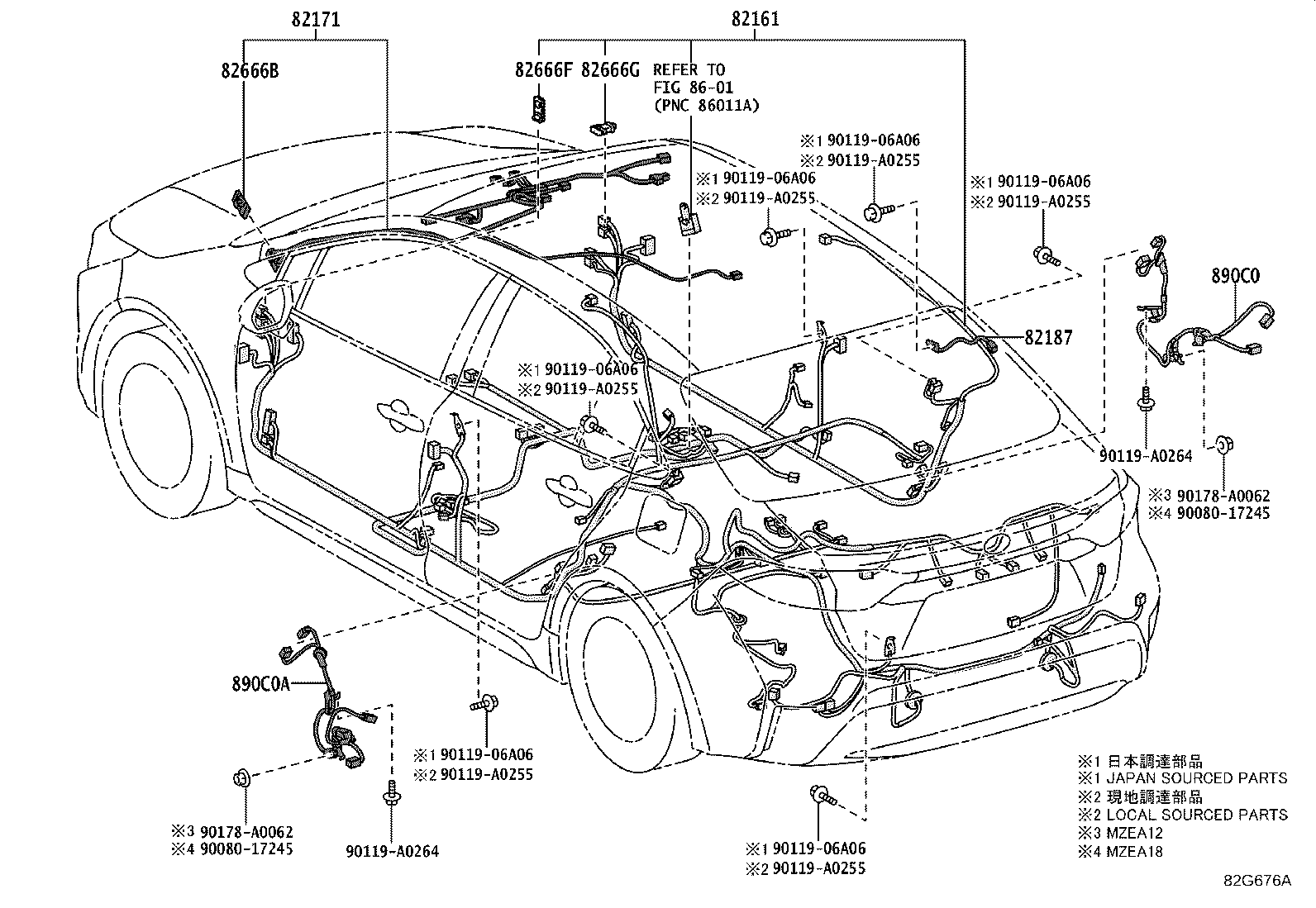

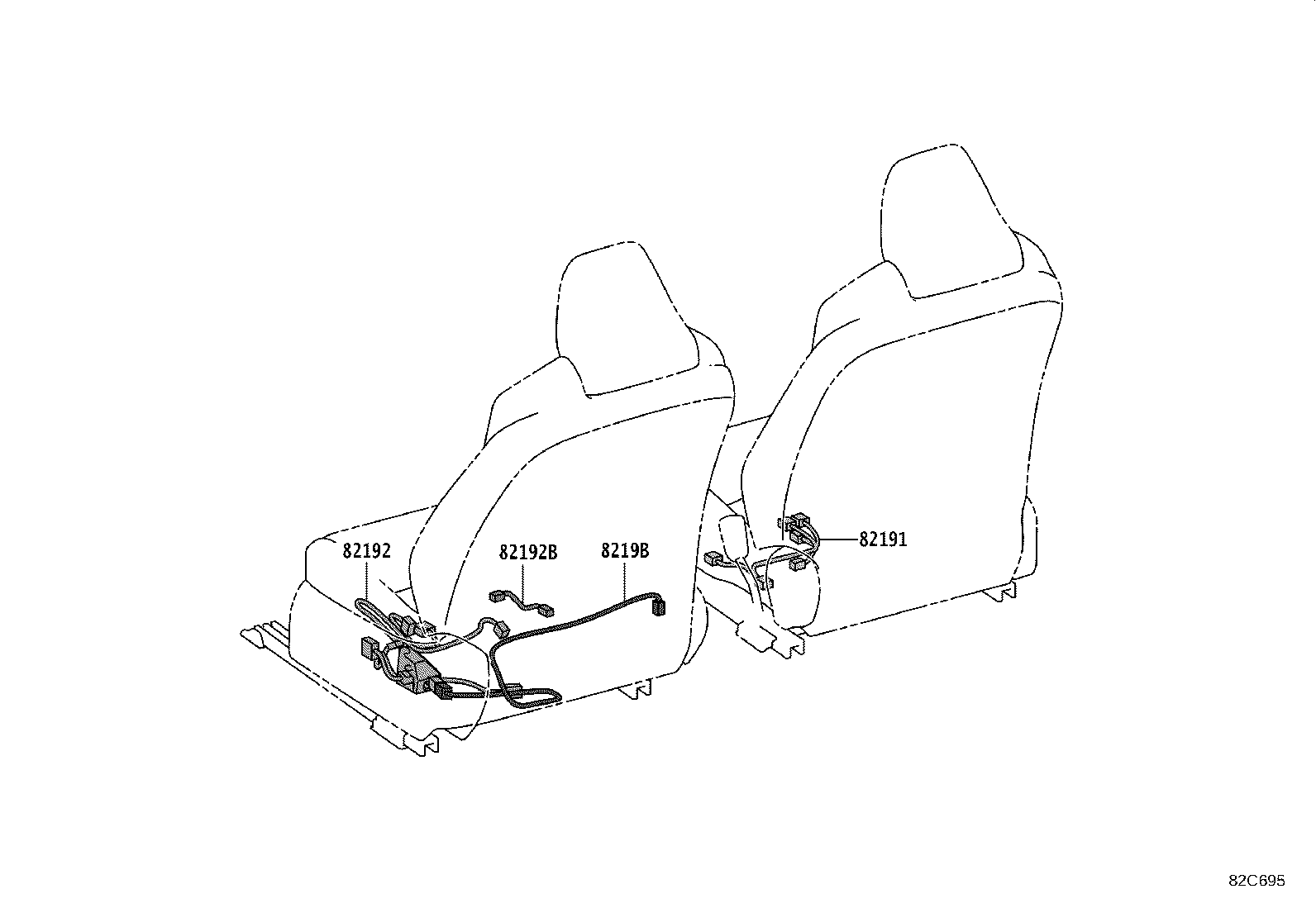

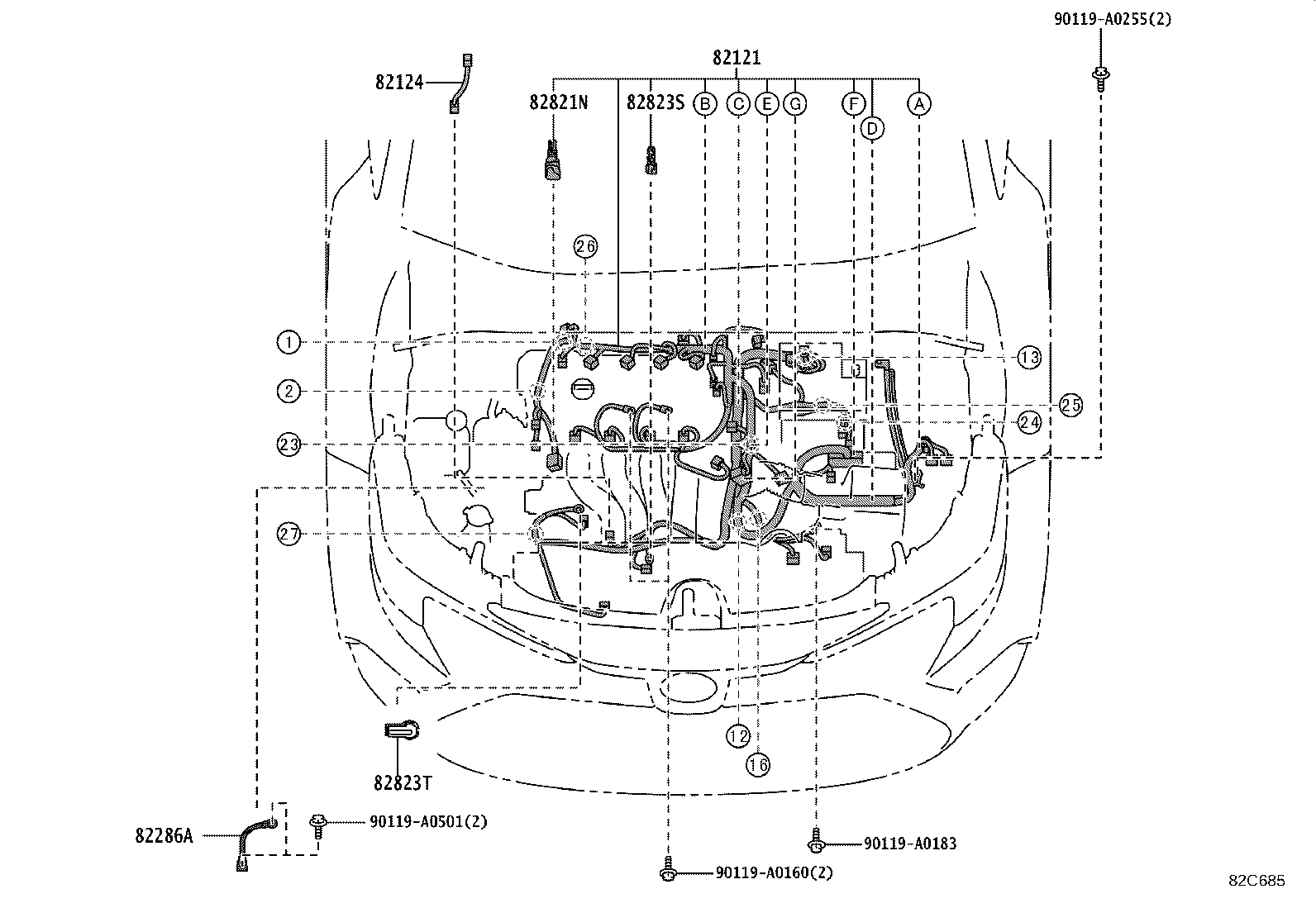

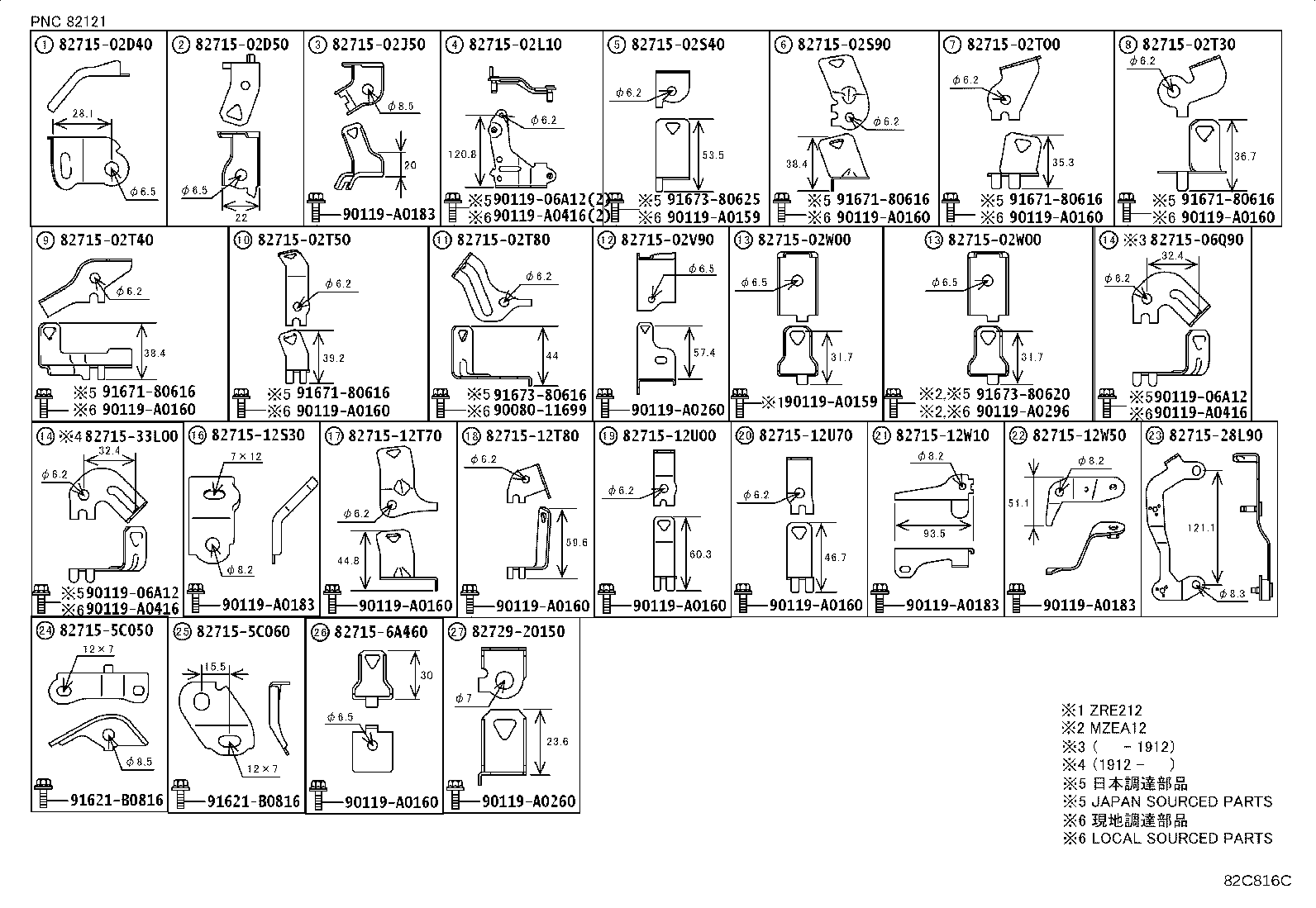

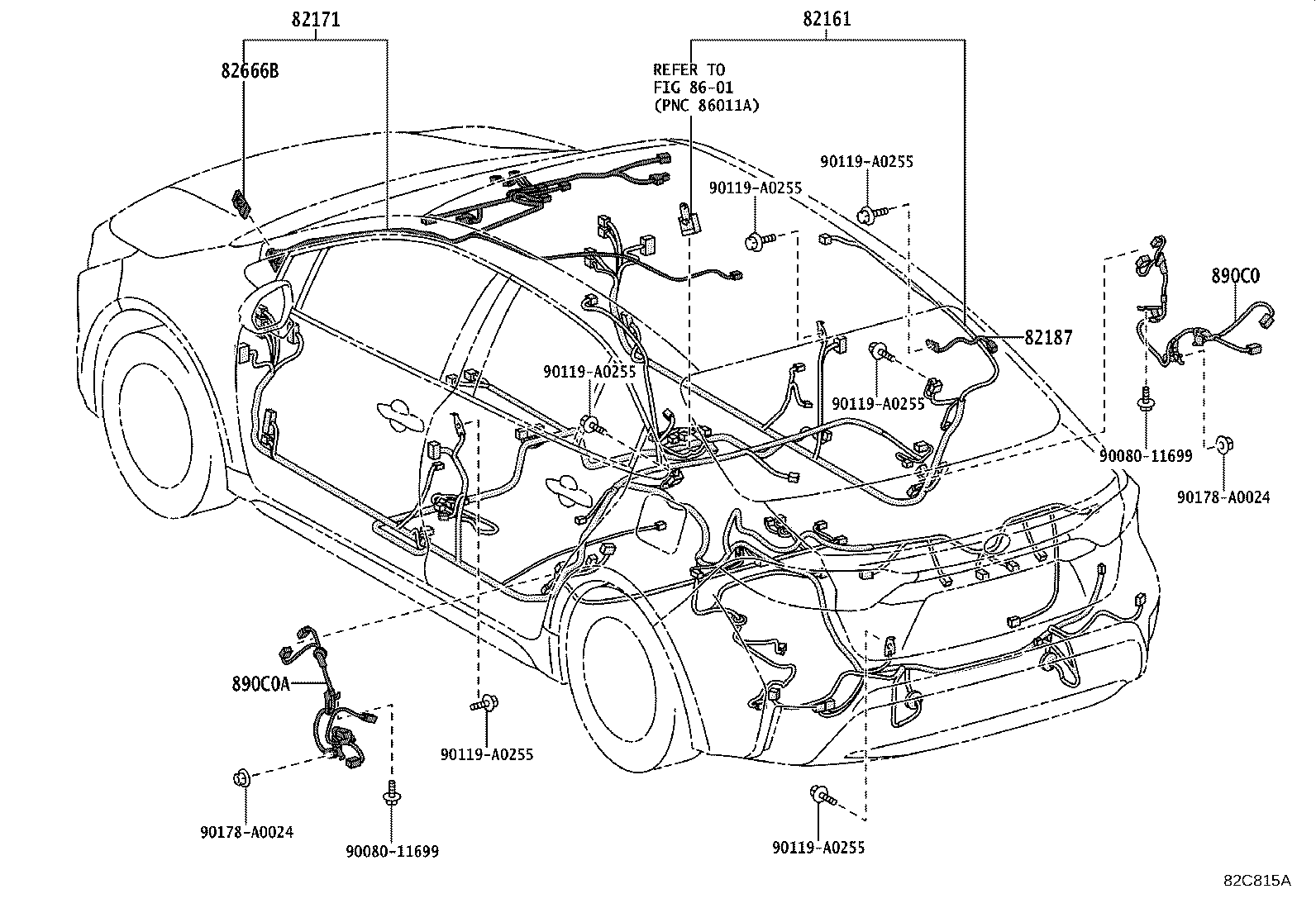

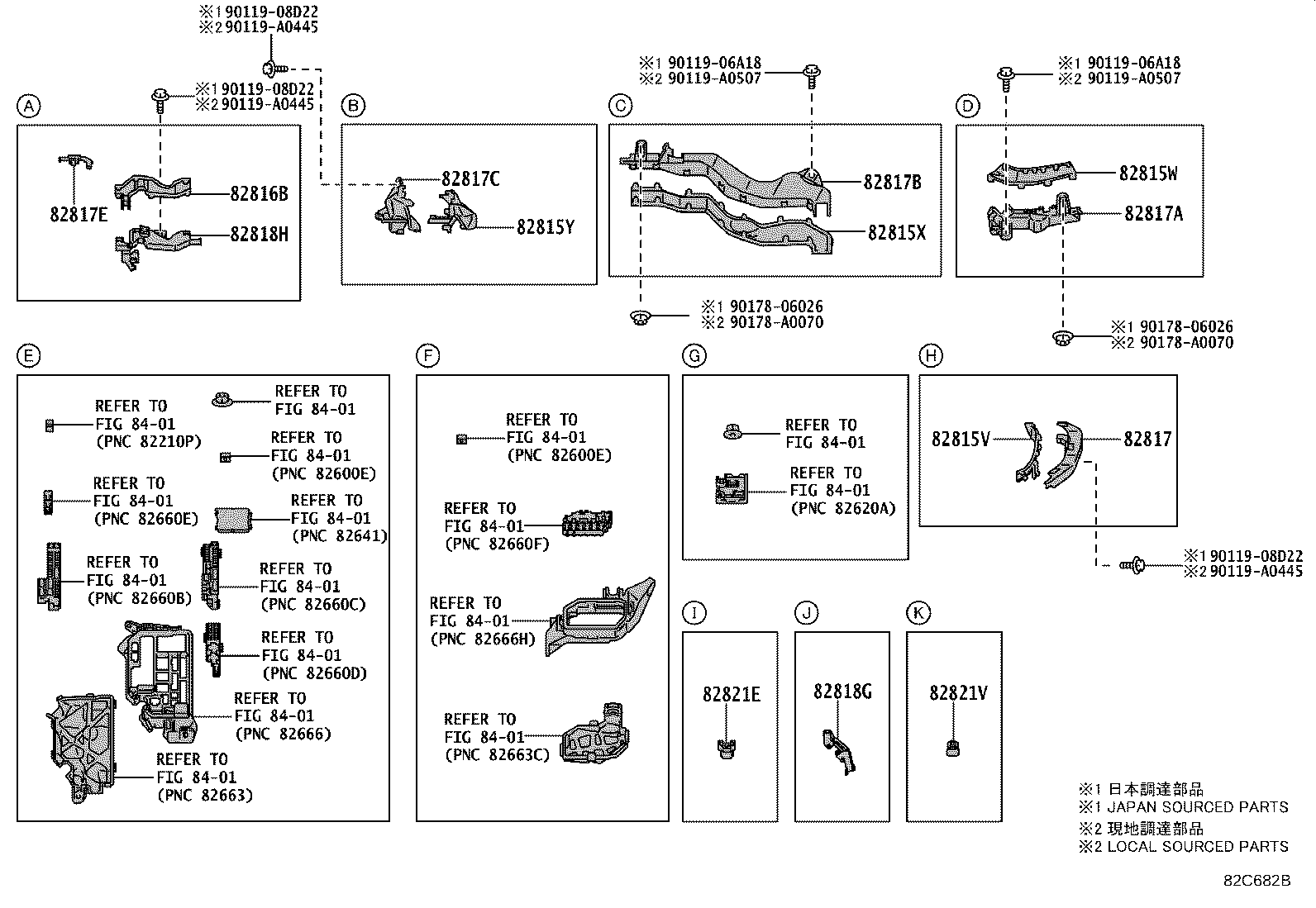

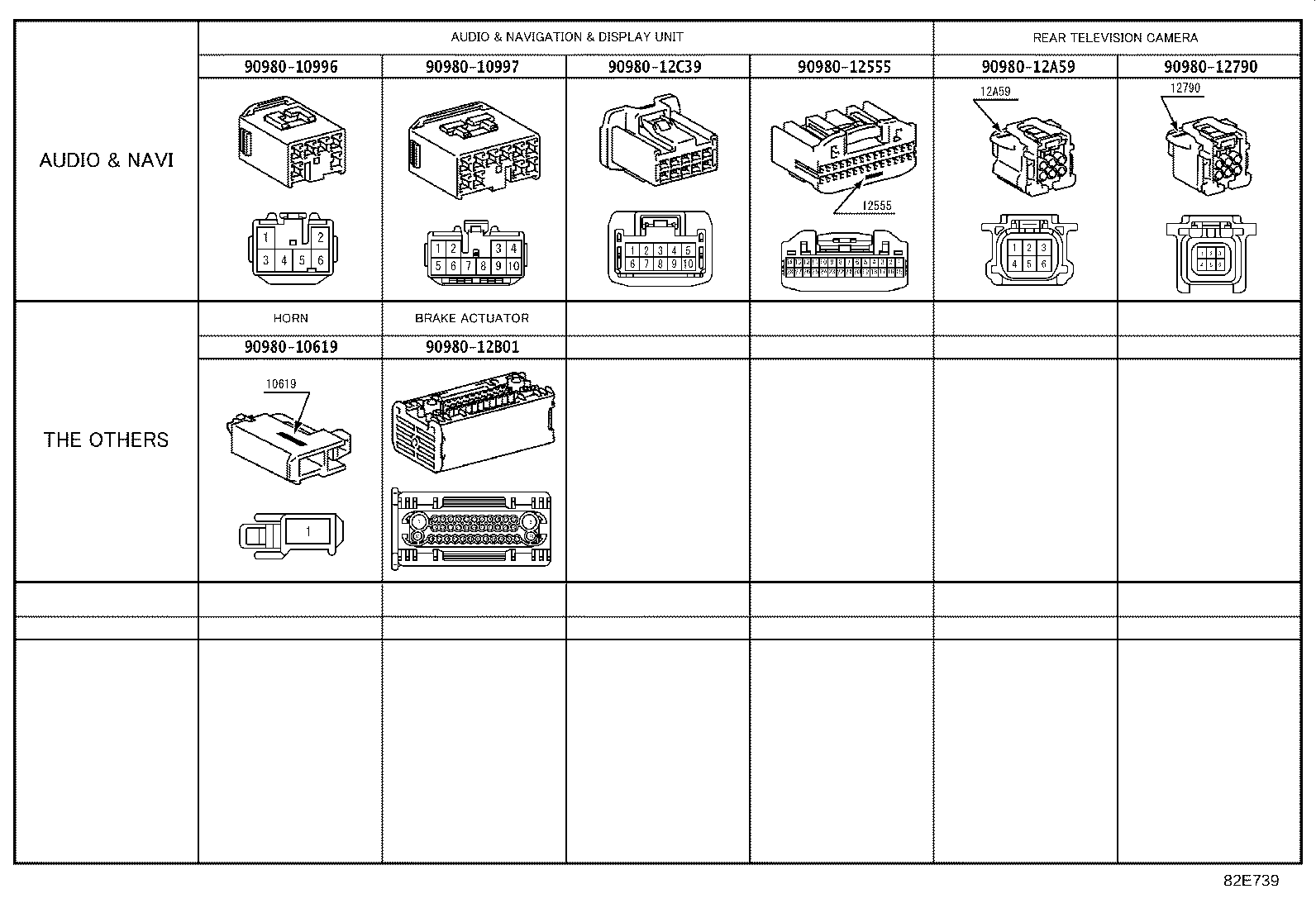

Figure 82C679 82C679 2019-03 → — Figure 82C680A 82C680A 2019-03 → — Figure 82C681A 82C681A 2019-03 → — Figure 82C682B 82C682B 2019-03 → — Figure 82C813 82C813 2019-03 → — Figure 82C684 82C684 2019-03 → — Figure 82C685 82C685 2019-03 → — Figure 82C686 82C686 2019-03 → — Figure 82C687 82C687 2019-03 → — Figure 82C688 82C688 2019-03 → — Figure 82C689 82C689 2019-03 → 2022-11 Figure 82C690 82C690 2019-03 → 2022-11 Figure 82G583B 82G583B 2022-11 → — Figure 82G584B 82G584B 2022-11 → — Figure 82G585 82G585 2022-11 → — Figure 82C691A 82C691A 2019-03 → — Figure 82C692A 82C692A 2019-03 → — Figure 82C814 82C814 2019-03 → — Figure 82C815A 82C815A 2019-03 → 2022-11 Figure 82C815A 82C815A 2019-03 → — Figure 82G676A 82G676A 2022-11 → — Figure 82C695 82C695 2019-03 → — Figure 82C816C 82C816C 2019-03 → — Figure 82C697C 82C697C 2019-03 → — Figure 82C844C 82C844C 2019-03 → — Figure 82C845B 82C845B 2019-03 → — Figure 82E739 82E739 2019-03 → —

Part groups

PNCDescription

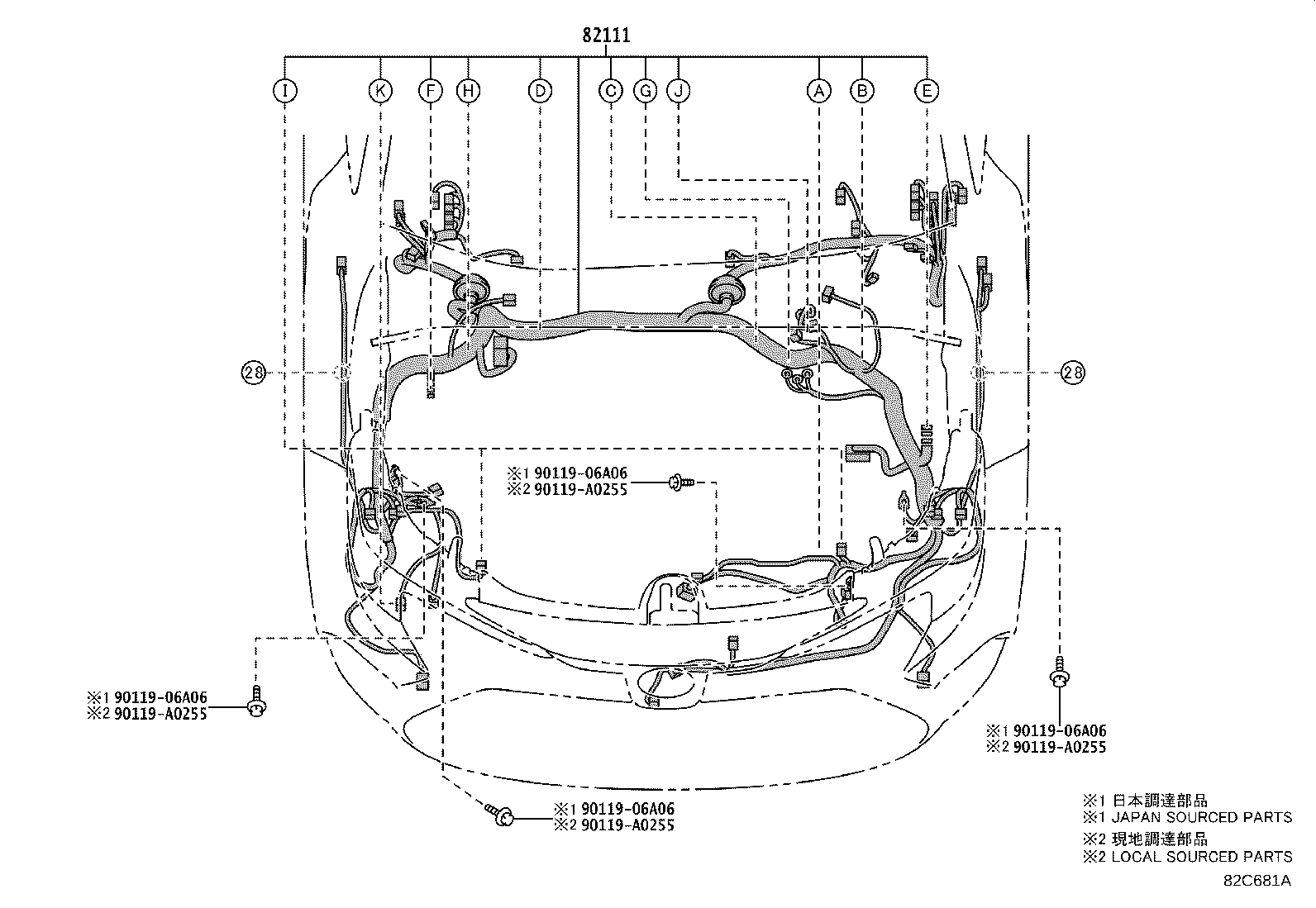

82111 Wire, Engine Room Main

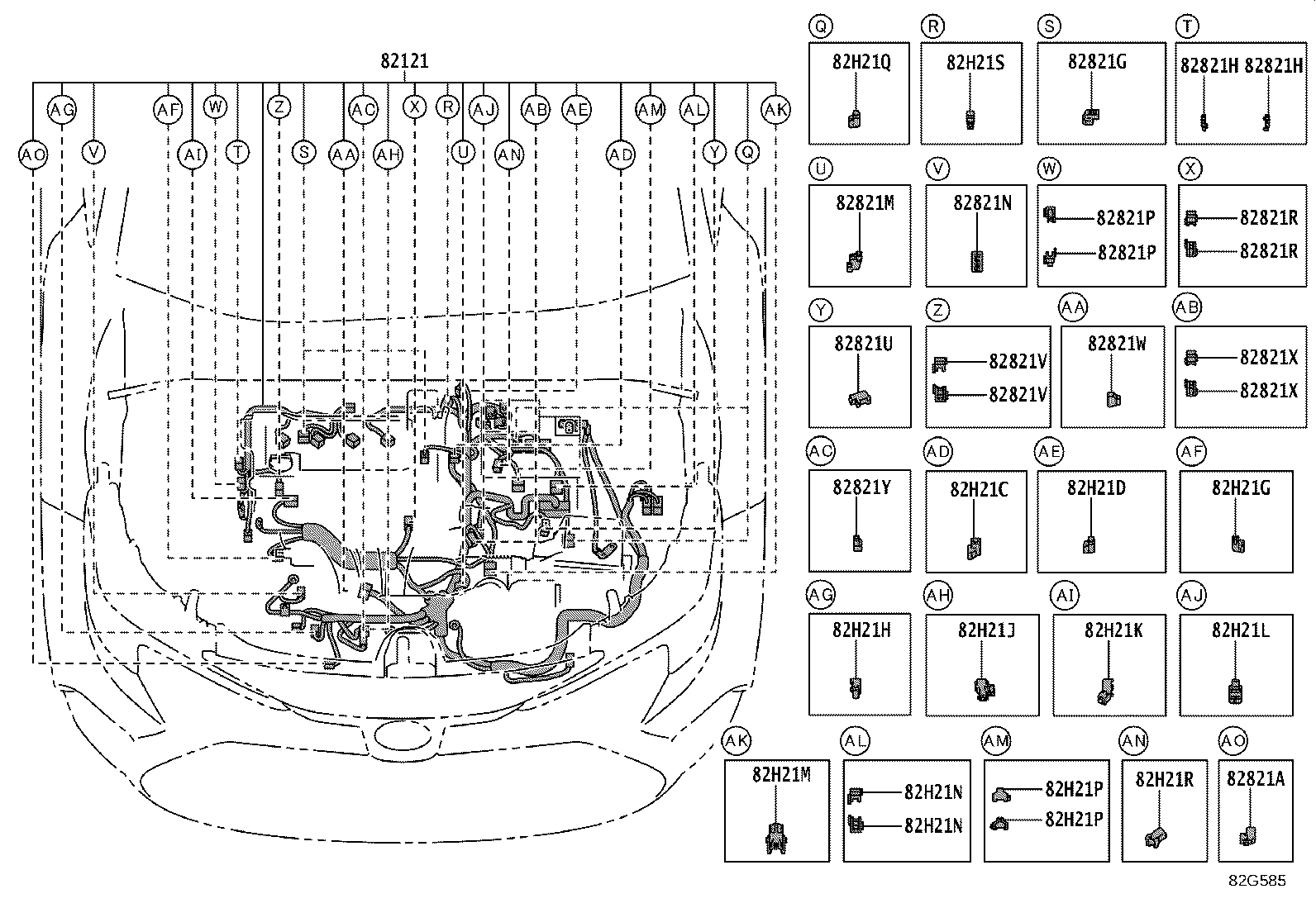

82121 Wire, Engine
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6

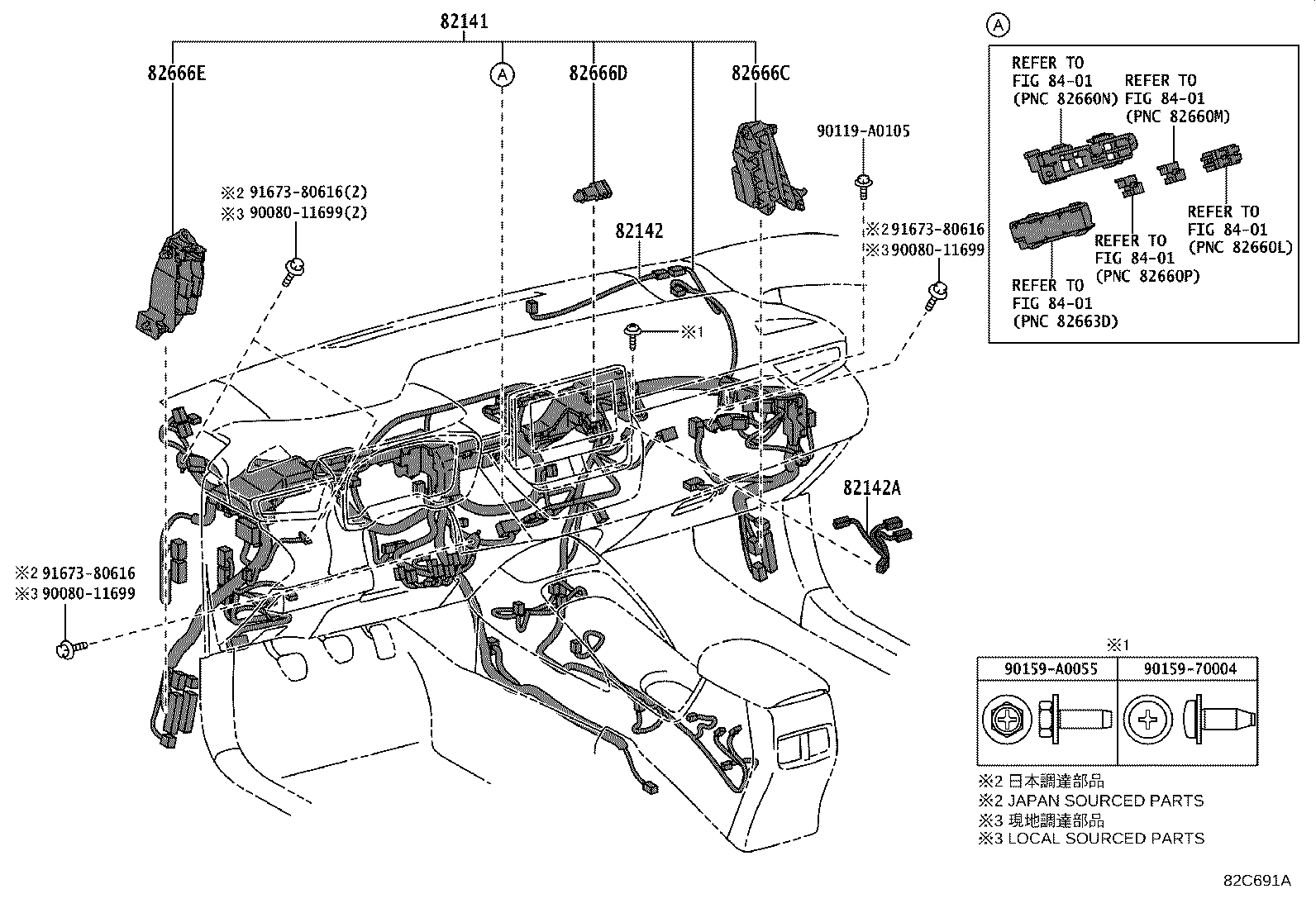

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2

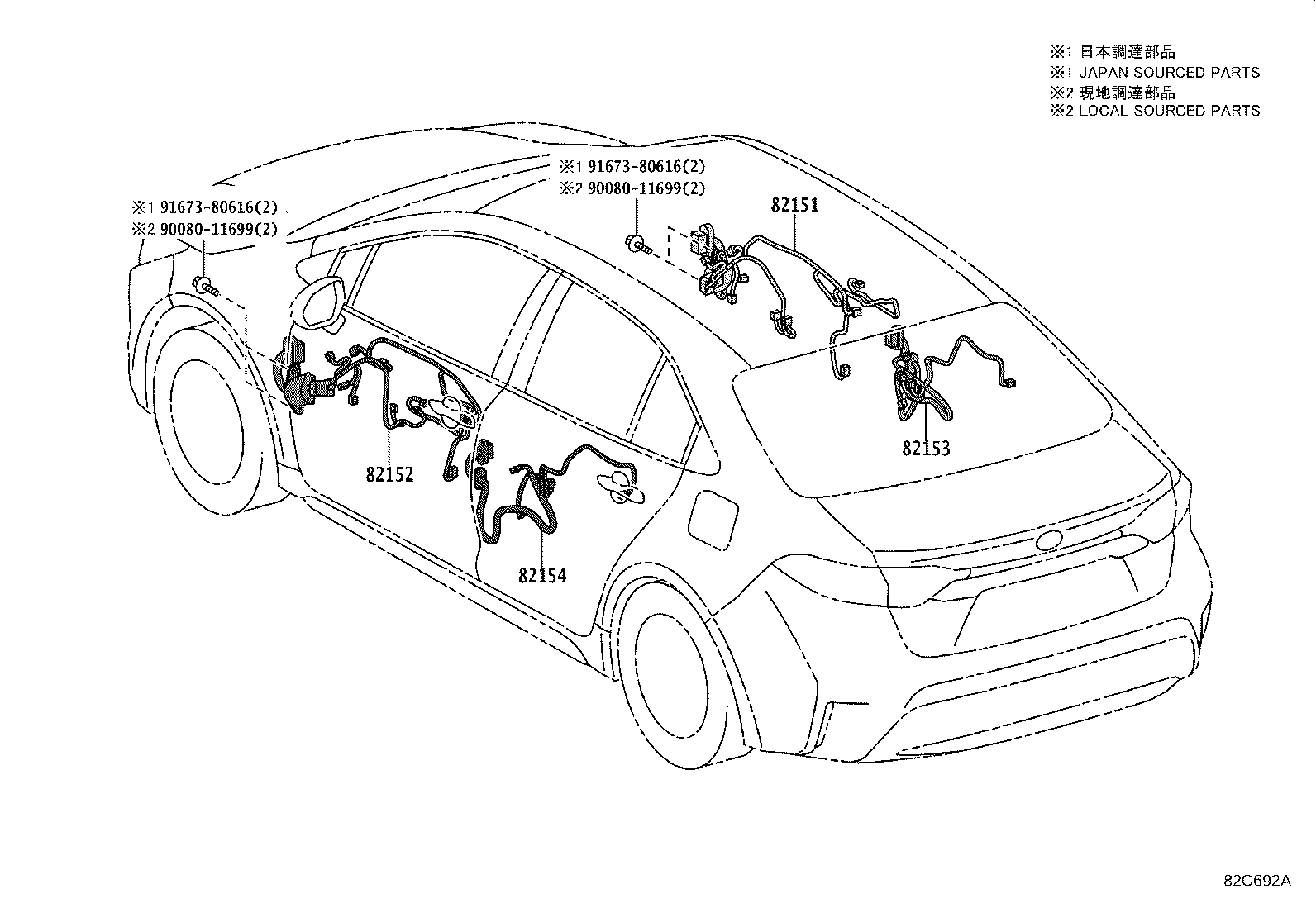

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82187 Wire, Rear Window, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82192B Wire, Front Seat, LH NO.2
8219B Wire, Front Seat, LH NO.2
82219C Wire, Sensor
82286A Wire, Earth, NO.2
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8

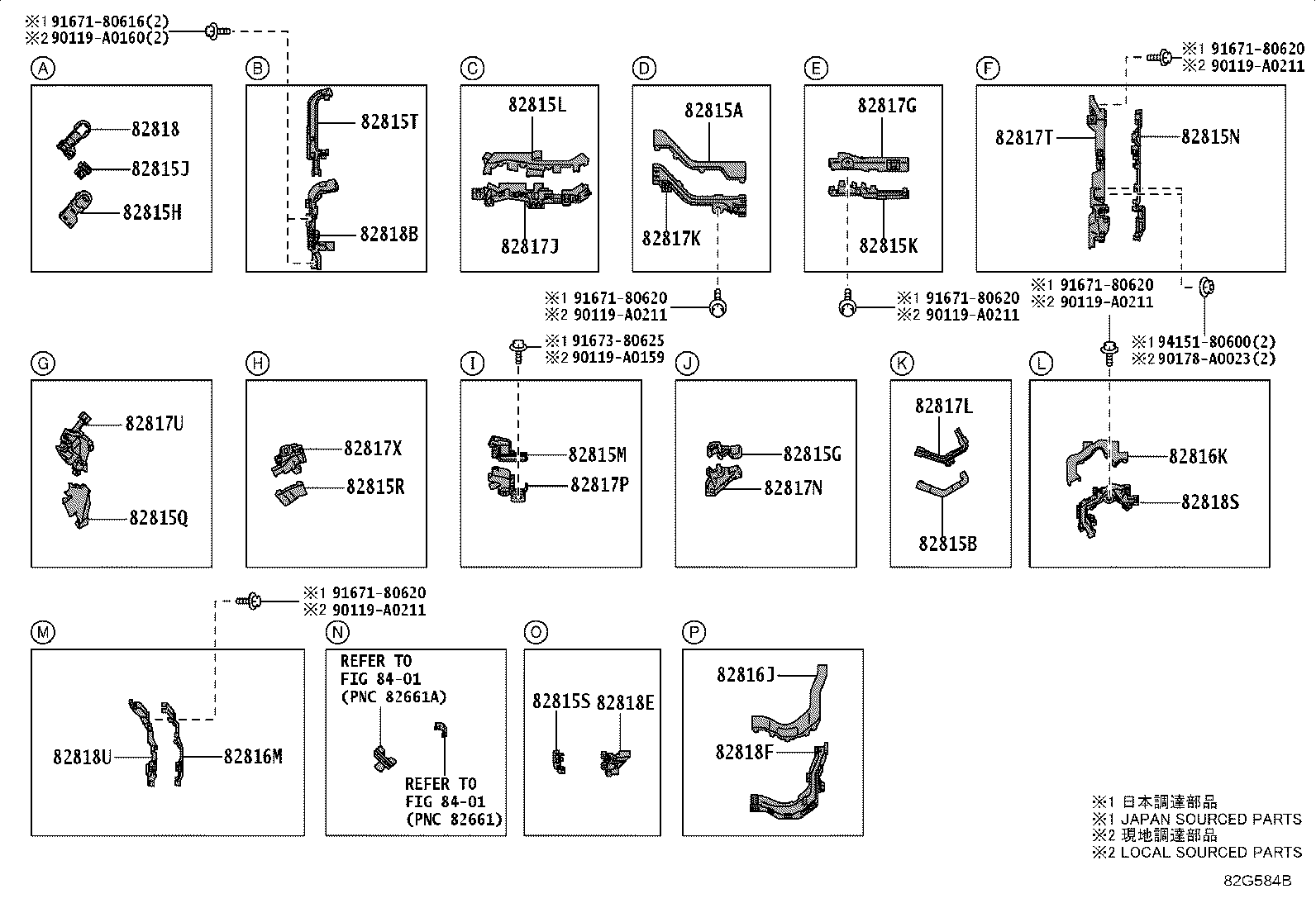

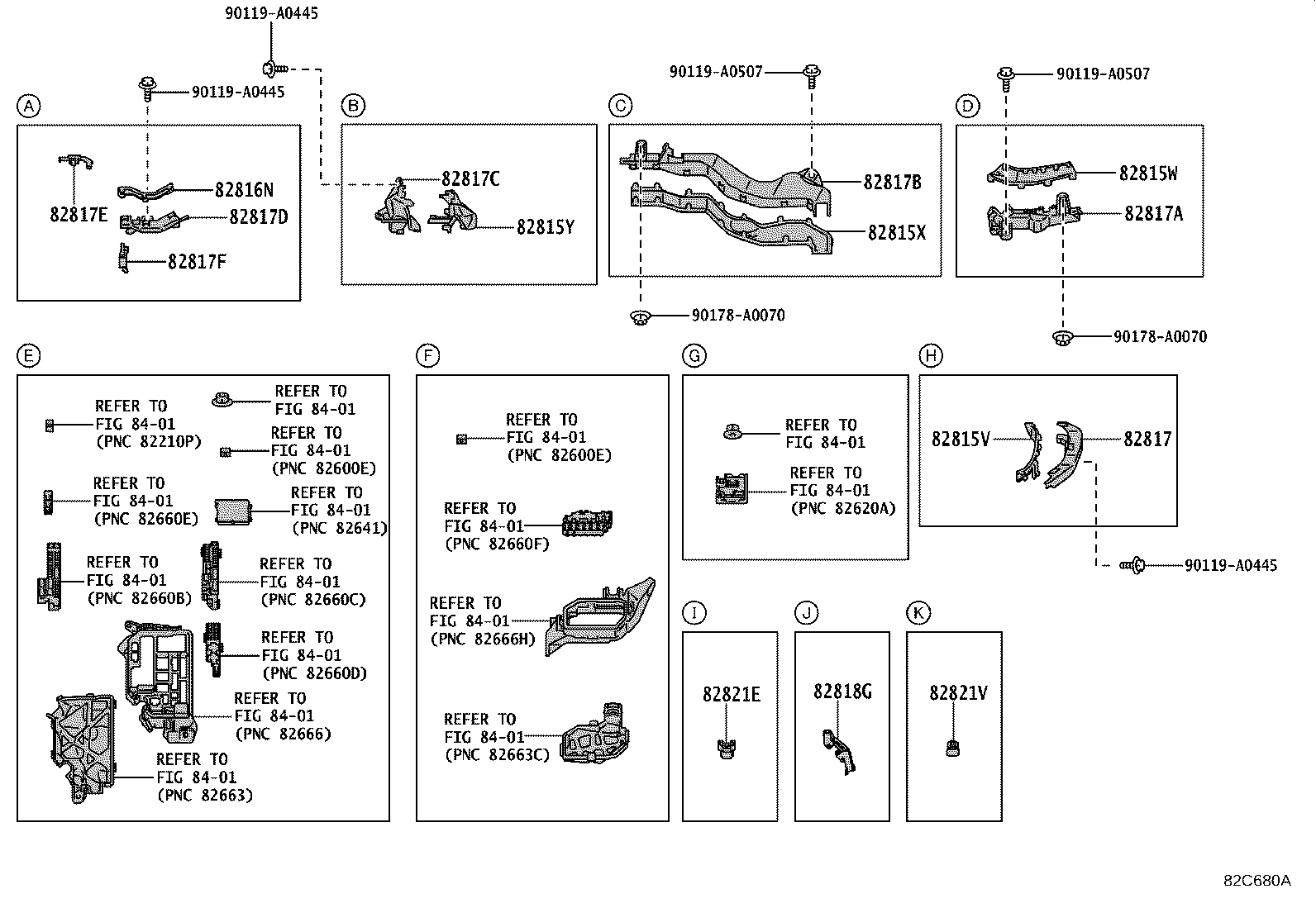

82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82816B Cover, Wiring Harness Protector, NO.1
82816J Cover, Wiring Harness Protector, NO.7
82816K Cover, Wiring Harness Protector, NO.8
82816L Cover, Wiring Harness Protector, NO.9
82816M Cover, Wiring Harness Protector, NO.10
82816N Cover, Wiring Harness Protector, NO.11
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82821A Cover, Connector
82821E Cover, Connector
82821G Cover, Connector(FOR DIAGNOSIS)
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82821X Cover, Connector
82821Y Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82H21C Cover, Connector
82H21D Cover, Connector
82H21G Cover, Connector
82H21H Cover, Connector
82H21J Cover, Connector
82H21K Cover, Connector
82H21L Cover, Connector
82H21M Cover, Connector
82H21N Cover, Connector
82H21P Cover, Connector
82H21Q Cover, Connector
82H21R Cover, Connector
82H21S Cover, Connector
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
