Toyota Corolla (MEXICO)
2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States
Supported model
Data version 2024-09
Overdrive & Electronic Controlled Transmission
8 part groups · 3 illustrations
Part groups

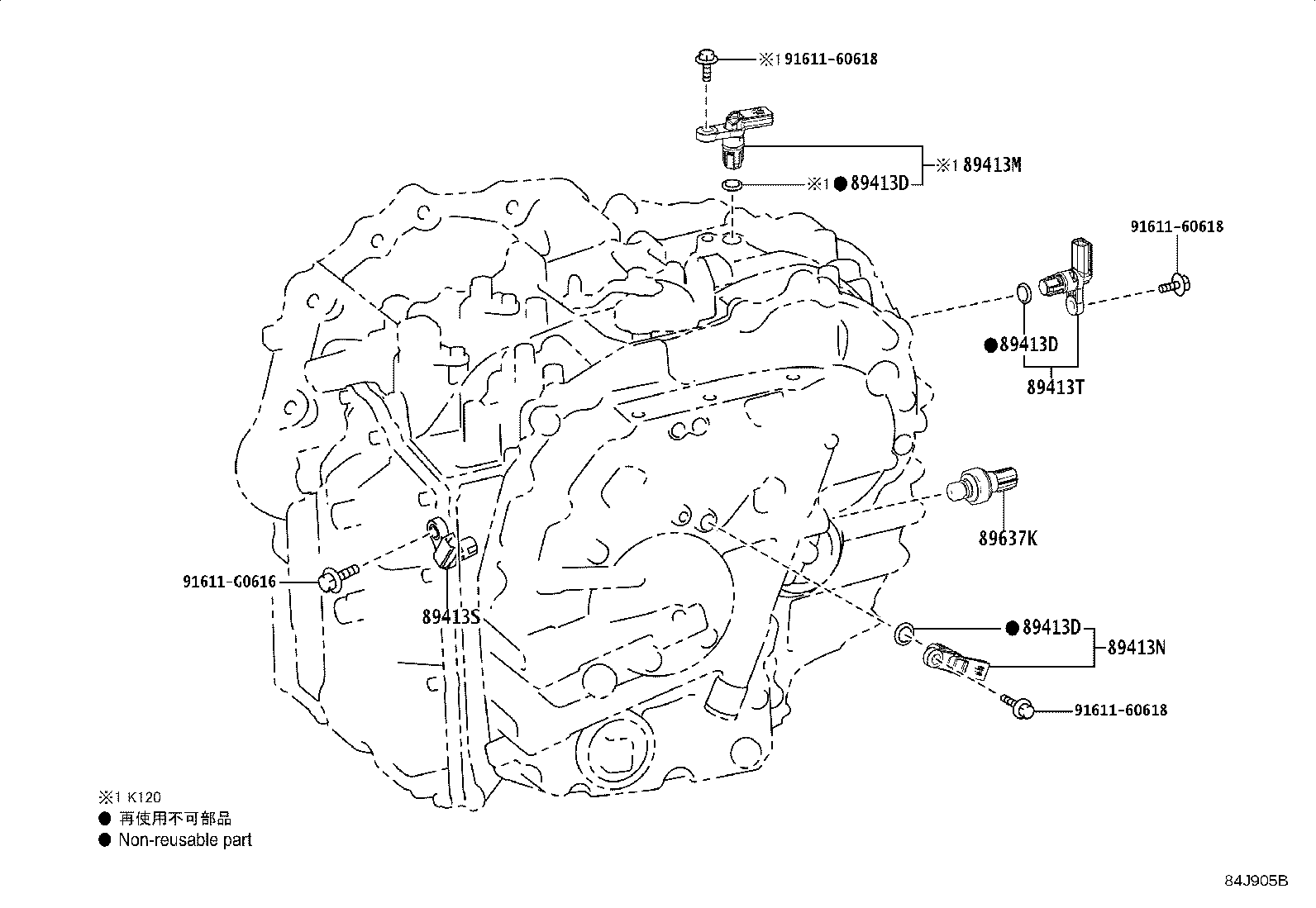

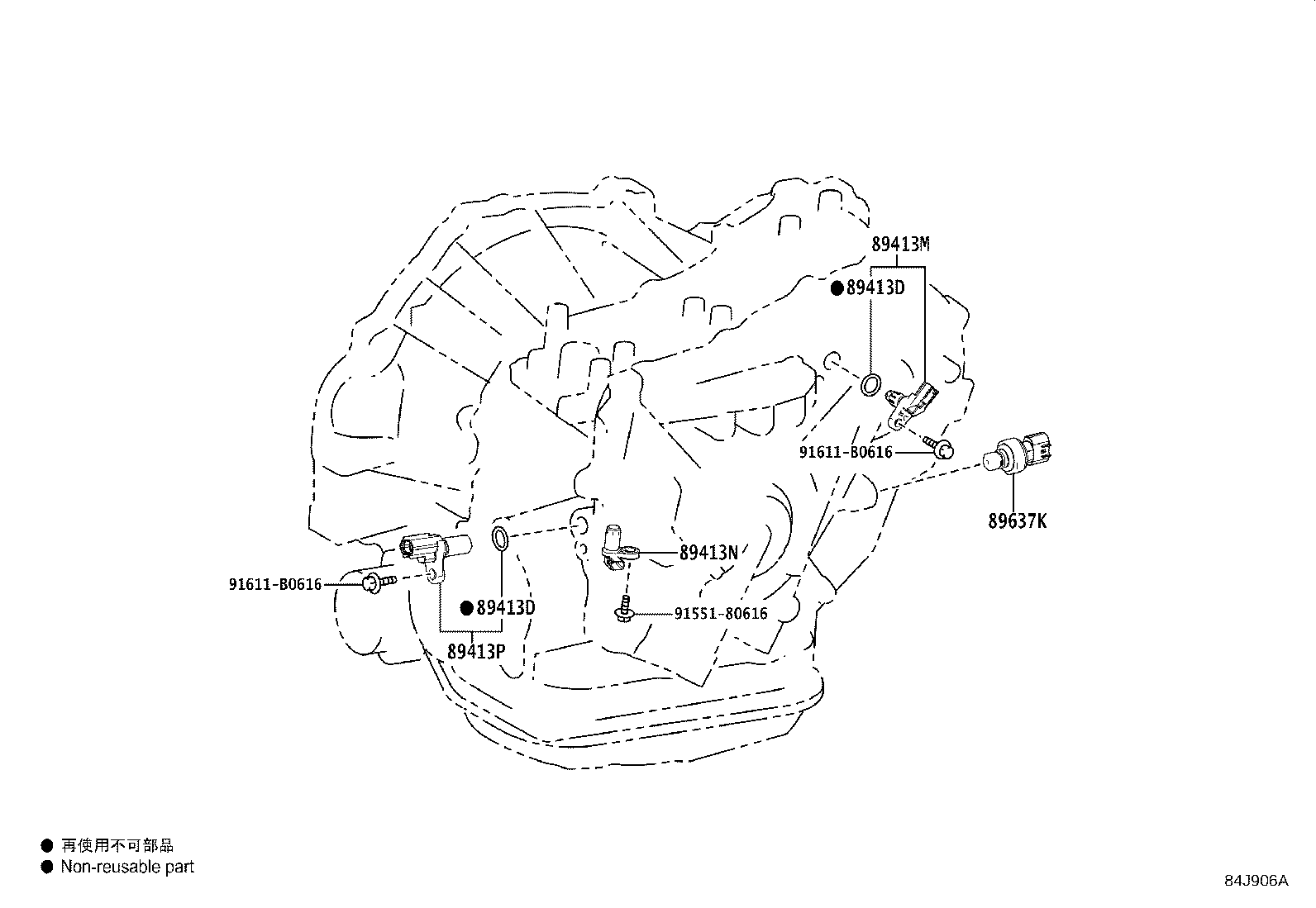

| PNC | Description |
|---|---|
| 89413B | Sensor, Transmission Revolution |
| 89413D | Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) |
| 89413M | Sensor, Transmission Revolution, (NOUT) |
| 89413N | Sensor, Transmission Revolution, (NT) |
| 89413P | Sensor, Transmission Revolution, (NIN) |
| 89413S | Sensor, Transmission Revolution (NC) |
| 89413T | Sensor, Transmission Revolution (NSS) |
| 89637K | Sensor, Oil Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
