Toyota Corolla (MEXICO)
2019-03 → present · chassis MZEA1#,ZRE212 · catalogue 152280 · United States
Supported model
Data version 2024-09

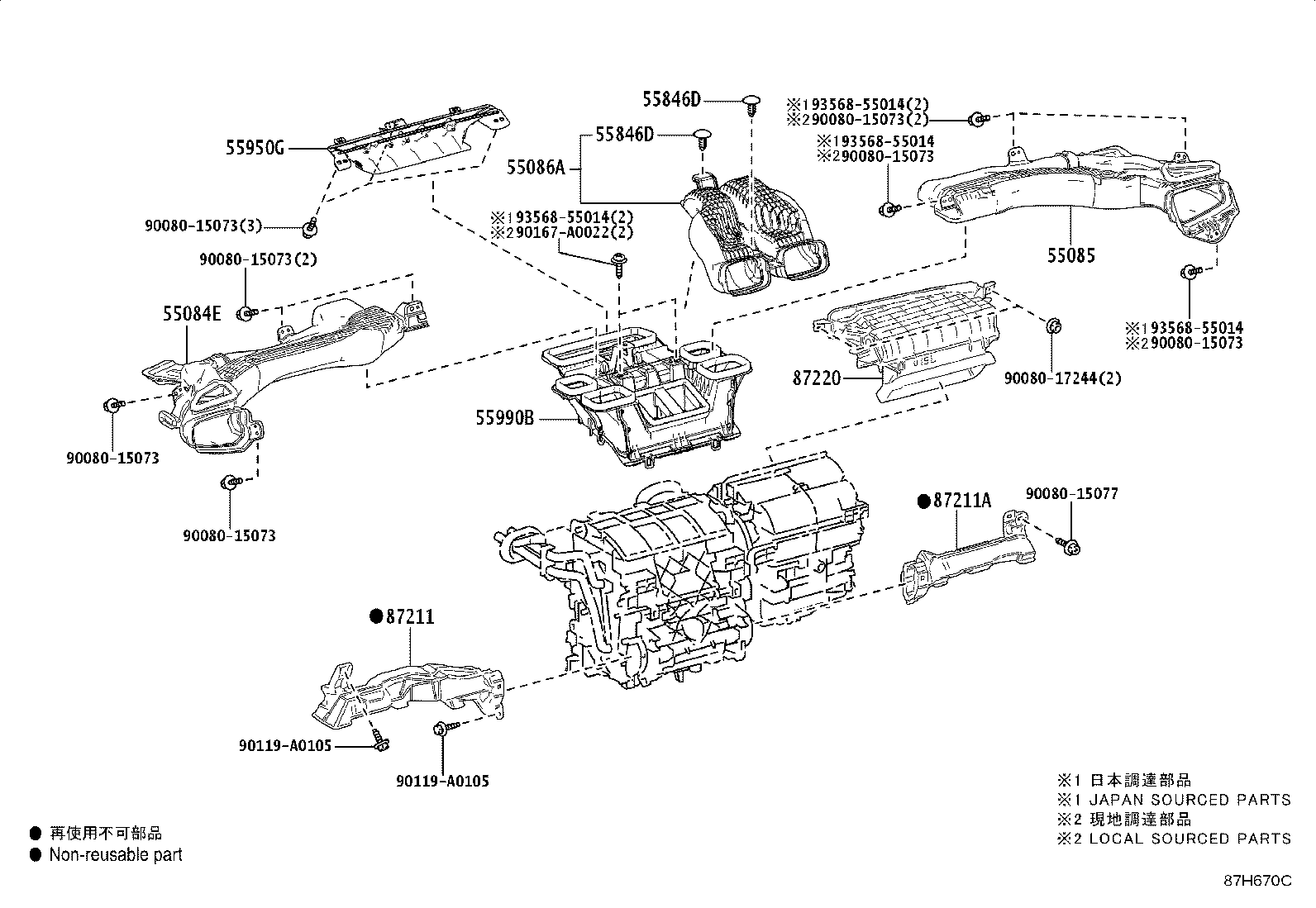

Heating & Air Conditioning - Control & Air Duct
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55086A | Duct Sub-assy, Heater TO Register, Center |
| 55846D | Clip, Heater TO Register Duct |
| 55900 | Control Assy, Air Conditioner |
| 55950G | Nozzle Assy, Defroster |
| 55990B | Nozzle Assy, Defroster, Lower |
| 82212C | Harness, Air Conditioner NO.1 |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87220 | Duct Assy, Air |
| 88625H | Thermistor, Cooler (SOLAR SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88790B | Thermistor Assy |
| 88897P | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
