Toyota Corolla

2013-08 → 2019-03 · chassis ZRE172 · catalogue 152370 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

20 part groups · 8 illustrations

Illustrations

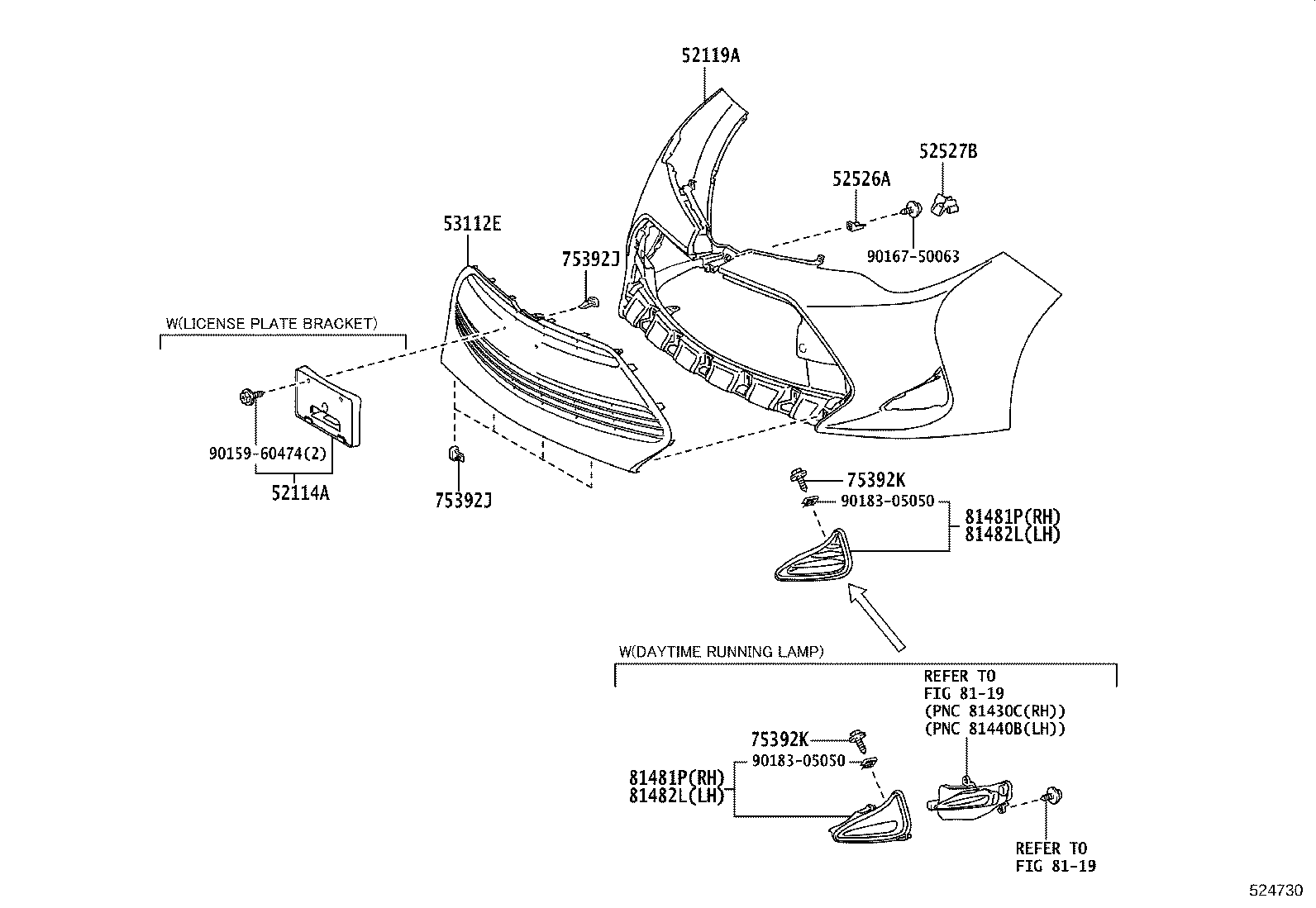

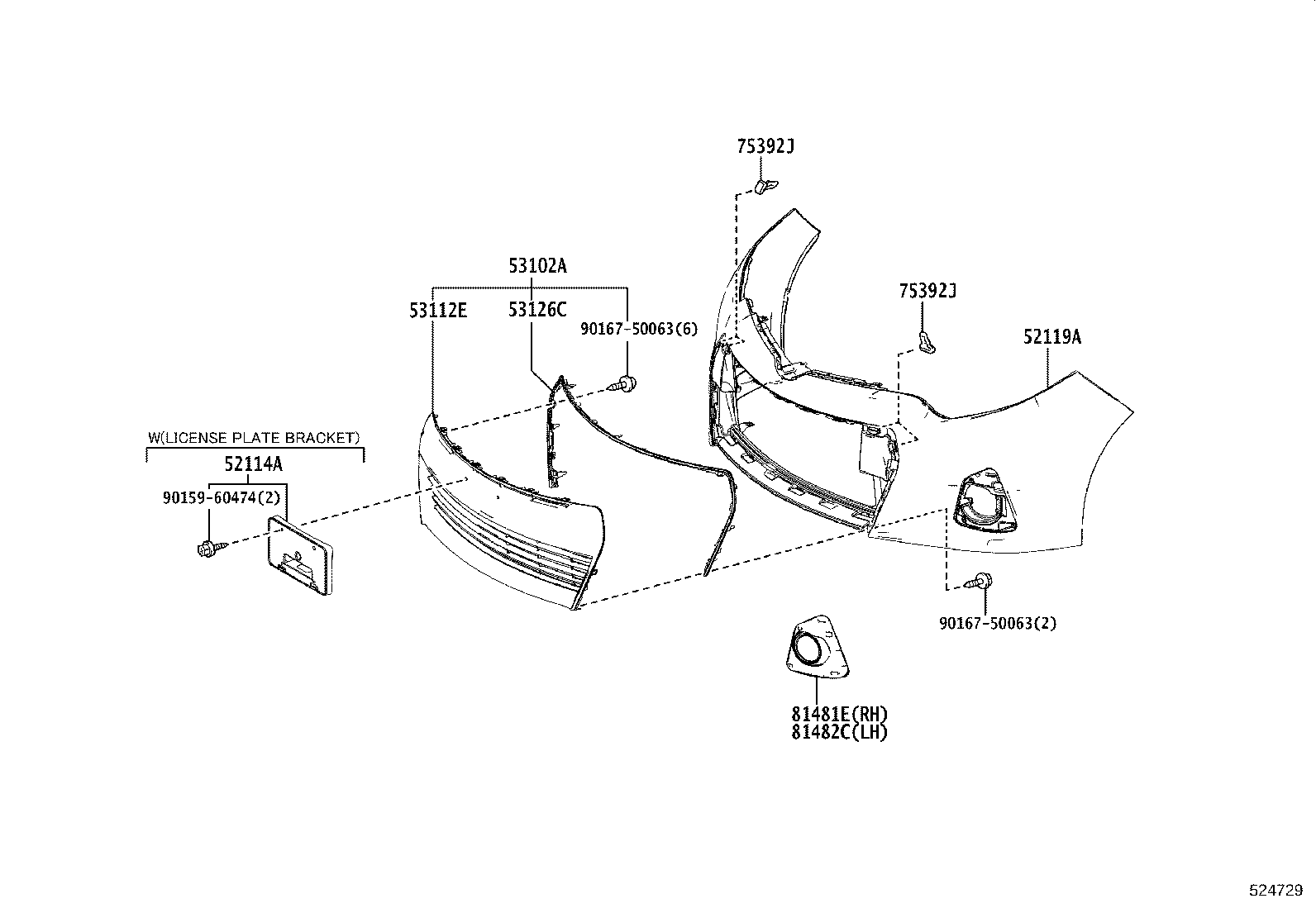

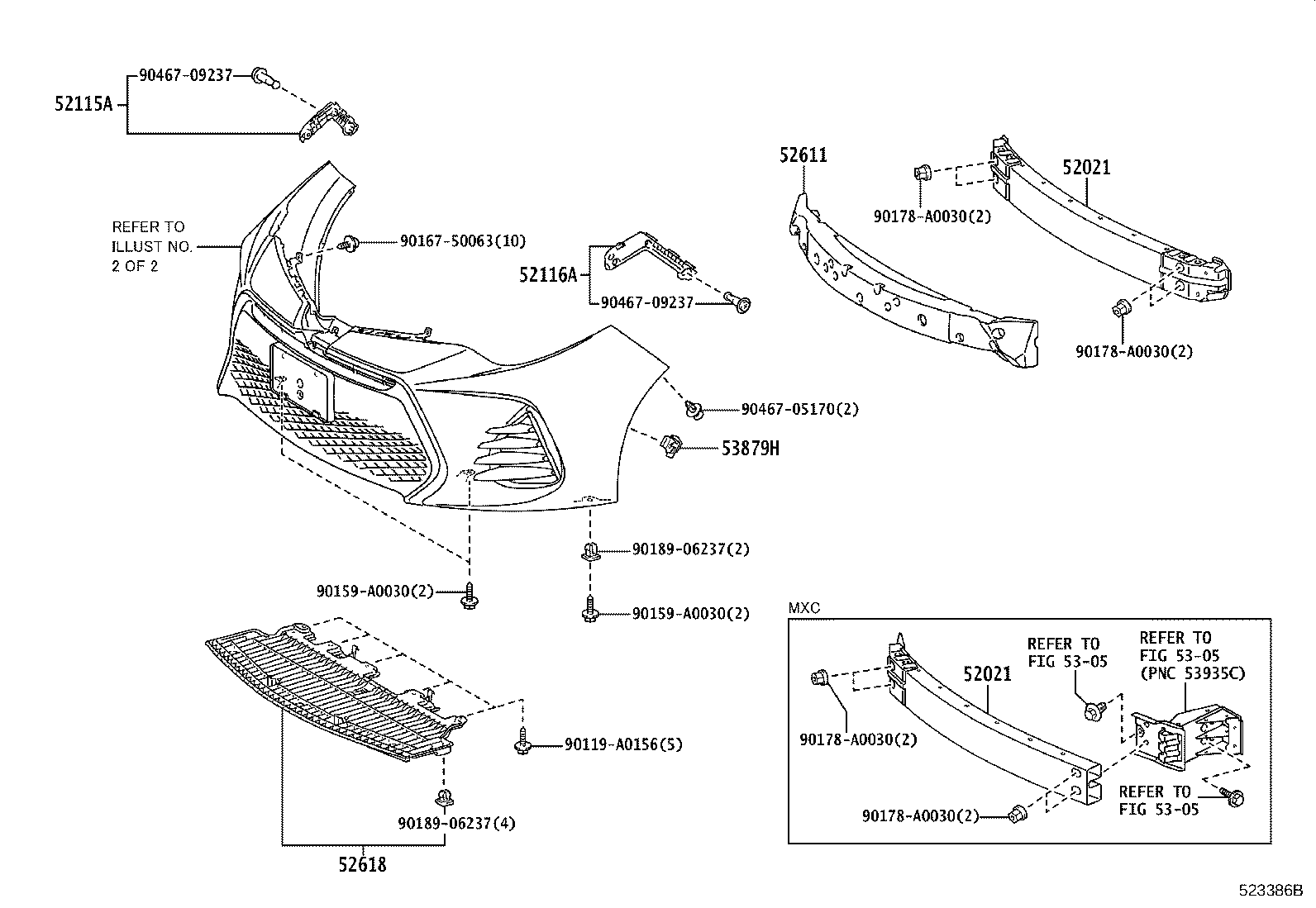

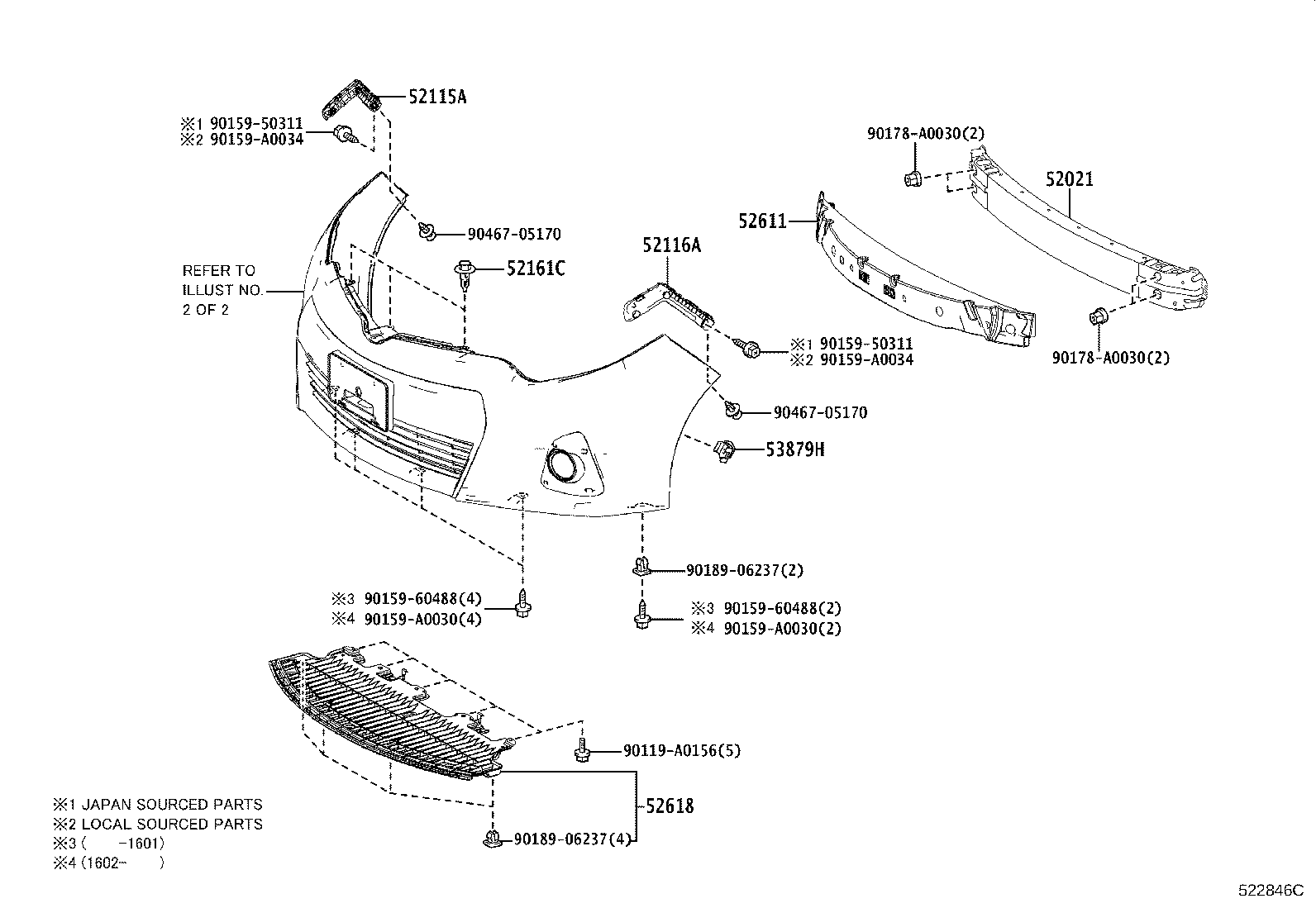

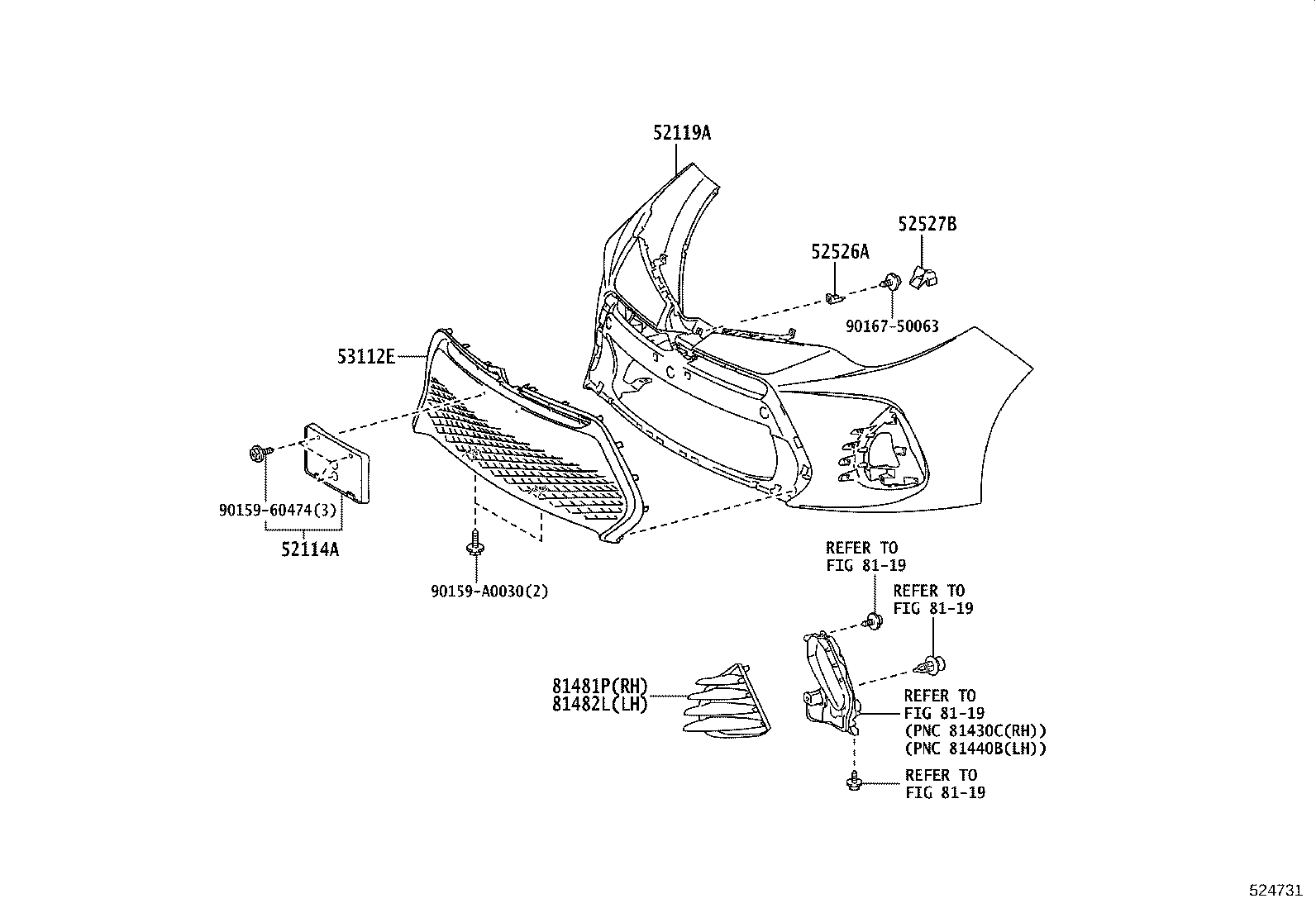

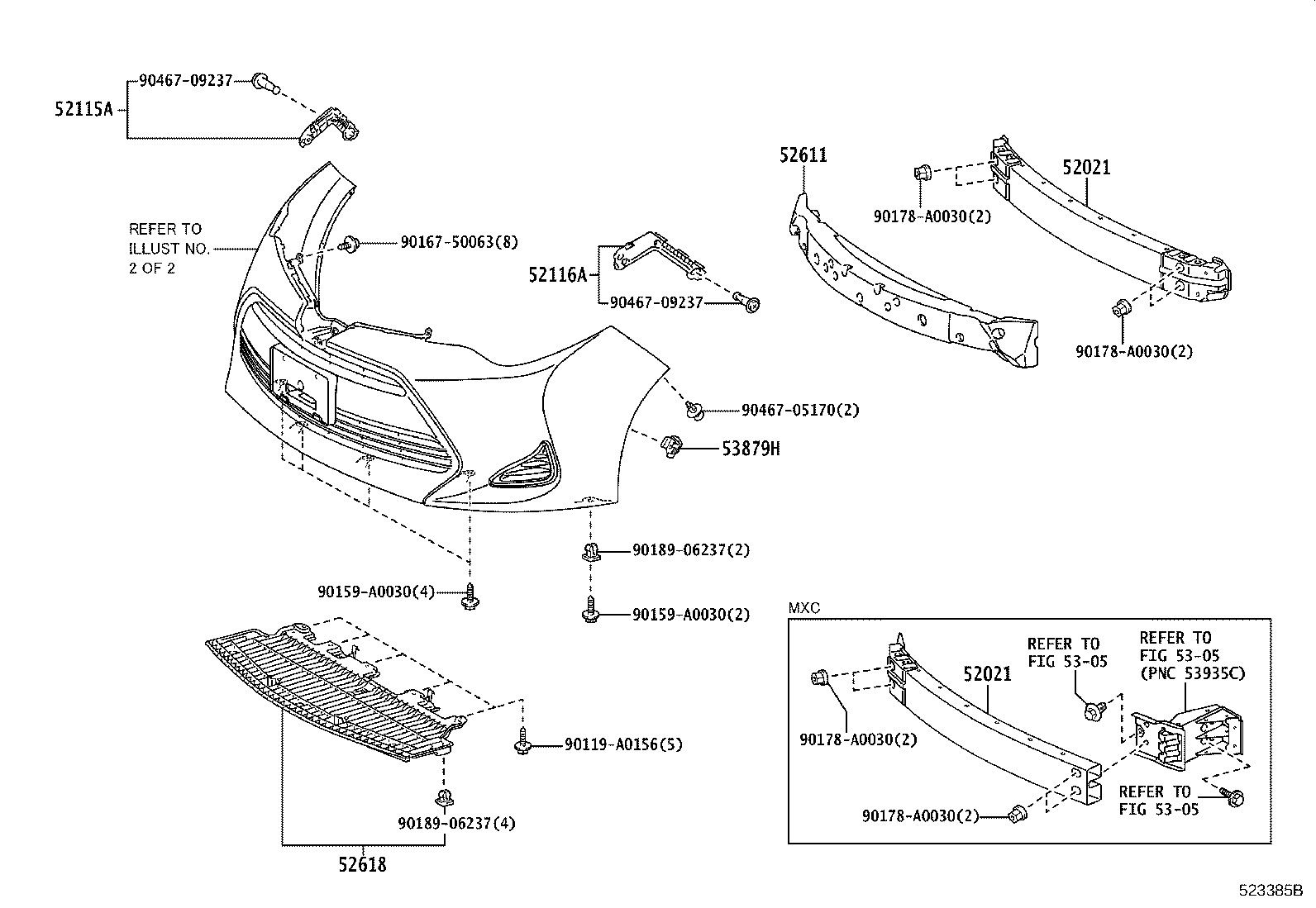

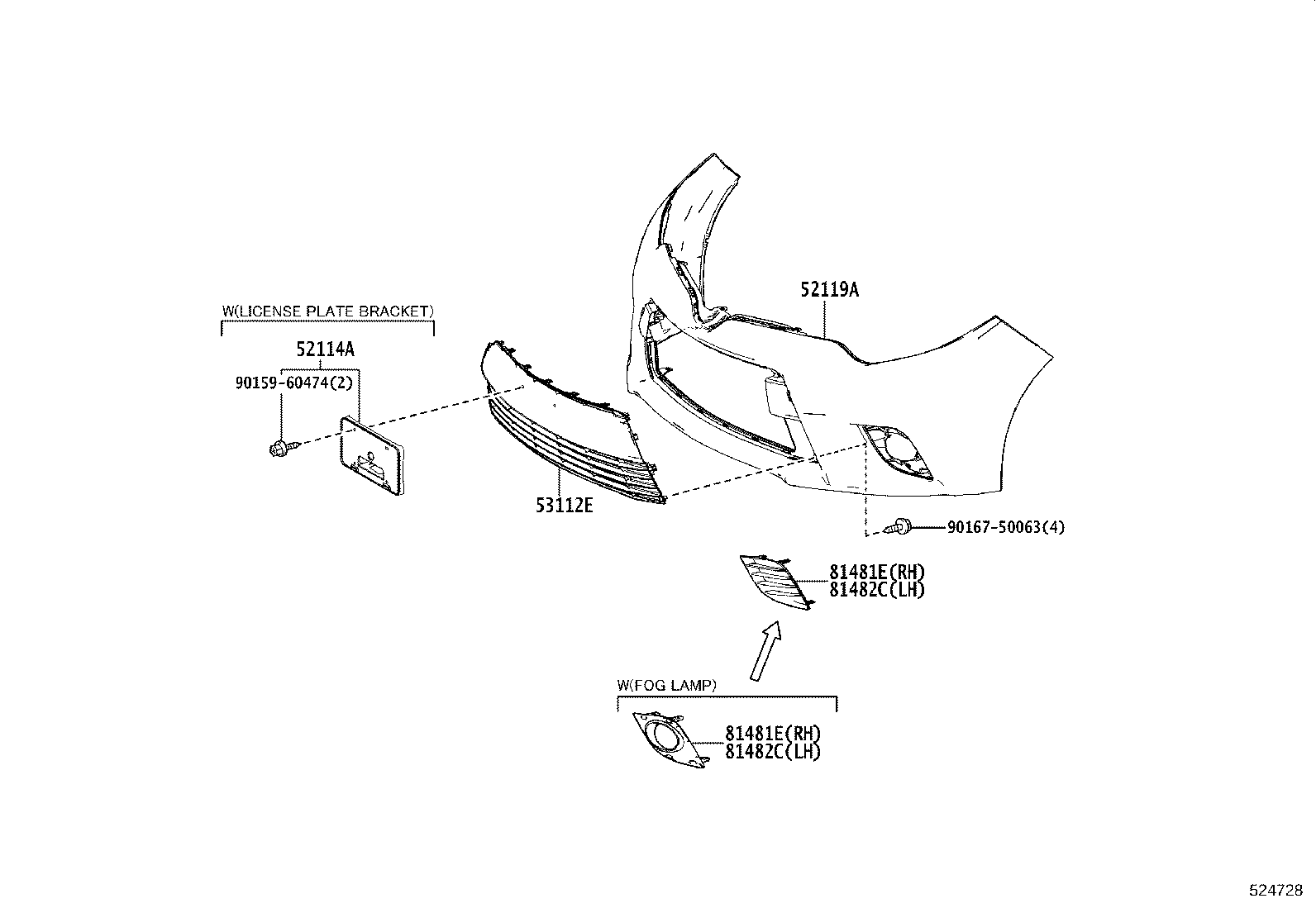

Figure 522845C 522845C 2013-08 → 2016-08 Figure 524728 524728 2013-06 → 2016-08 Figure 522846C 522846C 2013-08 → 2016-08 Figure 524729 524729 2013-08 → 2016-08 Figure 523385B 523385B 2016-08 → — Figure 524730 524730 2016-08 → — Figure 523386B 523386B 2016-08 → — Figure 524731 524731 2016-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52161C Piece, Front Bumper
52526A Retainer, Front Bumper, Lower NO.1
52527B Retainer, Front Bumper, Lower NO.2
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
53102A Grille Sub-assy, Radiator, Lwr
53112E Grille, Radiator, Lower NO.1
53126C Moulding, Radiator Grille, NO.6
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
75392K Retainer, Outside Moulding, NO.2
81481E Cover, Fog Lamp, RH
81481P Cover, Daytime Running Lamp, RH
81482C Cover, Fog Lamp, LH
81482L Cover, Daytime Running Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
