Roof Panel & Back Window Glass

30 part groups · 3 illustrations

Illustrations

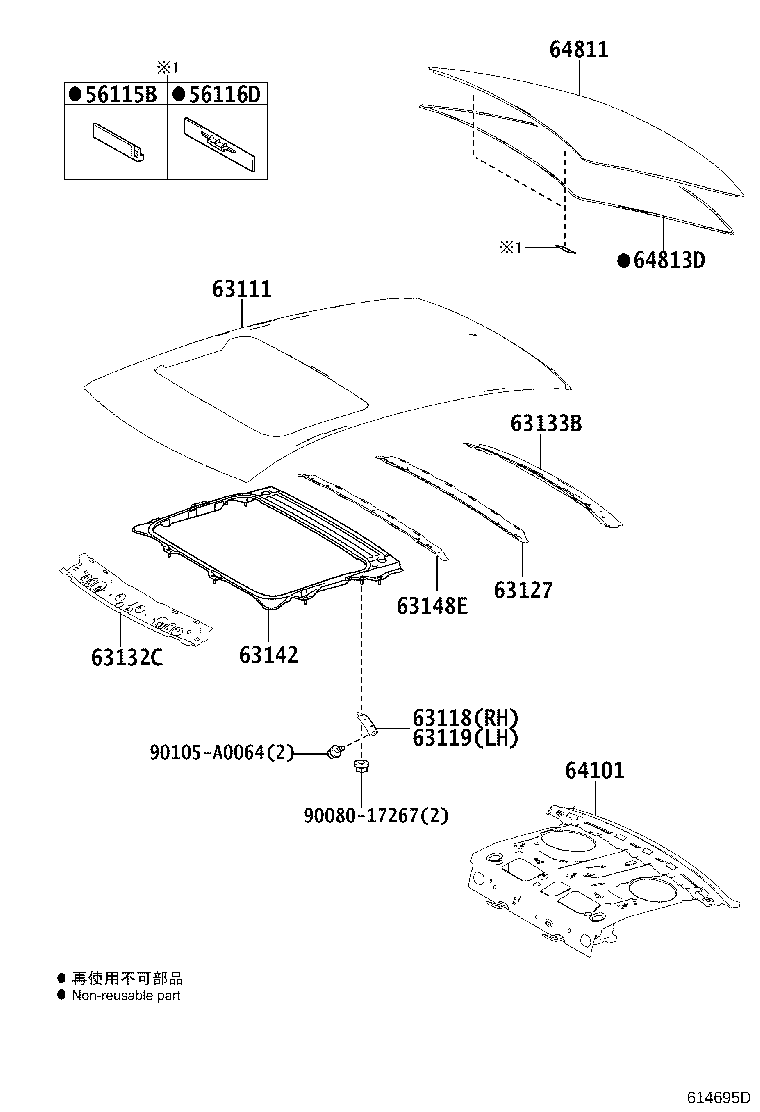

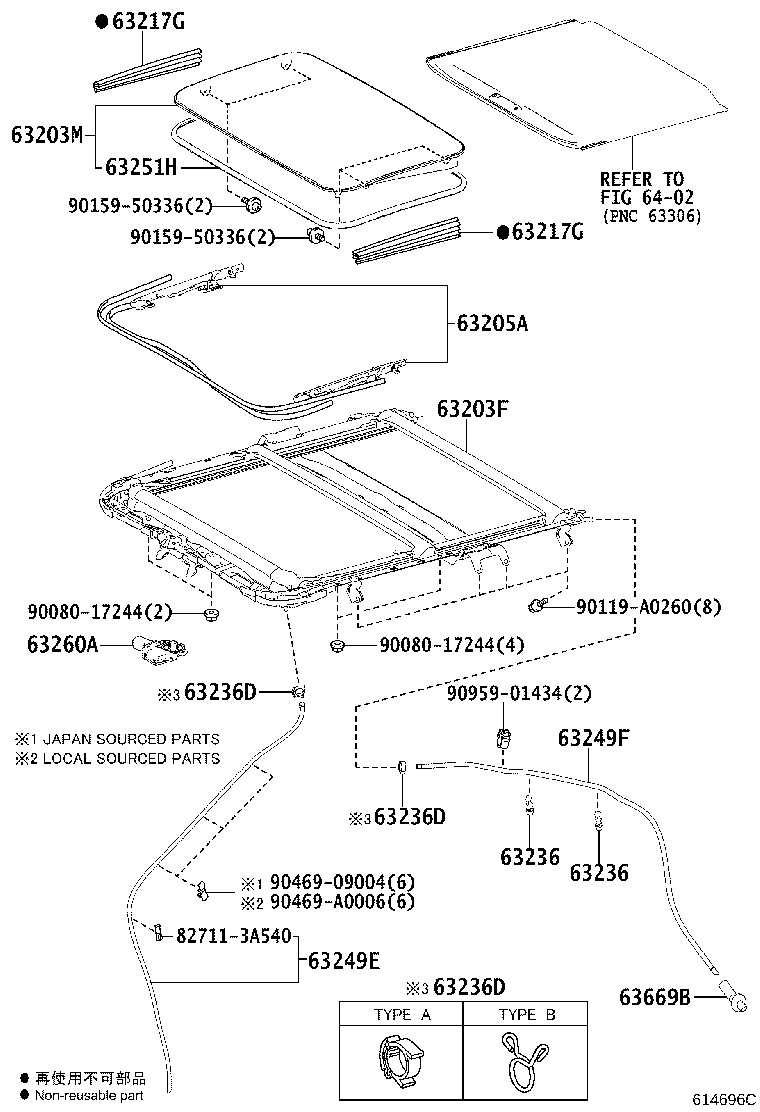

Figure 614694C 614694C 2013-08 → — Figure 614695D 614695D 2013-08 → — Figure 614696C 614696C 2013-08 → —

Part groups

PNCDescription
56115B Stopper, Back Window Glass, NO.1
56116D Stopper, Back Window Glass, NO.2
61247F Reinforcement, Roof Side Rail, Inner
61248F Reinforcement, Roof Side Rail, Inner, LH
63102A Panel Sub-assy, Windshield Header
63104D Reinforcement Sub-assy, Roof Panel, NO.2
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63127 Reinforcement, Roof Panel, NO.5
63132C Panel, Windshield Header, Inner
63133B Frame, Back Window
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63148E Bracket, Roof Panel Reinforcement, LH
63203F Housing Sub-assy, Sliding Roof
63203M Glass Sub-assy, Roof Window, NO.2
63205A Cable Sub-assy, Sliding Roof Drive
63217G Garnish, Sliding Roof Side, RH
63236 Clamp, Sliding Roof OR Removable Roof Drain Hose
63236D Clamp, Sliding Roof Drain Hose
63249E Hose, Sliding Roof Drain
63249F Hose, Sliding Roof Drain
63251H Weatherstrip, Sliding Roof
63260A Gear Sub-assy, Sliding Roof Drive
63669B Grommet, Sliding Roof Drain
64101 Panel Sub-assy, Upper Back
64811 Glass, Back Window
64813D Dam, Back Window Glass Adhesive
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
