Toyota Corolla
2013-08 → 2019-03 · chassis ZRE172 · catalogue 152370 · United States
Supported model
Data version 2019-04

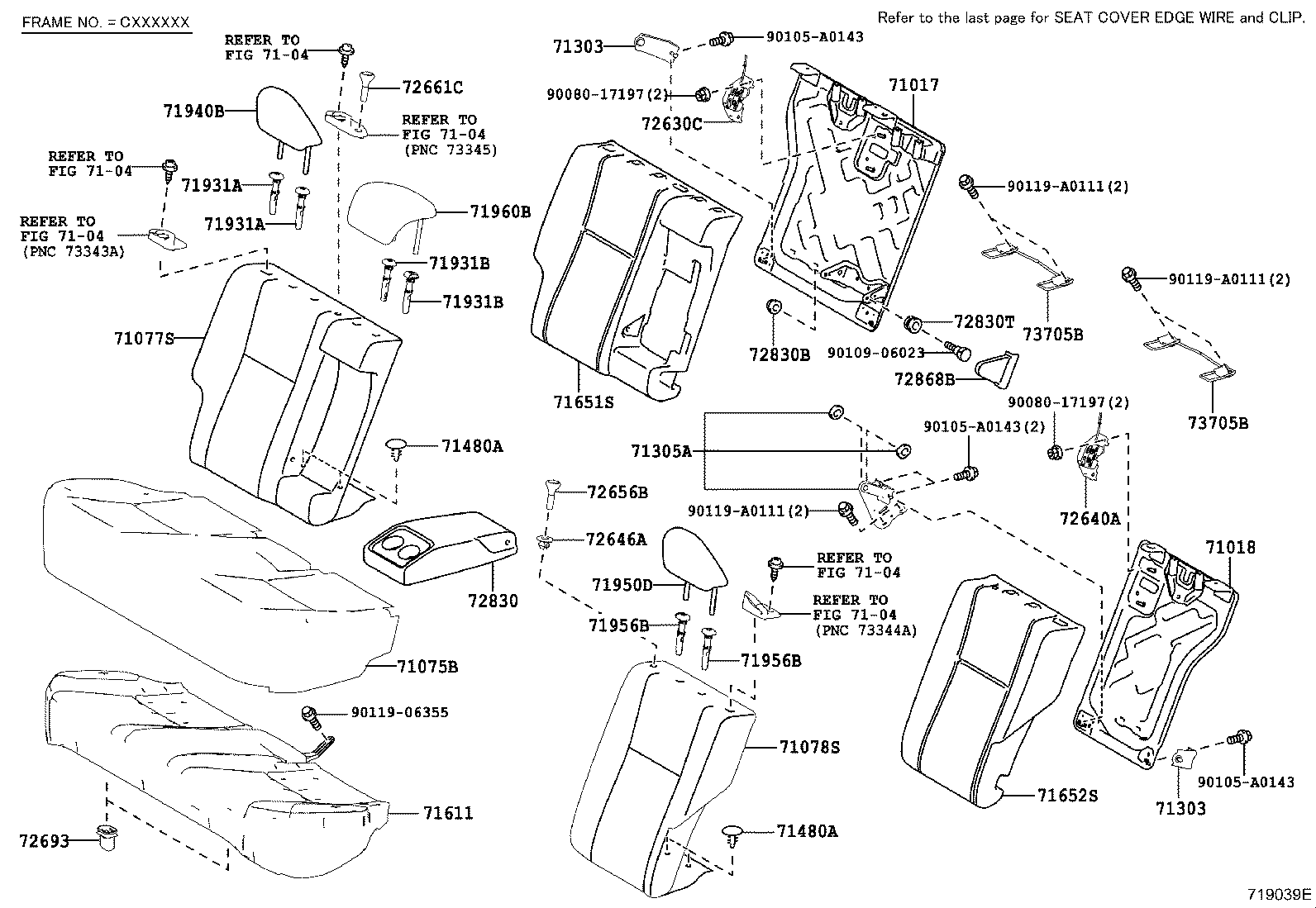

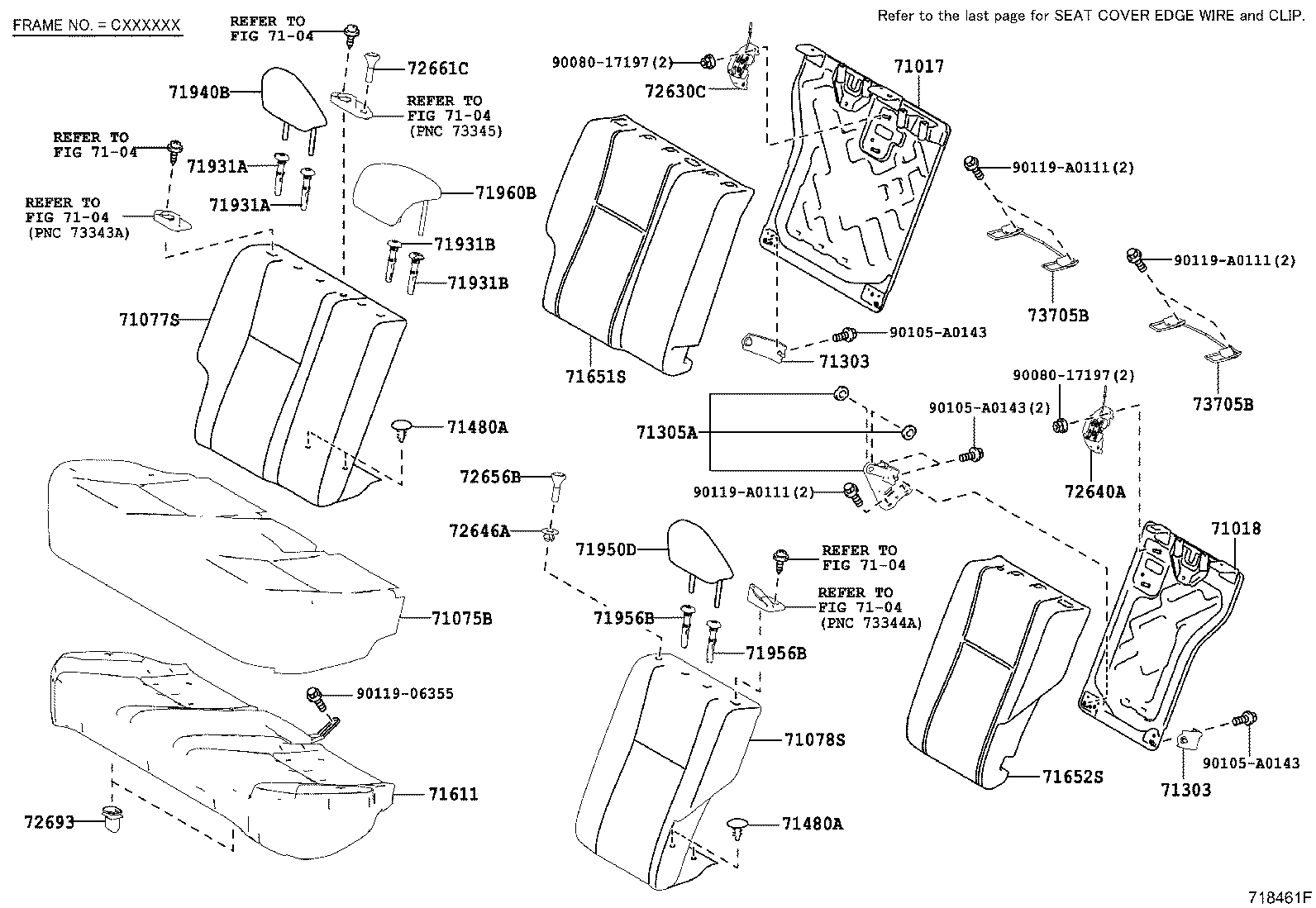

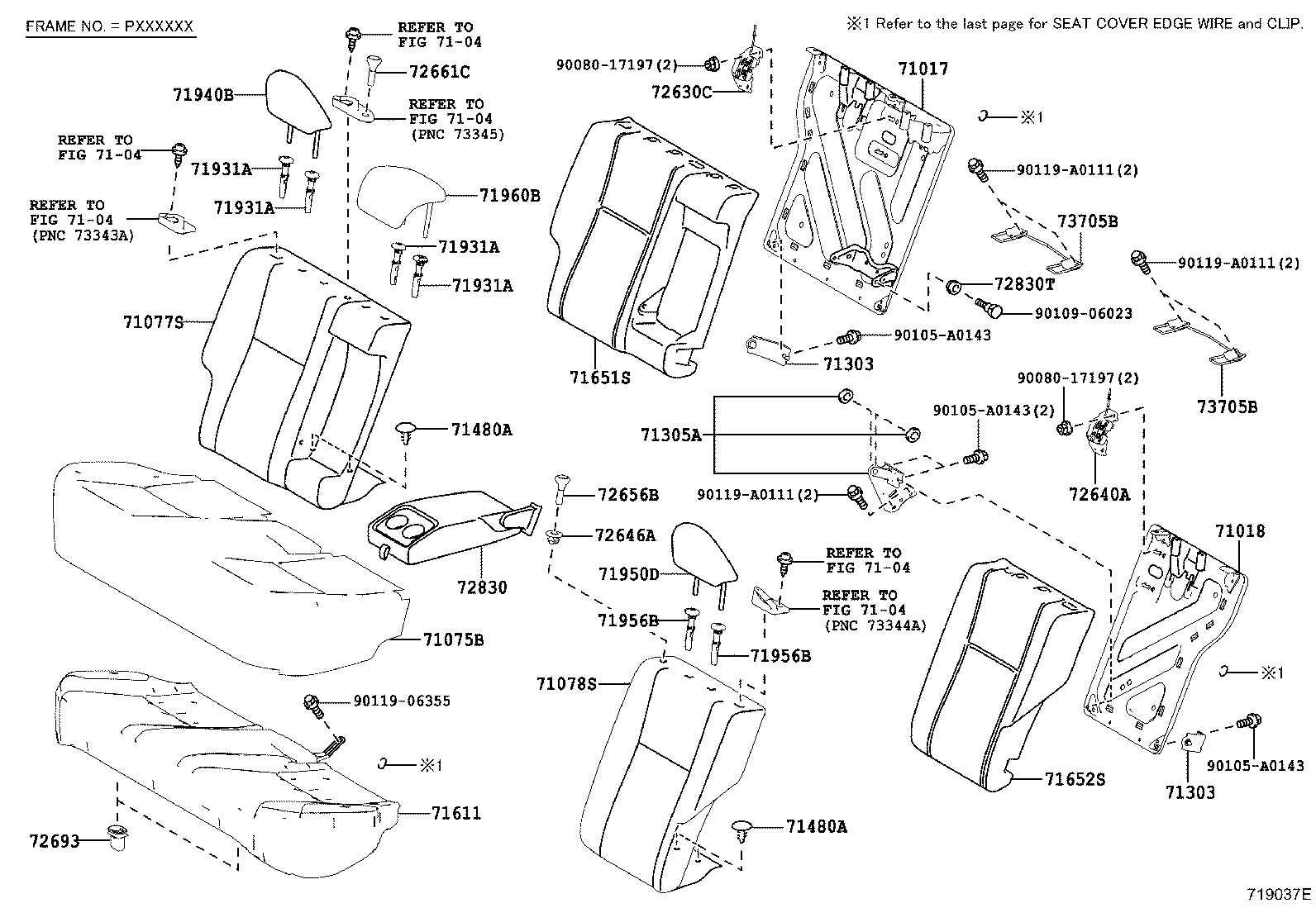

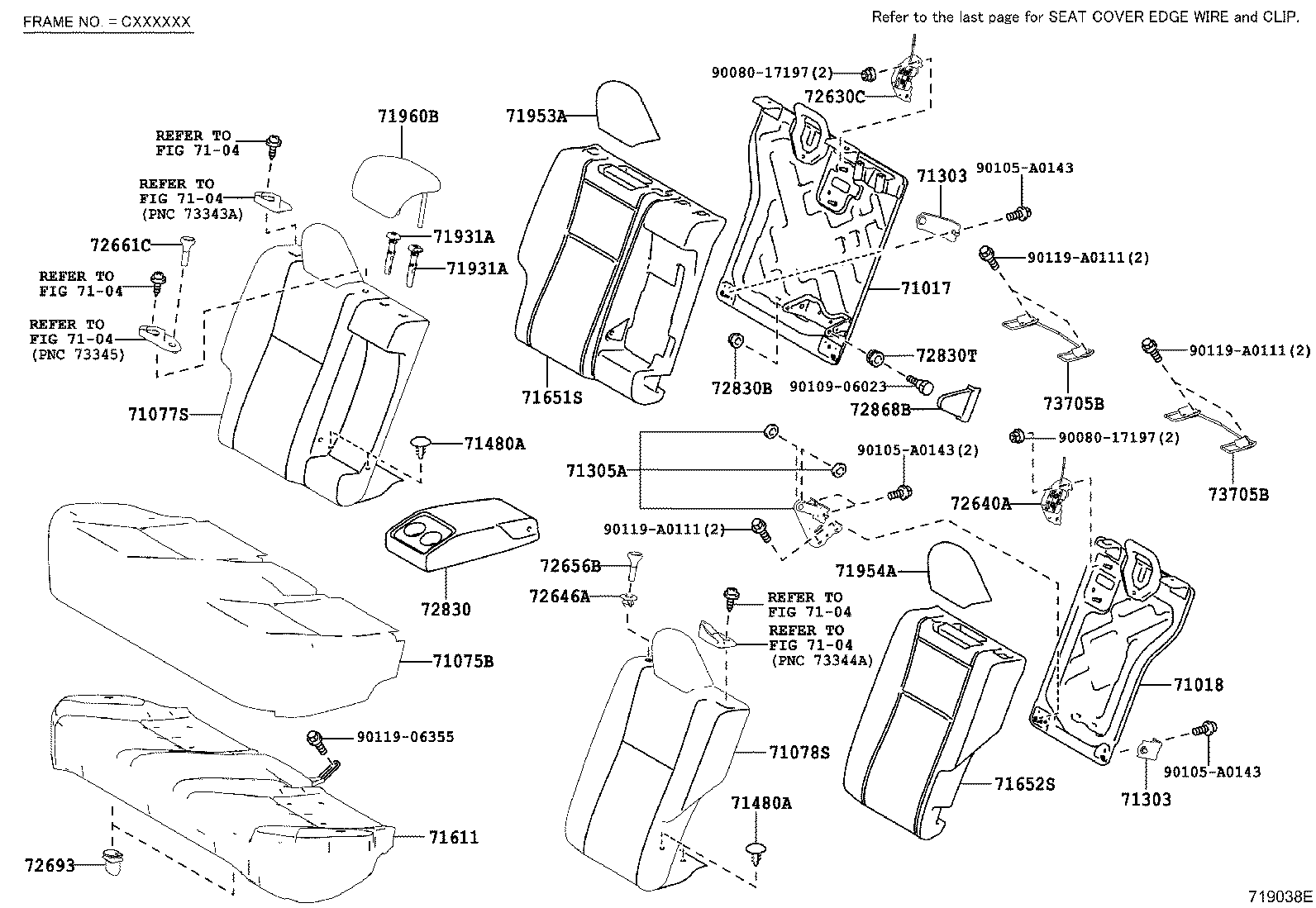

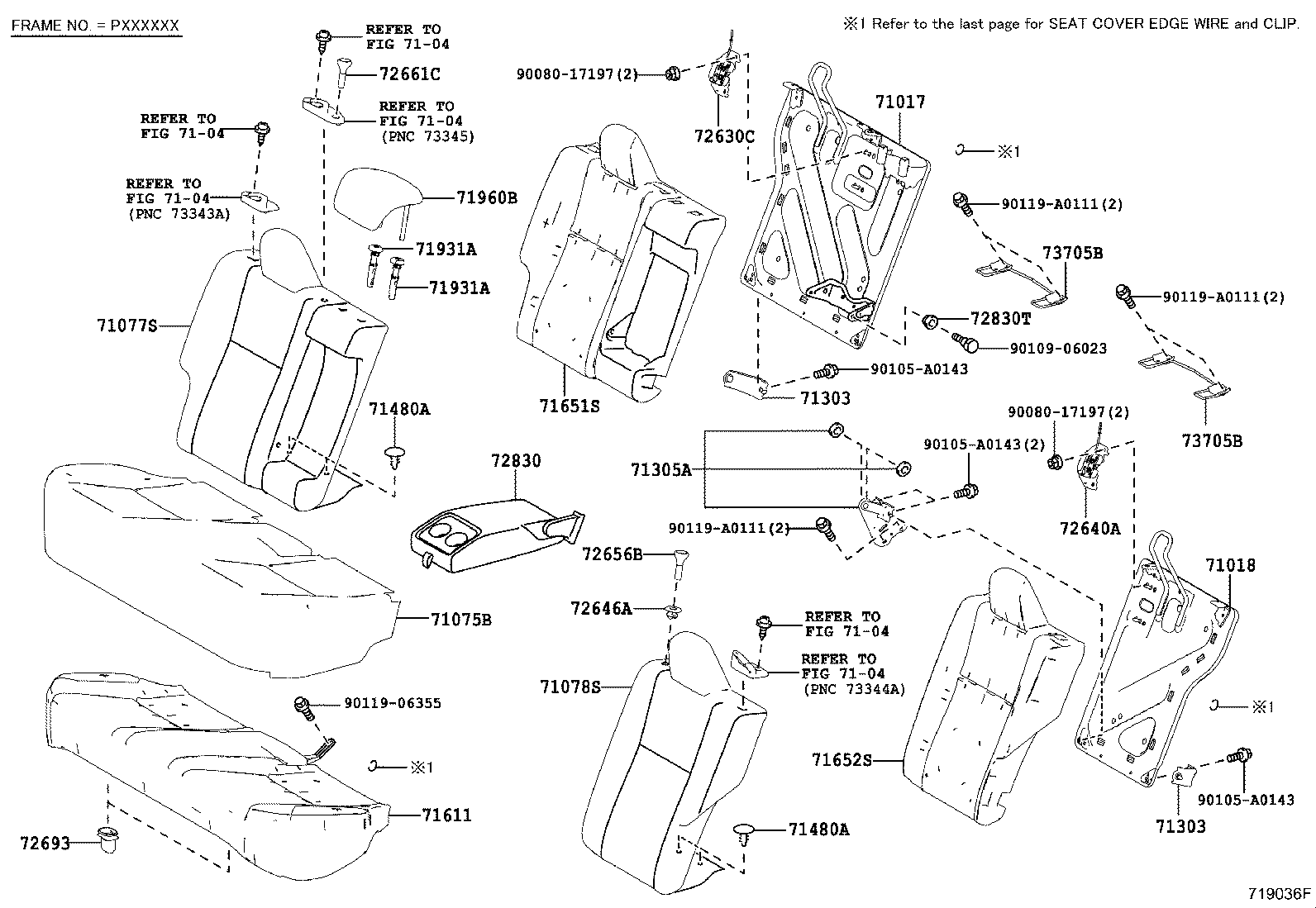

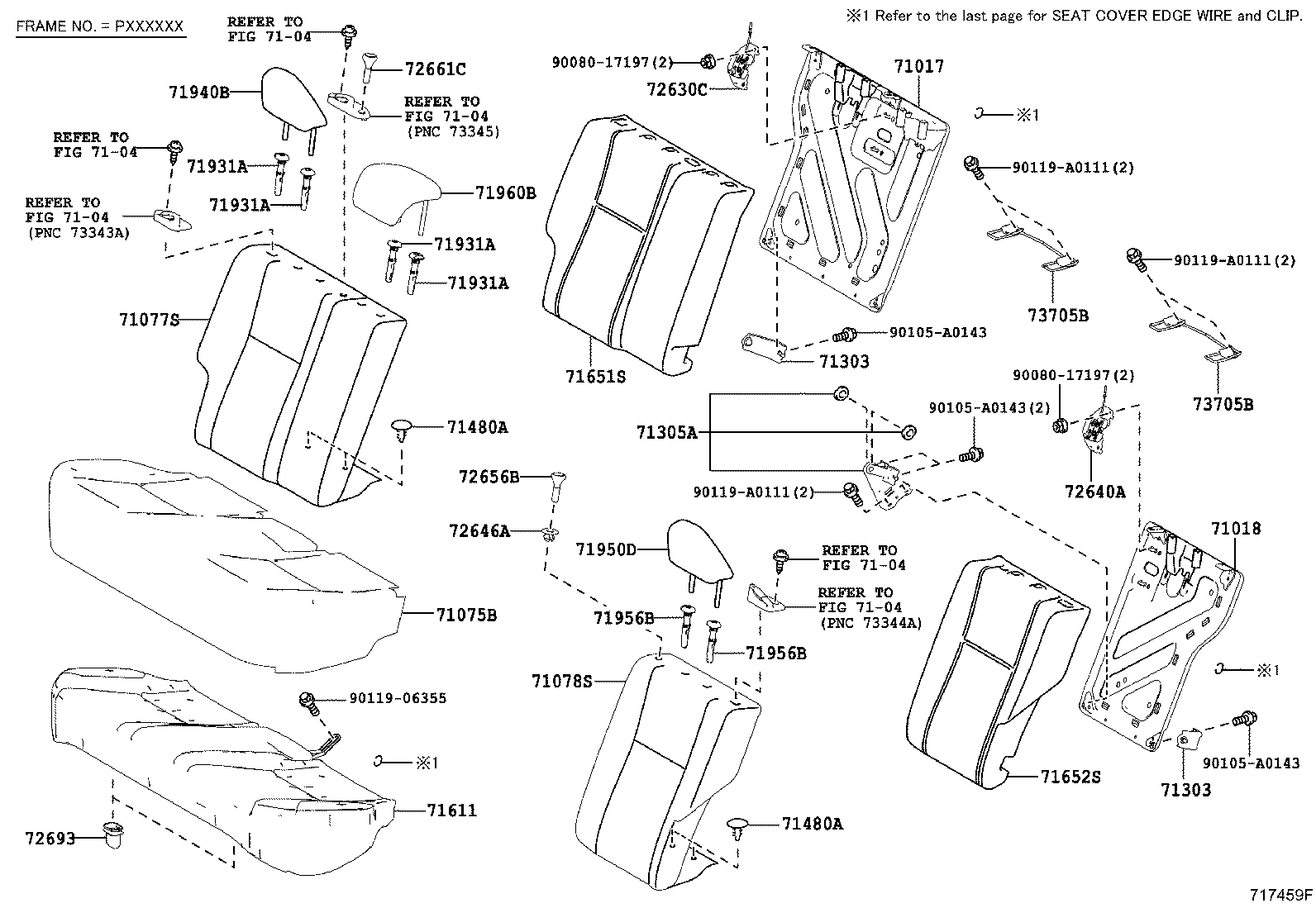

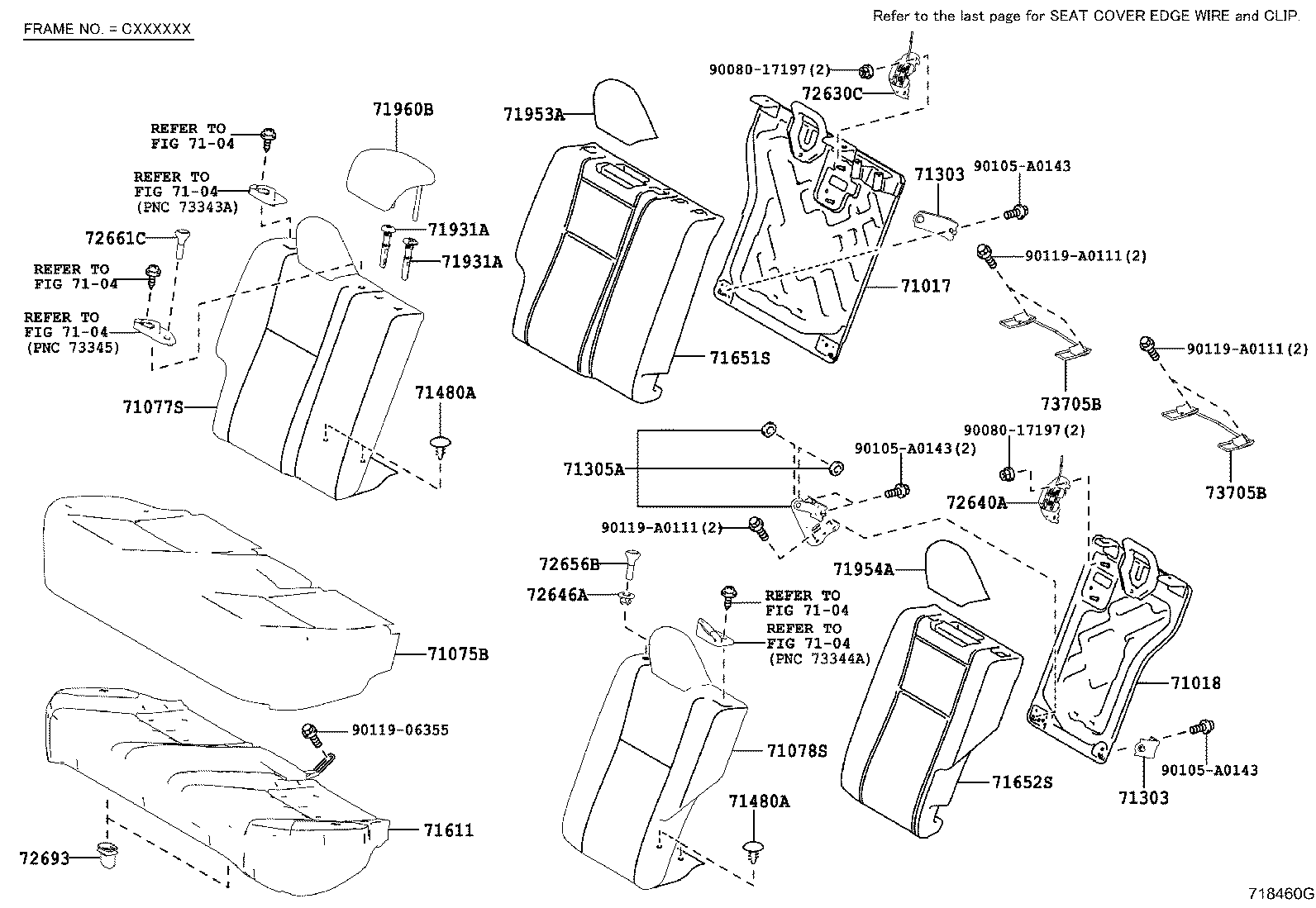

Rear Seat & Seat Track
30 part groups · 11 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71303 | Hinge Sub-assy, Rear Seatback |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71480A | Clip (FOR REAR SEATBACK) |
| 71611 | Pad, Rear Seat Cushion |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71931A | Support, Rear Seat Headrest |
| 71931B | Support Assy, Rear NO.1 Seat Headrest |
| 71940B | Headrest Assy, Rear Seat, RH |
| 71950D | Headrest Assy, Rear Seat, LH |
| 71953A | Pad, Rear Seat Headrest, RH |
| 71954A | Pad, Rear Seat Headrest, LH |
| 71956B | Support, Rear Seat Headrest |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72646A | Grommet, Rear Seatback Stop Button |
| 72656B | Button, Rear Seatback Stop Release |
| 72661C | Button, Rear Seatback Lock Release |
| 72693 | Hook, Rear Seat Cushion Lock |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72830B | Bush(FOR REAR SEAT CENTER ARMREST) |
| 72830T | Bush (FOR REAR SEAT CENTER ARMREST) |
| 72868B | Cover, Center Armrest Hinge |
| 73705B | Bracket Sub-assy, Cross Anchor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
