Toyota Corolla
2013-08 → 2019-03 · chassis ZRE172 · catalogue 152370 · United States
Supported model
Data version 2019-04

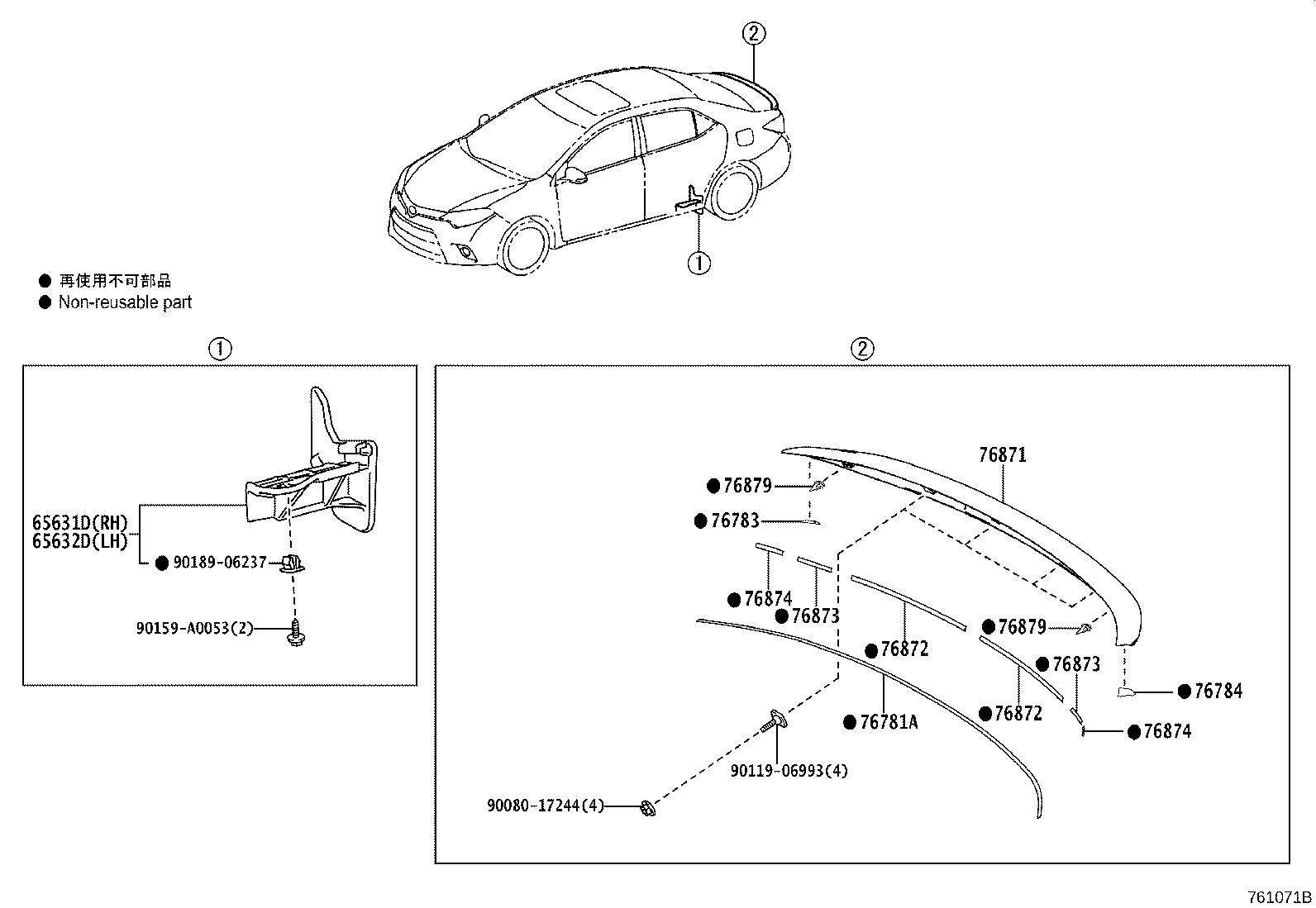

Mudguard & Spoiler
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 76781A | Tape, Rear Spoiler, Upper NO.1 |
| 76783 | Tape, Rear Spoiler, Lower RH |
| 76784 | Tape, Rear Spoiler, Lower LH |
| 76871 | Spoiler, Rear |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76873 | Protector, Rear Spoiler, NO.2 |
| 76874 | Protector, Rear Spoiler, NO.3 |
| 76879 | Clip, Rear Spoiler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
