Toyota Corolla

2013-08 → 2019-03 · chassis ZRE172 · catalogue 152370 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

13 part groups · 2 illustrations

Illustrations

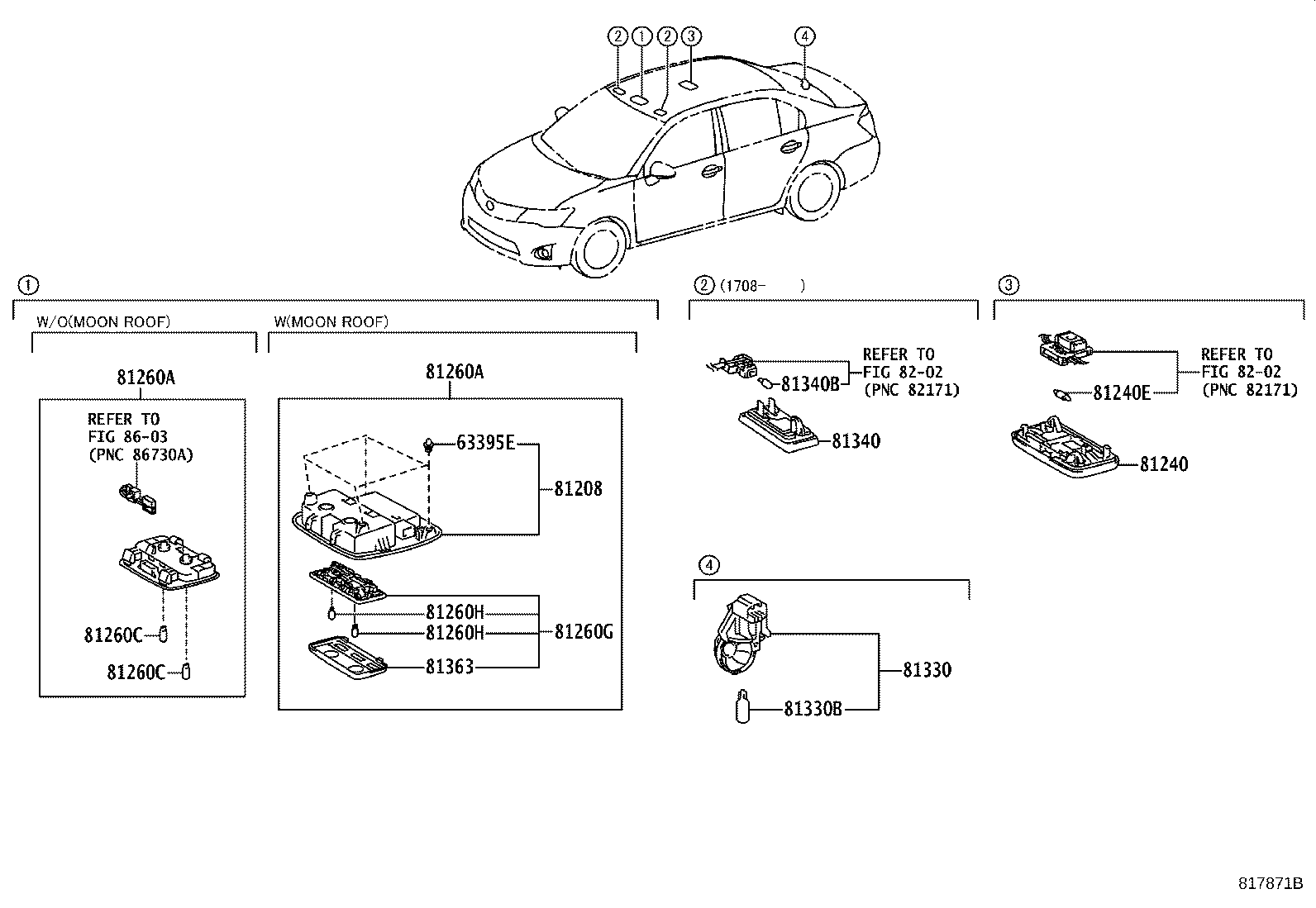

Figure 816619B 816619B 2013-08 → 2016-08 Figure 817871B 817871B 2016-08 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81208 Lamp Sub-assy, Map
81240 Lamp Assy, Room, NO.1
81240E Bulb, Room Lamp, NO.2
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81260G Lamp Assy, Map, NO.2
81260H Bulb(FOR MAP LAMP), NO.2
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81363 Lens, Room Lamp, Outer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
