Toyota Corolla

2013-08 → 2019-03 · chassis ZRE172 · catalogue 152370 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 3 illustrations

Illustrations

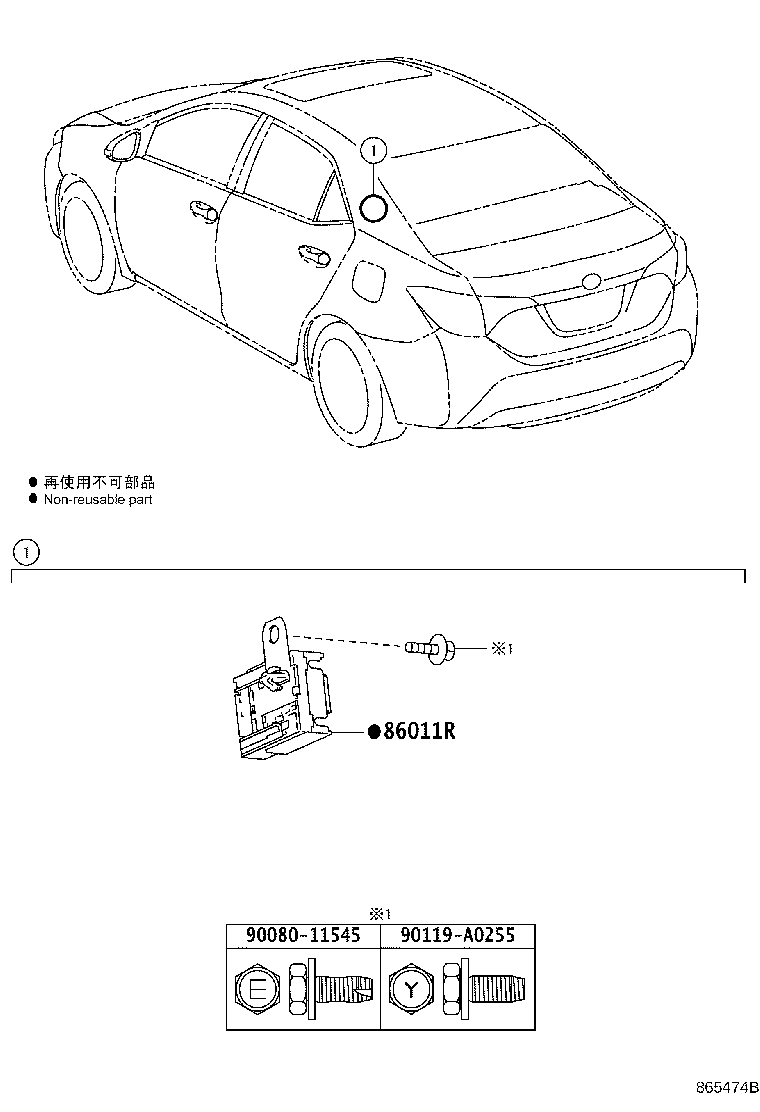

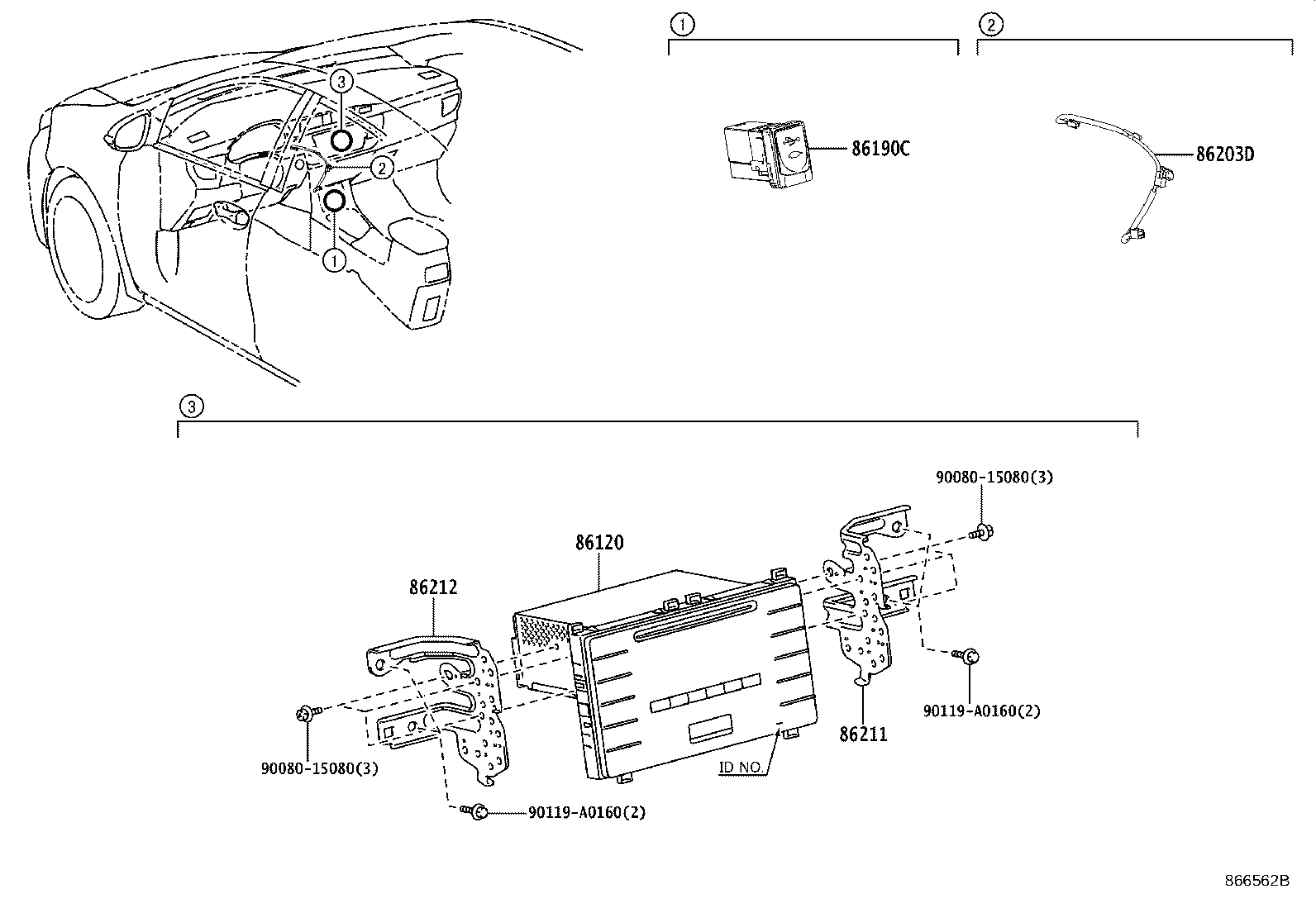

Figure 865473I 865473I 2013-08 → 2016-08 Figure 866562B 866562B 2016-08 → — Figure 865474B 865474B 2013-08 → —

Part groups

PNCDescription
86011R Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86145 Connector, Antenna Male
86190C Adapter Assy, Stereo Jack, NO.1
86203D Wire, Stereo Component, NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86221A Panel, Radio Receiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
