Toyota Corolla

2013-08 → 2019-03 · chassis ZRE172 · catalogue 152370 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

11 part groups · 2 illustrations

Illustrations

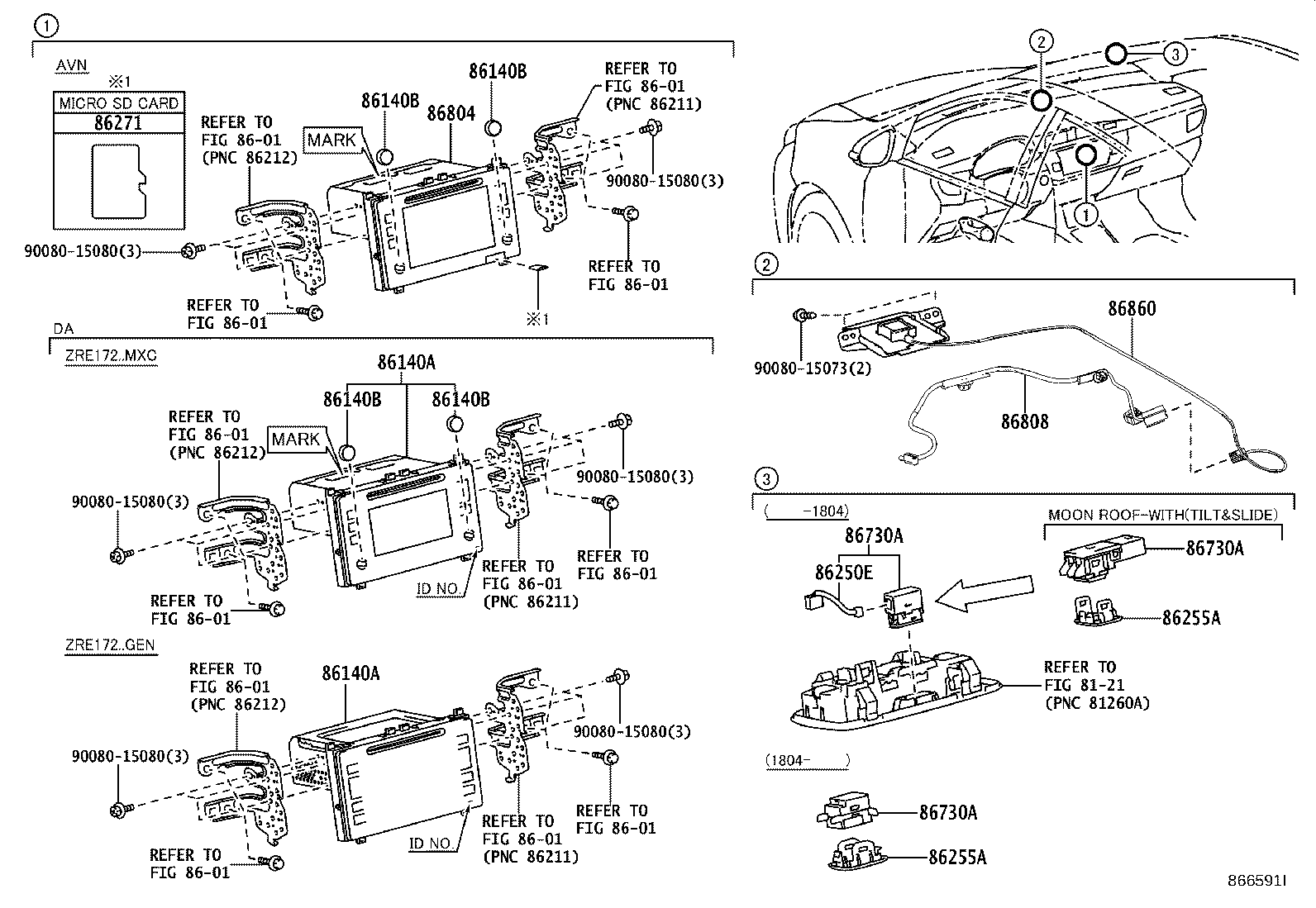

Figure 865499F 865499F 2013-08 → 2016-08 Figure 866591I 866591I 2016-08 → —

Part groups

PNCDescription
86120P Knob, Navigation Receiver Switch
86134A Parts, Multi-display
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86250E Microphone Assy, Amplifier
86255A Case, Microphone, NO.1
86271 Disc, Disc Player
86730A Microphone Assy, Telephone
86804 Cover Sub-assy, Navigation Computer
86808 Cord Sub-assy, Navigation Antenna, NO.1
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
