Toyota Corolla

2013-08 → 2019-03 · chassis ZRE172 · catalogue 152370 · United States

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

17 part groups · 7 illustrations

Illustrations

Figure 87D689B 87D689B 2013-08 → 2016-08 Figure 87D689B 87D689B 2014-08 → 2016-08 Figure 87F863B 87F863B 2016-08 → — Figure 87D706A 87D706A 2013-08 → 2016-08 Figure 87D706A 87D706A 2014-08 → 2016-08 Figure 87F864 87F864 2016-08 → — Figure 87D691 87D691 2013-08 → —

Part groups

PNCDescription

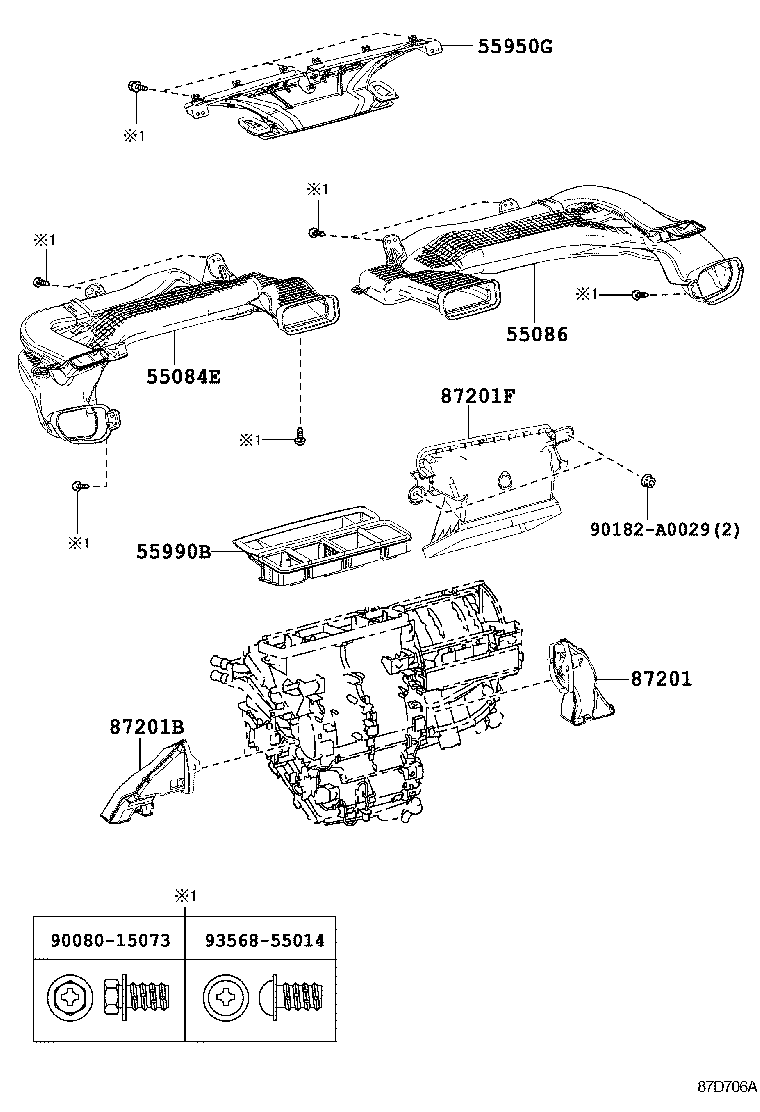

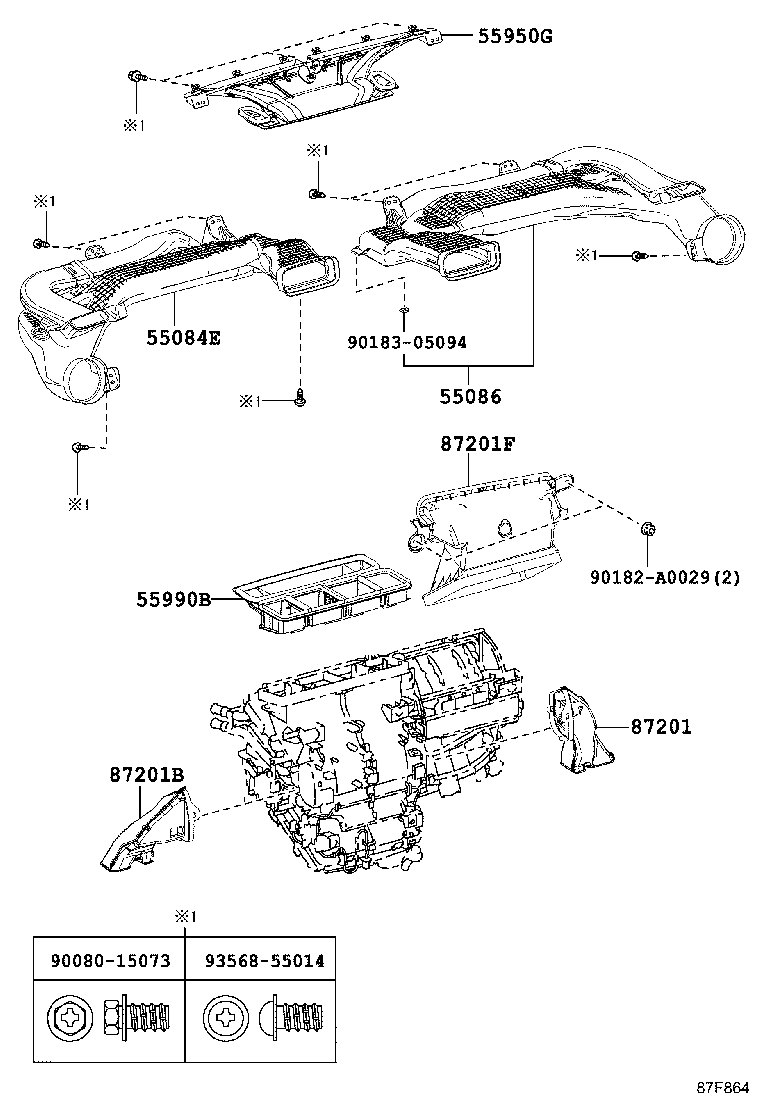

55084E Duct Sub-assy, Heater TO Register, NO.1
55086 Duct Sub-assy, Heater TO Register, NO.3

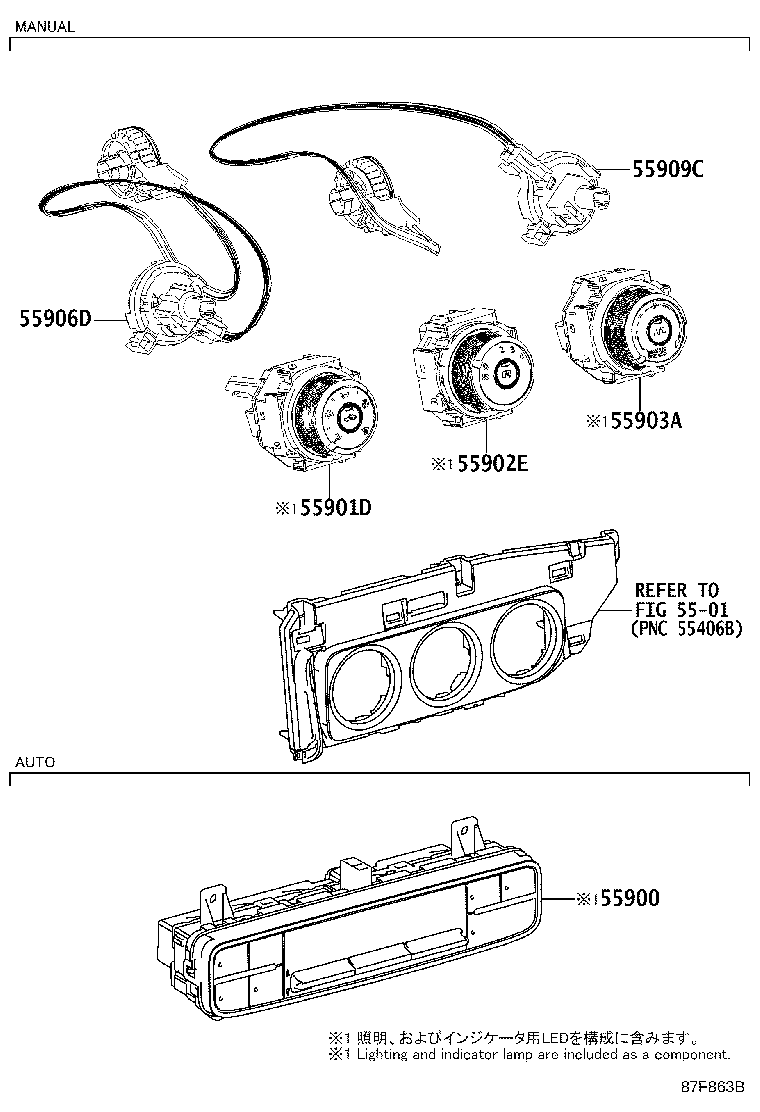

55900 Control Assy, Air Conditioner
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55903A Control Sub-assy, Heater, NO.3
55906D Cable Sub-assy, Heater Control, NO.2
55909C Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3

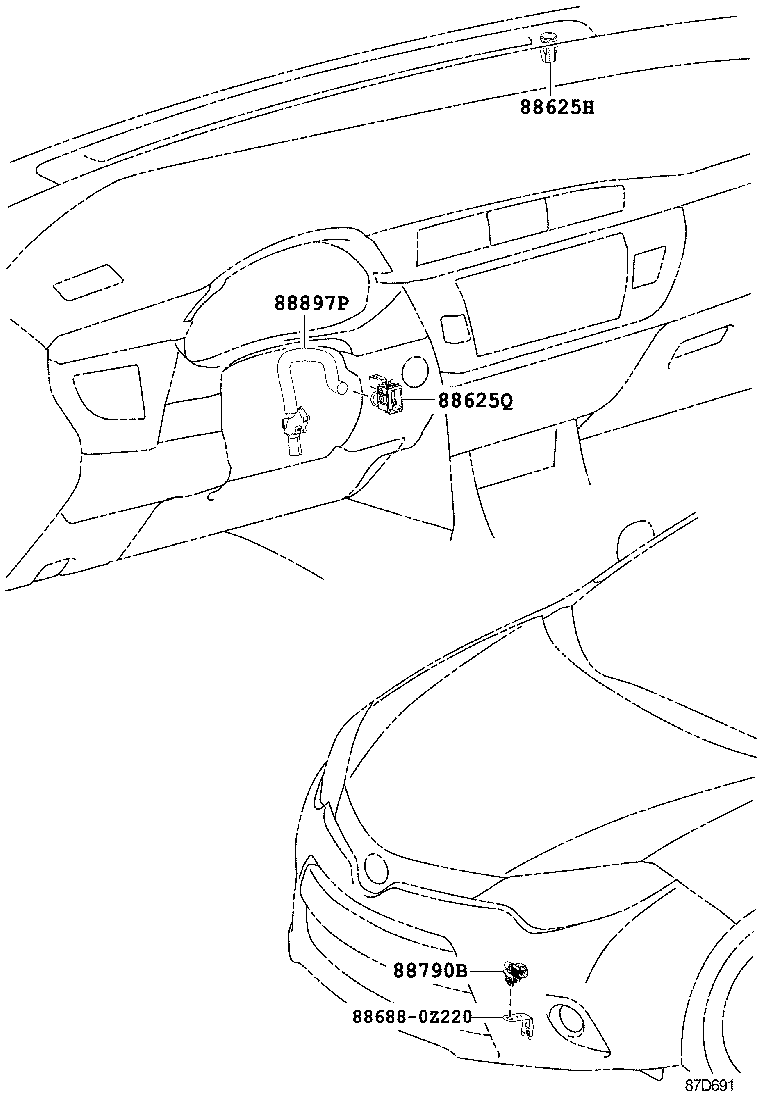

88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
